RadiLight
Comfort Light for Reading Rooms
Easily attachable light for RadiForce medical LCD monitors.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility

Case Studies

prev next

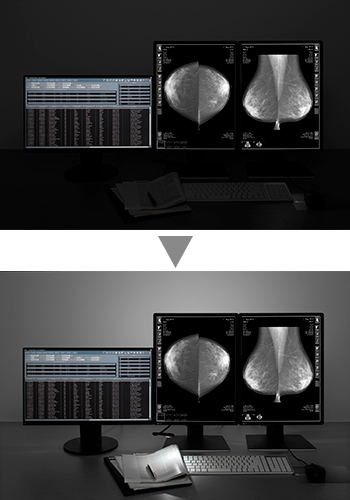

Care for the Radiologist's Eyes

Optimized Reading Room

According to the "European guidelines for quality assurance in breast cancer screening and diagnoses," in order to prevent reflections on the monitor screen, the mammography diagnoses reading room must have an illuminance of 20 lux or less.


However, viewing a bright monitor in a dark environment over a long period of time can cause eye strain and make it more difficult to see documents or other tools in the workstation.


Relief with Gentle Light

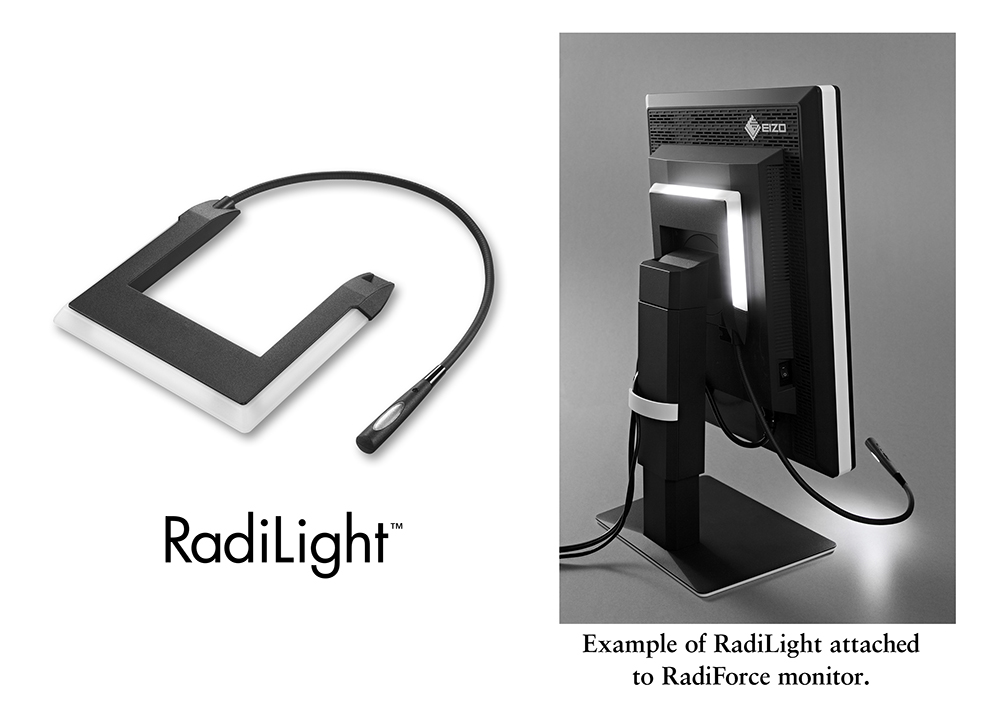

RadiLight attaches to the back of RadiForce monitors and illuminates the wall behind the monitor, providing lighting in accordance with these guidelines; ensuring that there is no reflection on the screen to interfere with your work. This ambient lighting reduces the amount of eye strain on the radiologist, without reducing screen visibility.






Optimized Reading Room



Flicker-Free

Due to the way brightness is controlled on LED backlights, some people perceive flicker on their monitor which causes eye fatigue. With technology based on the dimming control of EIZO's LED-equipped monitors, such as the FlexScan EV Series, RadiLight is a flicker-free lighting solution that reduces eyestrain.

The Latest on Computer Screens and Eye Fatigue
Flicker-Free


Ease-of-Use

Easily Attachable

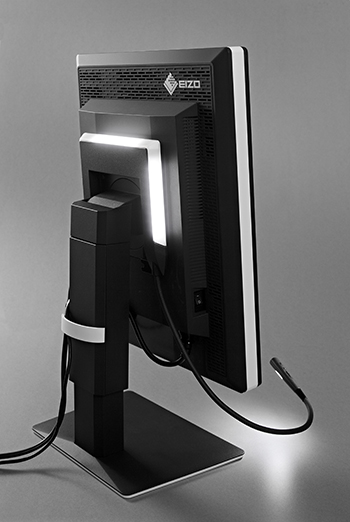

RadiLight easily attaches to the back of the monitor stand so it does not take up desk space. Power is supplied to RadiLight via the connected monitor's USB port for quick and simple setup.

Easily Attachable




Spotlight for Navigating Your Workspace

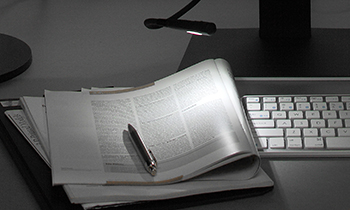

It is equipped with a spotlight called RadiLight Focus which allows you to check or read printed documents or see your keyboard and other tools.

Spotlight for Navigating Your Workspace

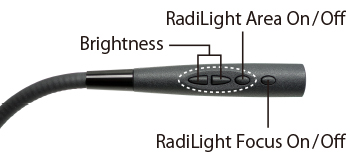

Convenient ON/OFF Capability

RadiLight Area and RadiLight Focus can be easily turned on or off with the touch of a button so you can use it only when you need it.

Convenient ON/OFF Capability




Selectable Brightness

The brightness of RadiLight's wall light feature, RadiLight Area, can be adjusted to 10 different levels of brightness. This allows you to choose the most appropriate and comfortable lighting for your environment.



Supported Models

For instructions on how to attach RadiLight to a ColorEdge monitor, please contact EIZO.

ColorEdge

4K 31.1"
CG318-4K
23.8"
CG248-4K
CG Series 27"
CG277
24.1"
CG247X, CG247

RadiForce

Monochrome Monitors 5MP
GX550, GX540
3MP
GX340
2MP
GX240, GS220
Color Monitors 8MP
RX850, MX315W
6MP
RX660, RX650
5MP
RX560
4MP
RX440, RX430
3.7MP
MX270W
3MP
RX350, RX340
2.3MP
MX241W
2MP
RX250, RX240, MX215
1MP
RS110
Cabinet Color Black
Power
Power Requirements USB power
Weight 370 g
Dimensions (W x H x D) 184 x 185.5 x 15.7 mm
Certifications & Standards CE, IEC60950-1, CSA C22.2 No. 60950-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, EAC
Supplied Accessories dedicated cable, user's manual, mounting bracket, spacers, screws
Warranty Three years
Dimension Drawing PDF

Brochures

RadiForce general
13.3 MB

Download



Manuals

Languages

Document Language Size Download
RadiLight Instructions for Use English 928 KB Download
RadiLight Instructions for Use Chinese-Simplified 1.1 MB Download
RadiLight Instructions for Use Chinese-Traditional 1.12 MB Download
RadiLight Instructions for Use French 927 KB Download
RadiLight Instructions for Use German 932 KB Download
RadiLight Instructions for Use Russian 926 KB Download
