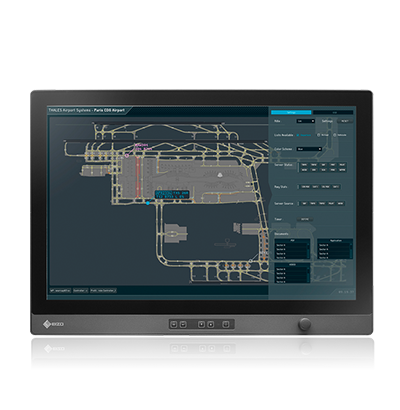

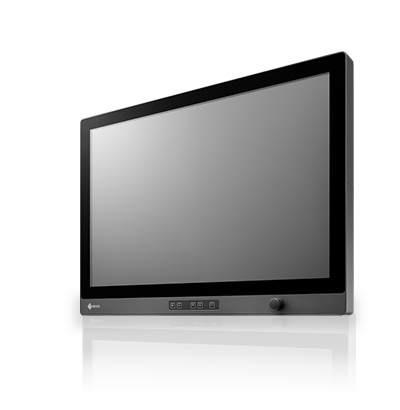

Raptor RP2425
24.1" (61 cm) Touch Panel Tower Monitor
The Raptor RP2425 is a touch panel monitor designed for air traffic control towers. It offers excellent readability in both bright and dim ambient lighting conditions, making it ideal for tower applications. It comes in multiple mounting configurations and is available with a range of customization options.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

45+ Years of Technical Expertise

EIZO has been an industry leader in the innovation and development of quality monitors for ATC since 2005. Backed by over 45 years of technical expertise in visual display solutions, the Raptor series of tower monitors are built to meet the diverse requirements of any ATC environment.

Visibility

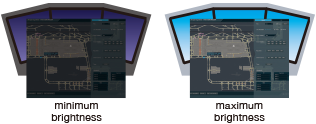

Wide Brightness Range

The Raptor RP2425 achieves an exceptionally wide brightness range from 10 up to 700 cd/m2 (750 cd/m2 for the non-touch panel version) for viewing in changing ambient lighting conditions. It also includes an adjustment dial for smooth brightness control.

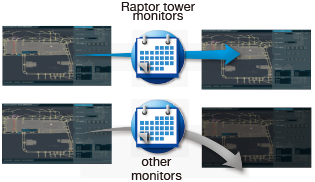

Backlight Stabilization

EIZO's fully automated backlight stability function uses an internal sensor to stabilize the brightness level throughout the life of the monitor, compensating for fluctuations caused by variations in ambient temperature and the passage of time.


Flicker-Free Images

Due to the way brightness is controlled with LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The Raptor RP2425 regulates brightness to make flicker unperceivable without compromising color stability.


Antiglare Protection Glass

The monitor is equipped with antiglare protection glass to ensure that the screen maintains high visibility even in bright ambient lighting.


Usability

Touch Panel Capability

The Raptor RP2425 offers a projected capacitive touch panel featuring reduced reflections, touch durability, and multi-touch support. Fully flat, it provides a seamless touch experience. A non-touch variation is also available.

touch panel

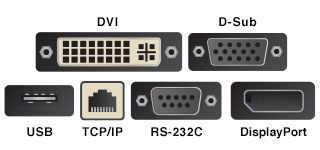

Complete Connection

The monitor is equipped with DVI-D, DisplayPort, and D-Sub mini inputs for supporting digital signals. It also comes equipped with a wide range of communication interfaces for connection to a network, remote monitor management, or maintenance purposes – RS232, USB, TCP/IP.


Mounting Flexibility

To meet the requirements of any installation, EIZO's tower monitors offer multiple configurations such as panel mount for installing directly into a console or VESA for mounting on an arm or stand. Mounting options vary by model.


Durability and Reliability

Industrial-Grade Housing

The monitor uses full sheet-steel industrial-grade housing for durability and high performance in demanding environments.

industrial-grade housing

24/7 Operation

The Raptor RP2425 is developed specifically for meeting the stringent requirements of mission-critical ATC environments with 24/7 operation.

24-7

Fanless Operation

The monitor provides noiseless, fanless operation while still maintaining low heat output without impacting performance.

fanless

Built-In Power Supply

The power supply is built in, freeing the installation space of an additional power brick and cabling.

built in power supply

Extensive Customization

EIZO offers extensive customization in order to meet the specific needs of individual towers and control centers. Available options vary by model so please contact EIZO for details.

extensive customization



Contact us to configure your monitor.
atc@eizo.com

Cabinet Color Black
Panel
Type IPS
Backlight LED
Size 24.1" / 61 cm
Native Resolution 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V) 518.4 x 324 mm
Pixel Pitch 0.270 x 0.270 mm
Grayscale Tones 256 tones
Display Colors 16.7 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 750 cd/m2(maximum)

10 cd/m2(minimum)

700 cd/m2(touch panel)
Contrast Ratio (typical) 1000:1
Response Time (typical) 14 ms (gray-to-gray)
Touch Panel
Type Projective Capacitive
Communication Protocol USB
Compatible OS Windows 10 (32-bit, 64-bit) / Windows 8.1 (32-bit, 64-bit) / Windows 7 (32-bit, 64-bit) / Linux (2.6.24 Kernel or later) (32-bit, 64-bit) / macOS / Mac OS X
Video Signals
Input Terminals DVI-D 24 pin x 1

DisplayPort x 1

D-Sub mini 15 pin x 1
Digital Scanning Frequency (H / V) 31.5 - 86 kHz, 50 - 76 Hz
Analog Scanning Frequency (H / V) 31.5 - 86 kHz, 50 - 76 Hz
Sync Formats Separate Sync / Composite Sync / Sync on green
USB
Function 1 upstream

2 downstream
Standard Rev. 2.0
Power
Power Requirements AC 100 - 240 V, 50 - 60 Hz
Maximum Power Consumption 75 W (Brightness: 700 cd/m2)
Typical Power Consumption 50 W (Brightness: 450 cd/m2)
Standby Mode Less than 4W
Power Management VESA DPMS
Features & Functions
Brightness Stabilization Yes
Communication Interface RS232, USB, TCP/IP
Communication Protocol Standard, Simplified, SNMP
Others External Keyboard: Yes (Requires hardware keyboard: EACON-S02 or EAMRC-S01)
Video Signal Management: Automatic Source Scan
Physical Specifications
Dimensions (Without Stand, W x H x D) 577 x 412 x 90 mm
Net Weight (Without Stand) 9.2 kg / 20.3 lbs
Hole Spacing (VESA Standard) 100 x 100 mm, 200 x 100 mm
Environmental Requirements
Operating Temperature 0 - 40°C / 32 - 104°F
Operating Humidity (R.H., non condensing) max. 80% (no condensation)
Storage Temperature -25 - 50°C / -4 - 122°F
Degree of Protection IP 40 (front)
IP 20 (rear)
Certifications & Standards (Please contact EIZO for the latest information.) CE, UL, c-UL, FCC, REACH, RoHS, WEEE
Warranty Two Years
