Product Name
17" Touch Panel Monitor
Seamless Touch Experience with a Highly Durable Screen
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

Innovative Touch Features

Projected Capacitive Touch Panel

The DuraVision FDS1782T features projected capacitive touch technology which is more durable and reliable compared to other touch technologies. The monitor accepts touch input from a bare finger or dedicated stylus.

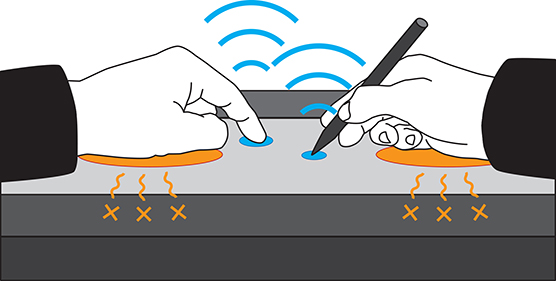

Multitouch Interface

The screen can detect up to 10 simultaneous touches so you can easily operate a variety of applications in almost any environment. The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input.
Multitouch Interface

Palm rejection minimum activation area is 2 x 2 cm.

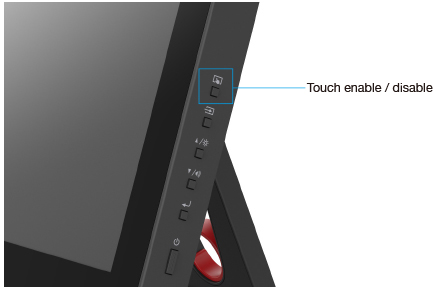

Touch Detection Control

Users can easily turn touch detection on or off by pushing the button conveniently located on the monitor's side.

Touch Detection Control

Sensitivity Calibration

The monitor is equipped with technology which calibrates the touch sensitivity to minimize incorrect touch reponse due to environmental factors and electromagenetic noise. This ensures that the screen maintains accurate touch interaction during use.

Stylus Compatibility

The monitor can be used with a touch stylus for smooth writing.
See stylus compatibility details here.

Features for Ease of Use

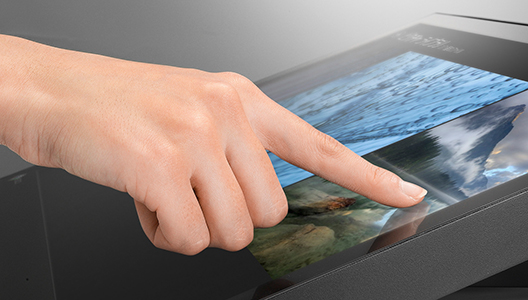

Fully Flat Design

The fully flat surface provides a seamless touch experience to the edges of the screen. This makes swiping motions and scrolling a breeze.

Fully Flat Design

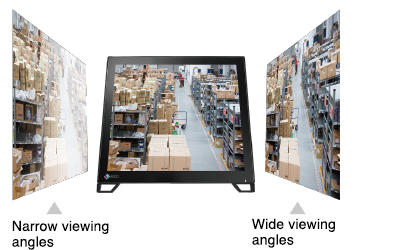

IPS Panel

The DuraVision FDS1782T uses an LED-backlit IPS panel with wide viewing angles that minimize color shift and contrast changes when viewing the screen from the side. The surface of the panel is also coated with an anti-glare treatement for further clarity in bright ambient environments.

IPS Panel

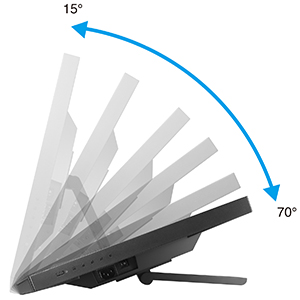

Reclining Stand

The equipped stand provides flexible positioning to allow the monitor to rest on your desk like a laptop and recline back to your desired angle. This makes it easy to place the monitor in the ideal position for comfortable use in any environment.

Reclining Stand

Additional Features

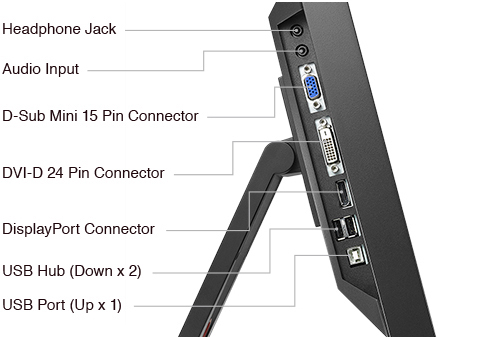

Complete Connection

The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs which are conveniently located on the side for easy access.

Complete Connection

High Durability

The touch screen has a non-scratch surface made of reinforced glass with a hardness of 5H (Mohs scale), making it durable enough to withstand long-term use in a range of environments.

Long-Term Reliability

The DuraVision FDS1782T is backed by a three year warranty which covers all components to ensure a long service life.

Model Variations With Stand, Without Stand
Cabinet Color Gray, Black
Panel
Type IPS
Backlight LED
Size 17" / 43 cm
Native Resolution 1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V) 337.9 x 270.3 mm
Pixel Pitch 0.264 x 0.264 mm
Display Colors 16.77 million from a palette of 1.06 billion
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 11 ms (Gray to gray)
Touch Panel
Type Projected Capacitive
Communication Protocol USB
Touch Life 50 million touches (minimum)
Surface Hardness 5H
Compatible OS Windows 10 (64-bit, 32-bit) / Windows 8.1 (64-bit, 32-bit) / Windows 7 (32-bit, 64-bit)
Video Signals
Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), DisplayPort x 1 (with HDCP)
Digital Scanning Frequency (H / V) 31 - 64 kHz, 59 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V) 31 - 81 kHz, 55 - 76 Hz
Sync Formats Separate
USB
Function 1 port for touch panel control
Standard USB 2.0
Audio
Speakers 1.0 W + 1.0 W
Input Terminals 3.5 mm stereo jack
Output Terminals 3.5 mm headphone jack
Sound Adjustment Volume, Power Save, Source (DisplayPort)
Power
Power Requirements AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption 37 W
Typical Power Consumption 10 W
Power Save Mode Less than 0.7 W
Standby Mode Less than 0.7 W
Power Management DVI DMPM, VESA DPM
Features & Functions
Preset Modes Color Mode (User1, User2, sRGB)
OSD Languages English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese
Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Overdrive, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, Power Indicator, Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 391.8 x 142.5 - 348 x 214.9 - 400.4 mm
Dimensions (Without Stand, W x H x D) 391.8 x 331 x 54 mm
Net Weight 4.8 kg / 10.6 lbs
Net Weight (Without Stand) 4.3 kg / 9.5 lbs
Tilt 15° - 70°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) CB (IEC60601-1), CB, CE, cTUVus, FCC-B, CAN ICES-3 (B), VCCI-B, BSMI, CCC, RCM, EAC, RoHS, WEEE, China RoHS
Supplied Accessories (May vary by country. Please contact EIZO for details.) AC power cord, signal cables (DVI-D - DVI-D, DisplayPort - DisplayPort), USB cable, audio cable, cleaning cloth, CD-ROM (PDF user's manual, touch panel driver, touch panel caliblation software), Mask Sheet, setup guide
Warranty Three Years
