FlexScan S2133
21.3" Color LCD Monitor
High-Resolution Monitor for Text and Graphics Work
With its IPS panel and 1600 x1200, resolution, the FlexScan S2133 is ideal for businesses and control rooms that need to display a large volume of data as well as for CAD and other design work that require brilliant color display.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

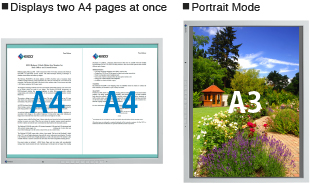

Square Format with Ample Space

With a 21.3-inch screen and a 1600 x 1200 native resolution, the FlexScan S2133 displays a large volume of information so you can scroll less and work more efficiently.
1600x1200 screen

Viewing Comfort with an Ergonomic Stand

Adjust the screen to the most comfortable position with 82 mm  height adjustment, 40° tilt, 70° swivel, and 90° rotation for portrait mode. Compatibility with VESA mounting standards allows the monitor to be removed from the stand for mounting on a movable arm or wall bracket.
stand

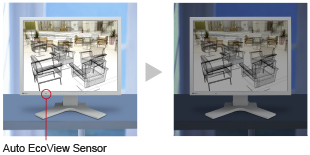

Optimized Brightness with Auto EcoView

The Auto EcoView ambient brightness sensor on the front of the monitor measures ambient light and optimizes the screen's brightness so the screen is never too bright or too dark. This reduces both eye strain and the monitor’s energy consumption.

auto ecoview

Preset Modes for Optimum Viewing

For optimum viewing of different kinds of content, EIZO's Fine Contrast function includes modes for office applications (Paper mode), video (Movie mode), web browsing (sRGB mode), and user-defined settings (User modes 1 and 2). Toggling between modes can be done manually in the OSD menu or automatically by assigning a mode to a particular application with the bundled ScreenManager Pro for LCD software.

Closely Simulates Documents and Books

Paper mode produces tones and contrast similar to those of printed paper. Together with the Auto EcoView ambient brightness sensor, Paper mode makes reading documents and ebooks more comfortable and reduces eyestrain.

paper mode

Good Visibility in Bright Places

With a maximum brightness of 420 cd/m2 and a contrast ratio of 1500:1, the screen remains visible under daylight conditions and brightly lit rooms.


USB Hub

A USB hub with one upstream and two downstream ports is included.

Supports HDCP

The DisplayPort and DVI-D 24 pin connectors and HDCP compliant. By connecting to an HDCP enabled computer, you can display digital copyright protected contents from digital streams and Blu-ray.

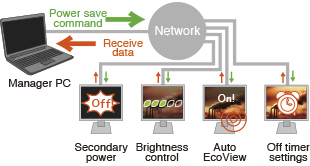

Energy Savings across the Network

EIZO’s EcoView NET power management software provides centralized control over the power settings of monitors on a network. With EcoView NET, a systems administrator can confirm the settings for each monitor on the network, turn the power on or off, and if necessary, take measures to combat eye fatigue such as adjust the brightness or activate Auto EcoView. EcoView NET is available from EIZO distributors.
energy saving across network


Made by EIZO

qualityWhile outsourcing production is now common practice in the monitor industry, EIZO continues to manufacture its products the same way it has throughout its 40-year history – with its own staff at its own factories. This allows EIZO to maintain close control over production quality and offer the industry’s only 5-year manufacturer’s limited warranty.

IPS Panel with Wide Viewing Angles

The IPS (in-plane switching) panel offers 178° viewing angles to minimize color shift and contrast when viewing the screen at an angle. This ensures stable and consistent display when two or more people view the screen at once or in a multi-monitor environment.
wide viewing angles

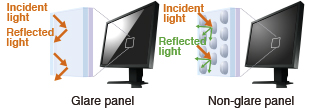

A non-glare screen reduces eye fatigue by dissipating reflective light that otherwise makes the screen difficult to see.

non glare panel

10-Bit Gamma Correction

This technology helps achieve accurate color by converting the 8-bit PC data to 10-bit, and assigning the ideal gamma values with a 10-bit look-up table (LUT) then returning the data to 8-bit format for display.

Safety-Lock Slot

A slot for attaching a safety lock is included to help prevent theft.

LED Backlight

With an energy-saving LED backlight, the FlexScan S2133 uses only 13 watts during typical operation. The LED backlight does not contain any mercury for minimal environmental impact when the monitor is eventually disposed of.

Eye Care Utility

eye care utilityThe EyeCare utility is EIZO -developed software that helps promote better work habits. It consists of a function called “EyeCare Reminder” that reminds you to take scheduled breaks.

Consistent Color Display

The gamma, color temperature, and other parameters are adjusted to the proper values on the assembly line. This minimizes variation in color display for consistency in a multi-monitor setups and large scale installations.

Clear Video Display

An overdrive circuit that reduces gray-to-gray response time to just 6 ms when watching video. This greatly reduces ghosting and blurring that is caused by high motion scenes ensuring moving images look clean and sharp.
without or with overdrive

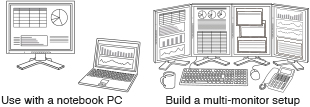

Getting Connected

Three input terminals are included – DisplayPort, DVI-D, and D-Sub. The DisplayPort cable can be quickly affixed and detached which makes it convenient for connecting the monitor to a notebook computer. With DisplayPort, you can easily build a multi-monitor environment by using a graphics board that has multiple DisplayPort connectors or a DisplayPort multi-display adapter.
getting connected



Built to Last Five Years

EIZO’s five-year warranty is two years or 67% longer than the standard three-year warranty of most brands. Even if the initial purchase price of the FlexScan S2133 is higher than another 21-inch monitor, the TCO (total cost of ownership) will likely be lower due to the significantly longer buying cycle and less need for repair.
5-year vs 3-year



Compliance with International Labels

Meets the most stringent international labels for ergonomics and energy savings.

ENERGY STAR   TUV/Ergonomics





Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Environmentally Conscious
FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system.

SDGs 07SDGs 12SDGs 13

Higher Work Efficiency
FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue.

SDGs 08



Choose My Workstyle

Model Variations S2133-HBK: with Height Adjustable Stand, black
S2133-HGY: with Height Adjustable Stand, gray
S2133-FBK: without stand, black
S2133-FGY: without stand, gray

Note: Height Adjustable Stand is removable
Panel
Type IPS
Backlight LED
Size 21.3" (54 cm)
Native Resolution 1600 x 1200 (4:3 aspect ratio)
Viewable Image Size (H x V) 432 x 324 mm
Pixel Pitch (H x V) 0.270 x 0.270 mm
Pixel Density 94 ppi
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 420 cd/m2
Contrast Ratio (typical) 1500:1
Response Time (typical) 6 ms (gray-to-gray)
Color Gamut (typical) sRGB
Video Signals
Input Terminals DisplayPort (HDCP 1.3), DVI-D (HDCP 1.4), D-Sub mini 15 pin
Digital Scanning Frequency (H / V) 31 - 76 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V) 24 - 80 kHz / 49 - 76 Hz (1600 x 1200: 59 - 61 Hz)
Sync Formats Separate, Composite
USB
Upstream USB 2.0: Type-B
Downstream USB 2.0: Type-A x 2
Power
Power Input AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz
Typical Power Consumption 13 W
Maximum Power Consumption 45 W
Power Save Mode 0.3 W or less
Features & Functions
Preset Modes User, sRGB, Paper, Movie, DICOM
Automatic Brightness Control Auto EcoView
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others Screen Adjustment (Clock, Phase, Position, Range (Auto)), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Reset), Input Signal, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, Power Indicator, Reset, DDC/CI Lock
Physical Specifications
Dimensions (Landscape, W x H x D) 465 x 453 - 535 x 208.5 mm
Dimensions (Without Stand, W x H x D) 465 x 361 x 64 mm
Net Weight 8.6 kg
Net Weight (Without Stand) 5.6 kg
Height Adjustment Range 82 mm
Tilt 40° Up, 0° Down
Swivel 35° Right / 35° Left
Pivot 90° (clockwise)
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) TUV/Ergonomics, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EAC
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DVI-D (2 m) , D-Sub mini 15 pin (1.8 m)
Others AC power cord (2 m), USB Type-A - USB Type-B cable (1.8 m), VESA mounting screw x 4 (S2133-F), EIZO LCD Utility Disk (PDF user's manual, ScreenManager Pro for LCD [DDC/CI], EIZO ScreenSlicer software), setup guide
Warranty 5 Years
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

Brochures

FlexScan Series 2023
9.27 MB

Download



FlexScan S2133
1.45 MB

Download



Manuals

Languages

S2133 User's manual English 12.6 MB PDF
S2133 User's manual German 12.6 MB PDF
S2133 User's manual French 12.6 MB PDF
S2133 User's manual Russian 12.6 MB PDF
S2133 User's manual Czech 858 KB PDF
S2133 User's manual Chinese-Simplified 13 MB PDF
S2133 Setup guide English
German
French
Chinese-Simplified
739 KB PDF
S2133 Setup guide Czech 579 KB PDF
S2133 Setup guide Chinese-Traditional 715 KB PDF
S2133 Setup guide Arabic 601 KB PDF
S2133 Setup guide Danish 592 KB PDF
S2133 Setup guide Dutch 591 KB PDF
S2133 Setup guide Finnish 586 KB PDF
S2133 Setup guide Korean 737 KB PDF
S2133 Setup guide Norwegian 591 KB PDF
S2133 Setup guide Polish 591 KB PDF
S2133 Setup guide Portuguese 587 KB PDF
S2133 Setup guide Turkish 591 KB PDF
ScreenSlicer Ver.1.1.5 Software manual (English) English 1.88 MB PDF
ScreenManager Pro for LCD (DDC/CI) Ver.2.4.1 Software manual (English) English 1.16 MB PDF
LIMITED WARRANTY English
German
French
Russian
Chinese-Simplified
Chinese-Traditional
623 KB PDF
