FlexScan

Screen InStyle Server

Screen InStyle Server is free asset management software for equipment administrators who manage a large number of monitors.

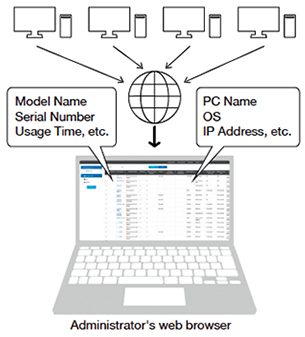

Automatically Receive Monitor or PC Information

By using Screen InStyle Server, you can automatically obtain information such as the model name and serial number (S/N) of Screen InStyle installed monitors on the network and display them on your web browser. In addition to the monitor, Screen InStyle Server displays information such as the computer name, OS, IP address etc. of connected PCs to, manage asset information efficiently. You can also estimate when the monitors on your network will need to be replaced based off the total usage time of the monitor.



Automatically Obtained Information

Monitor PC
Model Manufacturer
Serial Number Model
Power On / Power Off Serial Number
Usage Time Computer Name
Brightness User Name
Color Mode OS
Color Settings (Color temperature, contrast ratio, gamma) IP Address
Eco Settings MSC Address
Key Lock Power Option Settings

Monitor and PC information can be imported and exported to an Excel sheet. Information can be easily transmitted to another company’s management software.

Optimum Monitor Settings Collectively, Even with Mass Deployment (From Ver. 1.1.0)


An administrator can collectively set settings such as color mode, brightness, eco function, etc. from a remote location. By locking the operation switch of the managed monitor, it is possible to prevent unintended changes to settings.













Conserve Power with Central Management


Manage various power settings of networked PCs and monitors. Set the monitor to turn off or the PC to sleep after a set period of inactivity.

















Improve Security with Automatic Locking


Improve office security by setting networked PCs to automatically lock after a certain period of inactivity. This is helpful when users forget to lock their PCs before leaving their desks.















Server Operating Conditions

Compatible OS
  • Windows Server 2016
  • Windows Server 2012 R2(64-bit)
  • Windows 10(64-bit)
  •
Windows 8.1(64-bit)

  • Windows 7 SP1(64-bit)
Compatible Browsers
  • Internet Explorer
  • Chrome
Personal Computers
  • Fulfills OS system requirements
  • Resolution of 1280 x 1024 or above

Supported Monitors/PC Operating Conditions

Supported Monitors EV3237, E2785, EV2780, EV2750, EV2456, EV2455, EV2451, EV2450
Compatible OS
  • Internet Explorer
  • Chrome
Personal Computers
  • Fulfills OS system requirements
  • Resolution of 1280 x 1024 or above

You need to install Screen InStyle on your computer and configure the server.

Screen InStyle Server / Screen InStyle Download

Both Screen InStyle Server and Screen In Style are available for download for no cost. Ver. 1.1 will be available from November 7th, 2017.

Download Screen InStyle Server and Screen InStyle
