Firmware Update Information for Thunderbolt 3 (MacBook Pro) Support on EV2780

Applicable Model: FlexScan EV2780

Incompatible Item

An incompatibility was found between EV2780 and MacBook Pro (Late 2016): When the Power Delivery setting of EV2780 was changed to 30 W, no image was shown. EV2780's power indicator blinked white and orange.

Units with Incompatibility

Firmware version is 10000-30100-10000 or 10000-30100-10001.
* Click here to know how to check the firmware version.

Countermeasures

Please download new firmware and update the firmware of your monitor.

Download Firmware

Procedure

  1. Connect the AC adapter to the MacBook Pro and boot it.
  2. If you set Power Delivery to 30 W, set it to 15 W (default value).
  3. Connect the EV2780 and the MacBook Pro with the USB Type-C cable attached to the EV2780.
    * Click here to know how to configure USB Power Delivery.
  4. Run the firmware update tool.
  5. Confirm the firmware version is updated to 10001-30100-10000 or 0001-30100-10001.

    * Click here to know how to check the firmware version.

To learn how to operate the firmware update tool, refer to the manual attached to it.



[How to check the firmware version]

  1. Touch any switch. Then touch image00.png to boot OSD.
    OSD

  2. Select Information.

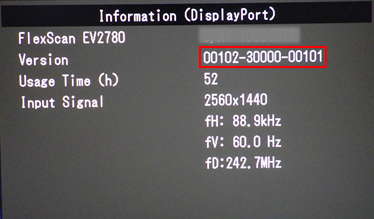

  3. The number in the red rectangular is the firmware version.

[How to configure USB Power Delivery]

  1. Touch any switch. Then touch image00.png to boot OSD.

  2. Select Preferences.
  3. Select USB Power Delivery and choose 15W or 30W.
