Advanced Adjustments/Settings

This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu. For the basic setting functions using the buttons on the front of the monitor, see Basic Adjustments/Settings.

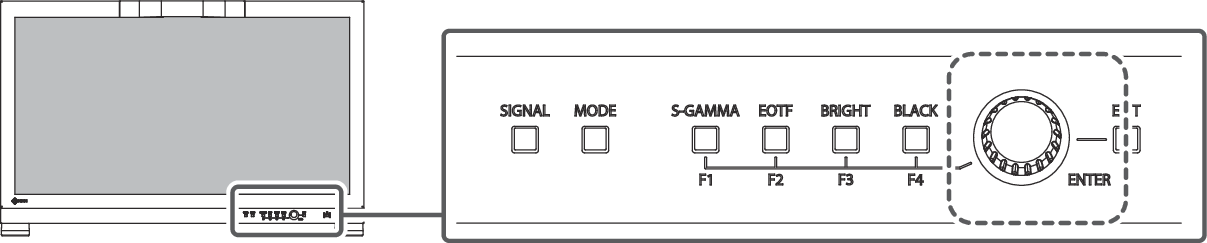

Basic Operation of the Setting Menu

---

Setting Menu Functions

Signal

The signal settings are used to configure advanced settings for input signals, such as the color format and input range.

Signal Information

You can check information on the input signal. The information displayed may differ depending on the input signal.

Pixel Inspection

See Pixel Inspection.

Input Color Format

Settings: "Auto" / "YUV 4:2:2" / "YUV 4:4:4" / "YUV" / "RGB" / "YCC4:2:2 10bit" / "YCC4:2:2 12bit" / "YCC4:4:4 10bit" / "YCC4:4:4 12bit" / "RGB4:4:4 10bit" / "RGB4:4:4 12bit"

The color space of the input signal can be specified.

Try changing this setting if colors are not displayed correctly. Normally, select "Auto".

YUV Color Matrix

Settings: "Auto" / "BT.601" / "BT.709" / "BT.2020"

Select the YUV format of the input signal. Use this setting for gradation collapse or other occurrences where the screen is displayed incorrectly because of a problem with the input signal.

Input Range

Settings: "Auto^*1" / "Full" / "Limited (109% White)" / "Limited" / "SDI Full"

Depending on the external device, the black and white levels in the video signal output to the monitor may be restricted. If the signal is displayed on the monitor in its restricted form, the blacks will be faint, the whites dull, and contrast will be reduced. The video range displayed on the monitor can be switched to make these signals the actual contrast ratio of the monitor.

• "Auto"
• The monitor automatically recognizes the range of input signals and displays images appropriately.
• If the input signals are the full range, it displays them as "Full".
• If the input signals are a limited range, it displays them as "Limited".
• "Full"
• The brightness range of the input signal is displayed as 0 – 255 (10 bits: 0 – 1023).
• "Limited (109% White)"
• The brightness range of the input signal is displayed from 16 – 254 (10 bits: 64 – 1019) to 0 – 255 (10 bits: 0 – 1023).
• "Limited"
• The brightness range of the input signal is displayed from 16 – 235 (10 bits: 64 – 940) to 0 – 255 (10 bits: 0 – 1023).
• "SDI Full"
• The brightness range of the input signal is displayed from 1 – 254 (10 bits: 4 – 1019) to 0 – 255 (10 bits: 0 – 1023).

Black Level Lift

Settings: "-500" – "500"

The black video level is changed without changing the white video level of the input signal.

Deinterlacing

Settings: "Normal" / "Line Doubler"

Select the IP conversion format. Normally, it is not necessary to change this setting from "Normal".

SDI / ST 2110 Settings - Time Code Settings

Settings: "Time Code" / "Format" / "Position" / "Size"

The time code can be set.

• "Time Code"
• If this function is set to "On", the time code is displayed.
• "Format"
• You can choose either "VITC" or "LTC" for the format of the time code.
• "Position"
• You can choose either "Top" or "Bottom" for the position to display the time code.
• "Size"
• You can choose either "Small" or "Large" for the size of the time code.

SDI / ST 2110 Settings - Interlace / PsF

Settings: "Auto" / "Interlace^*1" / "PsF^*1"

When an SDI signal other than progressive is input, the display format can be set.

Color

The setting details differ depending on the color mode selected.

When Color Mode is Standard Mode (BT.709 / BT.2020 / DCI-P3 / PQ_THEATER / PQ_DCI-P3 / PQ_BT.2100 / HLG_BT.2100 / SYNC_SIGNAL)

Each color mode setting can be adjusted according to personal preference.

Color Mode

Settings: "BT.709" / "BT.2020" / "DCI-P3" / "PQ_THEATER" / "PQ_DCI-P3" / "PQ_BT.2100" / "HLG_BT.2100" / "CAL1" / "CAL2" / "SYNC_SIGNAL"

Switch to the mode that suits the usage of the monitor.

Brightness

Settings: "40 cd/㎡" – "1000 cd/㎡"

The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel).

Temperature

Settings: "Native" / "4000 K" – "10000 K" / "D50" / "D65" / "D65 (CRT)" / "DCI" / "User"

The color temperature can be adjusted.

The color temperature is used to express the chromaticity of "White". The value is expressed in degrees "K" (Kelvin).

The screen becomes reddish at a low color temperature, and bluish at a high color temperature, like the temperature of a flame.

Specify a color temperature in units of 100 K, or select a standard name.

Gamma (EOTF)

Settings: "1.6" – "2.7" / "sRGB" / "EBU(2.35)" / "PQ" / "HLG"

Adjust the gamma.

The brightness of the monitor varies depending on the input signal, however, the variation rate is not simply proportional to the input signal. The control performed to keep the balance between the input signal and the brightness of the monitor is called Gamma correction.

Set the gamma, or select a standard name.

PQ Option

Settings: "Auto" / "300cd/㎡ Clipping" / "500cd/㎡ Clipping" / "1000cd/㎡ Clipping" / "4000cd/㎡ Emulation" / "10000cd/㎡ Emulation"

Areas with brightness equal to or greater than the value set here are displayed as clipping or emulation at this setting value for the PQ signal that is input to the monitor.

• "Auto"
• It is clipped to an appropriate setting according to the input signal.
• "300cd/㎡ Clipping"
• Setting used to check the display of monitor with maximum brightness of 300 cd/m². Input video level of 637 (10 bits) or more is clipped.
• "500cd/㎡ Clipping"
• Setting used to check the display of monitor with maximum brightness of 500 cd/m². Input video level of 693 (10 bits) or more is clipped.
• "1000cd/㎡ Clipping"
• Setting used to check the display of monitor with maximum brightness of 1000 cd/m². Input video level of 770 (10 bits) or more is clipped.
• "4000cd/㎡ Emulation"
• Setting with which the image is properly displayed when monitor brightness is set to 4000 cd/m². This setting is used for a temporally check because this monitor cannot display 4000 cd/m². All gradients are emulated.
• "10000cd/㎡ Emulation"
• Setting with which the image is properly displayed when monitor brightness is set to 10000 cd/m². This setting is used for a temporally check because this monitor cannot display 10000 cd/m². All gradients are emulated.

HLG System Gamma

Settings: "1.0" – "1.5"

Adjust the system gamma value for the HLG signal that is input to the monitor.

Color Gamut

Settings: "Native" / "Adobe®RGB" / "sRGB" / "EBU" / "BT.709" / "BT.2020" / "SMPTE-C" / "DCI-P3"

Set the color reproduction area (color gamut) of the monitor.

"Color Gamut" is the range of colors that can be represented. Multiple standards are defined.

Advanced Settings - Hue

Settings: "-100" – "100"

The hue can be adjusted.

Advanced Settings - Saturation

Settings: "-100" – "100"

The saturation can be adjusted.

Advanced Settings - Gamut Clipping

Settings: "On" / "Off"

The method of displaying colors outside the monitor's displayable range within the color gamut specified in accordance with Color Gamut can be set.

• "On"
• The range of colors that are displayable on the monitor will be accurately displayed in accordance with the standard. Colors outside the displayable range will be saturated.
• "Off"
• Displays colors with priority on the color gradation rather than the color accuracy. The vertices of the color gamut defined in the standard move to a range that can be displayed by the monitor. This allows the closest colors displayable by the monitor to be displayed.

Advanced Settings - XYZ Format

Settings: "On" / "Off"

If this function is set to "On", the XYZ signal for digital cinema can be displayed on the monitor.

Advanced Settings - Gain

Settings: "0" – "2000"

The brightness of each color component red, green, and blue is called Gain. The chromaticity of "white" can be changed by adjusting the gain.

Advanced Settings - Black Level

Settings: "0" – "1500"

You can adjust the brightness and chromaticity for black by adjusting the levels of red, green, and blue, or by adjusting all of the black levels. Display the black test pattern or the background and adjust the black level.

Advanced Settings - 6 Colors

Settings: "-100" – "100"

The hue, saturation and lightness (brightness) can each be adjusted for the colors Magenta, Red, Yellow, Green, Cyan, and Blue.

Reset

Resets any color adjustments for the currently selected color mode back to the default settings.

When Color Mode is Advanced Mode (CAL1 / CAL2)

You can set targets for SelfCalibration and execute calibration.

Color Mode

Settings: "BT.709" / "BT.2020" / "DCI-P3" / "PQ_THEATER" / "PQ_DCI-P3" / "PQ_BT.2100" / "HLG_BT.2100" / "CAL1" / "CAL2" / "SYNC_SIGNAL"

Switch to the mode that suits the usage of the monitor.

Target Settings - Brightness

Settings: "Min" / "40 cd/㎡" – "1000 cd/㎡" / "Max"

You can set the brightness that will be used as a calibration target for SelfCalibration.

Target Settings - Black Level

Settings: "Min" / "0.20" – "3.50"

You can set the black level that will be used as a calibration target for SelfCalibration.

Target Settings - White Point - Temperature

Settings: "4000 K" – "10000 K" / "User" / "D50" / "D65" / "D65 (CRT)" / "DCI"

Set the White Point that will be used as a calibration target for SelfCalibration.

Set the White Point using the color coordinates (White(x) / White(y)) or color temperature.

When specifying color coordinates, set the values for "White(x)" and "White(y)", respectively.

When specifying the color temperature, set the color temperature in units of 100 K or select a color temperature according to each standard.

Target Settings - White Point - White(x) / White(y)

Settings: "0.2400" – "0.4500"

For more information, see Target Settings - White Point - Temperature.

Target Settings - Gamma (EOTF) - Gamma (EOTF)

Settings: "1.00" – "2.70" / "sRGB" / "EBU(2.35)" / "L*" / "PQ" / "HLG" / "User" / "Fixed"

Set the gamma that will be used as the calibration target for SelfCalibration.

Set the gamma, or select the gamma curve defined by each standard.

Target Settings - Gamma (EOTF) - Gamma Policy

Settings: "Standard" / "Gray Balance" / "Fixed Gamma"

Select the gamma adjustment method for SelfCalibration.

• "Standard"
• Adjust the gray balance while retaining the contrast.
• "Gray Balance"
• Adjust the monitor so that the chromaticity of the middle tone area equals the white point.
• "Fixed Gamma"
• Select to use specific gamma settings.

Target Settings - Gamma (EOTF) - PQ Option

Settings: "Auto" / "300cd/㎡ Clipping" / "500cd/㎡ Clipping" / "1000cd/㎡ Clipping" / "4000cd/㎡ Emulation" / "10000cd/㎡ Emulation"

Set the PQ option that will be used as the calibration target for SelfCalibration.

Target Settings - Gamma (EOTF) - HLG System Gamma

Settings: "1.0" – "1.5"

Set the HLG system gamma that will be used as a calibration target for SelfCalibration.

Target Settings - Color Gamut - Color Gamut

Settings: "Native" / "Adobe®RGB" / "sRGB" / "EBU" / "BT.709" / "BT.2020" / "SMPTE-C" / "DCI-P3" / "User"

Set the color gamut that will be used as a calibration target for SelfCalibration.

In "Color Gamut", the color gamut defined by each standard can be selected.

To set a color gamut other than those specified by each standard, specify the color coordinates of each RGB color, and the display method ("Gamut Clipping") of colors outside the color gamut of the monitor.

Target Settings - Color Gamut - Red(x) / Red(y) / Green(x) / Green(y) / Blue(x) / Blue(y)

Settings: "0.0000" – "1.0000"

For more information, see Target Settings - Color Gamut - Color Gamut.

Target Settings - Gamut Clipping

Settings: "On" / "Off"

For more information, see Target Settings - Color Gamut - Color Gamut.

Target Settings - Advanced Settings - Limited (109% White)

Settings: "On" / "Off"

If this function is set to "On" then, if "Gamma (EOTF)" is from "1.6" to "2.7", the brightness range of the input signal is displayed as 16 – 254 (10 bits: 64 – 1019). If "Gamma (EOTF)" is anything other than "1.6" to "2.7", it is displayed as 16 – 235 (10 bits: 64 – 940).

Target Settings - Reset

Resets any calibration targets for the currently selected color mode back to the default settings.

Execute Calibration

SelfCalibration can be executed manually regardless of the schedule.

SelfCalibration

See SelfCalibration Functions.

Screen

Set the details regarding input signal, such as the screen size and color format.

Picture Expansion

Settings: "Auto^*1" / "Full Screen" / "Aspect Ratio" / "Dot by Dot"

The screen size of the monitor display can be changed.

• "Auto"
• The monitor automatically changes the screen size according to the resolution information and aspect ratio information from the input signal.
• "Full Screen"
• Displays images in full screen. Since aspect ratios are not maintained, images may be distorted in some cases.
• "Aspect Ratio"
• Displays images in full screen. Since aspect ratios are maintained, blank horizontal or vertical borders may appear.
• "Dot by Dot"
• Displays images at the set resolution or size specified by the input signal.

Nearest Neighbor

Settings: "Off" / "On"

You can select the interpolation method for enlarging and displaying images. When this function is set to "On", the Nearest Neighbor method^*1 is enabled to display accurate colors. When "Off" is set, a smooth gradation display is possible because it is interpolated in a gradation that is well-balanced with the surrounding pixels.

Zoom

Settings: "Off" / "Center" / "Lower Left" / "Upper Left" / "Upper Right" / "Lower Right"

When a 4K2K signal (a signal with a resolution of 4096 x 2160 or 3840 x 2160) is displayed on the monitor, the specified area can be doubled in size. This is convenient for checking details in an image.

BT.709 Gamut Warning

Settings: "Off" / "Clip" / "On"

If a signal that complies with the ITU-R BT.2020 standard is input, you can set the display method for colors that exceed the color gamut for the BT.709 standard.

• "Off"
• Images are displayed according to the color gamut for BT.2020.
• (The actual color gamut that is displayed on the monitor will depend on the setting for Advanced Settings - Gamut Clipping.)
• "Clip"
• Colors that are outside of the color gamut for BT.709 are expressed within the color gamut for BT.709 (clipping occurs).
• "On"
• Colors that are outside of the color gamut for BT.709 are displayed in gray.

Luminance Warning

Settings: "Off" / "On(Yellow)" / "On(Magenta)"

You can check areas with a brightness that is higher than the brightness that is set for "PQ Option" for the input signal (areas where clipping occurs).

Blue Only

Settings: "Off" / "On"

Use this function to check the noise.

Marker - Marker 1

Settings: "Off" / "On" / "On (3 division grid)"

If this function is set to "On", markers are displayed. If "On (3 division grid)" is set, boundary lines are displayed that divide the image into three equal parts with Marker 1 and Marker 1.

Marker - Marker 2 / Marker 3

Settings: "Off" / "On"

If this function is set to "On", markers are displayed.

Marker - Marker 1 Settings / Marker 2 Settings / Marker 3 Settings - Type

Settings: "Aspect" / "Dots (Center)" / "Dots (Free)"

You can select the type (method to specify position and size) of the marker.

Marker - Marker 1 Settings / Marker 2 Settings / Marker 3 Settings - Aspect

Settings: "4:3" / "13:9" / "14:9" / "15:9" / "16:9" / "21:9" / "1.85:1" / "2.35:1" / "2.39:1" / "User"

You can set the aspect ratio for the displayed marker.

Marker - Marker 1 Settings / Marker 2 Settings / Marker 3 Settings - Aspect (User)

Settings: "1.00:1" – "3.00:1"

You can set the aspect ratio for the displayed marker freely. This can only be set when "User" is selected for "Aspect".

Marker - Marker 1 Settings / Marker 2 Settings / Marker 3 Settings - Area Size

Settings: "50.0%" – "100.0%" / "User"

You can set the size of the area. This can only be set when "Aspect" is selected for "Type".

Marker - Marker 1 Settings / Marker 2 Settings / Marker 3 Settings - Hor. Position

Settings: "*1"

You can set the horizontal position of the marker. This can only be set when "Dots (Free)" is selected for "Type".

Marker - Marker 1 Settings / Marker 2 Settings / Marker 3 Settings - Ver. Position

Settings: "*1"

Sets the vertical position of the marker. This can only be set when "Dots (Free)" is selected for "Type".

Marker - Marker 1 Settings / Marker 2 Settings / Marker 3 Settings - Width

Settings: "*1"

Sets the width of the marker. This can only be set when "Dots (Free)" or "Dots (Center)" is selected for "Type", or when "Aspect" is selected for "Type" and "User" is selected for "Area Size".

Marker - Marker 1 Settings / Marker 2 Settings / Marker 3 Settings - Height

Settings: "*1"

You can set the vertical position of the marker. This can only be set when "Dots (Free)" or "Dots (Center)" is selected for "Type", or when "Aspect" is selected for "Type" and "User" is selected for "Area Size".

Marker - Marker 1 Settings / Marker 2 Settings / Marker 3 Settings - Thickness

Settings: "1 dot" – "12 dots"

You can set the thickness of the marker.

Marker - Marker 1 Settings / Marker 2 Settings / Marker 3 Settings - Color

Settings: "White" / "Red" / "Green" / "Blue" / "Cyan" / "Magenta" / "Yellow" / "Gray"

You can set the color of the marker.

Center Marker - Center Marker

Settings: "Off" / "On"

If this function is set to "On", the center marker is displayed.

Center Marker - Type

Settings: "Cross (Small)" / "Cross (Large)" / "Diagonal"

You can set the center marker type.

Center Marker - Thickness

Settings: "2 dots" – "12 dots"^*1, "1 dot" – "11 dots"^*2

You can set the thickness of the center marker.

Center Marker - Color

Settings: "White" / "Red" / "Green" / "Blue" / "Cyan" / "Magenta" / "Yellow" / "Gray"

You can set the color of the center marker line.

Preferences

The monitor’s settings can be configured to suit the usage environment or personal preference.

Power Save

Settings: "On" / "Off"

This function allows you to set the monitor to the power saving mode, depending on the state of the external device connected to it.

The monitor changes to power saving mode about 15 seconds after signal input ceases to be detected. When the monitor has shifted to power saving mode, images are not displayed on the screen.

• How to exit power saving mode
• Operate the buttons on the front of the monitor (excluding ) or adjustment dial.
• A signal is input to the monitor (excluding SDI signal input).

Off Timer

Settings: "Off" / "6h" / "9h" / "12h" / "15h" / "18h"

You can set the time for the monitor's power to automatically turn off. The monitor will automatically turn off when the time set here elapses after the monitor is turned on, or after the monitor wakes up from Power Save.

Indicator

Settings: "Off" / "1" – "7"

The brightness of the power button and the control buttons when the screen is displayed can be set.

Input Skip

Settings: "Skip" / "-"

This function allows skipping of input signals that will not be used when the input signals^*1 are switched.

Mode Skip

Settings: "Skip" / "-"

This function allows skipping of modes^*1 that will not be used when selecting modes. Use this function if display modes are limited, or if you want to prevent randomly changing the display status.

Custom Key - [F1]

Settings: "S-GAMMA -Quick Check-" / "Off" / "Input Range" / "Zoom" / "BT.709 Gamut Warning" / "Luminance Warning" / "Prev. Color Mode" / "Information" / "Time Code" / "Marker 1" / "Marker 2" / "Marker 3" / "Center Marker" / "Blue Only" / "Pixel Inspection"

You can set the function that is assigned to the [F1] key.

Custom Key - [F2]

Settings: "EOTF -Quick Check-" / "Off" / "Input Range" / "Zoom" / "BT.709 Gamut Warning" / "Luminance Warning" / "Prev. Color Mode" / "Information" / "Time Code" / "Marker 1" / "Marker 2" / "Marker 3" / "Center Marker" / "Blue Only" / "Pixel Inspection"

You can set the function that is assigned to the [F2] key.

Custom Key - [F3]

Settings: "BRIGHT -Quick Check-" / "Off" / "Input Range" / "Zoom" / "BT.709 Gamut Warning" / "Luminance Warning" / "Prev. Color Mode" / "Information" / "Time Code" / "Marker 1" / "Marker 2" / "Marker 3" / "Center Marker" / "Blue Only" / "Pixel Inspection"

You can set the function that is assigned to the [F3] key.

Custom Key - [F4]

Settings: "BLACK -Quick Check-" / "Off" / "Input Range" / "Zoom" / "BT.709 Gamut Warning" / "Luminance Warning" / "Prev. Color Mode" / "Information" / "Time Code" / "Marker 1" / "Marker 2" / "Marker 3" / "Center Marker" / "Blue Only" / "Pixel Inspection"

You can set the function that is assigned to the [F4] key.

USB Selection

Settings: "USB-1" / "USB-2"

If two external devices are connected to a single monitor, then the input signals^*1 and USB upstream ports can be linked. This means that the USB port will automatically switch when the input signal is switched. There is no need to re-connect the USB cable even when calibrating a single monitor using two external devices. In addition, USB devices such as a mouse or keyboard can be connected to the monitor and used with two external devices.

The default values are as follows.

Remote Control (GPI)

This function sets the remote control (GPI) function.

Pin 1 / Pin 2 / Pin 3 / Pin 4 / Pin 6 / Pin 7 / Pin 8

Settings: "Signal" / "Input Range" / "Color Mode" / "PQ Option" / "Marker" / "Warning" / "Zoom" / "Other Functions" / "Off"

When using the remote control (GPI) function, set specific functions to "Pin 1" to "Pin 8".

"Pin 5" is designated as GND, so it cannot be set.

Signal

Settings: "SDI Single 1" / "SDI Single 2" / "SDI Single 3" / "SDI Single 4" / "SDI Dual 1&2" / "SDI Dual 3&4" / "SDI Quad" / "DisplayPort" / "HDMI" / "ST 2110"

You can set the type of input signal to be enabled with the remote control (GPI) function.

Input Range

Settings: "Auto^*1" / "Full" / "Limited (109% White)" / "Limited" / "SDI Full"

You can set the type of input range to be enabled with the remote control (GPI) function.

Color Mode

Settings: "Prev. Color Mode" / "BT.709" / "BT.2020" / "DCI-P3" / "PQ_THEATER" / "PQ_DCI-P3" / "PQ_BT.2100" / "HLG_BT.2100" / "CAL1" / "CAL2" / "SYNC_SIGNAL"

You can set the type of color mode to be enabled with the remote control (GPI) function.

PQ Option

Settings: "Auto^*1" / "300cd/㎡ Clipping" / "500cd/㎡ Clipping" / "1000cd/㎡ Clipping" / "4000cd/㎡ Emulation" / "10000cd/㎡ Emulation"

You can set the type of PQ options to be enabled with the remote control (GPI) function.

Marker

Settings: "Marker 1" / "Marker 2" / "Marker 3" / "Marker 1 (3 division grid)^*1" / "Center Marker"

You can set the type of marker to be enabled with the remote control (GPI) function.

Warning

Settings: "BT.709 Gamut Warning^*1" / "BT.709 Gamut Warning (Clip)^*1" / "Luminance Warning (Yellow)^*1" / "Luminance Warning (Magenta)^*1"

You can set the type of warning to be enabled with the remote control (GPI) function.

Zoom

Settings: "Center" / "Upper Left" / "Upper Right" / "Lower Left" / "Lower Right"

You can set the type of zoom to be enabled with the remote control (GPI) function.

Other Functions

Settings: "Power (DC)" / "Time Code" / "Nearest Neighbor" / "Blue Only" / "Information"

You can set other functions to be enabled with the remote control (GPI) function.

IP Network Settings

You can set IP network connection settings.

Primary Settings / Secondary Settings

You will set the port settings for Primary / Secondary.

RS-FEC

Settings: "Disable" / "Enable"

You can set the enable/disable option for the code (RS-FEC: Reed-Solomon Forward Error Correction) to correct IP network errors and improve reliability.

DHCP

Settings: "Disable" / "Enable"

Enables/disables DHCP.

IP Address

Settings: "000.000.000.000" – "255.255.255.255"

Sets the IP address.

Subnet Mask

Settings: "000.000.000.000" – "255.255.255.255"

Sets the subnet mask address.

Default Gateway

Settings: "000.000.000.000" – "255.255.255.255"

Sets the gateway address.

MAC Address

Settings: "**-**-**-**-**-**"

Displays the MAC address.

PTP Settings

Configures PTP settings.

PTP Mode

Settings: "Multicast" / "Hybrid" / "Unicast"

Sets PTP mode.

Domain Number

Settings: "0" – "127"

You can set up groups to synchronize with PTP.

NMOS Settings

You can set NMOS related settings.

mDNS Mode

Settings: "Disable" / "Enable"

You can whether to use mDNS for Service Discovery.

DNS Server Address

Settings: "000.000.000.000" – "255.255.255.255"

Sets the IP address of the DNS server to be used.

Registry Mode

Settings: "Auto" / "Manual"

Specifies whether or not to set the Registry address and Registry port manually.

Registry Address

Settings: "000.000.000.000" – "255.255.255.255"

Sets the IP address of the NMOS Registry.

Registry Port

Settings: "0" – "65535"

Displays the port number of the NMOS Registry.

Network Status

Displays the primary/secondary status of the network.

Current IP

Settings: "***.***.***.***"

Displays the currently active IP addresses.

Subnet Mask

Settings: "***.***.***.***"

Displays the currently active subnet mask.

Gateway

Settings: "***.***.***.***"

Displays the default gateway.

SFP

Settings: "Up" / "Down" / "Rx Loss" / "Tx Fault" / "Start Up" / "Unplugged" / "Over Current"

Displays the SFP module and circuit status.

PTP

Settings: "*1" – "*2"

Displays the PTP sync destination and lock status.

Clock identifer

Settings: "**:**:**:**:**:**:**:**"

Displays the grandmaster clock identifier of the PTP sync destination.

VidFlowCnt

Settings: "0" – "4,294,967,295"

Displays the video flow count values.

AncFlowCnt

Settings: "0" – "4,294,967,295"

Displays the Ancillary Flow count values.

NMOS Information

Displays NMOS information.

DNS Registry Service

Settings: "****************

****************

****************

****************"

Displays the first 64 characters of the DNS Registry Service to be used.

DNS Server Address

Settings: "***.***.***.***"

Displays the IP address of the DNS server to be used.

Registry Address

Settings: "***.***.***.***"

Displays the IP address of the NMOS Registry.

Registry Port

Settings: "0" – "65535"

Displays the port number of the NMOS Registry.

NMOS

Settings: "Discovering" / "Connecting" / "Connected"

Displays the connection status of the NMOS.

IP Flow Reset

Settings: "OK" / "Cancel"

Resets IP flow.

IP Module Reset

Settings: "OK" / "Cancel"

Resets the IP module.

Monitor Reset

Restores all settings to their default settings except for the following settings:

• "IP Network Settings" setting
• Settings on the "Administrator Settings" menu

Languages

Settings: "English" / "German" / "French" / "Spanish" / "Italian" / "Swedish" / "Japanese" / "Simplified Chinese" / "Traditional Chinese"

The display language for menus and messages can be selected.

Information

You can check the monitor information (model name, serial number (S/N), firmware version, usage time) and the input signal information.

Example:
