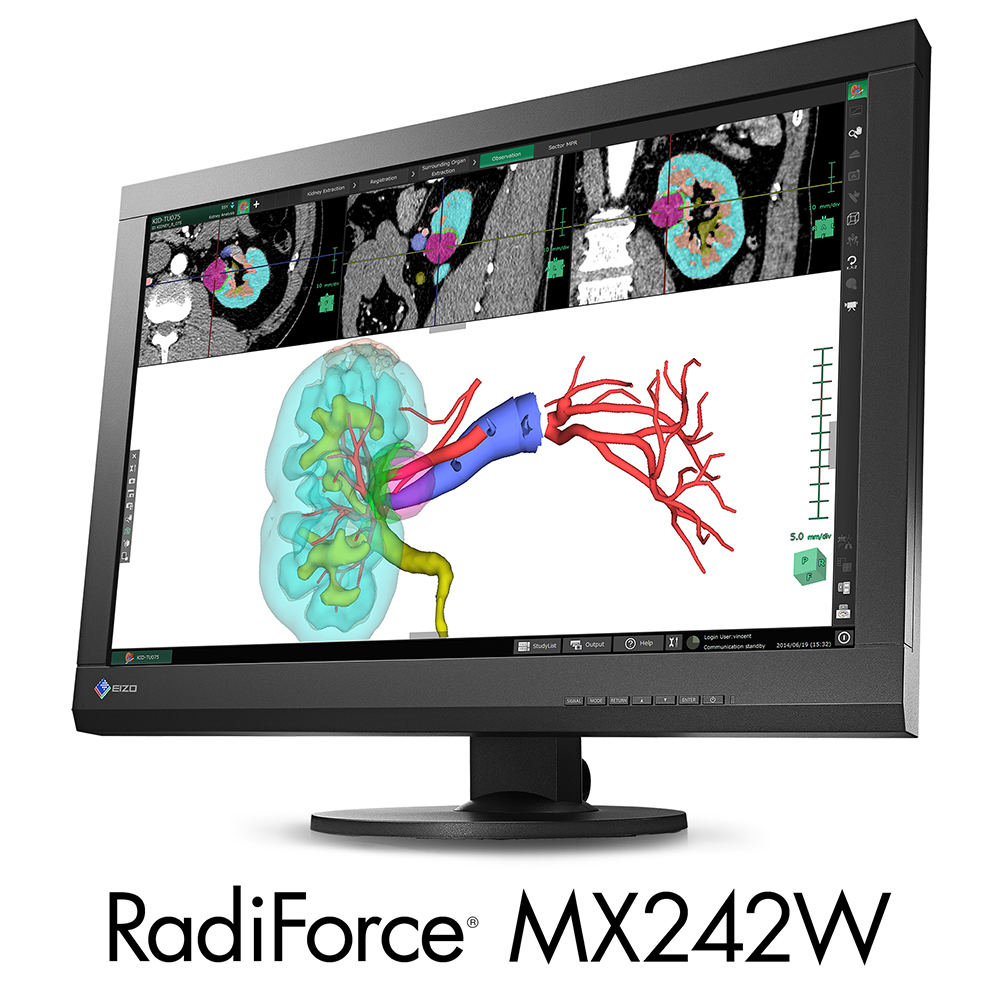

RadiForce MX242W
2.3MP 61cm (24.1") COLOR LCD MONITOR
A 24.1-inch widescreen monitor with DICOM Part 14 calibration support, smooth color reproduction, and screen management for increased work efficiency.

  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Graphics Boards
  • QC Software & Tools Accessories

Make the Precise Diagnosis

EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.

Make the Precise Diagnosis



Maintain the Precision

Perform a simplified calibration compliant with DICOM Part 14 using the bundled RadiCS LE quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.

Maintain the Precision



Keep Your Monitor Lit Longer

The LED backlight offers a significantly longer service life over conventional CCFL backlights. In addition, you can maintain high brightness while simultaneously lowering power consumption. Since the LED backlight is mercury-free, it will also reduce any potential impact on the environment when disposed of.

Keep Your Monitor Lit Longer

View More with Widescreen

The widescreen 16:10 aspect ratio provides significantly more horizontal space than the aspect ratios of conventional square monitors so that you can keep tool palettes open without covering the window you are working on.

View More with Widescreen

Comfortably View from Any Angle

The wide viewing angles of the IPS panel allow you to view the sreen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time.

Comfortably View from Any Angle



View Accurate Images in Moments

The EIZO-patented drift correction function quickly stabilizes the brightness level of the monitor upon startup or wakup from sleep mode, giving you the most accurate images quickly ready for viewing. In addition, a sensor measures the backlight brightness fluctuations caused by ambient temperature and aging for a consistently stable display.

View Accurate Images in Moments



Attain Steady Images Across the Screen

The Digital Uniformity Equalizer (DUE) function helps to even out fluctuations in brightness and chroma on different parts of the screen to provide smoother images.

Attain Steady Images Across the Screen

Select the Ideal Mode for Modalities

The CAL Switch function allows you to choose various modes for different modalities such as CR, CT, and endoscopy and can be conveniently accessed using the monitor's front panel buttons.

最適な表示モードを選べる

Improve Operability

EIZO's highly versatile stand offers, tilt, swivel, and a wide height adjustment range, enabling you to use the monitor with greater comfort.

Improve Operability

Rest Assured with Medical Qualifications

The monitors meet the strictest medical, safety, and EMC emission standards.

Rest Assured with Medical Qualifications

Gain Smooth Color Reproduction

The monitor can support 10-bit input for each RGB color, displaying more than one billion colors simultaneously. This ensures accurate reproduction of color tones for 3D color rendering and image fusion.

10-bit color graphics board and 10-bit color viewer software needed for 10-bit color display.

Gain Smooth Color Reproduction

Conveniently Manage Applications

EIZO ScreenSlicer is a monitor software utility that allows an entire screen to be effectively used though partitioning. Multiple windows can be easily aligned and dropped into the partitioned areas in single- or multi-monitor environments.

Conveniently Manage Applications

Stay Confident with Stable Brightness

EIZO's confidence in its product quality extends to brightness stability. 5 years or 15,000 hours of usage time is guaranteed when used at the recommended brightness of 180 cd/m2.

Stay Confident with Stable Brightness

Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year limited warranty.

Cabinet Color Black
Panel
Type Color (IPS)
Backlight LED
Size 61 cm / 24.1"
Native Resolution 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V) 518.4 x 324.0 mm
Pixel Pitch 0.270 x 0.270 mm
Display Colors 10-bit colors (DisplayPort) : 1.07 billion (maximum) colors
8-bit colors: 16.77 million from a palette of 68 billion colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 12 ms (on / off)
Video Signals
Input Terminals DVI-I x 1, DisplayPort x 1
Digital Scanning Frequency (H / V) 31 - 76 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V) 26 - 76 kHz / 49 - 71 Hz
Sync Formats Separate
USB
Function 1 upstream, 2 downstream
Standard USB 2.0
Power
Power Requirements AC 100 - 240 V: 50 / 60 Hz
Maximum Power Consumption 68 W
Typical Power Consumption 31 W
Power Save Mode Less than 0.5 W
Power Management Digital: DVI DMPM, DisplayPort 1.1a
Analog: VESA DPM
Sensor Backlight Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Preset Modes CAL Switch
OSD Languages English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Net Weight 8.7 kg
Net Weight (Without Stand) 6.0 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CE (Medical Device Directive), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.) AC power cord, signal cables (DVI-D - DVI-D, DisplayPort - DisplayPort) , USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, PDF instructions for use, PDF installation manual), instructions for use
Warranty Five Years
Dimension Drawing PDF

Brochures

NEW
RadiForce general
14 MB

Download



RadiForce MX242W
419 KB

Download



Manuals

Please note that you must be a registered user to download RadiForce relevant files. If you have not registered, please continue on to our registration page*. If you have forgotten your User ID or Password, please send us an e-mail.

* This user registration form is a CRM web marketing tool provided by Tricorn Corporation called KREISEL. By clicking on the form, you will be forwarded to the KREISEL page.

Languages

Document Language Size Download
MX242W Instructions for Use English 1.61 MB Download
MX242W Installation Manual English 2.01 MB Download
ScreenManager Pro for Medical Ver.2.7.0 User's manual English 951 KB Download
MX242W Instructions for Use Arabic 1.56 MB Download
MX242W Instructions for Use Chinese-Simplified 1.99 MB Download
MX242W Installation Manual Chinese-Simplified 2.44 MB Download
MX242W Instructions for Use Chinese-Traditional 2.09 MB Download
MX242W Instructions for Use Czech 1.47 MB Download
MX242W Instructions for Use Danish 1.48 MB Download
MX242W  Instructions for Use Dutch 1.47 MB Download
MX242W Instructions for Use Finnish 1.46 MB Download
MX242W Instructions for Use French 1.64 MB Download
MX242W Installation Manual French 2.07 MB Download
MX242W Instructions for Use German 1.64 MB Download
MX242W Installation Manual German 2.06 MB Download
MX242W Instructions for Use Greek 1.49 MB Download
MX242W Instructions for Use Italian 1.49 MB Download
MX242W Instructions for Use Korean 1.68 MB Download
MX242W  Instructions for Use Norwegian 1.47 MB Download
MX242W  Instructions for Use Polish 1.47 MB Download
MX242W  Instructions for Use Portuguese 1.5 MB Download
MX242W Instructions for Use Russian 1.61 MB Download
MX242W Installation Manual Russian 2.02 MB Download
MX242W Instructions for Use Spanish 1.49 MB Download
MX242W  Instructions for Use Swedish 1.47 MB Download
MX242W  Instructions for Use Turkish 1.46 MB Download
MX242W Instructions for Use Estonian 1.46 MB Download
MX242W  Instructions for Use Latvian 1.46 MB Download
MX242W  Instructions for Use Lithuanian 1.48 MB Download
MX242W  Instructions for Use Romanian 1.46 MB Download
MX242W  Instructions for Use Slovene 1.46 MB Download
MX242W Instructions for Use Hungarian 1.48 MB Download
MX242W Instructions for Use Bulgarian 1.48 MB Download
MX242W Instructions for Use Croatian 1.46 MB Download
