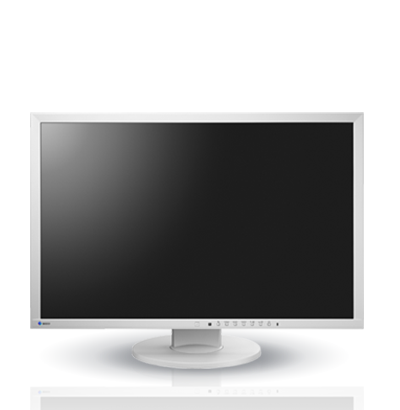

FlexScan EV2430
24.1" Color LCD Monitor
The Perfect Office All-Rounder
The EV2430 is perfect for any office; providing energy savings, reducing eye fatigue, and offering a unique ergonomic design, this is the helpful all-rounder that every office can use.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

Effortless Eye-Care

Tireless Eyes

auto-ecoview-sensor.jpgTo prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occur throughout the day and automatically adjusts the screen to the ideal brightness level. Auto EcoView cuts power by almost 40% compared to operating the monitor at maximum brightness.

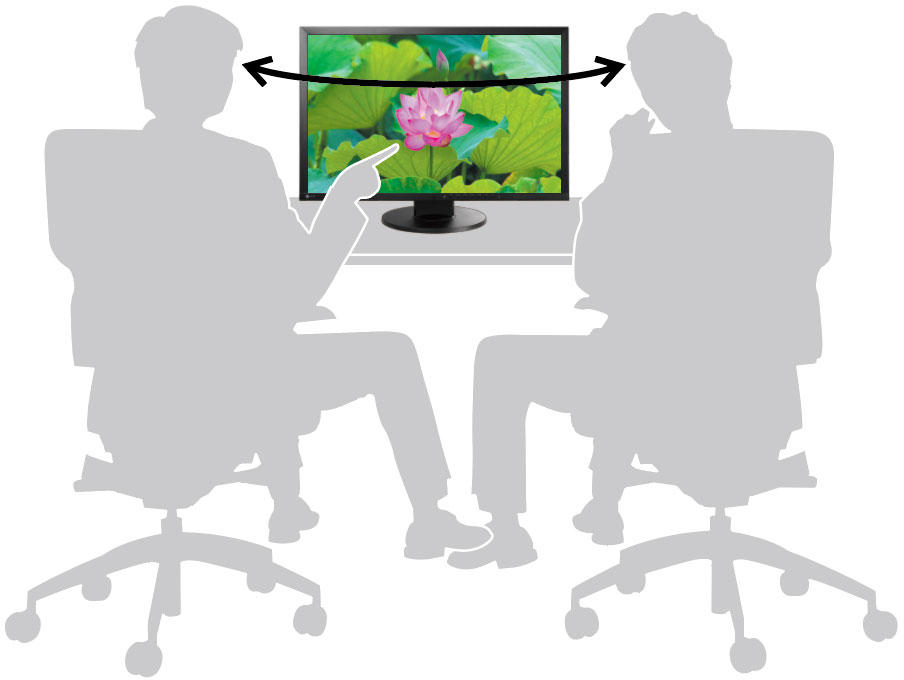

A Clear View from All Angles

wide viewing anglesThe FlexScan EV2430 has 178° horizontal and vertical viewing angles which makes it suitable for most business use.



Adjustable to Almost 1 cd/m2 Brightness

In a dimly-lit work environment, a monitor with low brightness settings will be more comfortable to use. This monitor comes with an LED backlight that allows for adjusting the brightness to about 1 cd/m2. With typical CCFL backlights the lowest you could adjust to would be much brighter.

Paper Mode Reduces Eye Fatigue

Paper Mode is a preset color mode that simulates the look of printed paper and helps prevent eyestrain when reading documents by reducing the amount of blue light emitted from the monitor.

Papermode

Flicker-Free Images

flicker freeDue to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV2430 utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability.

Preset Modes for Optimum Viewing

Five preset modes (including two with user adjustable settings) ensure you always get the right setting for any application. You can switch modes with just the touch of a button.

Simple, Minimalist Design

Slim bezels

A thin bezel design saves space on the desktop and minimizes eye movement between screens in a multi-monitor environment.

Ergonomic Stand

Adjust the screen to your ideal viewing position with EIZO’s versatile FlexStand.

stand moving range

FlexStand

Helping the Environment

LED Backlights – Less Power, Longer Life

Compared to conventional CCFL backlights, LED backlights last longer and consume less power. They are also mercury-free to have minimal impact on the environment when they are eventually disposed of.

Presence Sensor for Energy Savings

A presence sensor called EcoView Sense prompts the monitor to switch to power save mode when you are absent and then power on again when you return. It even works in a multi-monitor setup so all monitors remain on when you're at your desk.

Reduce Power by up to 30%

A new feature called EcoView Optimizer 2 saves energy by up to 30% by reducing the backlight brightness and increasing the gain. To maintain image quality, EcoView Optimizer 2 only boosts the gain with a screen consisting mostly of dark content because the accompanying reduction in brightness is almost unperceivable.

Compliance with International Labels

Meets the most stringent international labels for ergonomics and energy savings.

TCO   ENERGY STAR   EPEAT Green   TUV/Ergonomics



Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Environmentally Conscious
FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system.

SDGs 07SDGs 12SDGs 13

Higher Work Efficiency
FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue.

SDGs 08



Equipped for a Long Life

Getting Connected

Three input terminals are included for connecting to PCs. In addition, a USB hub and headphone/ audio jacks are conveniently located on the side of the monitor.

getting connected



5-Year Warranty

5 year warrantyA manufacturer’s 5-year warranty covers all components including the LCD panel to ensure a long service life. This warranty is 2-years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.

Zero Bright Pixels

zero_bright_pixel.jpgEIZO guarantees this product will be free from bright sub-pixels for six months from purchase date.
See our Bright Pixel Policy for details.








Choose My Workstyle

Model Variations EV2430-GY: with FlexStand, gray
EV2430-BK: with FlexStand, black
EV2430-FGY: without stand, gray
EV2430-FBK: without stand, black

Note: FlexStand is removable
Panel
Type IPS
Backlight LED
Size 24.1" (61.1 cm)
Native Resolution 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V) 518.4 x 324 mm
Pixel Pitch (H x V) 0.270 x 0.270 mm
Pixel Density 94 ppi
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 300 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 14 ms (gray-to-gray)
Color Gamut (typical) sRGB
Video Signals
Input Terminals DisplayPort (HDCP 1.3), DVI-D (HDCP 1.4), D-Sub mini 15 pin
Digital Scanning Frequency (H / V) 31 - 76 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V) 31 - 76 kHz / 55 - 61 Hz
Sync Formats Separate
USB
Upstream USB 2.0: Type-B
Downstream USB 2.0: Type-A x 2
Audio
Speakers 1.0 W + 1.0 W
Input Terminals Stereo mini jack, DisplayPort
Output Terminals Headphones (Stereo mini jack)
Power
Power Input AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 12 W
Maximum Power Consumption 36 W
Power Save Mode 0.3 W or less
Features & Functions
Preset Modes User1, User2, sRGB, Paper, Movie
Automatic Brightness Control Auto EcoView
OSD Languages EEnglish, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge), Smoothing (5 stages), Border Intensity, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, DDC/CI Lock, Power Indicator, Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 552.5 x 368 - 499 x 233 mm
Dimensions (Without Stand, W x H x D) 552.5 x 358 x 56.9 mm
Net Weight 6.7 kg
Net Weight (Without Stand) 4.3 kg
Height Adjustment Range 131 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90° (clockwise)
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) EPEAT 2018 (US), TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EAC
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DisplayPort (2 m), DVI-D (2 m)
Others AC power cord (2 m), VESA mounting screw x 4 (EV2430-F), setup guide
Warranty 5 Years
Zero bright sub-pixels for six months from date of purchase.
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
