FlexScan EV3285           European Hardware Awards 2019を受賞4K
31.5" Color LCD Monitor
Work Four Times Bigger and Better
Work four times bigger with this large 31.5-inch, 4K UHD (3840 x 2160) resolution monitor that gives you four times the workspace of full HD. And, work four times better with the EV3285’s four-sided frameless and fully flat design.
  • Contact EIZO
  • AR Visualization
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories
  • Awards & Reviews

Case Studies

prev next

Four reasons why you need a 4K monitor


A 4K Monitor for Maximum Work Efficiency

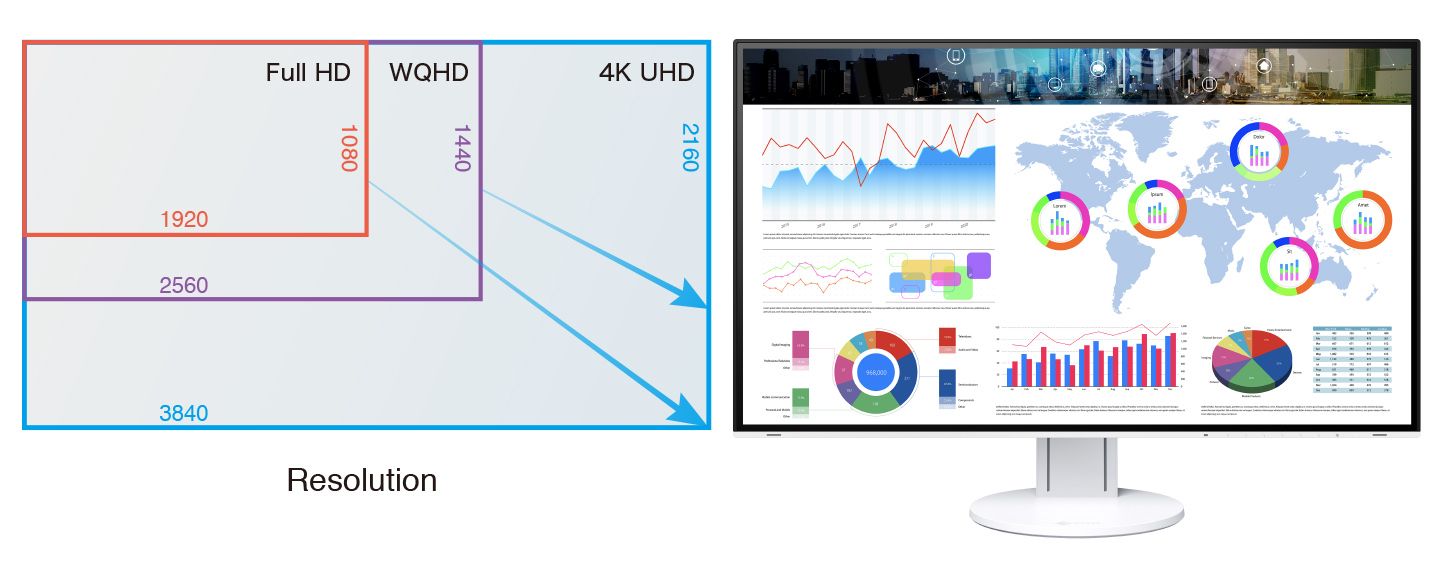

Fit Four Times More Information on Your Desktop

Monitors with higher resolutions greatly improve work efficiency, simply because they can fit more work applications on screen. The EV3285 supports 4K (3840 x 2160) resolution, displaying four times the amount of information than standard Full HD (1920 x 1080) monitors. With 4K, you can display more applications simultaneously on a single screen, greatly reducing the need to scroll or switch windows frequently.

4K

Fit Four Times More Information on Your Desktop

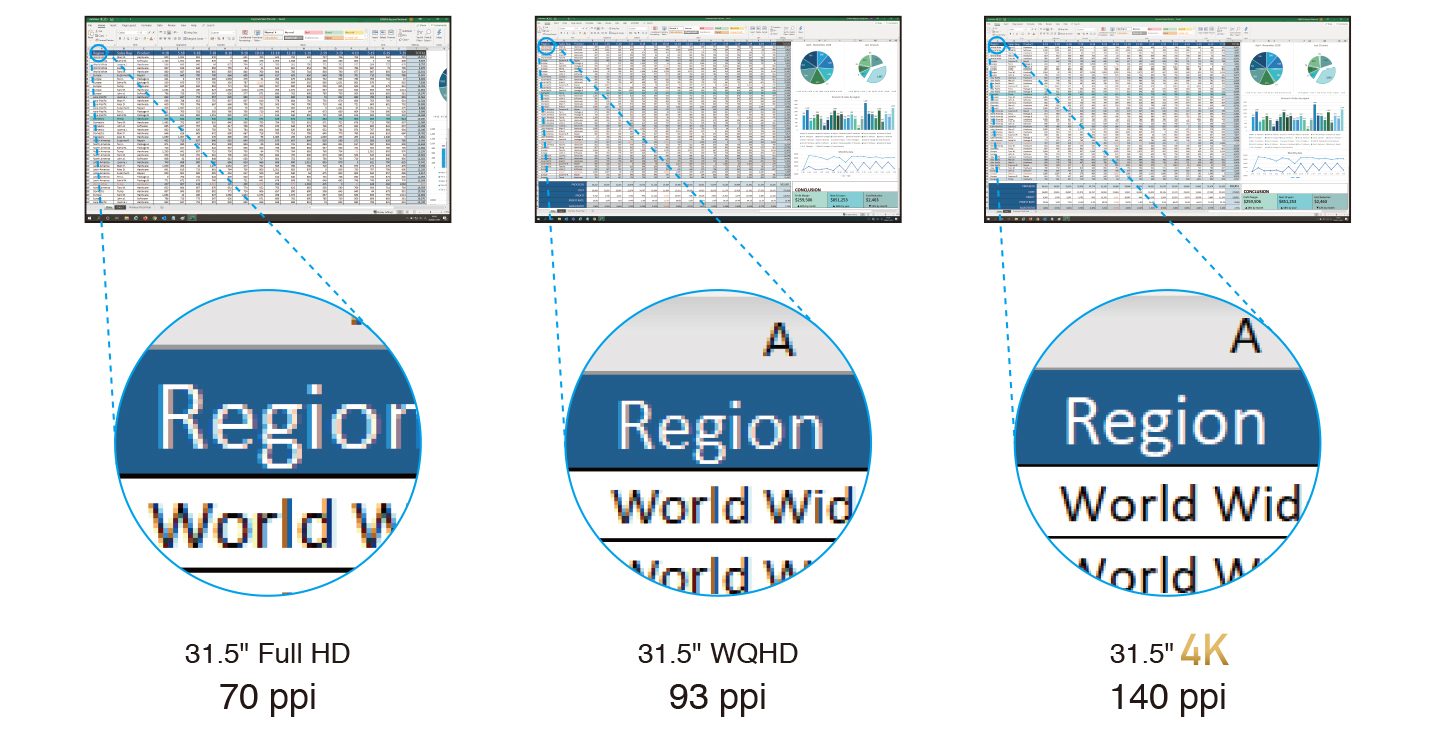

Text, Icons, and Images in Crisp Detail

The 31.5-inch monitor has a pixel density of 140 ppi, which is twice the number of concentrated pixels compared to a Full HD monitor. This high pixel density ensures even the smallest text and icons are displayed in crisp detail.

4K

Text, Icons, and Images in Crisp Detail



The Perfect Fit for the Home Office

The EV3285’s connectivity options make it ideal for users that work from home on either a temporary or permanent basis. The monitor boasts a small footprint thanks to its built-in power supply and its shallow stand depth of 23 cm, allowing it to fit comfortably on smaller desks and tables. It has HDMI® and DisplayPort inputs for connecting to a desktop computer, and a USB Type-C port for quick and easy connection to laptop.

The Perfect Fit for the Home Office

Efficient Telecommuting with a Laptop and Monitor


Make the Most of Your Meetings

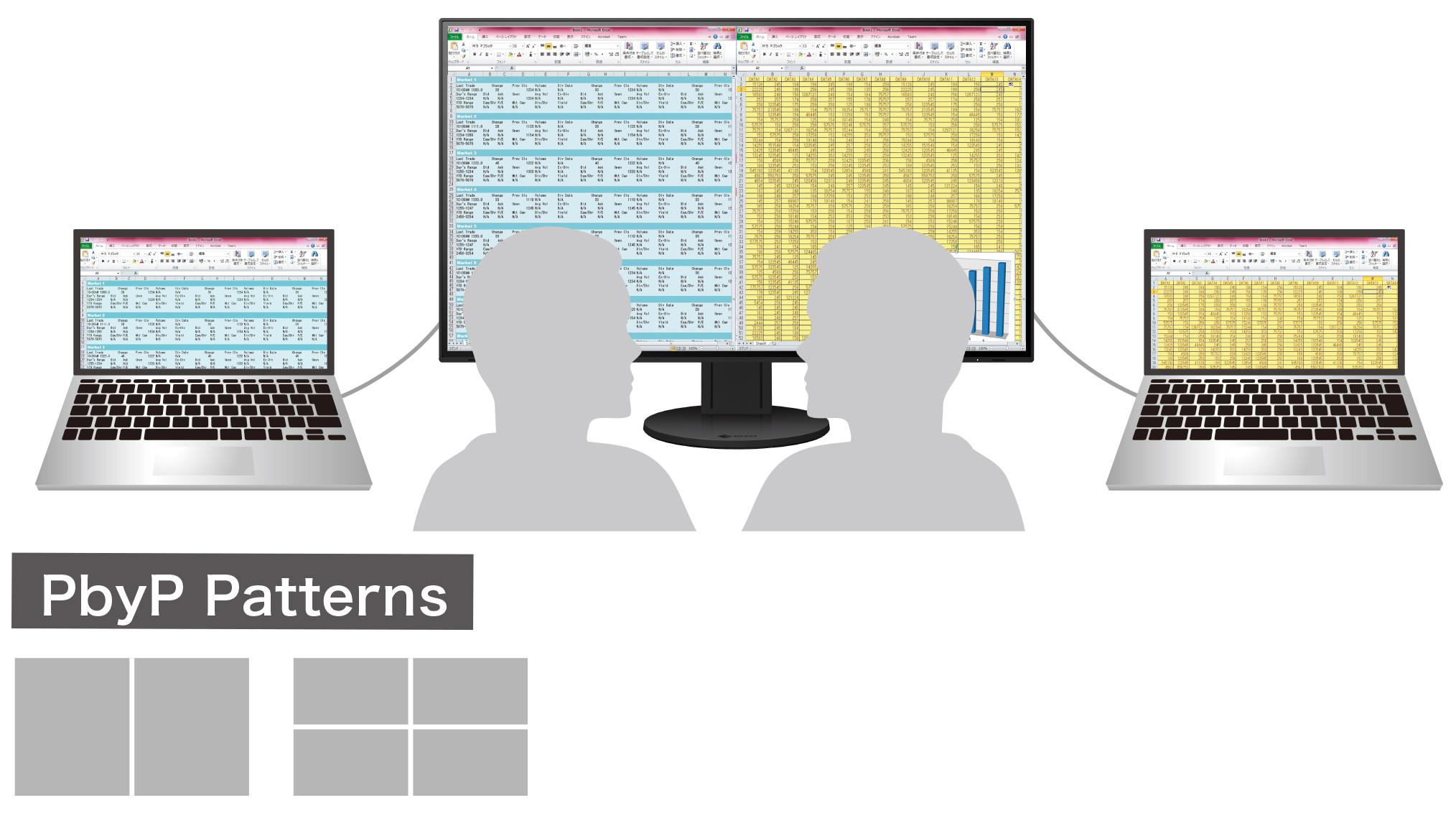

The monitor’s Picture-by-Picture (PbyP) and Picture-in-Picture (PinP) capabilities help to streamline your presentations and save valuable meeting time by removing the need to switch input sources. These convenient functions make it possible to compare data with a coworker side-by-side, as well as share information from multiple sources during presentations.

PbyP Patterns

PinP Patterns



One Cable Connection

Single Cable Connection with USB Type-C

When working on the go, a notebook PC is essential. But when work needs to be done in the office, connecting a notebook PC to an external monitor is beneficial. With USB Type-C, the EV3285 makes this new work style a breeze.

With a single USB Type-C cable you can display video, playback audio, transmit USB signals, and supply up to 60W of power to attached devices such as smartphones and notebooks. What’s more, it has an internal power unit so no external AC adapter is required.

Without worrying about your notebook’s battery level, you can simple plug it in and begin working immediately on a large external screen. Furthermore, a keyboard and mouse can be connected to the monitor and used instantly once the notebook is plugged in with USB Type-C.Single Cable Connection with USB Type-C



USBType-C_before.jpg USBType-C_after.jpg

60 W Power Delivery

The 60 W power delivery via USB Type-C reliably charges laptop computers supporting 4K video output, such as a Dell XPS or Microsoft Surface.

Compatibility between FlexScan EV3285 and devices equipped with USB Type-C

60 W Power Supply for Use with High-End Notebooks

Reference Articles

Could your poor work efficiency be because of your notebook PC? Improve efficiency by working with a USB Type-C compatible Monitor.

Improve Work Efficiency by Combining an External Monitor with your Notebook PC




Say Goodbye to Tired Eyes

Auto Brightness Control

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.


Reduce Blue Light by 80%

In the visible light spectrum, blue light has wavelengths adjacent to ultraviolet light. Compared to the factory preset setting of 6500 K of typical LCD monitors, Paper Mode is closer to the spectral distribution with long reddish wavelengths so it reduces the amount of blue light, a cause of eye fatigue, and helps prevent eyestrain when reading documents. When used in conjunction with Auto EcoView dimming function, blue light can be reduced by as much as 80%.


Reduce Blue Light by 80%

Minimum Brightness of Approximately 1 cd/m2

In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m² which is less than 1% of the maximum.


Versatile Stand

The stand features height adjustment, tilt, and swivel, while saving space and remaining stylish. Quickly and smoothly adjust your monitor to the perfect position.

Versatile Stand



Clear View from All Angles

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.

Clear View from All Angles


Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The FlexScan EV3285 utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.

Flicker-Free Viewing

Non-Glare Panel

A non-glare panel reduces eye fatigue by dissipating reflective light that would otherwise make the screen difficult to view from different positions.

Non-Glare Panel

Front-Facing Speakers

The EV3285 has speakers incorporated into the minimalist front bezel, ensuring that sound is focused on the user and not on people behind the monitor.

Front-Facing Speakers



Intelligent Software to Work Better

Screen InStyle

Auto Color Mode

Use the Auto Color Mode to assign a color mode to turn on when using specific applications such as those for writing documents, photo viewing, creating illustrations or watching movies. When an application is opened the screen will automatically switch to the assigned color mode, making manual switching unnecessary.


Hotkey Assignment

When you have two PCs connected to your monitor, switch between them with just your keyboard. Even when using picture by picture, signals can be switched quickly and easily.

Hotkey Assignment

Screen InStyle also includes other functions that allow you to control blue light over time, and control multiple monitors at once.

Learn more about Screen InStyle


Effectively Monitor Asset Management

With Screen InStyle Server receive information such as the model name and serial number of any monitor connected to your network. Additionally, see information from the computer that each monitor is connected to, such as the OS, IP address and computer name.

Effectively Monitor Asset Management



Manage Multiple Monitors from One Location

Control multiple monitors' settings such as color mode, brightness, and eco functions from a remote location. Furthermore, prevent unintended setting changes by locking the operation switch.

Manage Multiple Monitors from One Location



Learn more about Screen InStyle Server



Aesthetically Pleasing Design

Fit 4K Resolution on Any Desk with this Fully Flat and Frameless Design

Fit 4K Resolution on Any Desk with this Fully Flat and Frameless DesignConventional 4K monitors are large and bulky, making them difficult to install on small desks. The EV3285 solves this by adopting a fully flat and frameless design which keeps the monitor slim and lightweight. Compared to the previous model, the EV3285 has been reduced in volume by 17%, and the stand base has decreased by 12%. With these reductions, the EV3285 can comfortably fit on any desk.



Fit 4K Resolution on Any Desk with this Fully Flat and Frameless Design

Fit 4K Resolution on Any Desk with this Fully Flat and Frameless Design

Beautiful from Front to Back

Beautiful from Front to Back



Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
Supported Browsers:
Safari, Chrome

Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
ARCore supported Android devices
Supported Browsers:
Chrome

Scan the QR code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
ARCore supported Android devices
Supported Browsers:
Safari, Chrome



Additional Convenience

USB Type-C, DisplayPort, HDMI x 2

One USB Type-C terminal, one DisplayPort input and two HDMI inputs compatible with 4K / 60p are installed. The USB Type-C terminal is convenient for connecting a notebook computer because it is easy to attach and detach the cable and can also supply power. All input terminals support 4K / 60p, and animation is displayed smoothly.




USB Type-C, DisplayPort, HDMI x 2

Compatibility between FlexScan EV3285 and Devices Equipped with HDMI

Free Up Your Workspace with a Stand Bracket

The PCSK-03 is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor's stand. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. Even with the client terminal attached you can adjust the monitor's stand freely.






Care for the Environment and You

Achieving a sustainable society where we do no harm to the environment nor waste precious resources is an important initiative for businesses and communities. FlexScan Sustainable Monitors are at the forefront of EIZO's efforts to contribute to this sustainable future.

Sustainable Monitor


5-Year Warranty

5-year.jpgA manufacturer’s 5-year warranty covers all components including the LCD panel* to ensure a long service life. This warranty is 2 years or 67% longer than the standard 3-year warranty of most monitor brands for significantly lower running costs.

* Usage time is limited to 30,000 hours.

Zero Bright Pixels

Zero bright policyEIZO guarantees this product will be free from bright sub-pixels for six months.

See our Bright Pixel Policy for details.





Rest Assured with Major Sustainability Standards

The monitor is certified by worldwide comprehensive sustainability certifications such as EnergyStar, EPEAT, and TCO Certified Generation 8. This provides evidence to companies that need to verify conformance with their own procurement requirements according to ESG (environmental, social, and governance) investment or SDGs policy.   EnergyStarEPEATTCO Certified Generation



Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Environmentally Conscious
FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system.

SDGs 07SDGs 12SDGs 13

Higher Work Efficiency
FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue.

SDGs 08



Choose My Workstyle

Model Variations EV3285-BK: with FlexStand, black
EV3285-WT: with FlexStand, white
EV3285-FBK: without stand, black
EV3285-FWT: without stand, white

Note: FlexStand is removable
Panel
Type IPS
Backlight LED
Size 31.5" (80.0 cm)
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 697.3 x 392.2 mm
Pixel Pitch (H x V) 0.182 x 0.182 mm
Pixel Density 140 ppi
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1300:1
Response Time (typical) 5 ms (gray-to-gray)
Color Gamut (typical) sRGB
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (HDCP 2.2 / 1.4) x 2
Digital Scanning Frequency (H / V) USB Type-C: 31 - 134 kHz / 29 - 31 Hz, 59 - 61 Hz
DisplayPort: 31 - 134 kHz / 29 - 31 Hz, 59 - 61 Hz
HDMI: 31 - 135 kHz / 29 - 31 Hz, 49 - 61 Hz
USB
Upstream USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 60 W max.)
Downstream USB 5Gbps: Type-A x 2
(Battery Charging 10.5 W max. x 1)
Audio
Speakers 1.0 W + 1.0 W
Input Terminals USB Type-C, DisplayPort, HDMI x 2
Output Terminals Headphones (Stereo mini jack)
Power
Power Input AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 32 W
Maximum Power Consumption 163 W
Power Save Mode 0.5 W or less
Features & Functions
Preset Modes User1, User2, sRGB, Paper, Movie, DICOM
Simultaneous Display Picture by Picture (2 PbyP, 4 PbyP), Picture in Picture (PinP)
Automatic Brightness Control Auto EcoView
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 717.4 x 427.3 - 576.2 x 230 mm
Dimensions (Without Stand, W x H x D) 717.4 x 416.3 x 51.5 mm
Net Weight 11.0 kg
Net Weight (Without Stand) 7.6 kg
Height Adjustment Range 148.9 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot -
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) EPEAT 2018 (US), TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EAC
Dedicated Software
Monitor Control Utility Screen InStyle Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (2 m), DisplayPort (2 m), HDMI (2 m)
Others AC power cord (2 m), cable cover (EV3285), VESA mounting screw x 4, setup guide
Warranty 5 Years
Zero bright sub-pixels for six months from date of purchase.
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
