EIZO Optical Bonding

EIZO has an in-house production line for optical bonding - a method with which to provide increased visibility and durability to LCD monitors. Producing optical bonding in-house allows EIZO to continue to meet the needs of specialty markets while ensuring each product maintains high quality standards.

What is optical bonding?

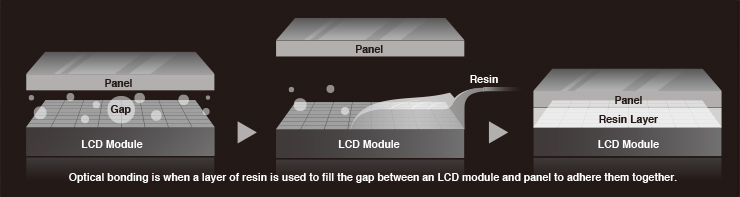

There is a small gap of air that lies between the LCD module and the cover glass or touch panel of a monitor. Optical bonding is a process in which a layer of resin is used to fill the gap, adhering the two together.
What is optical bonding?

Optical bonding video







Benefits of Optical Bonding

Clear Display

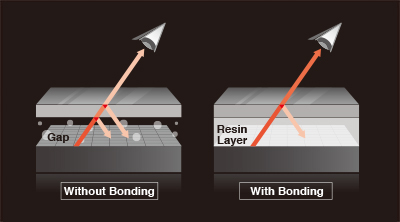

clear displayImages shown on a monitor are reflections generated by light from the LCD module passing through the gap and the panel. The gap and panel have different refractive indexes, causing the light to bend when it passes through them. This results in a loss in its intensity, affecting the screen’s readability.

By adhering the LCD module and panel together with optical bonding, the transmission of light is increased, improving the visibility of the display. This is useful when viewing a monitor with bright ambient lighting conditions.

usage sample usage sample usage sample



Glare Reduction

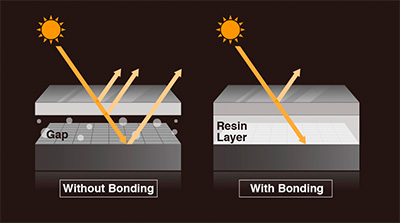

glare reductionWhen light from an external source passes through the panel and the gap, refraction causes some of it to be reflected back, creating glare on the screen. The increased light transmission of a screen with optical bonding significantly reduces glare from external light sources.

The reduced glare that optical bonding provides makes it an ideal option when viewing a monitor outdoors or in environments with an intense direct light source.

usage sample usage sample usage sample



Increased Physical Durability

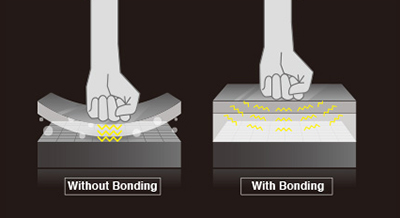

increased physical durability The additional resin layer in optical bonding also provides increased physical durability to the screen. Eliminating the gap between the LCD module and the panel increases the screen’s resistance to scratches, dust, and fluids.

This provides high durability for use in public access areas, factories, or other environments where the monitor is routinely used.

usage sample usage sample



No Condensation

no condensationIn environments with wide temperature ranges, it is common for condensation to cause screens to become foggy from moisture that penetrates the air gap. A monitor with optical bonding fills the gap to prevent condensation from occurring for improved readability.

This makes optical bonding ideal for ships and offshore structures, warehouses, aircrafts, and other environments that experience extreme temperature changes.

usage sample usage sample



Accurate Touch Experience

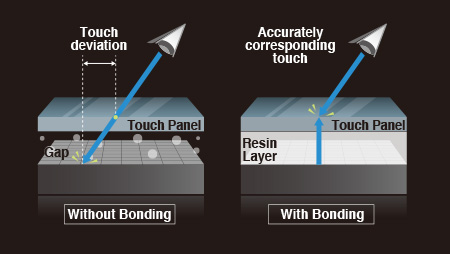

Accurate touch experience For touch monitors, the panel thickness influences touch accuracy and can affect usability with both touch pens and bare hands. A touch monitor with optical bonding maintains consistently accurate touch response making it easy to use and reliable.
