How to Color Match Your ColorEdge Monitor and Photo Prints

Windows x Canon x Photoshop Elements 11

Previous Page

How to set your printer

OS Printer Image Software
Windows 7 Canon PIXMA Series Photoshop Elements 11

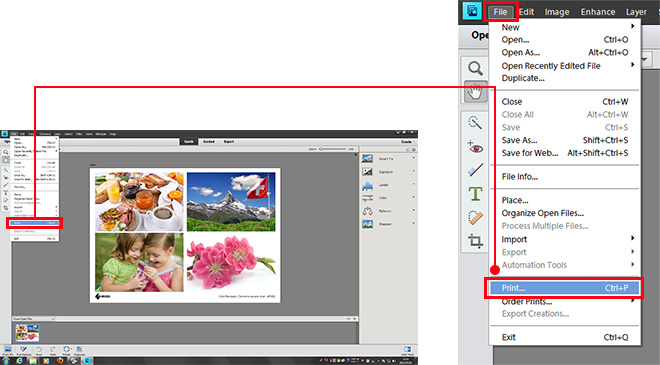

1. In Adobe Photoshop Elements, go to File > Print.

go to File > Print



2. In the print window, choose your printer under Select Printer. Click More Options on the lower left.

Click More Options on the lower left

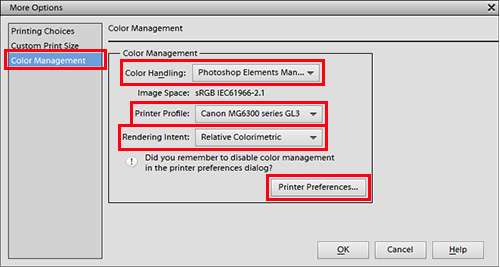

3. In the More Options window, select the Color Management tab. For Color Handling select Photoshop Elements Manages Colors. Under Printer Profile, select the paper profile you will be using and for Rendering Intent, select Relative Colorimetric. Click the Printer Preferences button.

More Options

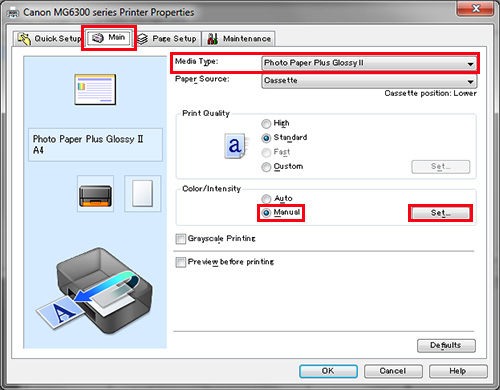

4. Select the Main tab in the printer properties window. Set the paper you will use under Media Type (ex. Photo Paper Plus Glossy II). For Color/Intensity select Manual and click the Set button.

Printer Properties

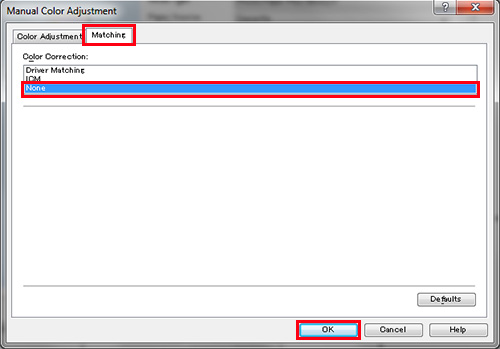

5. On the Manual Color Adjustment screen, select the Matching tab. We will print using the Photoshop Elements Manages Colors option you selected in Step 2, so for Color Correction, select None. Click OK.

Manual Color Adjustment

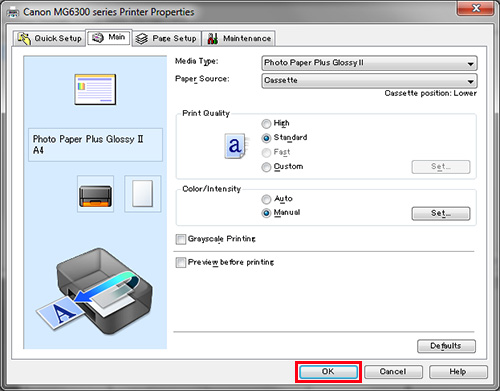

6. Click OK to return to the More Options screen and OK again to return to the Print screen.

Printer Properties

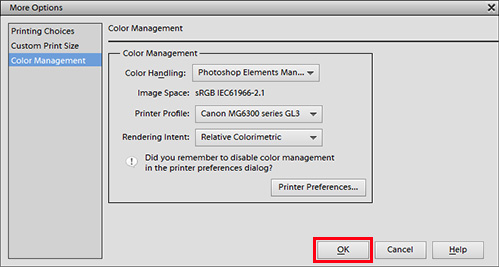

7. When you return to the More Options menu, select OK.

More Options

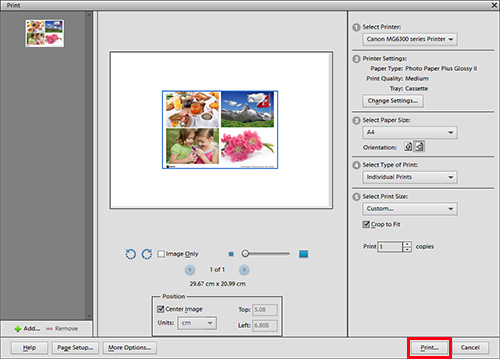

8. When you return to the print screen, click Print.

click Print



9. Make sure your output paper is dry before printing.



Once you have successfully printed, return to Monitor Adjustment.  Select your desired adjustment software. [Monitor Adjustment]

Using ColorNavigator Color Management Software Using ColorNavigator Elements Photo Color Matching Software


Color Matching Process
