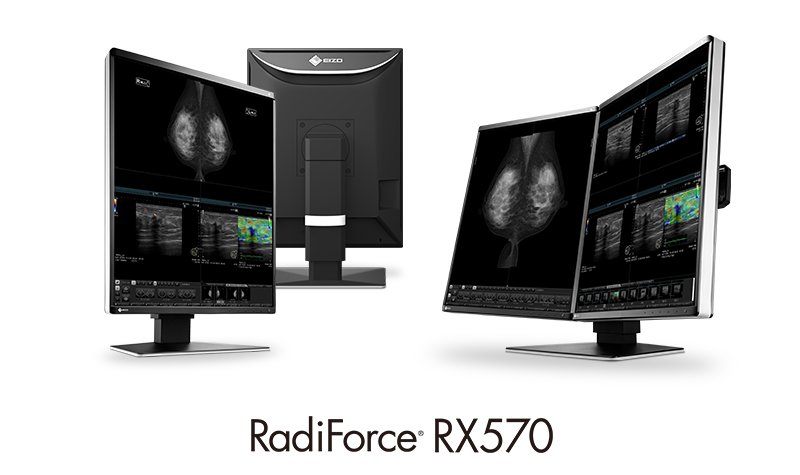

Hakusan, Japan, May 29, 2025 – EIZO Corporation (TSE: 6737) today announces the release of the RadiForce RX570 – a 21.3-inch 5 megapixel (2048 x 2560 pixels) color monitor designed for optimal hybrid display of monochrome and color medical images. As the successor to the RX560, it is tailored for mammography, breast tomosynthesis, ultrasound and other breast imaging techniques.

Monochrome mammography is a widely recommended breast cancer screening test, with complementary techniques such as color ultrasound further enhancing early detection. Additionally, color imaging tests, including scans and biopsies, are used for further assessment of breast tissue and require a color monitor for accurate evaluation. The RX570 supports the simultaneous display of monochrome mammography and tomosynthesis images (DICOM^® Part 14) and color images from ultrasound, MRI, and CT (Gamma 2.2), meeting the needs of medical institutions by supporting each essential imaging technique.

Compared to its predecessor, the RX570 boasts an increased maximum brightness of 1200 cd/m² (up from 1100 cd/m²) as well as a 2200:1 contrast ratio (up from 1500:1). As a color monitor, it excels in achieving exceptional brightness for high-definition monochrome breast tomosynthesis and mammography images. This ensures medical professionals can view images according to stringent industry standards while conveniently displaying color images on the same screen.

Additionally, the RX570 is newly equipped with EIZO’s Instant Backlight Booster function. This allows users to maintain the monitor at the recommended 500 cd/m² for standard tasks and, with a single hotkey, instantly boost brightness to the maximum level of 1200 cd/m² for a seamless user workflow. The brightness automatically reverts to its original level after a set period, ensuring optimal performance for critical image viewing sessions while minimizing strain on the backlight over time.

The RX570 has received FDA 510(k) clearance for digital breast tomosynthesis, digital mammography, and general radiography from the U.S. Food and Drug Administration. This ensures that EIZO continues to provide a high level of confidence and reliability to medical breast screening professionals and their patients.

Modern medical imaging workflows require multiple workstations and monitors, which can be complex and impact productivity. To promote a barrier-free workstyle, the RX570 features EIZO’s Switch-and-Go function, allowing users to operate two workstations with a single keyboard and mouse. This enables seamless cursor movement across screens, reducing the need for multiple peripheral devices and enhancing overall workflow efficiency.

In line with EIZO’s commitment to transitioning its products to more environmentally conscious materials and packaging as part of its company-wide sustainability efforts, the RX570’s housing incorporates recycled plastic. The monitor is also packaged using molded pulp made from recycled cardboard and newspaper instead of environmentally unfriendly materials. These efforts help reduce plastic waste, conserve resources, and promote the reuse of materials to preserve the natural ecosystem.

EIZO will be showcasing the RadiForce RX570 at UK Imaging and Oncology Congress (UKIO) 2025 from June 2 - 4 in ACC Liverpool, UK, booth B22.

Additional Features

• Integrated Front Sensor (IFS) for hassle-free calibration to DICOM Part 14 standard
• Hybrid Gamma PXL function for optimized grayscale of each pixel
• Equipped with two DisplayPort^TM inputs and one output
• Anti-glare (AG) and anti-reflection (AR) screen variations
• RX570 MammoDuo model variation two monitors integrated side-by-side with a dedicated stand


Availability

The RadiForce RX570 is now shipping. The date of availability may vary by country or region. Contact the nearest EIZO group company or distributor for details.


Product Information

RadiForce RX570


About EIZO

EIZO (TSE: 6737), which means image in Japanese, is a visual technology company that develops and manufactures high-end visual solutions to enrich people in their professional and personal lives. EIZO offers total imaging solutions with a range of monitors, software, video capture, processing, and distribution solutions, cameras, and advanced integrated technologies to meet the specialized needs of customers in business, creative fields, healthcare, air traffic control, maritime, security & surveillance, and more. Headquartered in Hakusan, Japan, EIZO has R&D and manufacturing facilities in Japan, China, Germany, and the United States, and representation in more than 130 countries.

EIZO, the EIZO logo, and RadiForce are registered trademarks of EIZO Corporation in Japan and other countries. DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information. DisplayPort is a trademark of the Video Electronics Standards Association in the United States and other countries. All other company names, product names, and logos are trademarks or registered trademarks of their respective owners.
