EX5
Calibration Sensor

Effortless calibration

The EX5 is a dedicated external sensor for calibrating your ColorEdge monitor using ColorNavigator 7 color management software.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility

EX5

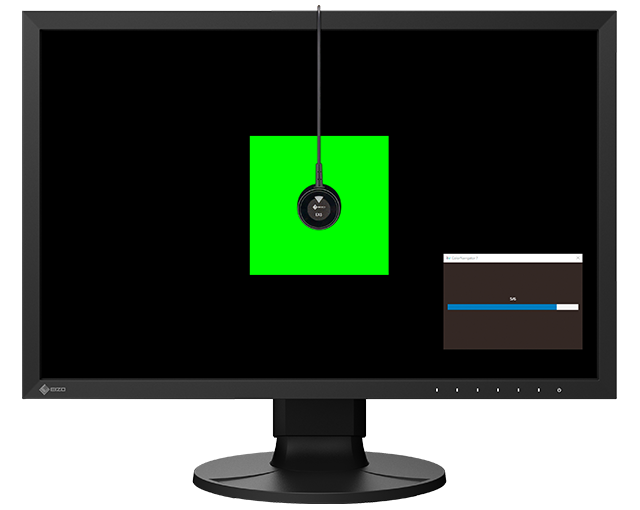

The EX5 is a external calibration sensor used to precisely calibrate ColorEdge monitors with the support of ColorNavigator 7 and Quick Color Match color management software. The sensor's size has been reduced by 25% compared to its predecessor, making it more compact.

EX5

  • Exclusive to ColorNavigator 7 and Quick Color Match. Not compatible with Calibrite software.
  • Packaging and included items are different from the Display 123 device.
  • Ambient light measurement and gray balance adjustment are not supported.
  • Please check the product specifications before purchasing to ensure the EX5 is compatible with your OS and installed versions of ColorNavigator 7 and/or Quick Color Match.


Supported Models

ColorEdge

CG Series 31.1"
CG319X, CG318-4K
27"
CG279X, CG277, CG2730, CG2700X, CG2700S
24.1"
CG247X, CG247, CG2420
23.8"
CG248-4K
CX Series 27"
CX271
24.1"
CX241
CS Series 27"
CS2740, CS2731, CS2730, CS270
24.1"
CS2420, CS2410, CS2400S, CS2400R, CS240
23.0"
CS230

Accessories

Color Matching Tool Software
Quick Color Match, ColorNavigator Network, ColorNavigator 7
Compatible OS Windows 11 / 10
macOS Big Sur (11) - macOS Sonoma (14)
Supported Software ColorNavigator 7 Ver.7.2.1 or later
Quick Color Match Ver.2.2.11 or later
Interface USB
Power
Power Requirements USB
Weight 102 g
Dimensions (W x H x D) φ37.6 x 33.6 mm
Warranty 2 Years
Dimension Drawing PDF

Manuals

Languages

EX5 User's manual English
Chinese-Simplified
- HTML

Compatibility

Date Subject
September 24, 2024 macOS Sequoia (15) and EIZO Software Compatibility
