VESAMP100
VESA 100 Mounting Plate
A dedicated mounting plate used for attaching the DuraVision DX0211-IP decoding box to the back of certain FlexScan monitors.
  • Contact EIZO
2 items

  • Features
  • Specifications

Flexible Installation for Mounted Solutions

The VESAMP100 is a mounting plate for attaching the DuraVision DX0211-IP decoding box to the back of certain FlexScan monitors. Upon removing the stand from the monitor, the plate is inserted into the open space, allowing you to attach the IP decoding box and VESA-compliant mounting fixtures. This provides flexible installation of the IP decoding box with EIZO's FlexScan monitor lineup.

Requires VOP-01 mounting plate in order to attach the DuraVision DX0211-IP.

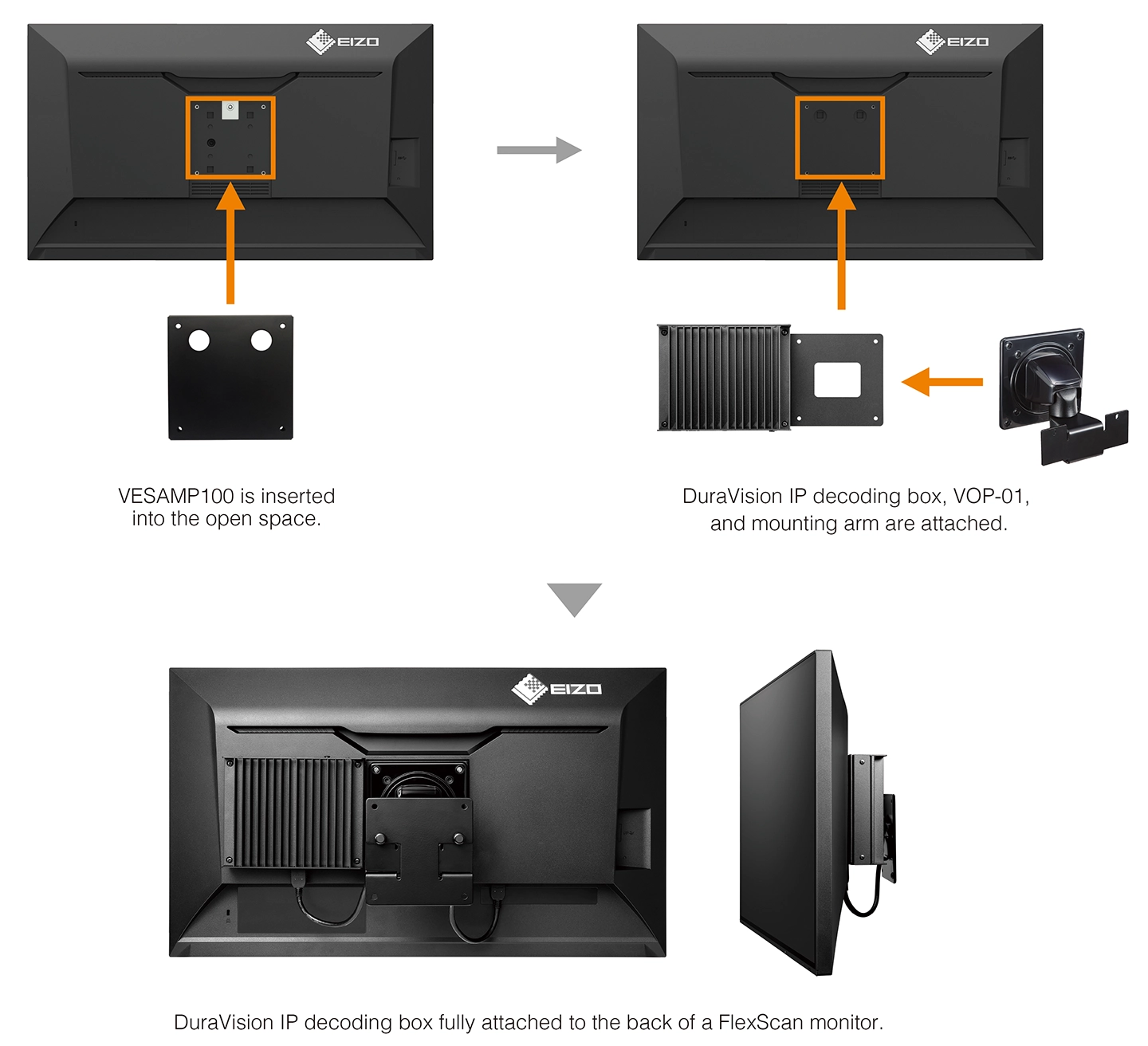

VESAMP100 inserted into the back of the monitor to allow attachment to VESA-supported fixtures.
Flexible Installation for Mounted Solutions



Supported Models

FlexScan

Premium 27"
EV2795
24.1"
EV2495
23.8"
EV2490
New Standard 31.5"
EV3285
27"
EV2785, EV2781, EV2780
24.1"
EV2485
23.8"
EV2480
Basic 27"
EV2760, EV2750
24.1"
EV2457, EV2456
23.8"
EV2460, EV2451
22.5"
EV2360

ColorEdge

CG Series 31.1"
CG319X
27"
CG279X, CG2730, CG2700X, CG2700S
24.1"
CG2420
23.8"
CG248-4K
CS Series 27"
CS2740, CS2731, CS2730
24.1"
CS2420, CS2410

DuraVision

Security & Surveillance -
DX0211-IP



Cabinet Color Black
Compatible Monitor
Hole Spacing (VESA Standard) 100 x 100 mm
Weight 135 g
Dimensions (W x H x D) 122 x 122 x 7.5 mm
