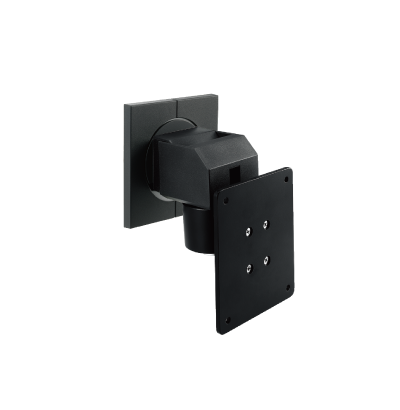

Wall Mount Arm (1-Axis Arm)

Mount your LCD monitor on a wall and change the screen position as necessary with tilt and swivel capability.

LA-011-W
(for 27/24.1/21.3/21.1/20.8/20.1/20/19/18.1/17" models)


2 items

  • Features
  • Specifications
  • Documents Compatibility
  • 35° up tilt and 180° swivel wide adjustment range (LA-011-W).

Supported Models

LA-011-W (for 27/24.1/21.3/21.1/20.8/20.1/20/19/18.1/17" models)

FlexScan

Premium 31.5"
EV3240X
27.0"
EV2795, EV2740X
24.1"
EV2495
23.8"
EV2490
New Standard 31.5"
EV3285
27.0"
EV2785, EV2781, EV2780
24.1"
EV2485
23.8"
EV2480
Basic 27.0"
EV2760, EV2750
Wide 31.5"
EV3237
27.0"
SX2761W, EV2736W
24.1"
SX2462W, SX2461W, S2433W, S2432W, S2431W, S2411W, S2410W, S2402W, S2401W, HD2442W, HD2441W, EV2436W, EV2411W
23.0"
EV2335W, EV2333W, EV2303W
22.0"
SX2262W, S2243W, S2242W, S2233W, S2232W, S2231W, S2202W, S2201W
21.1"
S2111W, S2110W
20.0"
S2031W, S2001W
Square 26.5"
EV2730Q
21.3"
S2134, S2133, S2100, L997, L985EX
20.1"
S2000, L887, L885
19.0"
S1961, S1932, S1931, S1921-X, S1921, S1911, S1910, S1902, S1901, M1950, M1900, L797, L795, L788-i, L788, L778, L768, L767
18.1"
L695, L685EX
17.0"
M1700, L567, L557

ColorEdge

CG Series 27"
CG279X, CG2730, CG2700X, CG2700S
24.1"
CG247X, CG247, CG246, CG245W, CG243W, CG242W, CG2420, CG241W
23.8"
CG248-4K
22.0"
CG223W, CG222W
21.3"
CG211, CG210, CG21
19.0"
CG19
18.1"
CG18
CX Series 24.1"
CX241, CX240
CS Series 27"
CS2740, CS2731, CS2730
24.1"
CS2420, CS2410, CS2400S, CS2400R, CS240
23.0"
CS230
CE Series 24.1"
CE240W
21.1"
CE210W

FORIS

Widescreen Format 27.0"
FS2735
23.8"
FS2434
23.0"
FS2333, FS2332, FS2331

RadiForce

Color Monitors 5MP
RX560
3.7MP
MX270W
3MP
RX370, RX360, RX350, RX340, RX320, R31, FA-2090
2.3MP
MX243W, MX242W, MX241W, MX240W, MX220W, FlexScan S2411W-M, FlexScan MX240W, FlexScan MH240W
2MP
RX270, RX250, RX240, RX220, RX211, RX210, RS210, R22, R21, MX217, MX216, MX215, MX210, MS230W, FlexScan S2100-M, FlexScan MX210
1MP
RS110, R12, R11, MX194, MX191, FlexScan S1910-M, FlexScan MX190S, FlexScan MX190
Monochrome Monitors 5MP
GX560, GX550, GX540, GX530, GS521, GS520, GS510, G51-S/-G, G51-BLG / G51-CLG, G51
3MP
GX340, GX320, GS320, GS310-BL, GS310, G33, G31-S, G31, FC-2091
2MP
GX240, GX220, GS220, G22, G21-S, G21, G20-S, G20
1MP
SMD 19102, G11

DuraVision

Security & Surveillance 27.0" IP
FDF2712W-IP, FDF2711W-IP
23.0" IP
FDF2312W-IP, FDF2304W-IP
23.0"
FDF2306W, FDF2305W, FDF2303W
Geographic Information Systems, Air Traffic Control, Virtual Reality 23.5"
FDF2405W



Cabinet Color Black
Compatible Monitor
Load Capacity 4 - 9 kg / 8.8 - 19.8 lbs
Hole Spacing (VESA Standard) 100 x 100 mm
Range of Movement
Height Adjustment Range -
Tilt 35° Up, 0° Down
Swivel 90° Right, 90° Left
Pivot 90°
Mounting Requirements Mounting Wall Load Capacity: 130 kg minimum
Weight 1.4 kg / 3.1 lbs
Dimensions (W x H x D) 109 x 172.1 x 113 mm

Manuals

Languages

LA-011-W User's Manual English 1.9 MB PDF
LA-011-W Compatible Screws List English 65.3 KB PDF
