Device
AJA SDI-HDMI Converter Hi5-12G Compatibility
1. Outline
We have tested the compatibility between AJA's SDI-HDMI converter Hi5-12G1 and EIZO ColorEdge 4K monitors.
1 Use firmware v2.26.3 or later.
Note: This information is provided based on our in-house testing and we do not guarantee the compatibility in respective user environments.
2. Applicable Monitors
ColorEdge CG3145, CG319X, CS2740
3. Validation Results
Monitor |
Validation Results (DCI-4K, UHD) |
Notes |
---|---|---|
ColorEdge CG3145 | Yes | YUV 4:2:2 (10-bit), RGB (10-bit) |
ColorEdge CG319X | Yes | YUV 4:2:2 (10-bit), RGB (10-bit) |
ColorEdge CS2740 | Yes |
YUV 4:2:2 (10-bit), RGB (10-bit) CS2740 does not suppport DCI-4K. |

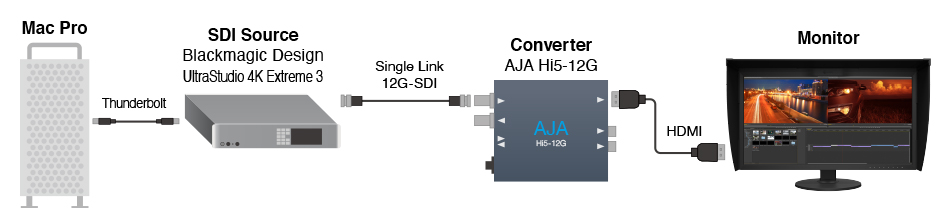

< System used for validation >
