APANTAC SDI-DisplayPort Converter Micro-4K-DP Compatibility
1. Outline
We have tested the compatibility between APANTAC's SDI-DisplayPort converter Micro-4K-DP1 and EIZO ColorEdge 4K monitors.
Note: This information is provided based on our in-house testing and we do not guarantee the compatibility in respective user environments.
2. Applicable Monitors
ColorEdge CG318-4K, CG248-4K
3. Validation Results
Monitor | Validation Result | Notes |
---|---|---|
ColorEdge CG318-4K | Yes | YUV signal is converted to RGB signal. Does not operate with RGB signal input. |
ColorEdge CG248-4K | Yes | YUV signal is converted to RGB signal. Does not operate with RGB signal input. |
Applicable for Micro-4K-DP with serial number 170518001 or later.

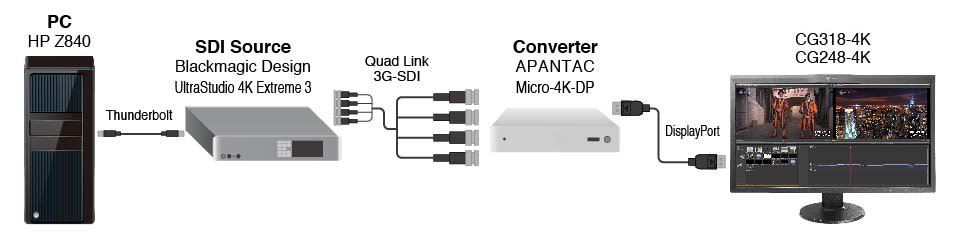

< System used for validation >
