Compatibility between RadiForce monitors using DisplayPort daisy chains

We confirm that the following combinations of DisplayPort daisy chains are possible.

- Multi monitor connection diagram

Multi monitor connection diagram



- 4-screen monitor configuration (Some graphics boards may not support this configuration)

4-screen monitor configuration





- Supported monitors

RadiForce RX660 RadiForce GX560, GX550, RX560 RadiForce RX360, RX350 RadiForce RX250
RadiForce MX315W


RadiForce RX660



Dual monitor configuration - Pattern 1

Dual monitor configuration

  • Set [Preferences] - [Input] to 'DisplayPort 1'.
  • Set [Administrator Settings] - [Daisy Chain] to 'On'.
  • This pattern does not support 10-bit.
Graphics board Monitor 1 Monitor 2
MED-X90
MED-X70
MED-X50LP
MED-X30LPB
MED-XN91
MED-XN71
MED-XN51LP
MED-XN31LP
RadiForce RX660 RadiForce MX215
FlexScan EV2456
FlexScan EV2455
FlexScan EV2451
FlexScan EV2450
FlexScan S2133
FlexScan S1934






Dual monitor configuration - Pattern 2

Dual monitor configuration

  • Set [Preferences] - [Input] to 'DisplayPort 1'.
  • Set [Administrator Settings] - [Daisy Chain] to 'On'.
  • Set [Preferences] - [PinP] - [PinP Display] to 'On' and set [Preference] - [PinP] - [Input] to 'DisplayPort 2'.
  • This pattern does not support 10-bit.
Graphics board Monitor 1 Monitor 2
MED-X90
MED-X70
MED-X50LP
MED-XN91
MED-XN71
MED-XN51LP
MED-XN31LP
RadiForce RX660 Connect the monitor directly to the graphics board, not via a daisy chain.

Page Top




RadiForce GX560, GX550, RX560



3-screen monitor configuration


3-screen monitor configuration


Graphics board Monitor 1 Monitor 2 Monitor 3
MED-X90
MED-X70
MED-X50LP
MED-XN91
MED-XN71
MED-XN51LP
MED-XN31LP
RadiForce GX560
RadiForce GX550
RadiForce RX560
RadiForce GX560
RadiForce GX550
RadiForce RX560
Connect the monitor directly to the graphics board, not via a daisy chain.


Page Top




RadiForce RX360, RX350



3-screen monitor configuration - Pattern 1



3-screen monitor configuration


Graphics board Monitor 1 Monitor 2 Monitor 3
MED-X90
MED-X70
MED-X50LP
MED-XN91
MED-XN71
MED-XN51LP
MED-XN31LP
RadiForce RX360
RadiForce RX350
RadiForce RX360
RadiForce RX350
FlexScan EV2456
FlexScan EV2455
FlexScan EV2451
FlexScan EV2450
FlexScan S2133
RadiForce MX194*
  • Only if Monitor 1 and 2 are RadiForce RX360



4-screen monitor configuration - Pattern 2



4-screen monitor configuration


Graphics board Monitor 1 Monitor 2 Monitor 3 Monitor 4
MED-XN91
MED-XN71
MED-XN51LP
MED-XN31LP
RadiForce RX360
RadiForce RX350
RadiForce RX360
RadiForce RX350
FlexScan EV2456
FlexScan EV2455
FlexScan EV2451
FlexScan EV2450
RadiForce MX194*
Connect the monitor directly to the graphics board, not via a daisy chain.
  • Only if Monitor 1 and 2 are RadiForce RX360


Page Top



RadiForce RX250

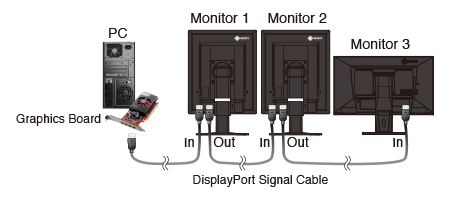

3-screen monitor configuration - Pattern 1

3-screen monitor configuration



Graphics board Monitor 1 Monitor 2 Monitor 3
MED-X90
MED-X70
MED-X50LP
MED-XN91
MED-XN71
MED-XN51LP
MED-XN31LP
RadiForce RX250 RadiForce RX250 RadiForce MX242W
RadiForce MX215
FlexScan EV2456
FlexScan EV2455
FlexScan EV2451
FlexScan EV2450
FlexScan S2133







4-screen monitor configuration - Pattern 2

4-screen monitor configuration



Graphics board Monitor 1 Monitor 2 Monitor 3 Monitor 4
MED-XN91
MED-XN71
MED-XN51LP
MED-XN31LP
RadiForce RX250 RadiForce RX250 FlexScan EV2456
FlexScan EV2455
FlexScan EV2451
FlexScan EV2450
Connect the monitor directly to the graphics board, not via a daisy chain.


Page Top



RadiForce MX315W



Dual monitor configuration - Pattern 1

Dual monitor configuration

  • Set [Preferences] - [Input] to 'DisplayPort 1'.
  • Set [Administrator Settings] - [Daisy Chain] to 'On'.
  • This pattern does not support 10-bit.
Graphics board Monitor 1 Monitor 2
MED-X90
MED-X70
MED-X50LP
MED-X30LPB
MED-XN91
MED-XN71
MED-XN51LP
MED-XN31LP
RadiForce MX315W FlexScan S1934





Dual monitor configuration - Pattern 2

Dual monitor configuration

  • Set [Preferences] - [Input] to 'DisplayPort 1 l DisplayPort 2'.
  • Set [Administrator Settings] - [Daisy Chain] to 'On'.
Graphics board Monitor 1 Monitor 2
MED-XN91
MED-XN71
MED-XN51LP
MED-XN31LP
RadiForce MX315W Connect the monitor directly to the graphics board, not via a daisy chain.
