Compatibility

Blackmagic Design UltraStudio HD Mini and ColorEdge Compatibility

1.Outline

We have testd the compatibility between Blackmagic design's UltraStudio HD Mini and EIZO ColorEdge CG279X.

Note: This information is provided based on ouro in-house testing and we do not guarantee the compatibility in respective user environments.

2. Applicable Monitors

ColorEdge CG279X

3. Validation Results

  YUV4:2:2
8bit
YUV4:2:2
10bit
RGB
8bit
RGB
10bit
1080p/60Hz Yes Yes - -
1080p/59.94Hz Yes Yes - -
1080p/24Hz Yes Yes Yes -
1080p/23.976Hz Yes Yes Yes -
1080i/60Hz Yes Yes Yes -
1080i/59.94Hz Yes Yes Yes -

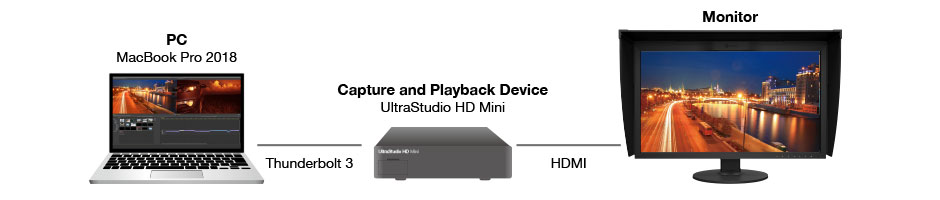

< System used for validation >
System used for validation
