Proprietary Calibration Software

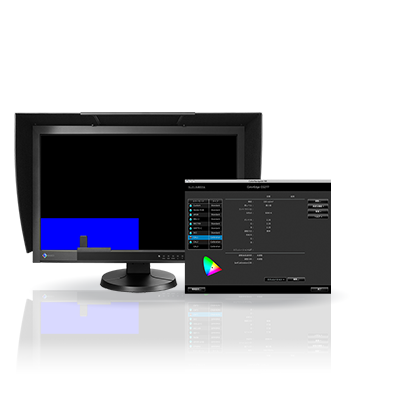

colornavigator nx icon ColorNavigator NX offers quality control (QC) and asset management of client ColorEdge monitors. It covers calibration, emulation, built-in sensor correlation, and color mode setting. This software is most effectively used with EIZO’s ColorNavigator Network solution to allow an administrator to perform QC operations on all ColorEdge monitors from a central location.
(For individuals or enterprises that do not require centralized QC, EIZO recommends ColorNavigator 6.)

Save Calibration Information to the Monitor

With ColorNavigator NX, calibration information is saved to the monitor instead of the PC’s operating system. You do not have to recalibrate the monitor if connecting to more than one PC because the monitor retains the settings. You also can toggle between modes without starting up ColorNavigator NX

save calibration results

Calibration information is saved to the monitor and retained when connecting to another PC.

Set Parameters of Color Modes

To suit the needs of a specific project, you can manually change the brightness, gamma, and white point settings of the monitor’s preset color modes such as Adobe RGB and DCI and calibrate to the new values.
　
In addition to preset color modes, calibration modes are available with each input connector. Just set the desired values for brightness, white point, black level, and gamma and then calibrate.

set parameters

You can also change any preset color mode into a Calibration mode and set the target values.

set parameters

Automate Self-Adjustment with Built-In Sensor

Schedule your monitor to self-calibrate (CG series) or self-correct (CX series) automatically at an interval of your choosing or after a specified number of usage hours have elapsed.

self-adjustment

Import/Export Monitor Settings

Import/export monitor settings including color modes, self-calibration scheduling, and key lock settings. This functionality allows an administrator to set up multiple monitors easily.
Settings can only be shared among the same models.

import and export settings

Color Mode Name Customization

Give your color mode its own name to avoid confusion about which one to use for a specific project. You can also prevent accidental use of color modes by disabling ones you do not need for your current projects.

rename

Film Emulation with 3D LUT

ColorNavigator NX creates emulation data from the 3D LUT (look-up table) file of the color grading system’s motion picture film. This is available with the monitor’s color modes and is ideal for matching the legacy look of film.

3d lut

Register Asset Management Information

Save asset management information to the monitor.

asset information

Available functions vary by model. See the details in the list.

ColorNavigator NX Available Functions by Model (PDF)

System Requirements

Compatible OS	Macintosh	Windows	Linux
Compatible OS	macOS High Sierra (10.13)* / macOS Sierra (10.12) / OS X El Capitan (10.11) / OS X Yosemite (10.10) / OS X Mavericks (10.9) / OS X Mountain Lion (10.8) / Mac OS X 10.7.5	Windows 10 (32-bit, 64-bit) / 8.1 (32-bit, 64-bit) / 7 (32-bit, 64-bit)	Red Hat Enterprise Linux Workstation 6
Supported Monitors	・ColorEdge CG3145 ・ColorEdge CG Series with built-in calibration sensor ・ColorEdge CX Series

^* When using macOS High Sierra 10.13 with the software, ColorEdge may not display correct color with the Agent function disabled. See this page for how to counter this issue.

Compatible Measurement Devices

Manufacturers	Supported Sensors	ColorEdge CG, CX Series	ColorEdge CG3145	Notes
X-Rite	i1 Monitor	Yes	-	i1 Studio is not supported.
	i1 Pro	Yes	-
	i1 Pro2	Yes	Yes
	i1 Display 3	Yes	-
	i1 Display Pro	Yes	-
	ColorMunki PHOTO	Yes	-	ColorMunki Display and ColorMunki Smile are not supported. Not compatible with Linux
	ColorMunki DESIGN	Yes	-
DataColor	Spyder3	Yes	-	Not compatible with Linux
	Spyder 4	Yes	-
	Spyder5	Yes	-
EIZO	EX1	Yes	-
	EX2	Yes	-
	EX3	Yes	-
	Built-in calibration sensor	Yes	-	-
basICColor	DISCUS	Yes	-	Not compatible with Linux
Klein	K-10	Yes	Yes	-
Klein	K-10A	Yes	Yes	-
Photo Research	PR-655	Yes	Yes	-
Photo Research	PR-680	Yes	Yes	-
Konica Minolta	CS-1000	Yes	-	Driver not included with ColorNavigator NX.
	CS-1000A	Yes	-	Driver not included with ColorNavigator NX.
	CS-2000	Yes	Yes	Not compatible with Mac OS X or Linux Driver not included with ColorNavigator NX
	CS-2000A	Yes	Yes
	CS-200	Yes	Yes
	CA-210	Yes	-
	CA-310	Yes	-
Colorimetry Research	CR-100	Yes	Yes	-
Colorimetry Research	CR-250	Yes	Yes	-
JETI	Specbos 1211	Yes	Yes	-
JETI	Spectraval 1501	Yes	Yes	-

Download ColorNavigator NX Software

The latest version of ColorNavigator NX is available for download.

EIZO Calibration and Print Matching Solutions

To learn how ColorNavigator NX differs from ColorNavigator, see this comparison chart (PDF: 65.3 KB).
