HP Z2 Mini G4 Workstation and FlexScan, ColorEdge Compatibility

Note: This information is provided based on our in-house testing and we do not guarantee the compatibility in respective user environments.

1. Video output

[Items of validation]

Displays BIOS image correctly
Displays the image correctly with the recommended resolution and refresh rate
Plug & Play works correctly
Colors display correctly
No noise and blinking of image
"Standby", "Sleep", "Restart" and "Shutdown" functions work correctly
USB hub works correctly
Built-in speakers work correctly (FlexScan)

PC	Maker	HP
	WorkStation	Z2 Mini G4 Workstation
	CPU	Intel Xeon CPU E2124G @ 3.40GHz 3.41GHz	Intel Xeon CPU E2174G @ 3.80GHz 3.79GHz
	BIOS	Q50 Ver.01.00.04 05/31/2018
	OS	Windows 10 Pro for Workstation
Graphics	GPU	Quadro P600	Quadro P1000
	GPU Driver Ver.	Ver.391.33
	Connecter	DisplayPort
FlexScan EV2451		Yes^*1
FlexScan EV2456		Yes
FlexScan EV2457		Yes
FlexScan EV2785		Yes^*2
FlexScan EV3285		Yes^*2
ColorEdge CS2420		Yes
ColorEdge CS2730		Yes
ColorEdge CG2420		Yes

*1 Default setting of dynamic range on graphics driver is "Limited". To improve, change this setting to "Full".
*2 The Z2 Mini G4's USB Type-C terminal does not support video output. Please prepare PP200 (DisplayPort cable) sold separately.

Change Resolution

[ Note ]
* If you connect the monitor via USB, configure the following BIOS settings of the workstation.
Disable [Advanced] - [Power Management Options] - [Runtime Power Management].
Disable [Advanced] - [Power Management Options] - [Extended Idle Power States].

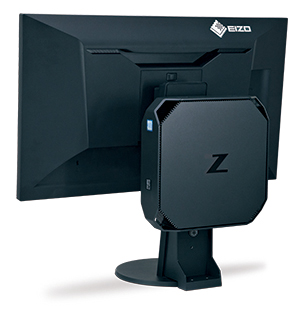

2. Stability of Monitor when PC is Attached to the Rear

[Items of validation]

Monitor does not fall over when tilted to 10 degrees (while the PC is attached with PCSK-03^*3).

Monitor	Result
FlexScan EV2451	Yes
FlexScan EV2456	Yes
FlexScan EV2457	Yes
FlexScan EV2785	Yes
FlexScan EV3285	Yes

*3 PCSK-03 is not compatible with ColorEdge CS2420, CS2730 and CG2420.
