PCSK-03 / PCSK-03R
Stand bracket for thin client or mini-PC
Dedicated bracket for attaching a client to the back of your monitor.
  • Contact EIZO
  • Features
  • Specifications
  • Documents Compatibility

Model Variations

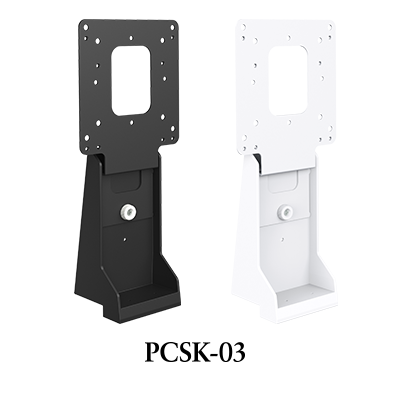

PCSK-03

Black Black White White

PCSK-03

Supported Models

FlexScan

Frameless 31.5"
EV3285
27.0"
EV2785, EV2760
24.1"
EV2457, EV2456
23.8"
EV2451

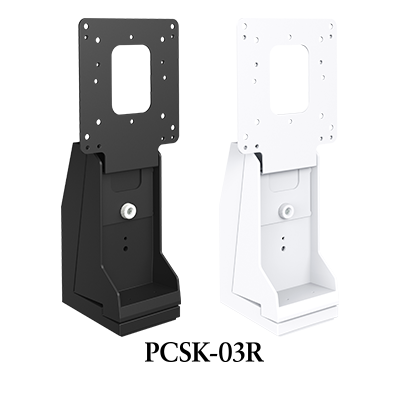

PCSK-03R

Black Black White White

PCSK-03R

Supported Models

FlexScan

Frameless 23.8"
EV2460
22.5"
EV2360



For the Office

Free Up Your Workspace with a Stand Bracket

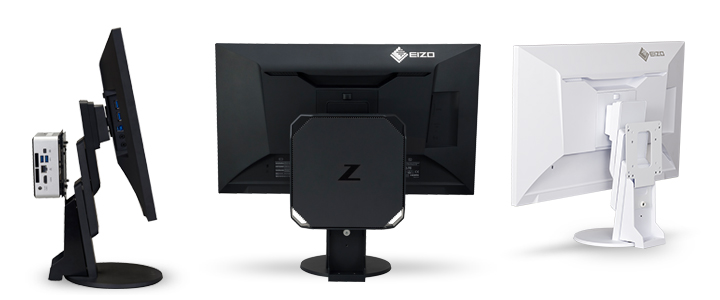

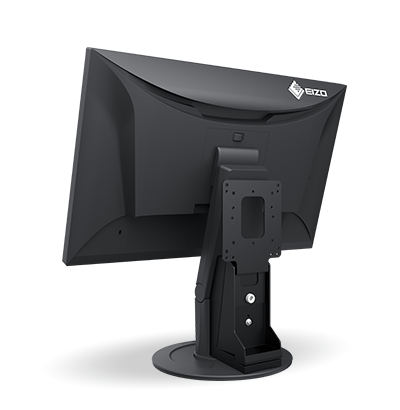

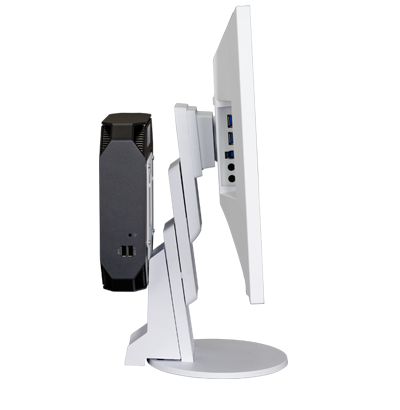

The PCSK-03 / PCSK-03R is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor's stand. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. Even with the client terminal attached you can adjust the monitor's stand freely.



Match Accessories from Front to Back

The PCSK-03 / PCSK-03R is available in both black and white for an all-around coordinated look between the monitor's cabinet, bracket, and cables.



Safe to Use with Various Client Terminals

The bracket has been tested with several companies' client terminals. When installed correctly, the bracket does not interfere with the balance of the monitor so that even a heavy client terminal will not cause your monitor to overbalance.



For Security & Surveillance

Clean Workspace for Security Environments

The DuraVision DX0211-IP is an IP decoding solution for security & surveillance environments that maintains multiple video feeds from connected IP cameras. It can attach directly to the monitor stand using the PCSK-03 or PCSK-03R bracket for a cleaner workspace in security & surveillance environments.

Clean Workspace for Security Environments


Validation Results

Manufacturer Model Name PCSK-03 PCSK-03R
Client Terminal
Dell Wyse 3010TC (Formerly: T10) Yes Yes
Wyse 5010TC (Formerly: D10D / D10DP) Yes Yes
Wyse 5020 Yes (Not evaluated)
Wyse 5030PCoIP (Formerly: P25) Yes Yes
HP t310 Zero Client Yes Yes
t310 G2 Zero Client Yes Yes
t520 Thin Client Yes Yes
t530 Thin Client Yes *1 Yes
Desktop PC
HP EliteDesk 800 G3 DM Yes Yes
EPSON Endeavor ST180E Yes *1 Yes
HP Elite Slice Yes *1 Yes
GIGABYTE GB-BKi7HT-7500/GB-BKi7HT2-7500 Yes Yes
Mini Workstation

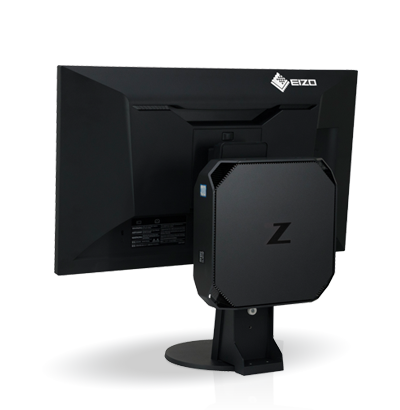

HP Z2 Mini G4 WorkstationEvaluation Details Yes Yes
Z2 Mini G3 Workstation Yes Yes
Lenovo ThinkStation P320 Tiny Yes Yes
IP Decoding Box
EIZO DuraVision DX0211-IP Yes*2 Yes

*1 Version B or later is supported.
*2 Version C or later is supported.




PCSK-03 versions



PCSK-03

Cabinet Color Black, White
Compatible Monitor
Hole Spacing (VESA Standard) 100 x 100 mm, 75 x 75 mm
Weight 400 g
Dimension Drawing PDF

PCSK-03R

Cabinet Color Black, White
Compatible Monitor
Hole Spacing (VESA Standard) 100 x 100 mm, 75 x 75 mm
Weight 500 g
Dimension Drawing PDF

PCSK-03

Manuals

Languages

Document Language Size Download
Product version A : PCSK-03 User's manual (Preparation) English 746 KB Download
Product version A : PCSK-03 User's manual (Basics) English
Chinese-Simplified
Japanese
3.01 MB Download
Product version B : PCSK-03 Installation manual English 2.34 MB Download
Product version B : PCSK-03 User's manual English
Chinese-Simplified
Japanese
2.08 MB Download
Product version C : PCSK-03 User's manual English
Chinese-Simplified
Japanese
1.32 MB Download
Product version C : PCSK-03 Installation manual English 3.6 MB Download
Product version A : PCSK-03 User's manual (Preparation) Chinese-Simplified 958 KB Download
Product version B : PCSK-03 Installation manual Chinese-Simplified 2.61 MB Download
Product version C : PCSK-03 Installation manual Chinese-Simplified 3.84 MB Download

Compatibility

Date Subject
November 29, 2018 HP Z2 Mini G4 Workstation and FlexScan, ColorEdge Compatibility
August 23, 2018 Lenovo ThinkStation P320 Tiny and FlexScan Compatibility
June 13, 2018 GIGABYTE GB-BKi7HT-7500 Compatibility with EIZO Monitors
May 24, 2018 HP EliteDesk 800 G3 DM and FlexScan Compatibility

PCSK-03R

Manuals

Languages

Document Language Size Download
PCSK-03R User's manual English
Chinese-Simplified
Japanese
1.29 MB Download
PCSK-03R Installation Manual English 3.32 MB Download
PCSK-03R Installation Manual Chinese-Simplified 3.57 MB Download
