Lenovo ThinkStation P320 Tiny and FlexScan Compatibility

Lenovo

Lenovo ThinkStation P320 Tiny and FlexScan Compatibility

Note: This information is provided based on our in-house testing and we do not guarantee the compatibility in respective user environments.

1. Video output

[Items of validation]

Displays BIOS image correctly
Displays the image correctly with the recommended resolution and refresh rate
Plug & Play works correctly
Colors display correctly
No noise and blinking of image
"Standby", "Sleep" and "Shut down" functions work correctly
USB hub works correctly (Except for EV3285, EV2785)
Displays correctly on expanded desktop
Built-in speakers work correctly

PC	ThinkStaion P320 Tiny
CPU	Intel Core i5-7500U CPU2.70GHz
OS	Windows 10 Pro 64-bit
GPU	NVIDIA Quadro P600
GPU Driver Ver.	22.21.13.8259
Connector	PC:　Mini DisplayPort Monitor: DisplayPort
Cable	PM200
FlexScan EV3285	Yes^*1
FlexScan EV2785	Yes^*1
FlexScan EV2456	Yes^*1
FlexScan EV2451	Yes^*1

*1 The default dynamic range output setting is set to "Limited". In the NVIDIA control panel, please change the setting to "Full".

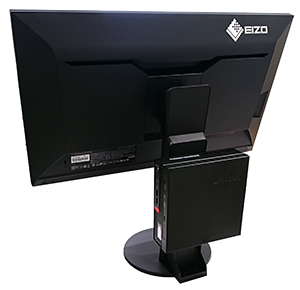

2. Stability of Monitor when PC is Attached to the Rear

[Items of validation]

Monitor does not fall over when tilted to 10 degrees (while the PC^*2 is attached with PCSK-03^*3).

Monitor	Result
FlexScan EV3285	Yes
FlexScan EV2785	Yes
FlexScan EV2456	Yes
FlexScan EV2451	Yes

*2 The "Lenovo ThinkCenter Tiny VESA Mount II" is required.
*3 Both Version A and Version B can be attached.
There is no problem when Lenovo's "ThinkCenter Tiny IV DVD Burner Kit" is installed.
