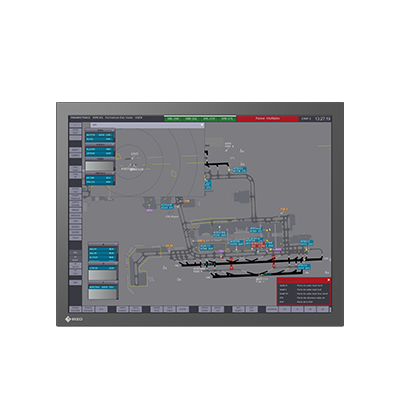

Exceptional Visibility for Tower Applications
High Brightness and Contrast for Clear Images
Ensuring ATCOs can easily read and interpret information is crucial in mission-critical ATC. The Raptor RP1526 offers an exceptionally wide brightness range of 25 to 800 cd/m2 and a contrast ratio of 1000:1, ensuring optimal screen clarity in varying lighting conditions, day or night.
High Visibility in Bright Environments
Antiglare protection glass greatly reduces reflections and glare, providing exccellent visibility even in brightly lit environments. It is also resistant to fingerprints, ensuring consistently clear images.
Clear View Across the Screen
A typical ATCO tower workstation is equipped with multiple monitors for displaying various information. Wide viewing angles ensure the ATCO maintains a clear view of critical information, even when the monitor is mounted peripherally to the main application display.
Touch Panel Capabilities
Intuitive Touch Operation
The monitor features projects capacitive (PCAP) touch technology that accepts touch input from a bare finger, stylus, or thin gloves. High responsiveness to tapping, swiping, and flicking motions makes touch operation intuitive and smooth for flight data management, communication systems, and other applications. A non-touch variation is also available to adapt to any installation requirement.
Multitouch and Stylus Input
The monitor supports up to 10 simultaneous touches, enabling seamless operation across various applications. It also supports stylus input, allowing ATCOs to conveniently write notes directly on the screen for enhanced operational efficiency.
Supported Active Stylus: Active Stylus 1
Supported Passive Stylus: TP5
High Durability
The touch screen has a non-scratch surface made of reinforced glass with a hardness of 6H, making it durable enough to withstand long-term use in tower environments.
Seamless Installation
Mounting Flexibility
The monitor complies with the VESA 100 x 100 standard, enabling versatile attachment to VESA-supported arms and fixtures in any configuration.
Compact Size for Towers and Control Centers
The monitor's compact 15-inch size optimizes the use of limited space in ATC towers or in control center auxiliary configurations, supporting an organized controller workspace. Its small footprint allows for easy adaptation for dynamic controller position layout, ensuring flexibility and efficiency.
Complete Connection

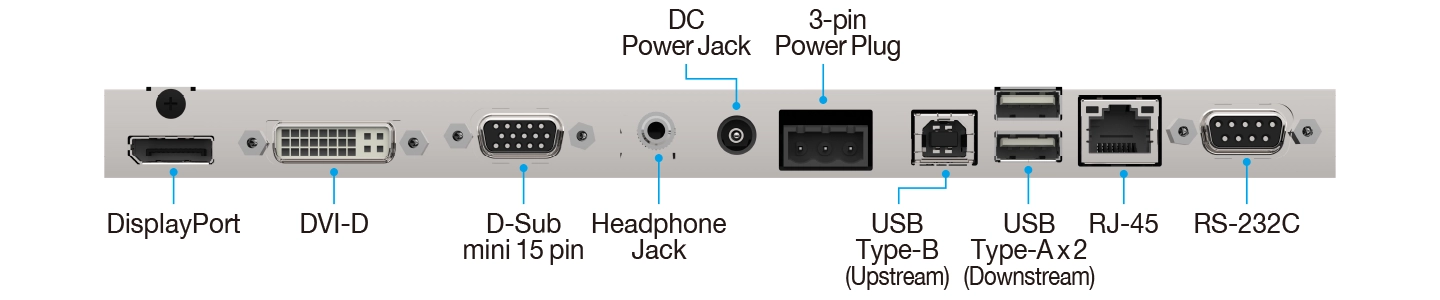

The monitor is equipped with DVI and DisplayPort inputs for digital signal transmission, as well as a D-Sub mini 15-pin port for analog connections. Additionally, it includes various communication interfaces for network connectivity, remote monitor management, and maintenance. This enables system managers to query data from the monitor without needing to access the OSD menu.
Flexible Integration with Wide Power Input Range
The RP1526 supports a power input range of DC12-24V, enabling seamless integration into existing systems without the need for power reconfiguration.
Enhanced Audio Integration for ATCO Communications
The DisplayPort connection supports multi-channel audio, enabling the transmission of audio along with video signals. This allows the ATCO to receive aircraft audio directly through the monitor's built-in speakers, providing a streamlined solution for configurations where PCs are positioned away from the controller's station.
Durability and Reliability
Industrial-Grade Housing

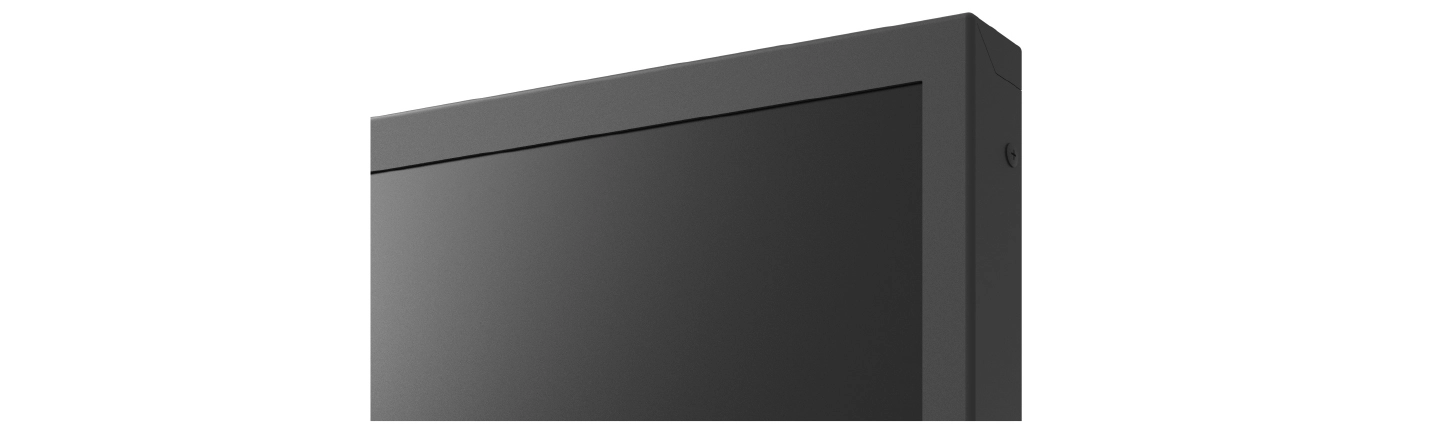

The monitor features full sheet-steel industrial-grade housing, ensuring durability in demanding environments.
Heat Management with Fanless Operation
EIZO designed the monitor to prevent heat buildup, eliminating the need for a fan. Effective heat management reduces the risk of hardware failure or deterioration of internal components, even in environments with high volumes of electrical equipment operating for extended periods.
24/7 Operation
The monitor is developed specifically for meeting the stringent requirements of mission-critical ATC environments with 24/7 operation.
Panel | |
---|---|
Type | IPS |
Backlight | LED |
Size | 15" (38.1 cm) |
Native Resolution | 1024 x 768 (4:3 aspect ratio) |
Viewable Image Size (H x V) | 304.1 x 228.1 mm |
Pixel Pitch (H x V) | 0.297 x 0.297 mm |
Display Colors | 16.2 million |
Viewing Angles (H / V, typical) | 178° / 178° |
Brightness (typical) | 25 - 800 cd/m2 |
Contrast Ratio (typical) | 1000:1 |
Response Time (typical) | 25 ms (white-to-black) |
Touch Panel | |
Type | Projected Capacitive |
Touch Points | 10 |
Communication Protocol | USB |
Compatible OS |
Multi Touch Support:
Windows 11 / 10 / 8 / 7 (64-bit, 32-bit), Linux (Kernel 2.6.36 or later) Single Touch Support: Windows XP, Linux (Kernel 2.6.24 - 2.6.35) |
Video Signals | |
Input Terminals | DisplayPort, DVI-D (single link), D-Sub mini 15 pin |
Digital Scanning Frequency (H / V) | 31 - 79.9 kHz / 59.8 - 75 Hz |
Analog Scanning Frequency (H / V) | 31 - 79.9 kHz / 59.8 - 75 Hz |
USB | |
Upstream | USB 2.0: Type-B |
Downstream | USB 2.0: Type-A x 2 |
Audio | |
Speakers | 1.0 W + 1.0 W |
Input Terminals | DisplayPort |
Output Terminals | Headphone (Stereo mini jack) |
Power | |
Power Input | DC 12 / 24 V |
Typical Power Consumption |
8 W (Brightness: 150 cd/m2) |
Maximum Power Consumption | 20 W |
Features & Functions | |
Brightness Stabilization | No |
OSD Languages | English, German, Spanish |
Communication Interface | RS-232C, USB, RJ-45 |
Communication Protocol | SNMP, HTTP, HID, Modbus/TCP |
Physical Specifications | |
Dimensions (Without Stand, W x H x D) | 334 x 261 x 52.2 mm |
Net Weight (Without Stand) | 3.4 kg |
Hole Spacing (VESA Standard) | 100 x 100 mm |
Environmental Requirements | |
Operating Temperature | 0 - 40°C |
Operating Humidity (R.H., non condensing) | 15 - 80% |
Storage Temperature | -20 - 56°C |
Degree of Protection | IP20 |
Certifications & Standards (Please contact EIZO for the latest information.) | CE, FCC, UL, CB |
Warranty | 2 Years (24-hour use) |
Dimension Drawing |
