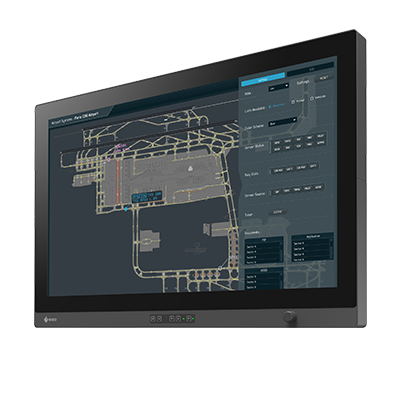

Raptor RP3225
31.5" Tower Monitor
The Raptor RP3225 is a touch panel monitor designed for air traffic control. With 4K UHD (3840 x 2160) resolution and exceptional readability in varying lighting conditions, it is ideal for tower applications. It is available with a range of customization options.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

50+ Years of Technical Expertise

EIZO has been an industry leader in the innovation and development of quality monitors for ATC since 2005. Backed by over 50 years of technical expertise in visual display solutions, the Raptor series of tower monitors are built to meet the diverse requirements of any ATC environment.






Make the Switch to a Smarter Monitor

Intelligent Display Platform

The monitor is equipped with EIZO's Intelligent Display Platform (IDP) developed specifically for ATC. The IDP enables simultaneous display of video signals from up to four independent sources. Traditional Picture-in-Picture (PinP) and Picture-by-Picture (PbyP) functions are limited to a certain number of predefined layouts, providing a relatively inflexible display environment. With IDP, users have complete freedom to place each window anywhere on the screen, as well as scale and assign layer order priority.

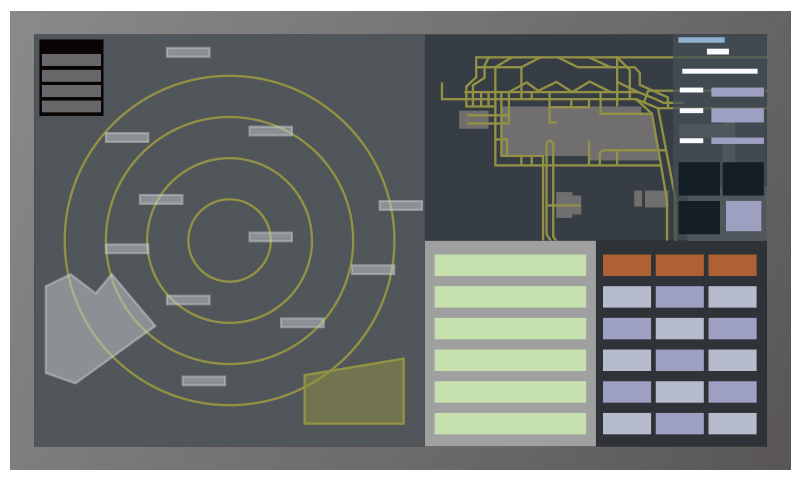

Display up to four video sources simultaneously.

Display up to four video sources simultaneously.



Freely arrange each source window anywhere on the screen.

Actual size

Actual size

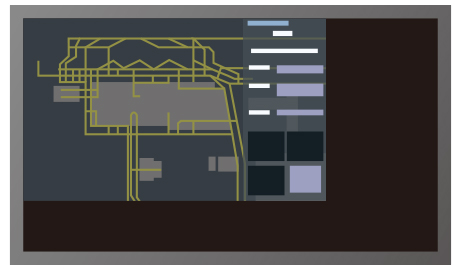

Scaled (maintains aspect ratio)

Scaled
(maintains aspect ratio)

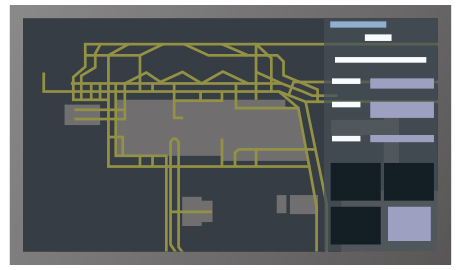

Full screen (stretched)

Full screen
(stretched)


See more with video.

Integrated Switching

The monitor offers EIZO's SwitchLink internal switching management technology as an option. SwitchLink enables seamless switching of keyboard, mouse, and dynamic touch input without the need for an external KVM switch. Up to four video signal feeds can be connected to the monitor, with the option to connect an additional two auxiliary monitors, for an up to six-workstation configuration operated by a single keyboard and mouse.

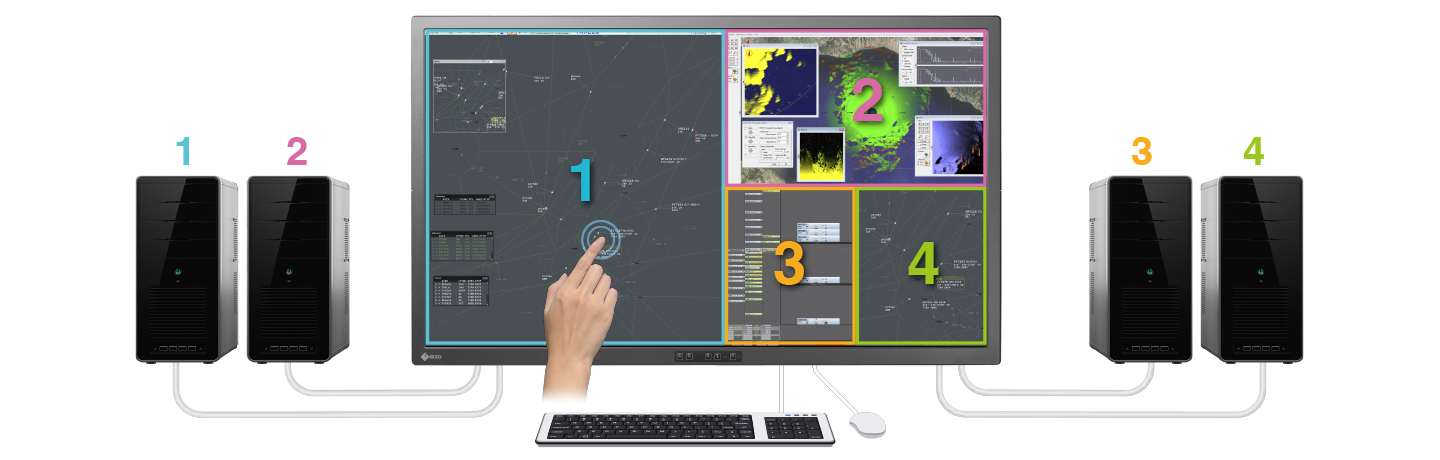

SwitchLink connected to four video sources.

SwitchLink connected to four video sources.




SwitchLink connected up to 6 video sources. (4 inputs on a single screen and 2 auxiliary monitors)

SwitchLink connected to four video sources.


See more with video.



SwitchLink Mouse

Simply moving the mouse cursor across each window will instantaneously and automatically switch workstation inputs. The response time when switching mouse input to another workstation is approximately 0 ms for completely smooth operation.

SwitchLink Mouse



0 ms switching!

SwitchLink Keyboard

To toggle between workstations, EIZO also implements keyboard hotkey switching with SwitchLink. By activating a predefined hotkey, USB control of the keyboard and mouse will switch to another workstation.

SwitchLink Keyboard



SwitchLink Dynamic Touch

EIZO's monitors are the first in the world to feature integrated dynamic touch switching. With EIZO's IDP enabling up to four workstations to be displayed simultaneously on the monitor, SwitchLink allows each window to have its own independent touch connection with automatic switching built in. The user simply needs to touch the screen and the monitor will sense the interaction and automatically switch to the target input.

SwitchLink Dynamic Touch



Streamline Installation and Maintenance

With SwitchLink, video sources connect to the monitor directly, eliminating the need for a KVM switch.

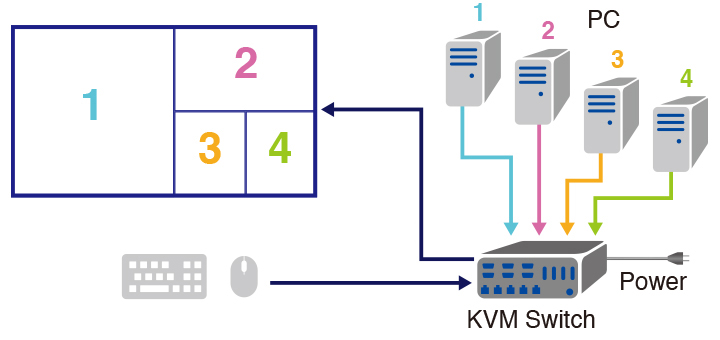

Traditional configuration using a KVM switch.
Traditional configuration using a KVM switch.



SwitchLink eliminates the need for a KVM switch.
SwitchLink eliminates the need for a KVM switch.
  Reduce Cabling and Cable Management

SwitchLink is built directly into the monitor, eliminating the need for the KVM switch and additional cables for a streamlined installation.



Reduce Power Consumption and Connection Requirements

Since SwitchLink is built into the monitor, it does not require any additional power connections, reducing power requirements of the system.



Avoid Compatibility Issues

SwitchLink removes some of the risk for compatibility or driver issues caused by traditional KVM switches. The monitor and built-in switching component are developed by the same engineering team at EIZO to ensure smooth handshaking between internal components and optimum performance throughout the lifetime of the monitor.

Learn more about IDP and SwitchLink in this article.

Last Frame Display   NEW

In mission-critical ATC where every second counts, air traffic control officers (ATCO) need to be aware if there is any disruption to the image on screen. EIZO's unique Last Frame Display function detects if the video signal is disrupted and automatically displays the last available frame captured from the visual system accompanied by a text overlay to inform the ATCO of the status. This ensures the ATCO is immediately made aware of the disruption so appropriate action can be taken, such as following emergency protocols or accessing a backup system, while providing the last available visual information to refer to until the issue is addressed.

Custom Naming of Video Signal Inputs   NEW

Air traffic management systems are comprised of numerous independent systems, each of which are displayed on the controller's screen via dedicated video signals. The monitor allows end users to assign a custom name to each of the monitor's video signal inputs. This is useful if an input signal is disrupted due to a system or other error, so IT personnel can determine immediately which system was affected.






Visibility

Wide Brightness Range

The Raptor RP3225 achieves an exceptionally wide brightness range from 10 up to 700 cd/m2 for viewing in changing ambient lighting conditions. It also includes an adjustment dial for smooth brightness control.

wide-brightness-range

Backlight Stabilization

EIZO's fully automated backlight stability function uses an internal sensor to stabilize the brightness level throughout the life of the monitor, compensating for fluctuations caused by variations in ambient temperature and the passage of time.

backlight-stabilization

Antiglare Protection Glass

The monitor is equipped with antiglare protection glass to ensure that the screen maintains high visibility even in bright ambient lighting.

antiglare-protection




Usability

Touch Panel Capability

The Raptor RP3225 offers a projected capacitive touch panel featuring reduced reflections, touch durability, and multi-touch support. Fully flat, it provides a seamless touch experience.

touch panel

Complete Connection

The monitor is equipped with two DVI and two DisplayPort inputs for supporting digital signals. It also comes equipped with communication interfaces for connection to a network, remote monitor management, or maintenance purposes – RS-232C, USB, RJ-45.

rp2425-connectors

Mounting Flexibility

To meet the requirements of any installation, EIZO's tower monitors offer multiple configurations such as panel mount for installing directly into a console or VESA for mounting on an arm or stand. Mounting options vary by model.

flexible-instalation




Durability and Reliability

Industrial-Grade Housing

The monitor uses full sheet-steel industrial-grade housing for durability and high performance in demanding environments.

industrial-grade housing

24/7 Operation

The Raptor RP3225 is developed specifically for meeting the stringent requirements of mission-critical ATC environments with 24/7 operation.

24-7

Fanless Operation

The monitor provides noiseless, fanless operation while still maintaining low heat output without impacting performance.

fanless

Built-In Power Supply

While other solutions may require a bulky power brick to operate, the Raptor RP3225 has its power supply built in. This provides a cleaner and more manageable installation area.

built in power supply




Extensive Customization

EIZO offers extensive customization in order to meet the specific needs of individual towers and control centers. Available options vary by model so please contact EIZO for details.

extensive customization
Touch panel and optical bonding options vary by model.



Contact us to configure your monitor.
atc@eizo.com



  • Screen images provided by THALES and AviBit.
Model Variations without stand, with tilt stand
Panel
Type VA
Backlight LED
Size 31.5" (80.0 cm)
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 697.9 x 392.6 mm
Pixel Pitch (H x V) 0.182 x 0.182 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 176° / 176°
Brightness (typical) 10 - 700 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 8 ms (gray-to-gray)
Touch Panel
Type Projected Capacitive
Touch Points 10
Communication Protocol USB
Compatible OS Multi Touch Support:
Windows 10 / 8 / 7 (64-bit, 32-bit), Linux (Kernel 2.6.36 or later)
Single Touch Support:
Windows XP,
Linux (Kernel 2.6.24 - 2.6.35)
Video Signals
Input Terminals DisplayPort x 2, DVI x 2
Digital Scanning Frequency (H / V) 30 - 140 kHz, 50 - 70 Hz
USB
Upstream USB 2.0: Type-B
Downstream USB 2.0: Type-A x 2
Audio
Speakers 1.0 W + 1.0 W
Input Terminals DisplayPort x 2
Power
Power Input AC 100 - 240 V, 50 - 60 Hz
Typical Power Consumption 65 W (Brightness: 150 cd/m2)
Maximum Power Consumption 125 W
Features & Functions
Brightness Stabilization Yes
OSD Languages English
Communication Interface RS-232C, USB, RJ-45
Communication Protocol SNMP, HTTP, HID, Modbus/TCP
Others External Keyboard Interface
Physical Specifications
Dimensions (Landscape, W x H x D) 774.8 x 525.7 - 635.2 x 322.9 mm
Dimensions (Without Stand, W x H x D) 774.8 x 501.4 x 91 mm
Net Weight 22.3 kg
Net Weight (Without Stand) 17.1 kg
Hole Spacing (VESA Standard) 200 x 100 mm
Environmental Requirements
Operating Temperature 0 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Storage Temperature -20 - 56°C
Certifications & Standards (Please contact EIZO for the latest information.) CE, UL, FCC-B, REACH, RoHS, WEEE
Warranty 2 Years (24-hour use)

Brochures

ATC Visual System
5.01 MB

Download



Raptor Tower Monitors
1.35 MB

Download



Compatibility

Date Subject
July 30, 2019 Abnormal Display Issue on Microsoft Windows 10 May 2019 Update (1903)
Touch Panel Pointers and Styluses
Active Stylus 1

An active stylus for Raptor touch panel monitors.

External OSD Keyboard
EACON-S05

- Remote OSD access of Raptor legacy monitors
- 7-pin circular connector

Monitor Cleaning Kit
ScreenCleaner

- Keep your screen free from dust and fingerprints
- Includes pump spray and cloth
