Exceptional Visibility for Tower Applications

High Brightness and Contrast for Clear Images

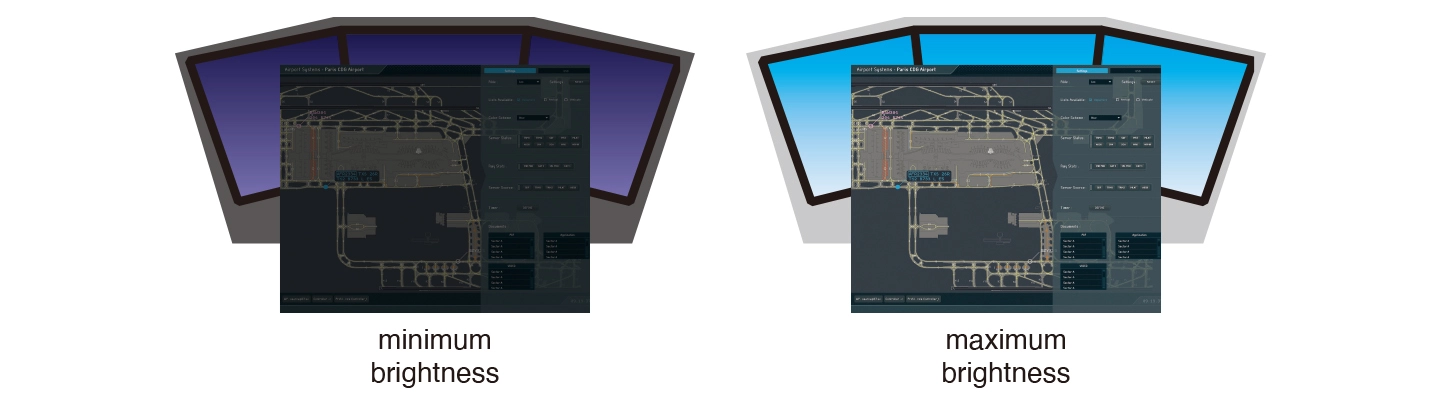

Ensuring ATCOs can easily read and interpret critical information is crucial in mission-critical ATC. The Raptor RP2126 offers an exceptionally wide brightness range of 10 to 1000 cd/m² and a high contrast ratio of 1800:1, ensuring optimal screen clarity in varying lighting conditions, day or night.

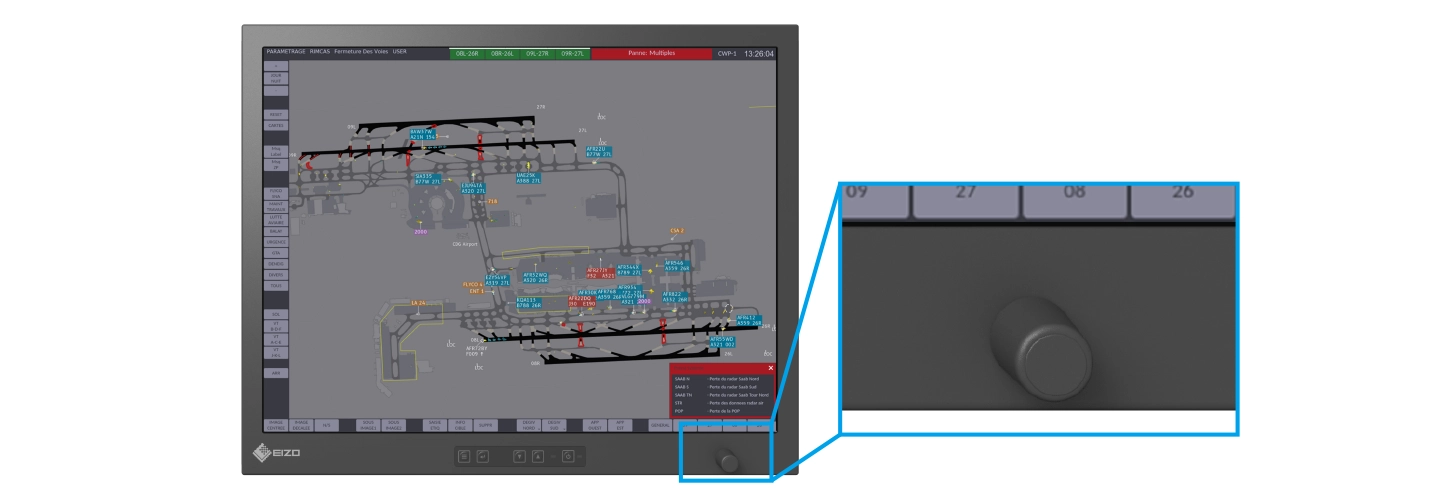

The front bezel adjustment dial allows for smooth brightness control, fine-tuning to the needs of the ATCO and tower application.

Consistent Brightness for Optimal Performance

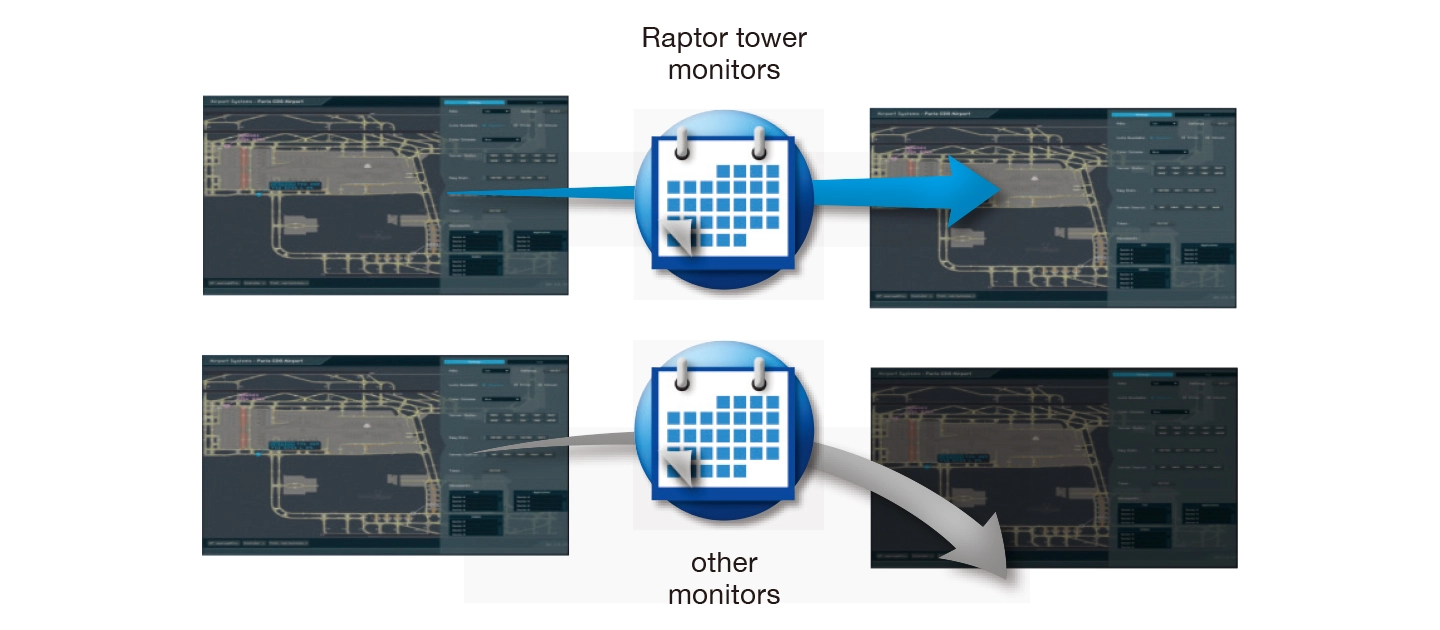

The monitor is equipped with an internal backlight sensor that ensures consistent brightness over time. This function stabilizes the backlight, compensating for fluctuations due to ambient temperature changes and the natural aging of the monitor, ensuring reliable performance and optimal visibility.

High Visibility in Bright Environments

Antiglare protection glass greatly reduces reflections and glare, providing excellent visibility even in brightly lit environments. It is also resistant to fingerprints, ensuring consistently clear images.


Clear View Across the Screen

A typical ATCO tower workstation is equipped with multiple monitors for displaying various information. Wide viewing angles ensure the ATCO maintains a clear view of critical information, even when the monitor is mounted peripherally to the main application display.

Touch Panel Capabilities

Intuitive Touch Operation

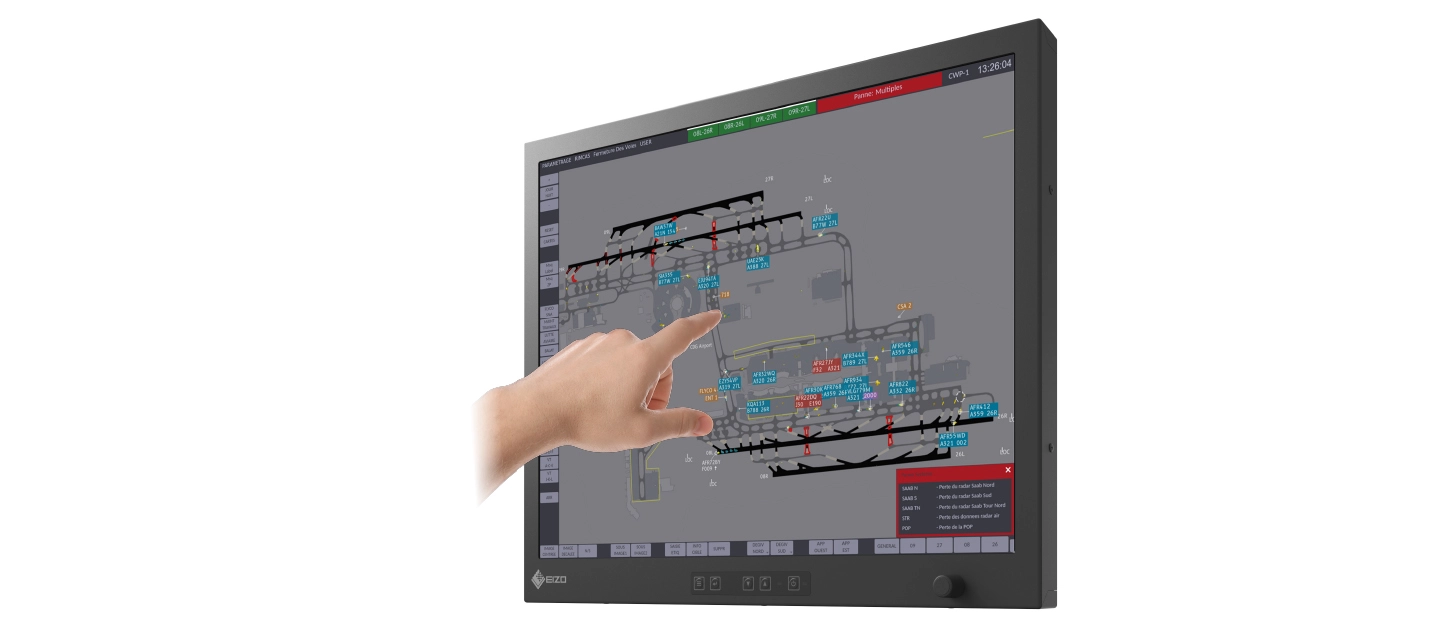

The monitor features projects capacitive (PCAP) touch technology that accepts touch input from a bare finger, stylus, or thin gloves. High responsiveness to tapping, swiping, and flicking motions makes touch operation intuitive and smooth for flight data management, communication systems, and other applications. A non-touch variation is also available to adapt to any installation requirement.

10-Point Multitouch and Stylus Input

The monitor supports up to 10 simultaneous touches, enabling seamless operation across various applications. It also supports stylus input, allowing ATCOs to conveniently write notes directly on the screen for enhanced operational efficiency.

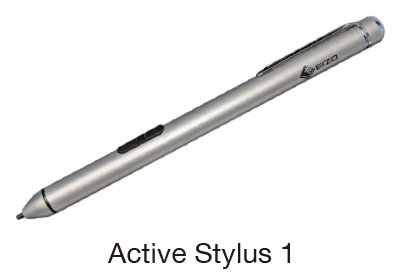

Supported Active Stylus: Active Stylus 1
Supported Passive Stylus: TP5

High Durability

The touch screen has a non-scratch surface made of reinforced glass with a hardness of 7H, making it durable enough to withstand long-term use in tower environments.

Seamless Installation

Mounting Flexibility

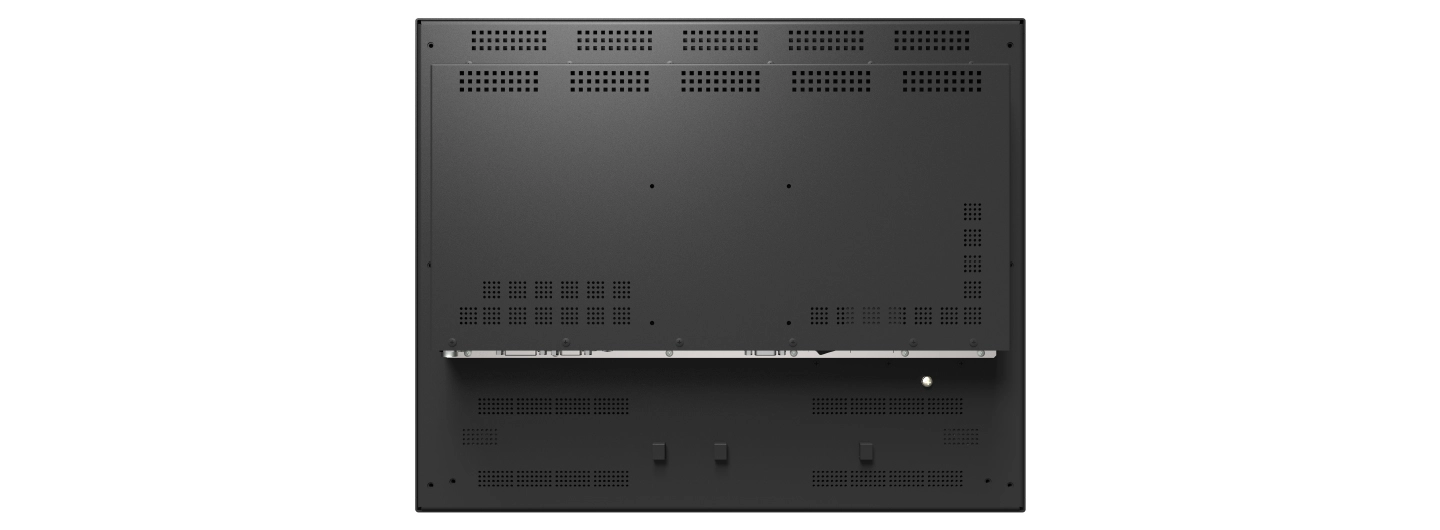

The monitor includes additional mounting points alongside the VESA 100 x 100 standard, allowing for custom adapter attachments on the backside. This ensures seamless integration into various installation environments, including existing consoles and systems. EIZO also offers a  stand option for desktop solution configurations.

Complete Connection

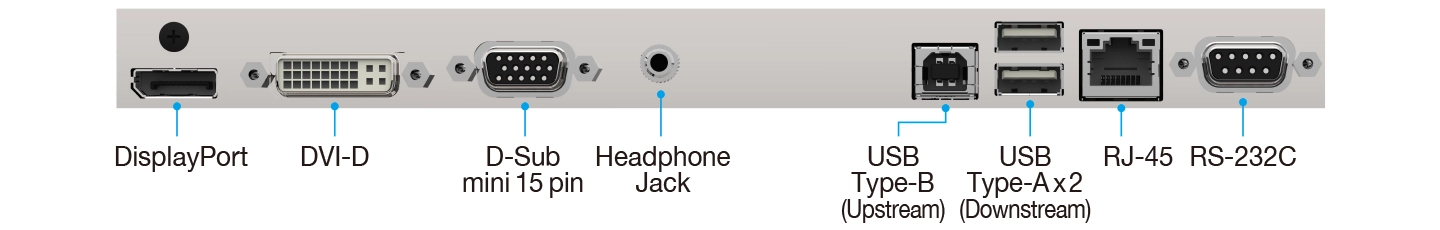

The monitor is equipped with DVI and DisplayPort inputs for digital signal transmission, as well as a D-Sub mini 15-pin port for analog connections. Additionally, it includes various communication interfaces for network connectivity, remote monitor management, and maintenance. This enables system managers to query data from the monitor without needing to access the OSD menu.

Enhanced Audio Integration for ATCO Communications

The DisplayPort connection supports multi-channel audio, enabling the transmission of audio along with video signals. This allows the ATCO to receive aircraft audio directly through the monitor's built-in speakers, providing a streamlined solution for configurations where PCs are positioned away from the controller's station.

Durability and Reliability

Industrial-Grade Housing

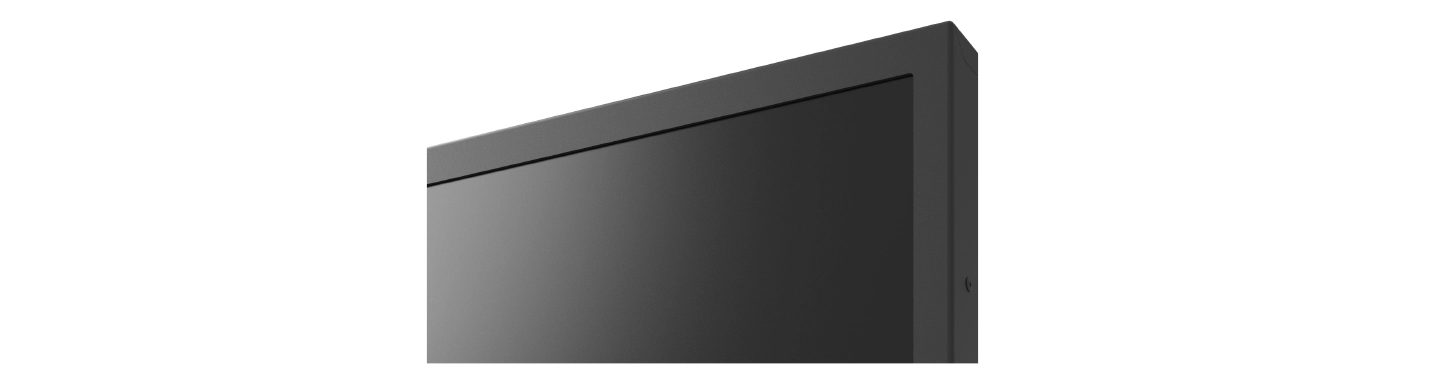

The monitor features full sheet-steel industrial-grade housing, ensuring durability in demanding environments.

Heat Management with Fanless Operation

EIZO designed the monitor to prevent heat buildup, eliminating the need for a fan. Effective heat management reduces the risk of hardware failure or deterioration of internal components, even in environments with high volumes of electrical equipment operating for extended periods.


24/7 Operation

The monitor is developed specifically for meeting the stringent requirements of mission-critical ATC environments with 24/7 operation.


Built-In Power Supply

The monitor features a built-in its power supply, eliminating the need for a bulky external unit. This ensures a cleaner and more streamlined installation area.
