This page details the functions available with the latest system software for IP decoding solutions.

・Latest software Version 6.2
・Products supporting Ver. 6.1 / Ver. 6.2: DX0212-IP, FDF2712W-IP, FDF2312W-IP


Release Date: September, 2023

H.265 Support for ONVIF and AXIS Protocols

The high-efficiency H.265 video compression format, previously only supported by Panasonic, i-PRO, and TOA cameras, is now supported by ONVIF and AXIS protocols. For instructions on how to set up the IP decoder, please refer to the following guide.

System software Ver.6.0 or earlier only supports H.265 for Panasonic, i-PRO, and TOA cameras.

Set the camera's video compression format to H.265 before proceeding with setup.

For ONVIF

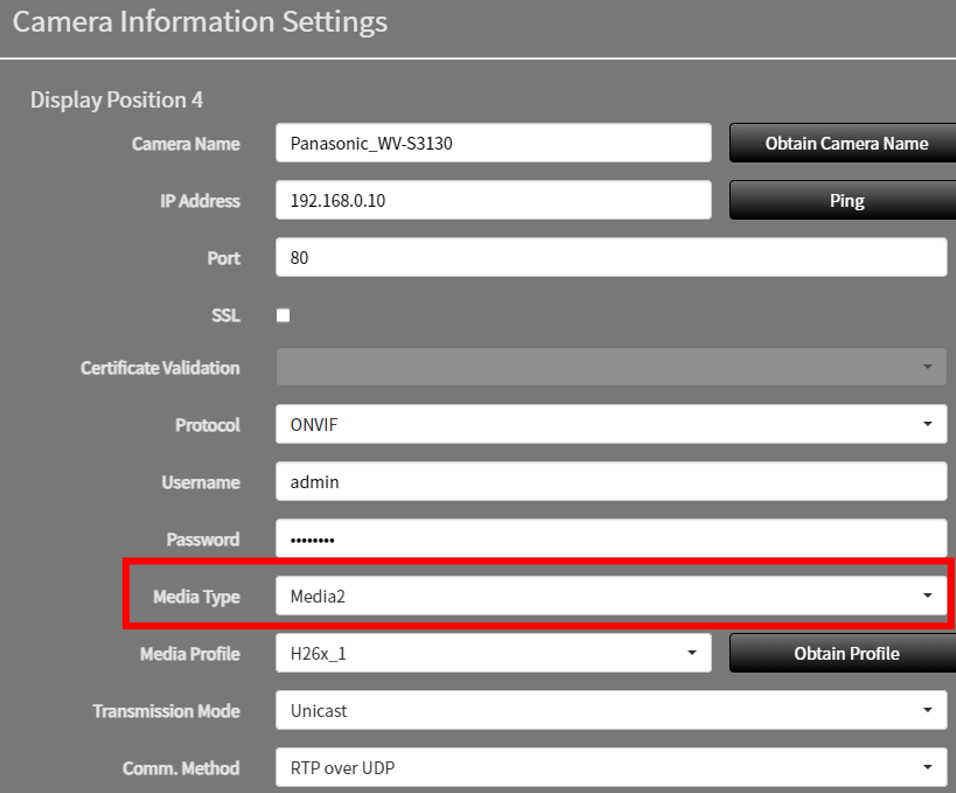

For cameras that support Profile T, the H.265 stream can be received by setting the Media Type to Media2 in Camera Information Settings. If camera registration fails, check if the camera supports Profile T.

For AXIS Protocol
For a camera with the AXIS protocol, select the profile that is set to the H.265 video compression format under Stream Profile in Camera Information Settings.

Native Integration with Qognify VMS

Requires Enterprise License. Learn more

System software Ver.6.1 or later supports native integration with Qognify VMS. Camera images can be managed in Qognify via Display Agent or Manual Registration.
Requires Enterprise License Extension Qognify in additional to Enterprise License.


For Display Agent

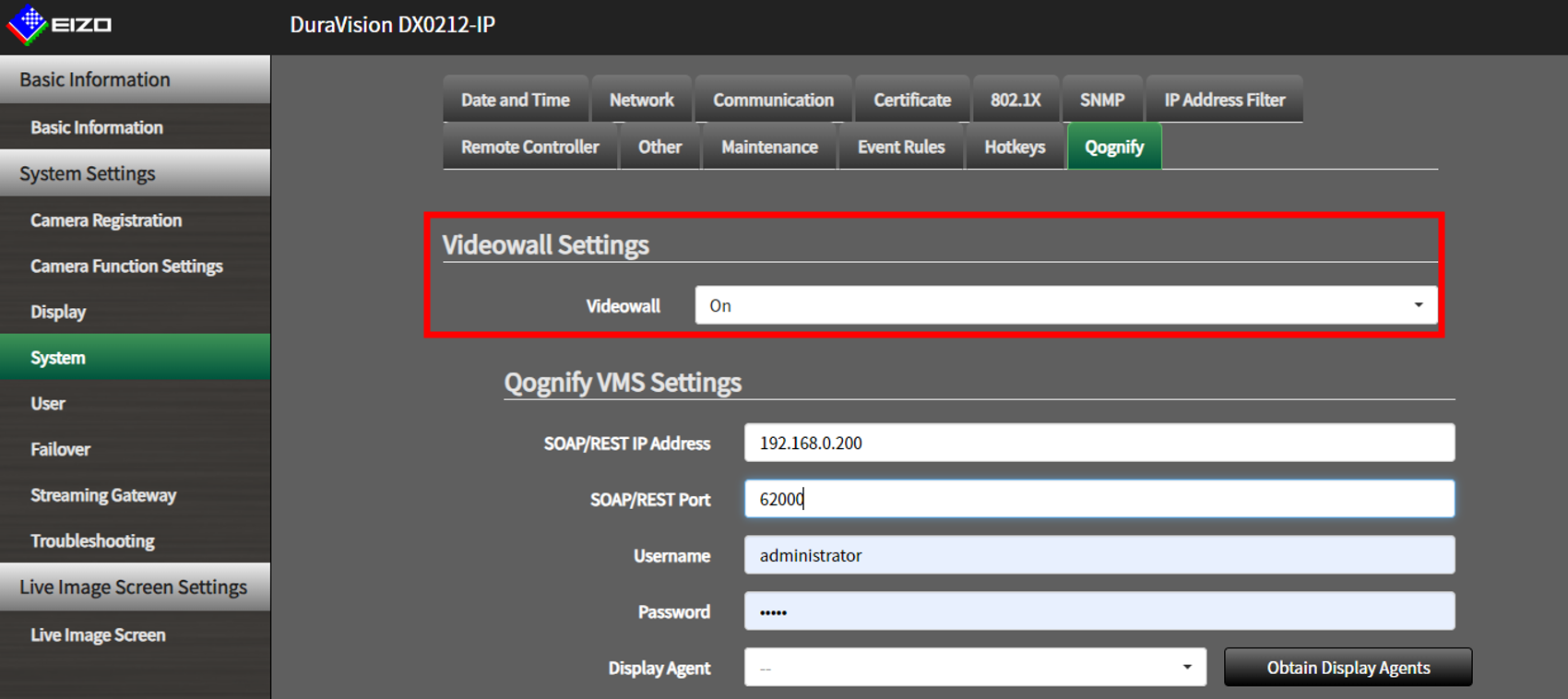

Select the Qognify tab under System. Under Videowall Settings, select On for Videowall. Then click Obtain Display Agents and select the Display Agent you want to use.

For Manual Registration

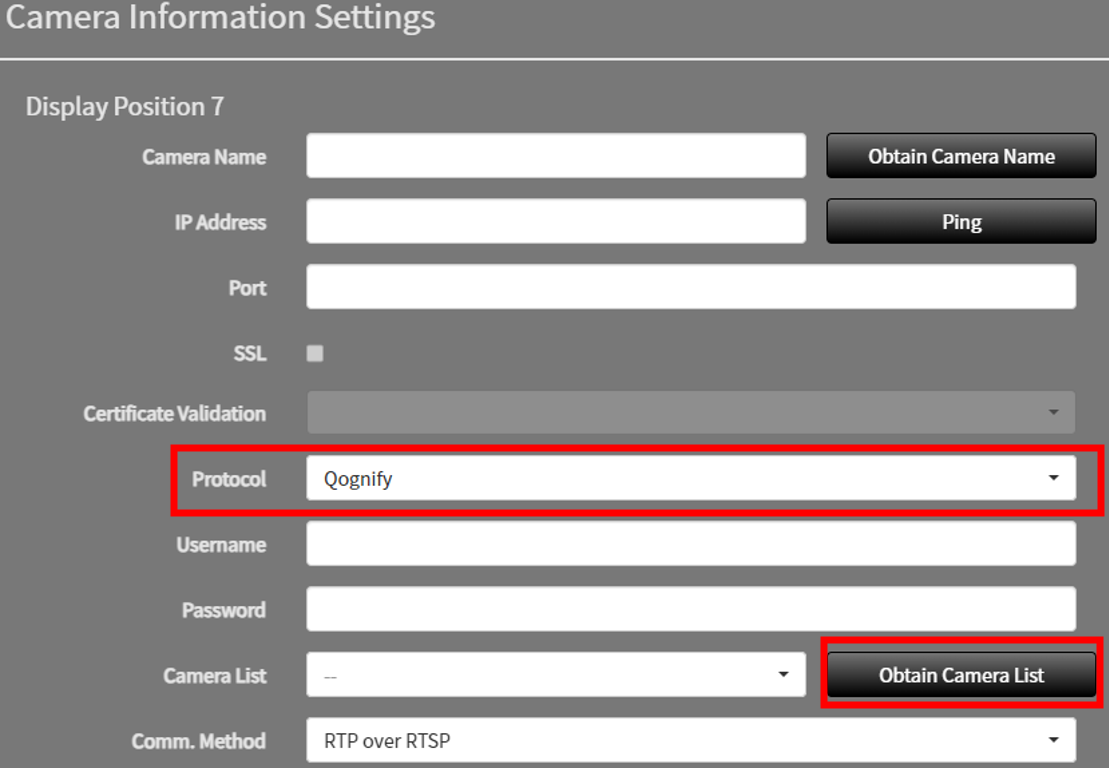

In Camera Information Settings, select Qognify for Protocol. Then click Obtain Camera List and select the camera you want to display.

Virtual PTZ

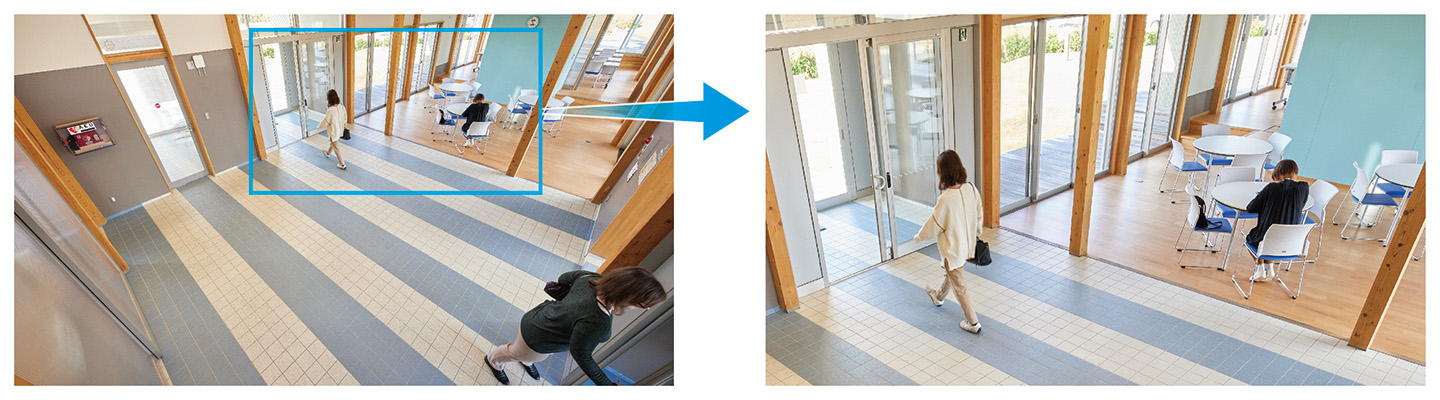

The virtual PTZ function allows operators to digitally enlarge an area of the displayed image for closer inspection. Once enlarged, the operator can virtually pan the image up, down, left, or right in real time. This is useful when viewing video from cameras that are not equipped with PTZ functions.

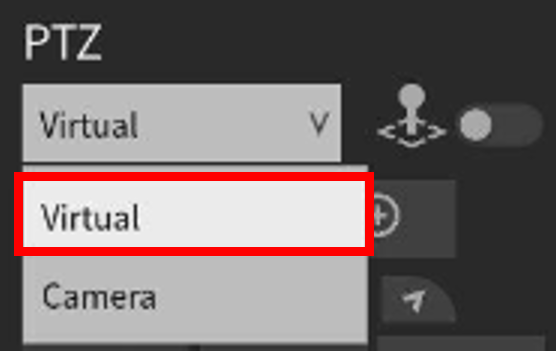

To use virtual PTZ, select Virtual under PTZ in the Camera Control Menu.

Increased Number of Columns in Custom Screen Settings

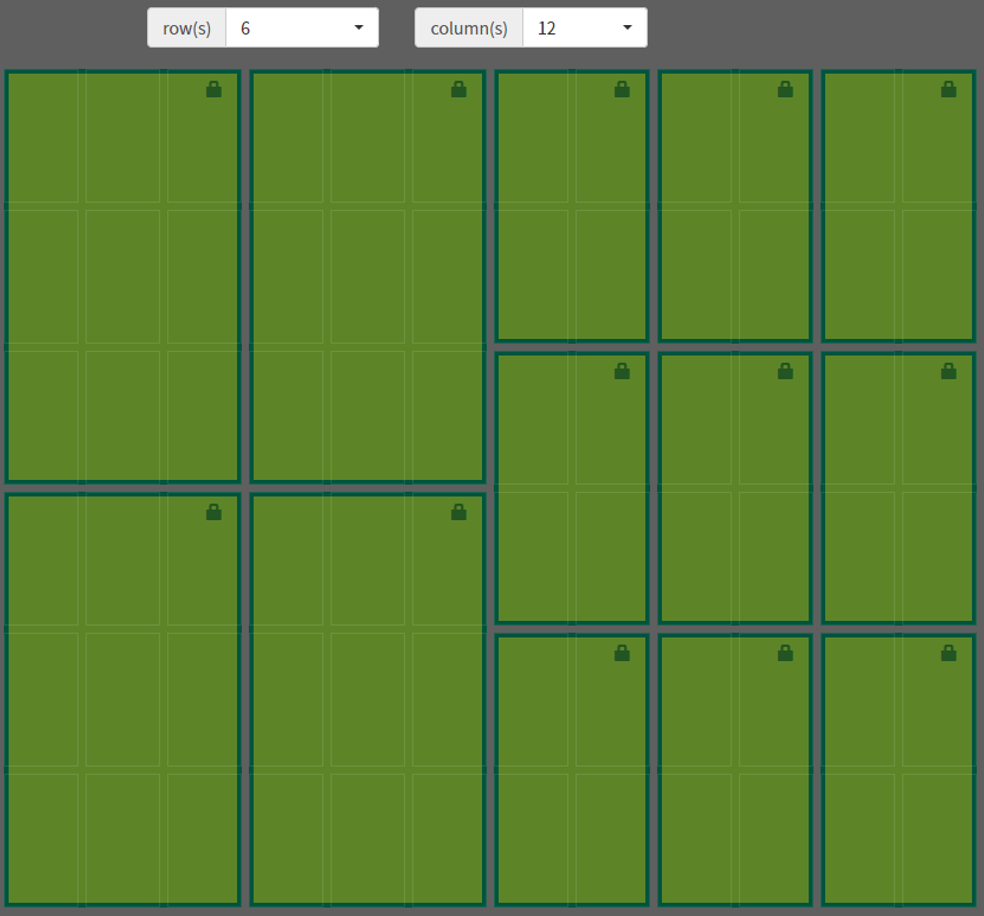

The number of columns that can be set in the Custom Screen Settings has been increased from 8 to 16. With custom layout you can merge individual windows to focus on specific areas, or split them to see more on a single screen. Below is an example layout made possible with this update.


New Events and Actions in Event Rules

Schedule and Stream Error Detected have been added to Event Rules. Power Management has been added to Actions.

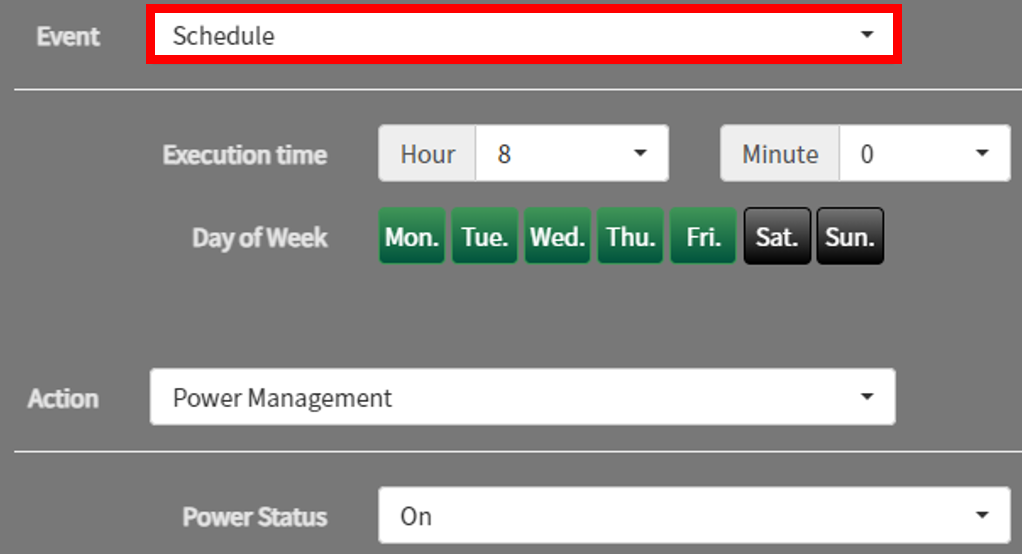

Event Rule: Schedule
An action is executed at the specified day and time.

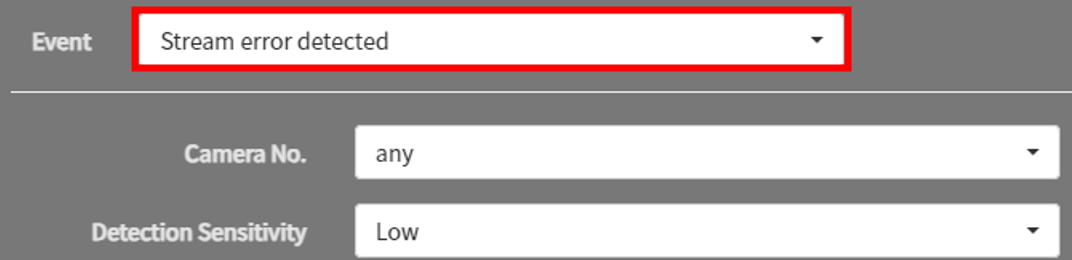

Event Rule: Stream Error Detected
An action is executed if camera stream reception fails. When Camera No. is set to any, the action is executed if an error occurs with receiving the stream from any camera displaying on the live screen.

Action: Power Management
This action changes the power status of the device when a configured event occurs. For Power Status, select On or Quick Shutdown. Combined with the Schedule event rule, operators can schedule the devices to turn on at the beginning of the day and turn off in the evening.

Profile Column Added to Camera List

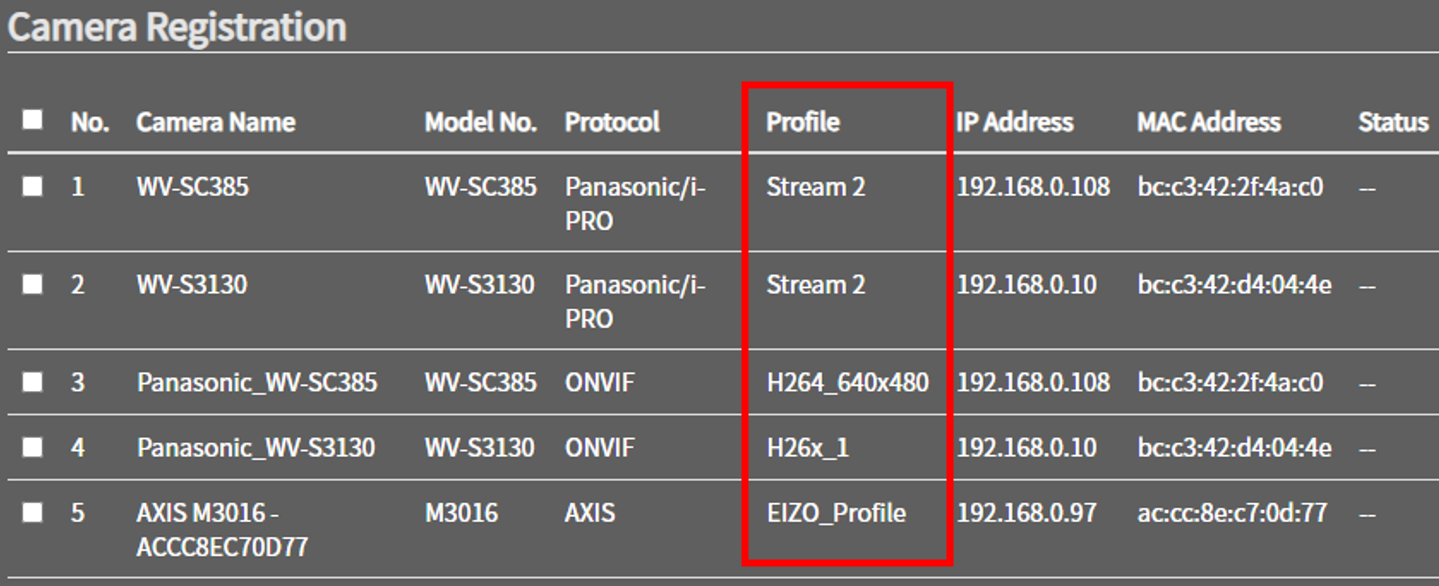

A Profile column has been added to the camera list in Camera Registration. The following items are displayed in the Profile column.

• For Panasonic / i-PRO, the connected Stream is displayed
• For AXIS, the Stream Profile is displayed
• For ONVIF, the Media Profile is displayed


Basic Information Display Added to Log Display

Base Information Display has been added under Troubleshooting and Log Display. This displays the IP decoder and camera information. The camera information includes actual framerate, resolution bitrate, and the number of lost packets in the stream. Click Save to output the information to as CSV format file.

Network Bandwidth Added to Network Connection Status

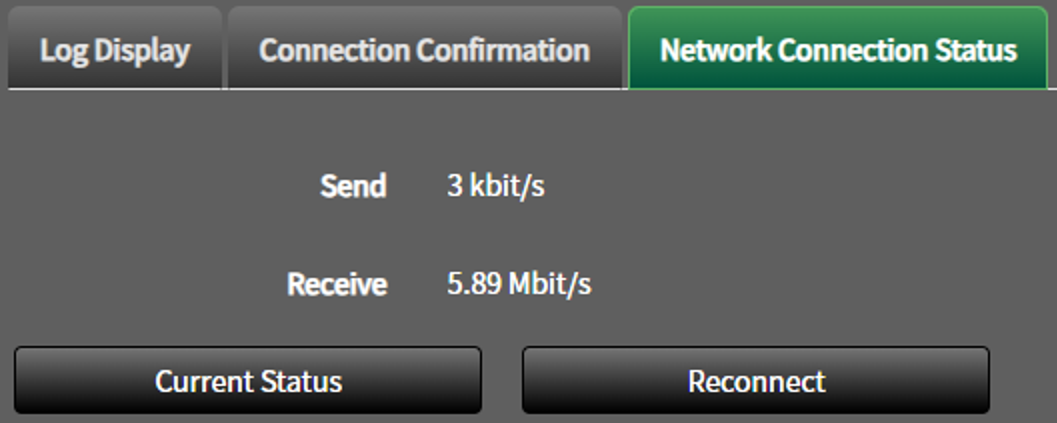

The network bandwidth information appears under Network Connection Status in Troubleshooting.

Removed Save Camera Information

For security reasons, the previously existing Save Camera Information function, which enabled the output of camera password information to a CSV file, has been removed. The Load Camera Information function can still be used to read files created by the Save Camera Information function using Ver.6.0 or earlier. Users can also create and load their own CSV file for camera registration. Please refer to the User's Manual for your device for information regarding CSV files for Ver.6.1 or later.
