DuraVision FDF2712W-IP
27.0" Color LCD Monitor
The DuraVision FDF2712W-IP connects directly to an IP camera or switch with just a LAN cable to immediately begin streaming video. It does not require a PC to operate, greatly simplifying installation.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

Case Studies

prev next

Latest Software: Ver. 6.2     Released April 18, 2024
Download

To learn more about added features from software version updates, visit the DuraVision IP Solution Technical Portal.
Latest Software Version Functions


DuraVision IP Solution Technical Portal
DuraVision IP Solution Technical Portal




PC-Less Live Streaming Directly from IP Cameras

DuraVision IP decoding monitors connect directly to an IP camera or switch to immediately begin live streaming video. They do not require a PC, software, or other hardware to operate, greatly simplifying installation and saving on time and labor costs. This also eliminates several potential points of failure and addresses security concerns typical of a conventional setup by heavily reducing the amount of equipment needed to manage sensitive visual data.

The monitors are able to stream video without a decentralized recording system, such as edge recording or cloud archiving, providing a solution for environments that do not record and store images.








Custom Event Response with Alert-to-Action

The web API supports custom integration with local security systems and devices to allow communication with and response to alerts over the network. When an event occurs and an alert is sent from IP cameras, access control,  hazard detection, VMS, or other systems, EIZO's IP decoding solution responds with a preassigned action, such as layout adjustment, message display, audio activation, camera adjustment, masking, power options, and more. Operators can also schedule actions to occur at a specific time, for example, to automatically change the camera layout  at 4:00 pm every Sunday. Implementing an intelligent visual communication system into the workflow ensures operators have the most pertinent information at the right time to respond to situations quickly.


Event Response for Every Environment

An efficiently running facility relies heavily on staff and security personnel having the right information at the right time. See how Alert-to-Action helps facilitate streamlined operations and  maintain a safe environment for hospitals, public transportation hubs, and more.

Learn more.








IP Camera Support

Interoperable with Over 300 Cameras

DuraVision IP decoding solutions support cameras with ONVIF Profile S, Axis VAPIX, Panasonic, and i-PRO protocols for flexible installation and ensured interoperability with a wide range of products. In addition, a direct connection through RTSP is available (Direct URI). ONVIF

Camera compatibility details

support cameras

Register up to 48 Cameras

Register up to 48 IP cameras, including 4K cameras, through the intuitive web UI. Cameras can be discovered automatically or registered manually, and individual settings are easily managed centrally through the web UI. Camera list
Camera Registration List (Web UI)






VMS Integration

EIZO works with security & surveillance leaders to ensure technical compatibility and streamlined functionality with various video management systems/software (VMS). By fully integrating co-developed plugins into these VMS frameworks, users can easily setup, manage, and command EIZO's IP decoding solutions from a centralized platform.



Read More






Intuitive Operation and Functionality

Powerful Video Decoding Performance

DuraVision IP decoding solutions can decode H.265 (HEVC), as well as H.264 and MJPEG codecs, displaying them in real time for assessing any situation quickly. In addition, the decoding technology ensures a high fps (frames-per-second) for displayed content, even when streaming high-resolution video.

Multi-Monitor Viewing with Video Output

The monitor is equipped with an HDMI® output that supports connection to a second monitor up to Full HD resolution (1920 x 1080). This provides simple configuration of a multi-monitor environment to flexible manage video from the same network source across two screens.

Multi Monitor
FDF2712W-IP Second Monitor

Adjustable Screen Layout

With the user-friendly web UI, you can easily adjust the layout of the video streams with multiple default options, displaying up to 32 screens. In addition, flexible arrangement of the screens in a custom layout allows you to fulfill individual viewing needs. With custom layout you can merge individual windows to focus on specific areas, or split them to see more on a single screen. Video feeds can be viewed in the original aspect ratio or stretched to fill the custom-created space.

Choose from 7 default layouts.
Adjustable Screen Layout

Create a custom layout.



Customize Visual Settings and Functions

Operators can choose from numerous visual functions to maintain high situational awareness according to the needs of the viewing environment.

Sequential Screen Lock

When using the sequential image display setting, users can select an image to remain static, event through page changes.

Sequential Screen Lock
Example of locked image (red frame)

Privacy Mask

Users can assign static privacy masks to hide sensitive information on the live video stream without altering the source stream.

Privacy Mask video

Virtual Line

Virtual lines and shapes can be applied to the screen to track barriers and designated zones. Up to 10 objects can be applied and do not alter the source stream.

Virtual Line

Camera PTZ Control

Operators can easily control individual camera PTZ settings using the buttons displayed over the selected video stream.

Camera PTZ Control

Virtual PTZ

The virtual PTZ function allows operators to digitally enlarge an area of the displayed image for closer inspection. Once enlarged, the operator can virtually pan the image up, down, left, or right in real time. This is useful when viewing video from cameras that are not equipped with PTZ functions.

Virtual_PTZ






Enterprise License for Advanced Operation

Users can subscribe to an optional Enterprise License which includes advanced features, such as those listed below, to meet specific environment or application requirements. Contact EIZO for more information about licensing.

Enterprise License Additional Features

✔ Stable video transmission over RTSP or SRT
✔ Merge streams for reduced network traffic
✔ Process and redistribute video streams
✔ Playback recorded video
✔ View remote monitor live streams via the web UI
✔ Live image menu customization
✔ Screen rotation support
✔ VMS failover
✔ SRT, LDAP, AXIS SRTP, protocols

Learn more about the Enterprise License.




Security and Reliability

Secure Network Communication

DuraVision IP decoding solutions support HTTPS protocol to ensure authenticated access for secure communication over a network.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (https://www.openssl.org/)
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).

SNMP (Simple Network Management Protocol)

SNMP is a communication protocol for monitoring and controlling devices connected to a network. It consists of an SNMP manager and SNMP agent. The IP decoding monitor acts as an SNMP agent to return device information in response to a request sent by the SNMP manager, and to notify a change in status when a specified event occurs. The DuraVision FDF2712W-IP supports SNMP v1 and v2c.

24-Hour Use, 2-Year Warranty

24-Hour Use, 2-Year Warranty

The product is built for 24-hour use and is backed by a two-year manufacturer’s warranty for long-term reliability.







Flexible Installation

VESA Compliance

The monitor can be mounted on a wall or ceiling using VESA-supported fixtures for convenient installation in any environment.

Built-In Power Supply

The AC power supply is built-in so you can easily connect with a single power cord. This helps to keep the installation area clear of additional clutter.

Safety Lock

The monitor is equipped with a safety lock that can lock it in place on a desk or other surface, preventing the monitor from being knocked over or removed.



Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Industry, Innovation, and Infrastructure
DuraVision offers a range of visual solutions for facilities that are indispensable to people's daily lives such as hospitals, businesses, airports, factories, public transportation hubs, and many more. We support the uninterrupted continuation of security, industrial, and other activities with robust product build, manufacturer's warranty, and after-sales services.

SDGs 09

Environmentally Conscious
Our products for industrial environments are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system.

SDGs 07SDGs 12






Solution Lineup

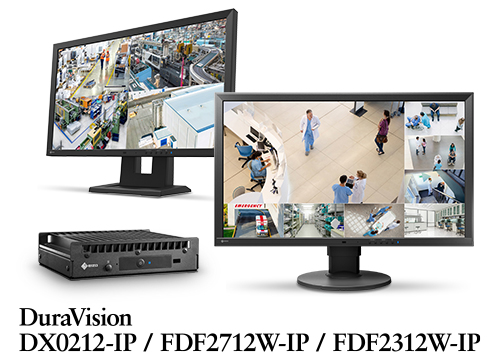

EIZO's lineup of IP decoding solutions include 23 and 27-inch monitors, as well as an external box solution for connecting to multiple monitors or a video wall.

DX0212-IP

IP Decoding Box
DX0212-IP

FDF2712W-IP

IP Decoding Monitor
FDF2712W-IP
27.0" / 1920 x 1080

FDF2312W-IP"

IP Decoding Monitor
FDF2312W-IP
23.0" / 1920 x 1080

FDF4627W-IP

IP Decoding Monitor
FDF4627W-IP
46.0" / 1920 x 1080







Model Variations FDF2712W-IP-BK: with stand, black
Panel
Type VA
Backlight LED
Size 27.0" (68.6 cm)
Native Resolution 1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V) 597.6 x 336.2 mm
Pixel Pitch (H x V) 0.311 x 0.311 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 3000:1
Response Time (typical) 12 ms (black-white-black)
Decoding Processor
Simultaneous Display Channels 32 (maximum)
Registrable Cameras 48 (maximum)
Camera Protocol ONVIF Profile S, AXIS VAPIX, Panasonic / i-PRO, RTSP
Video Codec H.26510, H.264, MJPEG13
Streaming Protocol RTP (H.265, H.264, MJPEG, MPEG2-TS), SRT14 (H.265, H.264), SRTP15 (H.265, H.264), UDP (MPEG2-TS)
Decoding Performance (camera resolution / framerate) *Bitrate 4096 kbps 1-screen layout: 3840 x 2160 / 30 fps, 1920 x 1080 / 60 fps
4-screen layout: 3840 x 2160 / 20 fps, 1920 x 1080 / 60 fps
16-screen layout: 1920 x 1080 / 20 fps
32-screen layout: 1280 x 720 / 15 fps
Bitrate 8192 kbps (maximum)
Video Signals
Output Terminals HDMI
Output Resolution 1920 x 1080 (fixed) / 60 Hz
Network
Wired LAN RJ-45 (1000BASE-T, 100BASE-TX)
USB
Host USB 2.0: Type-A x 2
Power
Power Input AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption 59 W
Features & Functions
OSD Languages English, German, Japanese
Communication Protocol DHCP, DNS, HTTP, HTTPS, LDAP15, LDAPS15, NTP, RTP, RTSP, SNMP, SRT14, SRTP15, IEEE802.1X15
Others System software version 6.x
Physical Specifications
Dimensions (Landscape, W x H x D) 640 x 404.5 - 554.5 x 245 mm
Dimensions (Without Stand, W x H x D) 640 x 379 x 65 mm
Net Weight 9.9 kg
Net Weight (Without Stand) 7.1 kg
Height Adjustment Range 150 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90° (clockwise)
Hole Spacing (VESA Standard) 100 x 100 mm, M4, screw depth 11.0 mm
Environmental Requirements
Operating Temperature 0 - 40°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, UKCA, cTUVus, FCC-A, CAN ICES-3 (A), TUV/S, PSE, VCCI-A, RCM, RoHS, WEEE, CCC, China RoHS, BIS, India RoHS
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Others AC Power cord (2 m), Setup manual
Warranty 2 Years (24-hour use)
Dimension Drawing PDF
  1. 10  Please check IP camera compatibility on our EIZO Web site.
  2. 13  MJPEG is only available with the ONVIF Profile S protocol.
  3. 14  Enterprise license and extension license are required.
  4. 15  Enterprise license is required.

Brochures

Security & Surveillance Visual Solutions
9.43 MB

Download



Manuals

Languages

FDF2712W-IP / FDF2312W-IP / DX0212-IP User's manual (Software Ver.6.1xxx) English 10.8 MB PDF
FDF2712W-IP / FDF2312W-IP / DX0212-IP User's manual (Software Ver.6.2xxx) English 10.8 MB PDF
FDF2712W-IP / FDF2312W-IP / DX0212-IP User's manual (Software Ver.6.1xxx) German 10.4 MB PDF
FDF2712W-IP / FDF2312W-IP / DX0212-IP User's manual (Software Ver.6.2xxx) German 10.4 MB PDF
FDF2712W-IP / FDF2312W-IP Setup manual (Software Ver.6.1xxx) English 2.52 MB PDF
FDF2712W-IP / FDF2312W-IP Setup manual (Software Ver.6.2xxx) English 2.52 MB PDF
FDF2712W-IP / FDF2312W-IP Setup manual (Software Ver.6.1xxx) German 2.55 MB PDF
FDF2712W-IP / FDF2312W-IP Setup manual (Software Ver.6.2xxx) German 2.56 MB PDF
FDF2712W-IP / FDF2312W-IP Setup manual (Software Ver.6.1xxx) French 2.58 MB PDF
FDF2712W-IP / FDF2312W-IP Setup manual (Software Ver.6.2xxx) French 2.58 MB PDF
FDF2712W-IP / FDF2312W-IP Setup manual (Software Ver.6.1xxx) Russian 2.55 MB PDF
FDF2712W-IP / FDF2312W-IP Setup manual (Software Ver.6.2xxx) Russian 2.55 MB PDF
FDF2712W-IP / FDF2312W-IP Setup manual (Software Ver.6.1xxx) Chinese-Simplified 3.06 MB PDF
FDF2712W-IP / FDF2312W-IP Setup manual (Software Ver.6.2xxx) Chinese-Simplified 3.06 MB PDF
EIZO Video Wall Plugin for Milestone XProtect User's manual English 1.6 MB PDF
EIZO IP Decoder Utility User's manual English 769 KB PDF
Video Wall Integration for Qognify User's manual English 721 KB PDF
Video Wall Integration for Qognify User's manual German 709 KB PDF

Compatibility

Date Subject
August 8, 2024 IP Camera and DuraVision IP Decoder (IP Decoding Box, IP Monitor) Compatibility

Technical Information

February 24, 2023 IP Monitor Functional Comparison between Models [PDF]

The available functions of IP monitors differ depending on the model. This document explains the available functions.
