- FDX1502T
15.0" Touch Panel Color LCD Monitor
The FDX1502T is a highly durable 15" touch panel monitor for industrial applications. It accepts touch input from gloved or bare hands, as well as styluses, making it flexible for a range of environments.
- Image Optimization Solutions
- IP Solutions
- Ultra-High Sensitivity Camera
- Remote Controlled Pan and Tilt Head
- Touch Panel
- Small-Size Monitors
- Maritime
- Features
- Specifications
- Documents Compatibility
- Accessories
- Awards & Reviews
Flexible Installation
To meet the requirements of different industrial installations, the monitor is available in multiple configurations.
 |
Stand-equipped model for placement on a desk or other surface. |
 |
Model without a stand for attaching to VESA-supported mounting structures. |
 |
Panel mount model for installation into existing systems. |
 |
Chassis mount model for integrating with various equipment. |
Intuitive Touch Operation
|
The monitor is equipped with an analog resistive touch panel that accepts touch input from gloved or bare hands, as well as styluses, making it flexible for a range of environments. This also makes it more resistant to dust and water compared to other touch technologies for increased durability.
Touch Panel Specifications
|
 |
High Brightness for Clear Visibility
The maximum brightness of 320 cd/m2 ensures the screen is clearly visible even in bright ambient environments. The brightness is adjustable to as low as 0.5 cd/m2 for viewing in low ambient lighting conditions.
Durable and Reliable
| The monitor can withstand temperatures ranging from 0 - 50°C for high durability in industrial environments. In addition, the cabinet does not contain any ventilation holes, making it impervious to liquids and dust. |
 |
Complete Connection

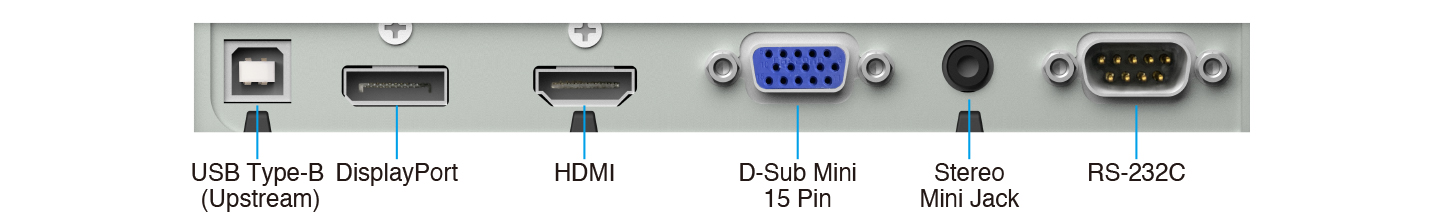

The monitor is equipped with DisplayPort, HDMI®, and D-Sub input terminals for flexible connection.
DC12-24V Wide Ranging Power Input
The chassis variation (FDX1502T-C) supports power input ranging from DC12-24V for flexible integration into various systems.
Built-In Speakers
The monitor is equipped with built-in stereo speakers for environments requiring audio.
Durability and Reliability
The monitor is built for 24-hour use and is backed by a 3-year manufacturer's warranty for long-term reliability.
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Environmentally Conscious Product Development EIZO’s industrial products are designed to minimize environmental impact by promoting efficient and circular resource use across every stage of the product lifecycle - from parts and materials procurement to manufacturing, transportation, user experience, and end-of-life disposal. We prioritize green procurement, selecting environmentally responsible components and materials wherever possible. In addition to meeting domestic and international environmental standards, we support chemical substance surveys and assessments of environmental initiatives related to our procurement partners. All production sites at EIZO’s headquarters in Japan operate on 100% renewable energy. |
   |
|
|
Imaging Solutions for Industrial Operations EIZO's industrial imaging solutions provide unwavering support to professionals working to advance and protect our society, across vital environments such as hospitals, offices, airports, factories, and public transportation hubs. With robust and redundant product design, backed by comprehensive warranties and after-sales service, we help ensure uninterrupted industrial operations. |
  |
| Model Variations |
FDX1502T-TBK: with stand, black
FDX1502T-TGY: with stand, gray FDX1502T-FBK: without stand, black FDX1502T-FGY: without stand, gray FDX1502T-PBK: Panel Mount, black FDX1502T-C: Chassis Mount |
|---|---|
| Panel | |
| Type | TN |
| Backlight | LED |
| Size | 15.0" (38 cm) |
| Native Resolution | 1024 x 768 (4:3 aspect ratio) |
| Viewable Image Size (H x V) | 304.1 x 228.1 mm |
| Pixel Pitch (H x V) | 0.297 x 0.297 mm |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 160° / 160° |
| Brightness (typical) | 320 cd/m2 |
| Contrast Ratio (typical) | 600:1 |
| Response Time (typical) | 8 ms (black-white-black) |
| Touch Panel | |
| Type | Analog resistive |
| Touch Points | 1 |
| Surface Treatment | Anti-Glare coating |
| Communication Protocol | USB, RS-232C |
| Surface Hardness | 2 H |
| Compatible OS | Windows 11, Windows 10 (64-bit, 32-bit) |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP 1.3), HDMI (HDCP 1.4), D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) | 31 - 49 kHz / 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 61 kHz / 55 - 76 Hz |
| Sync Formats | Separate |
| USB | |
| Upstream | USB 2.0: Type-B |
| Audio | |
| Speakers | FDX1502T-T / -F: 1.0 W + 1.0 W |
| Input Terminals | FDX1502T-T / -F: Stereo mini jack, DisplayPort, HDMI |
| Power | |
| Power Input |
FDX1502T-T /-F: AC 100 - 240 V, 50 / 60 Hz
FDX1502T-P: DC 12 V FDX1502T-C: DC 12 V (Jack), DC 12 - 24 V (Terminal Block) |
| Typical Power Consumption | AC: 5 W |
| Maximum Power Consumption | AC: 19 W / DC (12 V): 16 W / DC (24 V): 17 W |
| Power Save Mode | AC: 0.4 W / DC: 0.3 W (FDX1502T-P) / DC: 0.5 W (FDX1502T-C) |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 346 x 349 x 157 mm |
| Dimensions (Without Stand, W x H x D) | 346 x 280 x 69 mm |
| Dimensions (Panel Mount, W x H x D) | 383 x 331 x 62 mm |
| Dimensions (Chassis, W x H x D) | 357 x 273 x 61 mm |
| Net Weight | 5.7 kg |
| Net Weight (Without Stand) | 3.4 kg |
| Net Weight (Panel Mount) | 3.8 kg |
| Net Weight (Chassis) | 3.0 kg |
| Tilt | 30° Up, 0° Down |
| Hole Spacing (VESA Standard) |
FDX1502T-T / -F: 100 x 100 mm / 75 x 75 mm, M4, screw depth 3.0 - 10.0 mm
FDX1502T-P: 100 x 100 mm / 75 x 75 mm, M4, screw depth 3.0 - 8.0 mm FDX1502T-C: 100 x 100 mm / 75 x 75 mm, M4, screw depth 1.0 - 8.0 mm |
| Environmental Requirements | |
| Operating Temperature | 0 - 50°C |
| Operating Humidity (R.H., non condensing) | 20 - 90% |
| Degree of Protection | FDX1502T-P: IP65 (front) |
| Certifications & Standards (Please contact EIZO for the latest information.) |
FDX1502T-T / -F: CB, CE, UKCA, cTUVus, FCC-B, CAN ICES (B), TUV/S, PSE, VCCI-B, RCM, RoHS, WEEE, CCC, EAC, China RoHS, BIS, India RoHS
FDX1502T-P / -C: CB, CE, UKCA, cTUVus, FCC-B, CAN ICES (B), TUV/S, VCCI-B, RCM, RoHS, WEEE, CCC, EAC, China RoHS, BIS, India RoHS |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | HDMI (2 m), D-Sub mini 15 pin (1.8 m) |
| Others |
FDX1502T-T: USB Type-A - USB Type-B cable (1.8m), Audio cable (2.1m), Setup manual, Cable clamper x 4
FDX1502T-F: USB Type-A - USB Type-B cable (1.8m), Audio cable (2.1m), Setup manual, VESA mounting screw (M4 x 12 mm) x 4, Cable clamper x 4 FDX1502T-P: USB Type-A - USB Type-B cable (1.8m), Setup manual, VESA mounting screw (M4 x 10 mm) x 4, Clamper x 3, Screw for clamper (M4 x 10 mm) x 3, Mounting bracket x 8 FDX1502T-C: USB Type-A - USB Type-B cable (1.8m), Setup manual, VESA mounting screw (M4 x 10 mm) x 4, Clamper x 3, Screw for clamper (M4 x 10 mm) x 3 |
| Warranty | 3 Years (24-hour use) |
