Innovative Touch Features

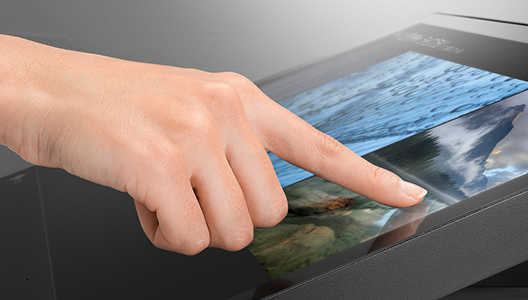

Projected Capacitive Touch Panel (PCAP)
The DuraVision FDF2182WT features projected capacitive touch technology which is more durable and reliable compared to other touch technologies.
Touch Stylus Operation
The monitor accepts touch input from a bare finger or dedicated stylus. Using a stylus allows for smooth writing and helps to maintain a clean screen. It also enables touch operation for environments where users need to wear thick gloves.
See stylus compatibility details here.

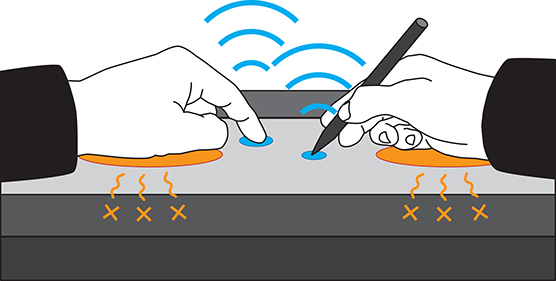

Palm Rejection
The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input.
Palm rejection minimum activation area is 4 x 4 cm.
Sensitivity Calibration
The monitor is equipped with technology which calibrates the touch sensitivity to minimize incorrect touch response due to environmental factors and electromagnetic noise. This ensures that the screen maintains accurate touch interaction during use.Multitouch Operation
The DuraVision FDF2182WT can detect up to 10 simultaneous touches so you can easily operate a variety of applications in almost any environment.
Touch Detection Control
Users can easily turn touch detection on or off by pushing the button conveniently located on the monitor's side.
Touch Operation Without Additional Drivers
The multitouch interface is supported by standard Windows 11, 10 drivers. You can operate the touch panel without additional drivers by simply connecting the USB cable.
Comfort and Ease of Use
Fully Flat Design
The fully flat design enables seamless touch operation across the screen. The smooth surface allows for easy cleaning.
High Visibility
The antiglare screen minimizes reflections to maintain high visibility. It is also resistant to fingerprints to ensure clear images.

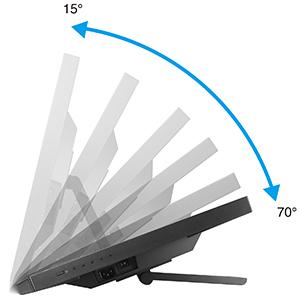

Reclining Stand
The equipped stand provides flexible positioning to allow the monitor to rest on your desk like a laptop and recline back to your desired angle. This makes it easy to place the monitor in the ideal position for comfortable use in any environment.
Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker which causes eye fatigue. The DuraVision FDF2382WT relieves eye fatigue by regulating brightness to make flicker unperceivable.
Additional Features
Complete Connection
The monitor is equipped with DisplayPort, HDMI®, and D-Sub inputs which are conveniently located on the side for easy access.
High Durability
The screen has a non-scratch surface made of reinforced glass with a hardness of 7H, making it durable for long-term use. The monitor can withstand temperatures ranging from 5 - 40°C.
Dedicated Touch Panel Driver
In addition to Windows standard touch drivers, a dedicated touch driver is also available to support touch interaction sounds and mouse emulation.
Long-Term Reliability
The monitor is built for 24-hour use and is backed by a 3-year manufacturer's warranty for long-term reliability.
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Industry, Innovation, and Infrastructure DuraVision offers a range of visual solutions for facilities that are indispensable to people's daily lives such as hospitals, businesses, airports, factories, public transportation hubs, and many more. We support the uninterrupted continuation of security, industrial, and other activities with robust product build, manufacturer's warranty, and after-sales services. |
 |
|
|
Environmentally Conscious Our products for industrial environments are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system. |
  |
| Model Variations |
FDF2182WT-LBK: with LaidBack stand, black
FDF2182WT-LGY: with LaidBack stand, gray FDF2182WT-FBK: without stand, black FDF2182WT-FGY: without stand, gray |
|---|---|
| Panel | |
| Type | VA |
| Backlight | LED |
| Size | 21.5" (54.7 cm) |
| Native Resolution | 1920 x 1080 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 476.6 x 268.1 mm |
| Pixel Pitch (H x V) | 0.248 x 0.248 mm |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 230 cd/m2 |
| Contrast Ratio (typical) | 5000:1 |
| Response Time (typical) | 25 ms (black-white-black) |
| Touch Panel | |
| Type | Projected Capacitive |
| Touch Points | 10 |
| Surface Treatment | Anti-Glare coating, Anti-Fingerprint coating |
| Communication Protocol | USB |
| Surface Hardness | 7 H |
| Compatible OS | Windows 11, Windows 10 (64-bit, 32-bit) |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP1.3), HDMI (HDCP1.4), D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) |
DisplayPort: 31 - 68 kHz / 59 - 61 Hz
HDMI: 31 - 68 kHz / 49 - 51 Hz, 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 81 kHz / 55 - 76 Hz |
| Sync Formats | Separate |
| USB | |
| Upstream | USB 5Gbps: Type-B |
| Downstream | USB 5Gbps: Type-A x 2 |
| Audio | |
| Speakers | 1.0 W + 1.0 W |
| Input Terminals | Stereo mini jack, DisplayPort, HDMI |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 10 W |
| Maximum Power Consumption | 42 W |
| Power Save Mode | 1.2 W or less |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 533.2 x 139.3 - 340.8 x 214.8 - 401.5 mm |
| Dimensions (Without Stand, W x H x D) | 533.2 x 325.7 x 54 mm |
| Net Weight | 5.6 kg |
| Net Weight (Without Stand) | 5.1 kg |
| Tilt | 15° - 70° |
| Hole Spacing (VESA Standard) | 100 x 100 mm, M4, screw depth 3.0 - 10.0 mm |
| Environmental Requirements | |
| Operating Temperature | 5 - 40°C |
| Operating Humidity (R.H., non condensing) | 20 - 90% |
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, UKCA, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, CCC, RCM, EAC, RoHS, WEEE, China RoHS |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DisplayPort (2 m), HDMI (2 m) |
| Others |
FDF2182WT-L: AC power cord (2 m), USB Type-A - USB Type-B cable (2 m), Cleaning cloth, CD-ROM (PDF user's manual, Touch panel driver), Mask sheet x 2, Setup guide
FDF2182WT-F: AC power cord (2 m), USB Type-A - USB Type-B cable (2 m), Cleaning cloth, CD-ROM (PDF user's manual, Touch panel driver), VESA mounting screw (M4 x 12 mm) x 4, Setup guide |
| Warranty | 3 Years (24-hour use) |
