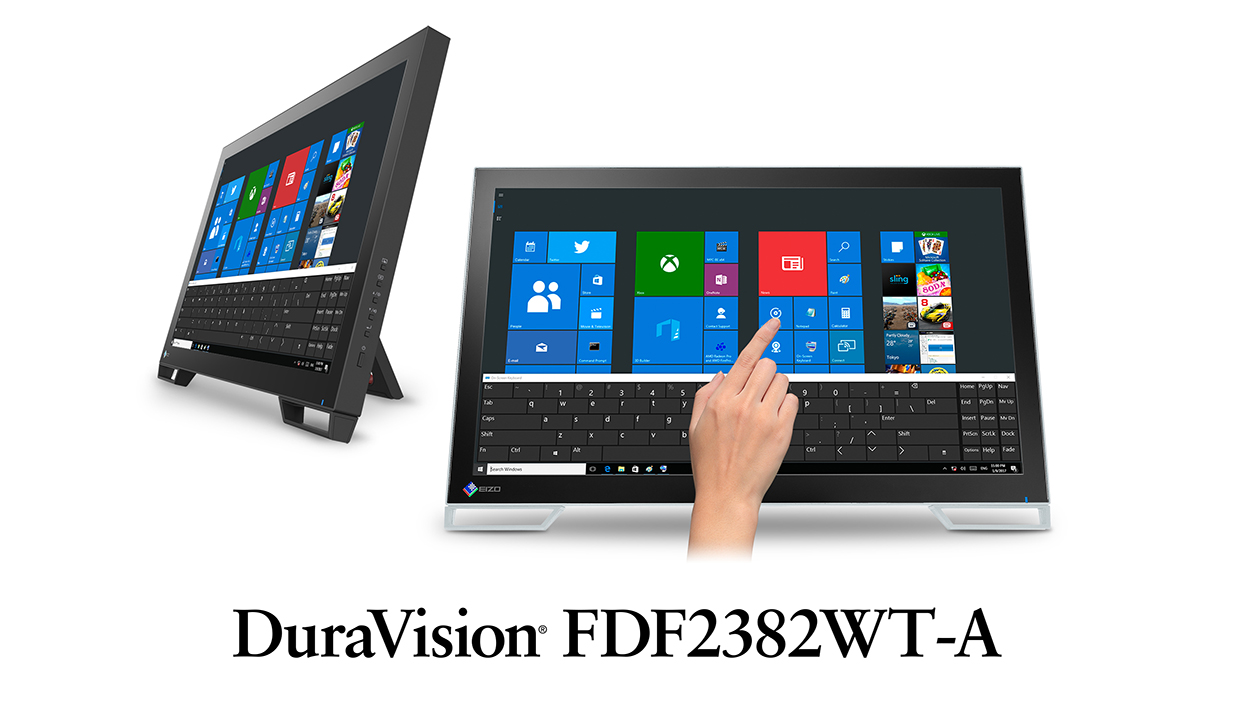

DuraVision FDF2382WT-A
23.0" Touch Panel Color LCD Monitor
The DuraVision FDF2382WT-A is a 23-inch multitouch monitor with Full HD (1920 x 1080) resolution. It features projected capacitive (PCAP) touch technology for seamless touch operation in industrial, medical, and public access environments.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

Innovative Touch Features

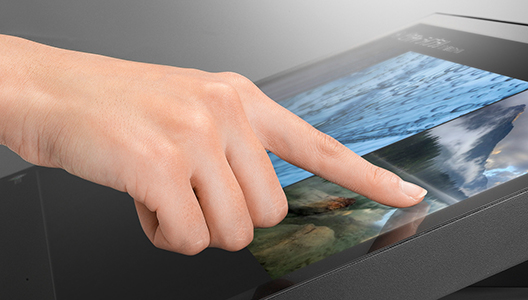

Intuitive Touch Operation

The monitor features projected capacitive touch (PCAP) touch technology that accepts touch input from a bare finger or stylus. High responsiveness to tapping, swiping, and flicking motions makes touch operation intuitive and smooth for use in a range of environments.

Intuitive Touch Operation_1Intuitive Touch Operation_2

10-Point Multitouch

The DuraVision FDF2382WT-A can detect up to 10 simultaneous touches for easily operating a variety of applications in any environment.



Touch Stylus Operation

The monitor accepts touch input from a bare finger or dedicated stylus. Using a stylus allows for smooth writing and helps to maintain a clean screen. It also offers a reliable touch solution for environments where users need to wear thick gloves.

See stylus compatibility details here.

Palm Rejection

The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input.

Palm Rejection
Palm rejection minimum activation area is 2 x 2 cm.

Sensitivity Calibration

The monitor is equipped with technology which calibrates the touch sensitivity to minimize incorrect touch response due to environmental factors and electromagnetic noise. This ensures that the screen maintains accurate touch interaction during use.

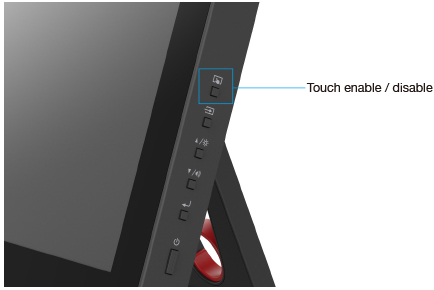

Touch Detection Control

Users can easily turn touch detection on or off by pushing the button conveniently located on the monitor's side.

Touch Detection Control



Touch Operation without Additional Drivers

The multitouch interface is supported by standard Windows 10 and 8.1 drivers. You can operate the touch panel without additional drivers by simply connecting the USB cable.



Comfort and Ease-of-Use

Fully Flat Design

The fully flat design enables seamless touch operation across the screen. The smooth surface allows for easy cleaning.

Fully Flat Design

Clear View from All Angles

The monitor is equipped with an IPS panel with 178° viewing angles that minimize color shift and contrast changes when viewing the screen from an angle. The antiglare screen also minimizes reflections for comfortable viewing.

Reclining Stand

The equipped stand provides flexible positioning that allows the monitor to rest on your desk and recline back to the desired angle. This makes it easy to place the monitor in the ideal position for comfortable use in any environment.

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker which causes eye fatigue. The monitor relieves eye fatigue by regulating brightness to make flicker unperceivable.

Complete Connection

The monitor is equipped with DisplayPort, HDMI, and D-Sub inputs which are conveniently located on the side for easy access.



Durable and Reliable

High Durability

The screen has a non-scratch surface made of reinforced glass with a hardness of 5H, making it durable for long-term use. The monitor can withstand temperatures ranging from 5 - 35°C.

Long-Term Reliability

The monitor is backed by a 3-year manufacturer's warranty for long-term reliability.

Model Variations FDF2382WT-ALBK: with LaidBack stand, black
FDF2382WT-ALGY: with Laidback stand, gray
FDF2382WT-AFBK: without stand, black
FDF2382WT-AFGY: without stand, gray
Panel
Type IPS
Backlight LED
Size 23.0" (58.0 cm)
Native Resolution 1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V) 509.2 x 286.4 mm
Pixel Pitch 0.265 x 0.265 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 260 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 11 ms (gray-to-gray)
Touch Panel
Type Projected Capacitive
Touch Points 10
Surface Treatment Anti-Glare coating
Communication Protocol USB
Surface Hardness 5 H
Compatible OS Windows 10 / 8.1 (64-bit, 32-bit)
Video Signals
Input Terminals DisplayPort (HDCP1.3), HDMI (HDCP1.4), D-Sub mini 15 pin
Digital Scanning Frequency (H / V) 31 - 68 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V) 31 - 81 kHz / 55 - 76 Hz
Sync Formats Separate
USB
Upstream USB 3.1 Gen 1: Type-B
Downstream USB 3.1 Gen 1: Type-A x 2
Audio
Speakers 1.0 W + 1.0 W
Input Terminals Stereo mini jack, DisplayPort, HDMI
Power
Power Requirements AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 12 W
Maximum Power Consumption 47 W
Power Save Mode 0.5 W or less
Features & Functions
Preset Modes User1, User2, sRGB
OSD Languages English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese
Physical Specifications
Dimensions (Landscape, W x H x D) 556.7 x 143.9 - 353.9 x 216.3 - 401.3 mm
Dimensions (Without Stand, W x H x D) 556.7 x 339.2 x 54 mm
Net Weight 6.6 kg / 14.5 lbs
Net Weight (Without Stand) 6 kg / 13.2 lbs
Tilt 15° - 70°
Hole Spacing (VESA Standard) 100 x 100 mm, M4, screw depth 3.0 - 10.0 mm
Environmental Requirements
Operating Temperature 5 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, UKCA, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, CCC, RCM, EAC, RoHS, WEEE, China RoHS
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DisplayPort (2 m), HDMI (2 m)
Others FDF2382WT-AL: AC power cord (2m), USB Type-A - USB Type-B cable (2m), Cleaning cloth, Mask Sheet x 2, Setup guide, Cable clamper

FDF2382WT-AF: AC power cord (2m), USB Type-A - USB Type-B cable (2m), Cleaning cloth, Setup guide, VESA mounting screw (M4 x 12 mm) x 4, Cable clamper
Warranty 3 Years
