Product Name
54.6" Touch Panel Color LCD Monitor
4K Route Planning at Your Fingertips

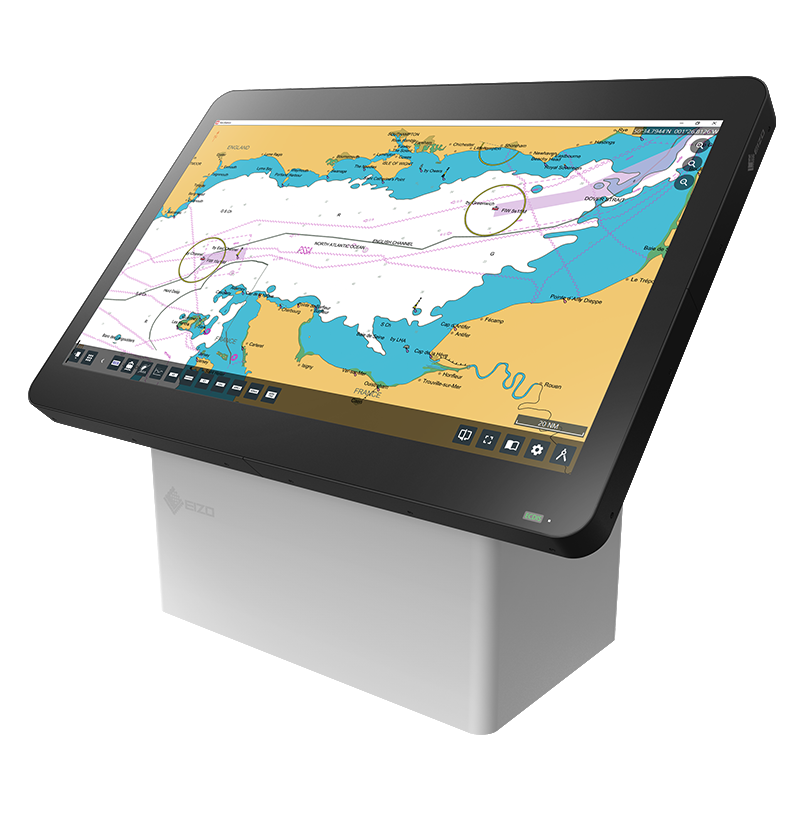

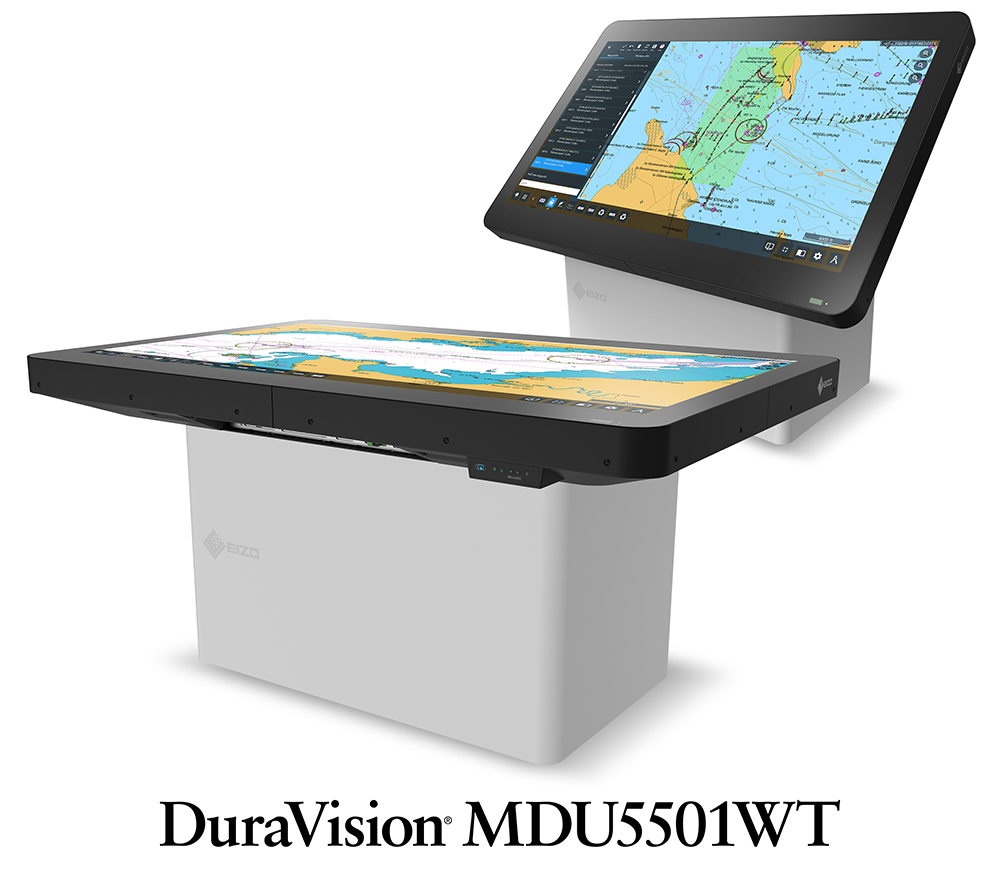

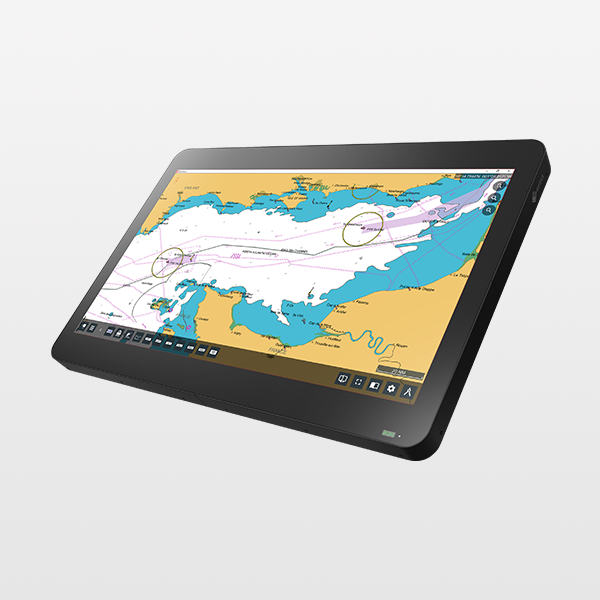

The DuraVision MDU5501WT is a 55-inch chart table monitor with multitouch capability. It offers a practical solution to paper navigational charts in detailed 4K resolution.
  • AR Visualization
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

55-Inch 4K UHD Chart Table Monitor

Ample Space for Efficient Operation

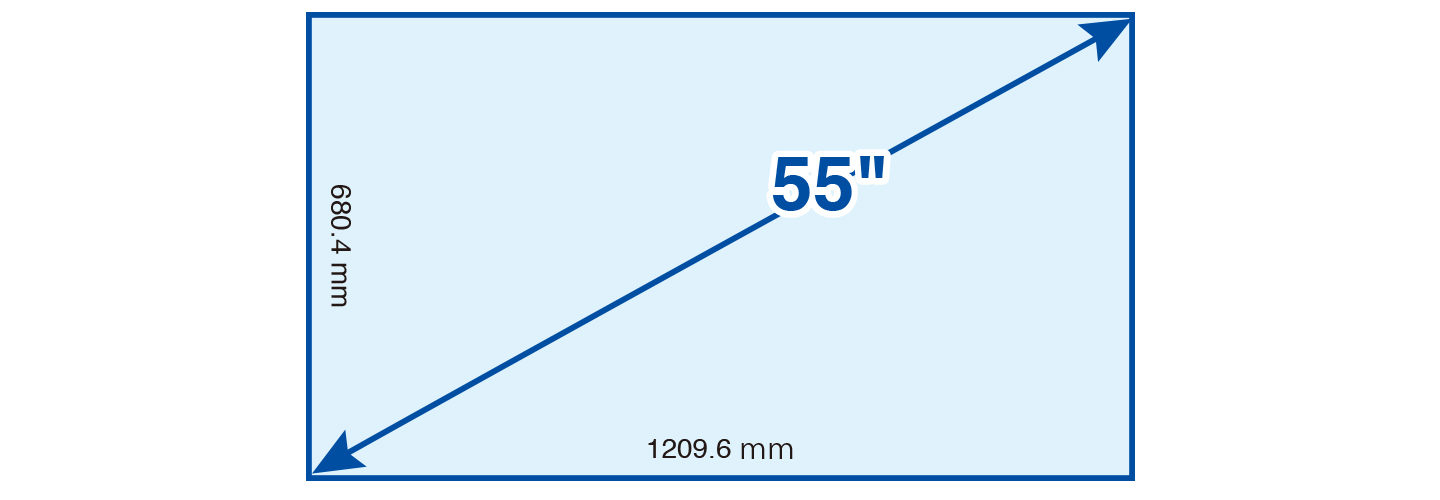

The MDU5501WT's large 55-inch screen provides ample space for users to see crucial navigational information from multiple applications in a single location, and reduces the need to switch windows or zoom in.

Ample Space for Efficient Operation

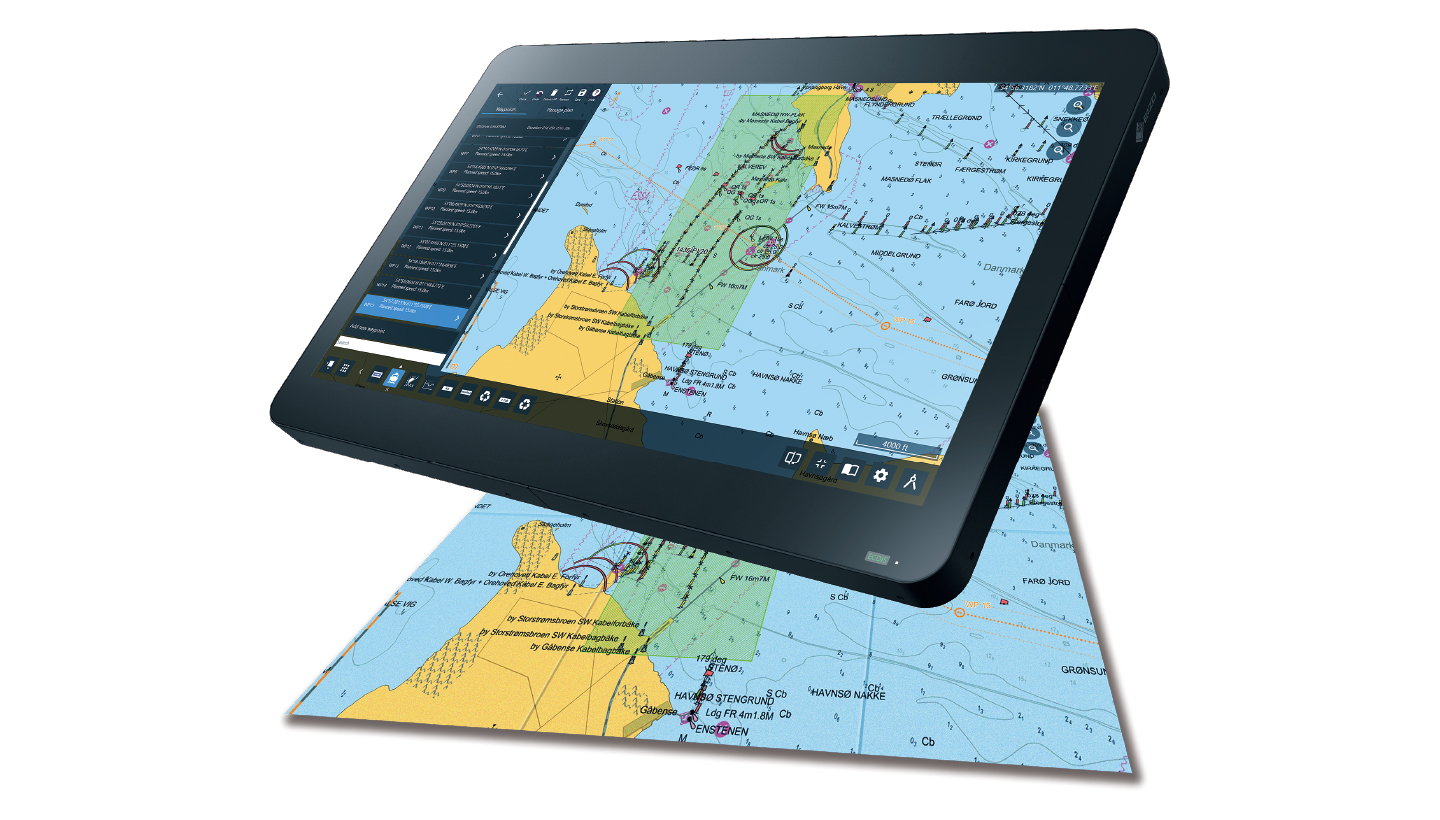

View Navigational Charts in High Detail

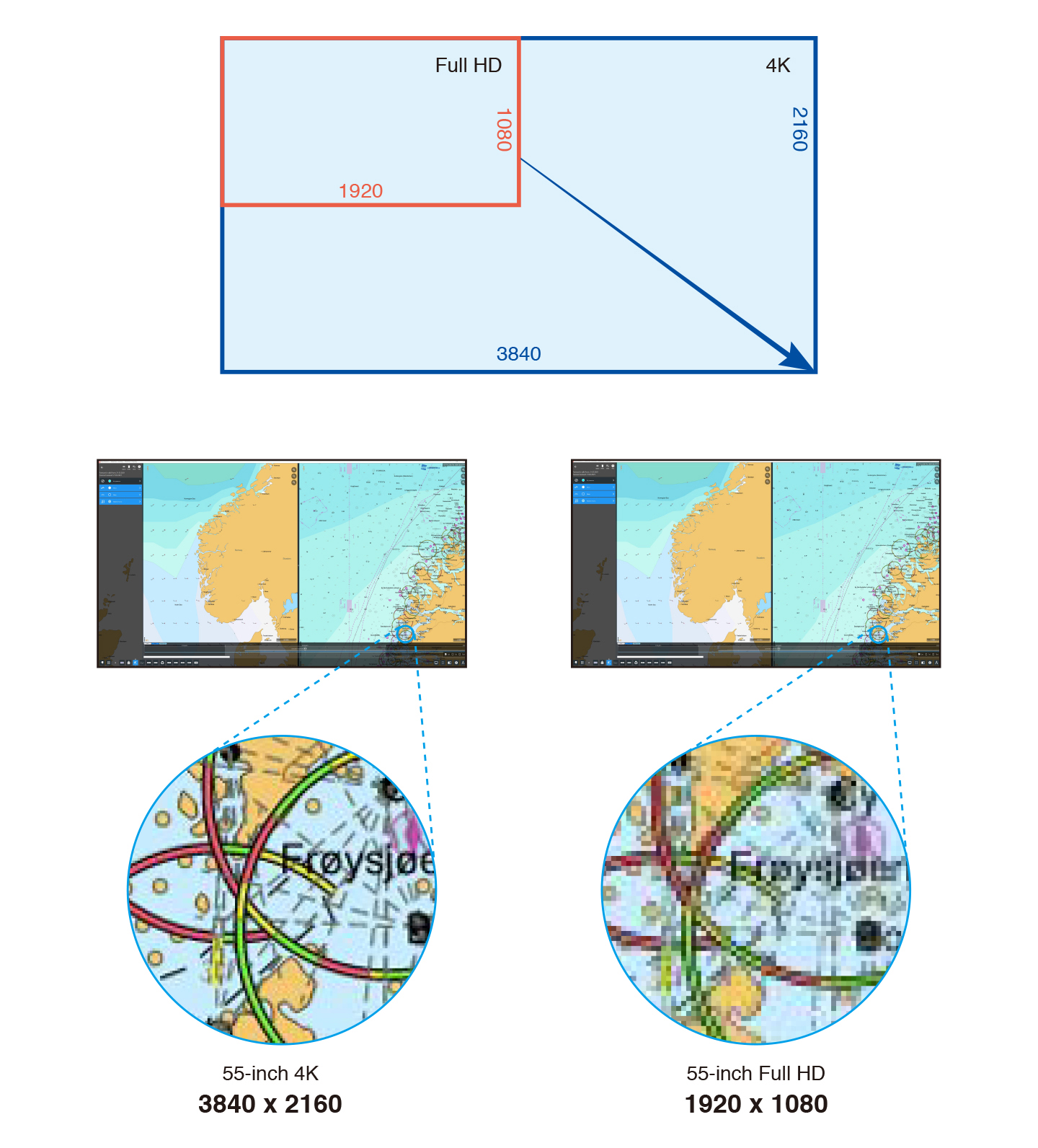

The DuraVision MDU5501WT displays at 4K UHD resolution (3840 x 2160) which is four times that of standard Full HD (1920 x 1080). This allows operators to view navigational charts and other data in high detail.

View Navigational Charts in High Detail

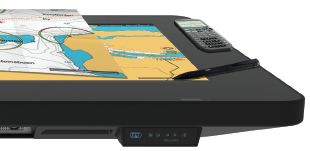

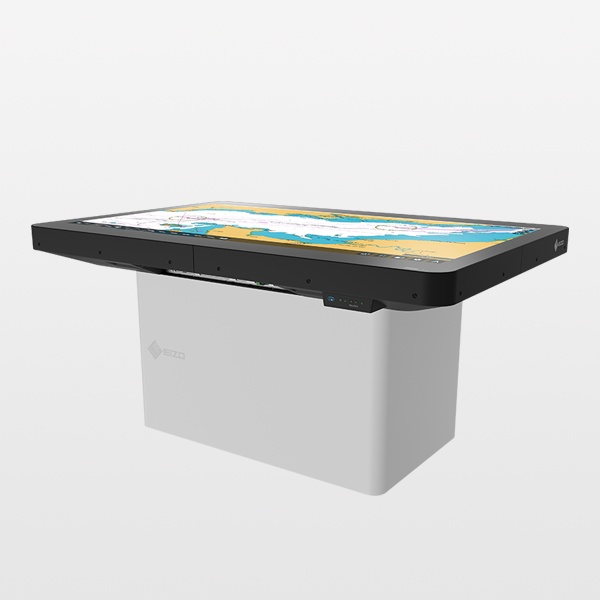

Fully Flat Table Design

The monitor can be laid horizontally and has a fully flat surface, allowing it to double as a table for laying out traditional paper charts when they are occasionally called for. The wide outer edges of the monitor also provide a place for the crew to conveniently set items or rest their hands without obstructing the view of the screen.

Fully Flat Table Design



Innovative Touch Technology

Multitouch Operation

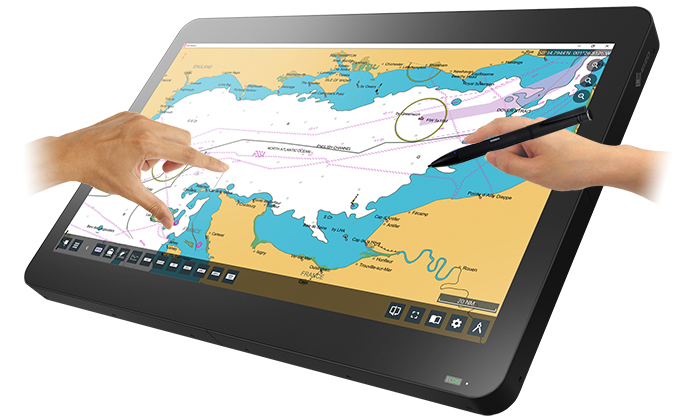

The chart table monitor features projected capacitive (PCAP) touch technology which detects up to 10 simultaneous finger touches, or up to two styluses, allowing multiple crew members to operate the monitor at the same time.


Palm Rejection

The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input.

Palm Rejection

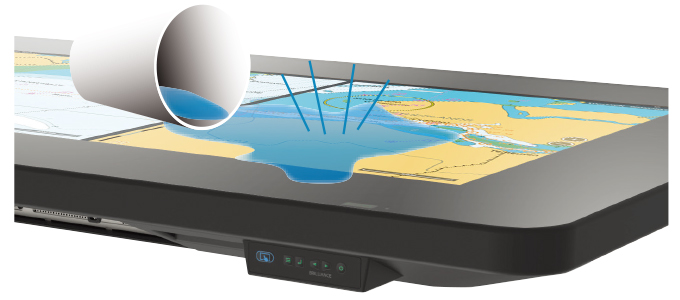

Liquid Detection

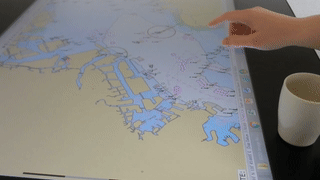

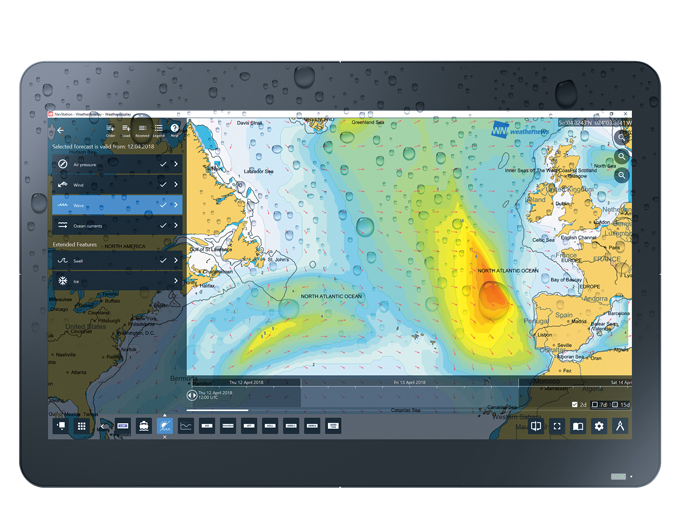

The monitor includes a function that detects liquid on the screen to prevent unintended touch input.  Once detected, the monitor will automatically disable touch functionality and re-enable it when it has been cleaned.


Liquid Detection

Fingerprint Resistance

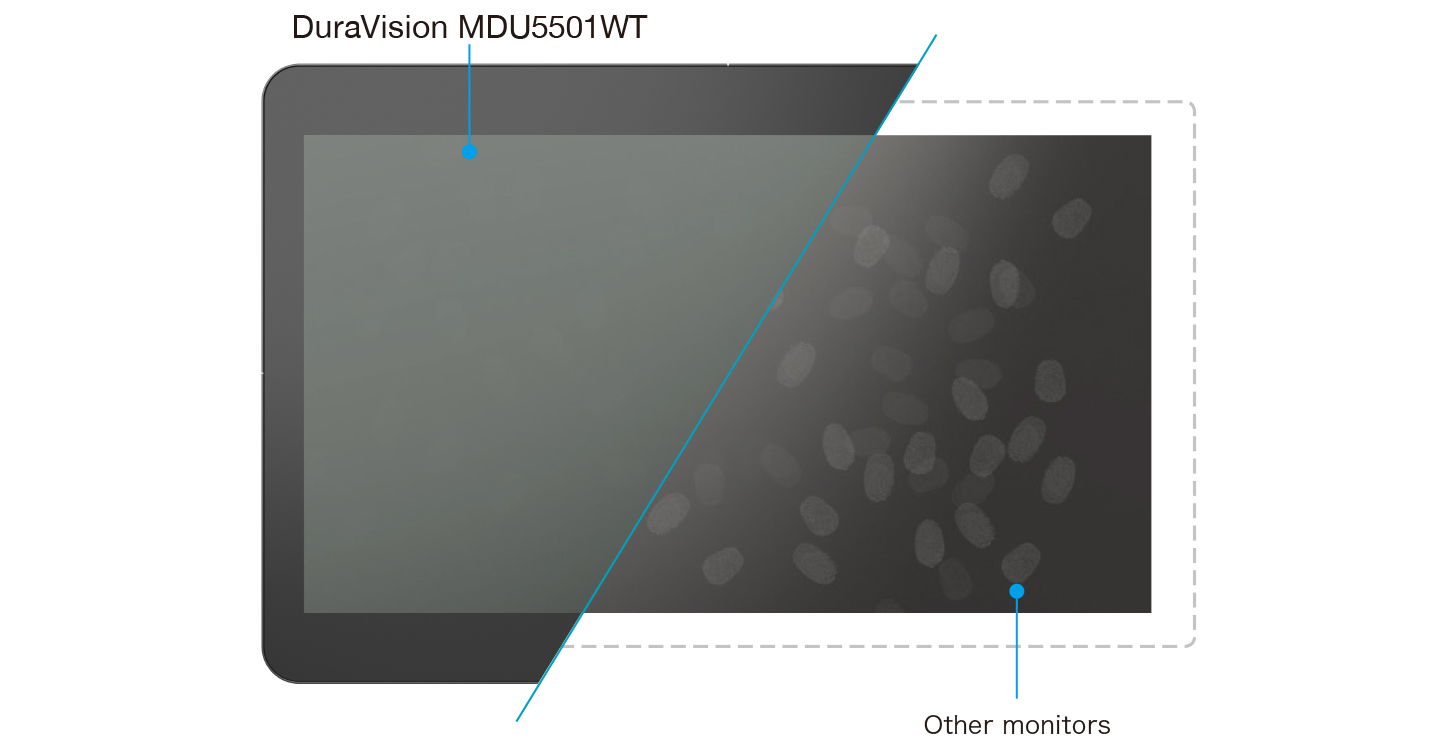

The monitor surface is coated with a fingerprint-resistant finish that minimizes the visibility of fingerprints left on the screen from touch interaction.

Fingerprint Resistance

Touch Detection Control

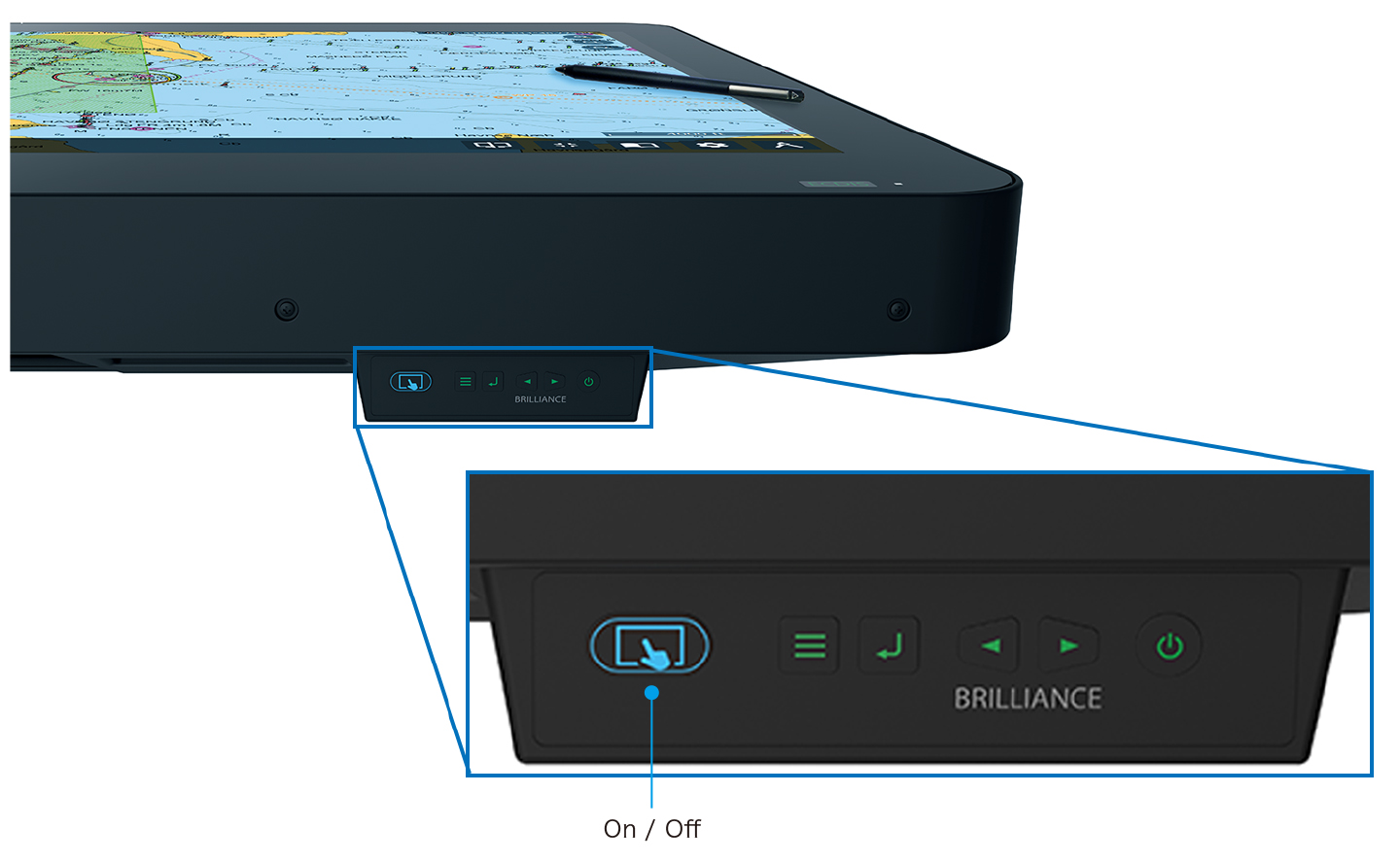

Users can easily turn touch detection on or off by pushing the button conveniently located on the monitor's outer rim. A button is located on two sides of the monitor for easy access.

Touch Detection Control

Touch Operation without Additional Drivers

The multitouch interface is supported by standard Windows 10 and 8.1 drivers. You can operate the touch panel without additional drivers by simply connecting the USB cable.



Designed for Maritime

High Visibility

The monitor has a wide dimming range of less than 1 cd/m2 to 610cd/m2. This allows operators to adjust to the appropriate brightness level for optimal visibility during the day or at night.

High Visibility

Calibrated for ECDIS

Backlight brightness, gamma, and RGB color settings are calibrated at the factory so the monitor achieves accurate color reproduction for meeting the highly specialized requirements of ECDIS systems. The monitors meet IEC 61174 international standards for ECDIS.

Calibrated for ECDIS

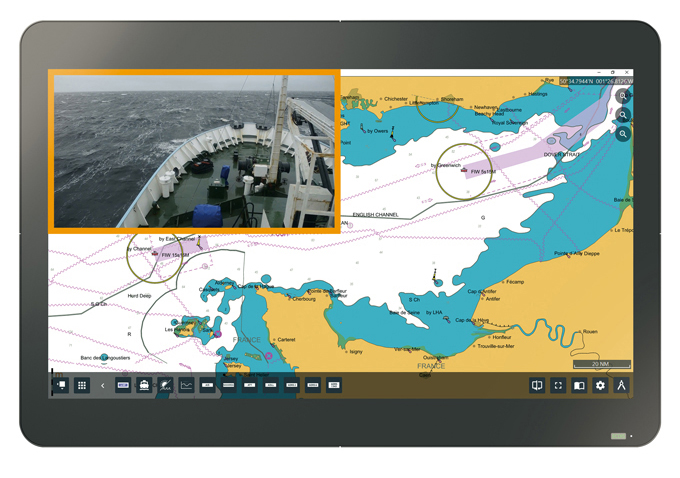

Picture-in-Picture

Picture-in-Picture (PinP) allows operators to display a separate screen from a second signal source within the monitor. The second screen can be displayed in 960 x 540, 1280 x 720, or 1920 x 1080 in any of the four corners of the monitor.

Picture-in-Picture

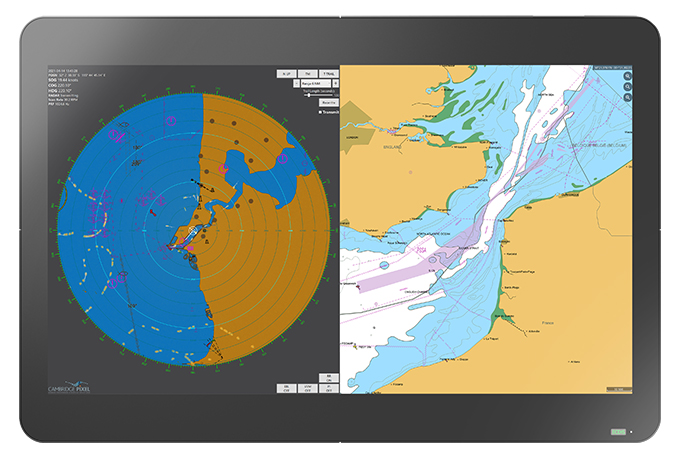

Picture-by-Picture

Picture-by-Picture (PbyP) allows operators to display data from up to two separate signals sources, such as radar and navigational information, and display them side by side.


Picture-by-Picture

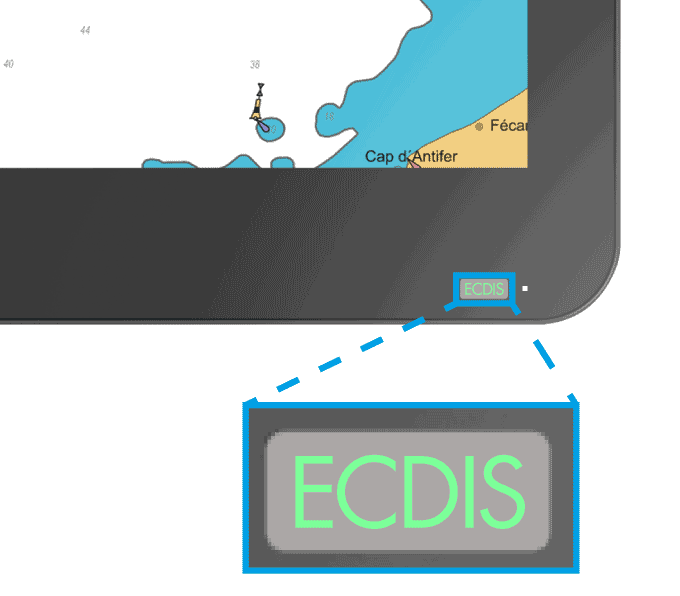

ECDIS Indicator

The ECDIS indicator located on the front of the monitor is lit when the brightness and color settings correctly meet the requirements for ECDIS. In the event the monitor's settings are adjusted such that the brightness is no longer supporting ECDIS standards, the light will automatically turn off.

ECDIS Indicator

EIZO Screen Rotator

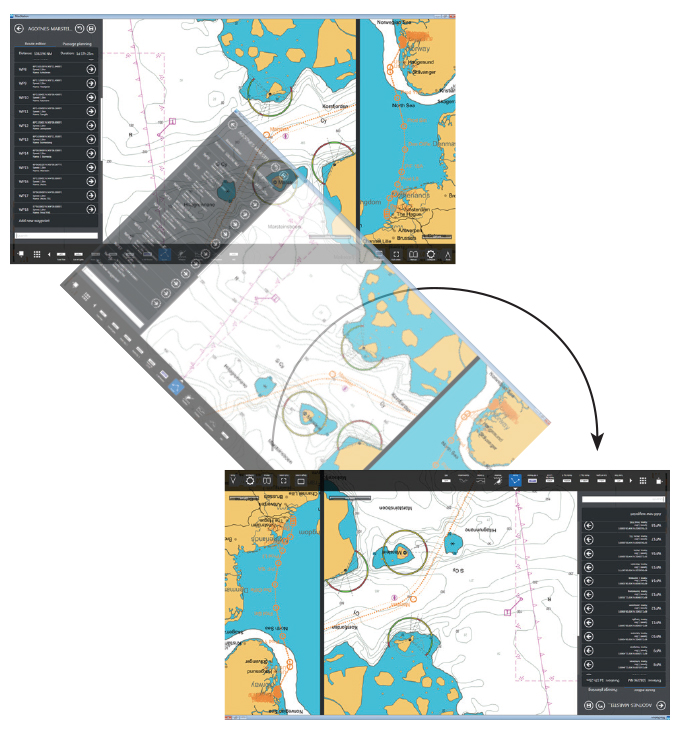

EIZO Screen Rotator for Windows OS is a free software application that allows you to quickly rotate the image on the monitor by 180° with a single touch. This is helpful when multiple members of the crew are viewing the screen from opposite sides of the chart table.

EIZO Screen Rotator



Durability and Reliability

Approval from Maritime Classifications

The monitor meets the requirements for major maritime classifications with approvals for LR (UK), DNV (Norway / Germany), ABS (USA), and NK (Japan).

Formal approval dates for classifications may vary.

Approval from Maritime Classifications

Protection

The monitor offers durability for use in harsh maritime environments, complying with the conditions for temperature, humidity, and vibration as defined in the IEC 60945 international standard for maritime navigation and radio communication equipment and systems. An IP65 rating on the front ensures it can withstand dust ingress and is protected against low-pressure water jets.

Protection

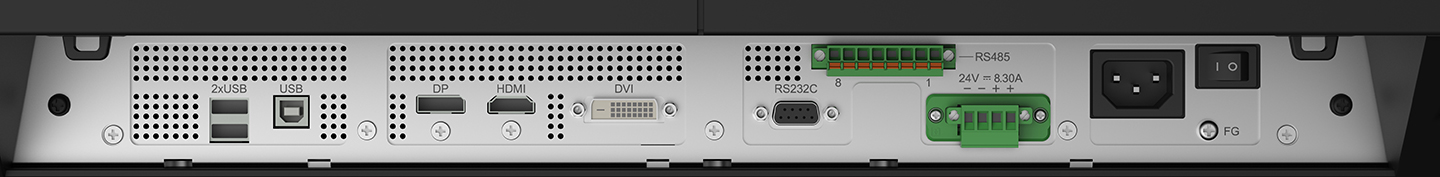

Power Supply Redundancy

Multiple power inputs are equipped allowing you to power the monitor using either DC or AC connectors, or both in parallel for redundancy.

Long-Term Reliability

The monitor is built for 24-hour use and is backed by a 3-year manufacturer's warranty for long-term reliability.

Long-Term Reliability



Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models: iPhone 6s, iPad (5th generation or later)
Supported Browsers: Safari, Chrome

Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models: ARCore supported Android devices
Supported Browser: Chrome

Scan the QR code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality.

Supported Models: iPhone 6s, iPad (5th generation or later), ARCore supported Android devices
Supported Browsers: Safari, Chrome

Additional Features

Monitor Control

The monitor is equipped with communication interfaces for serial communication, monitor control, and other features, such as brightness adjustment or powering the monitors on and off.

Monitor Control

Dedicated Stylus

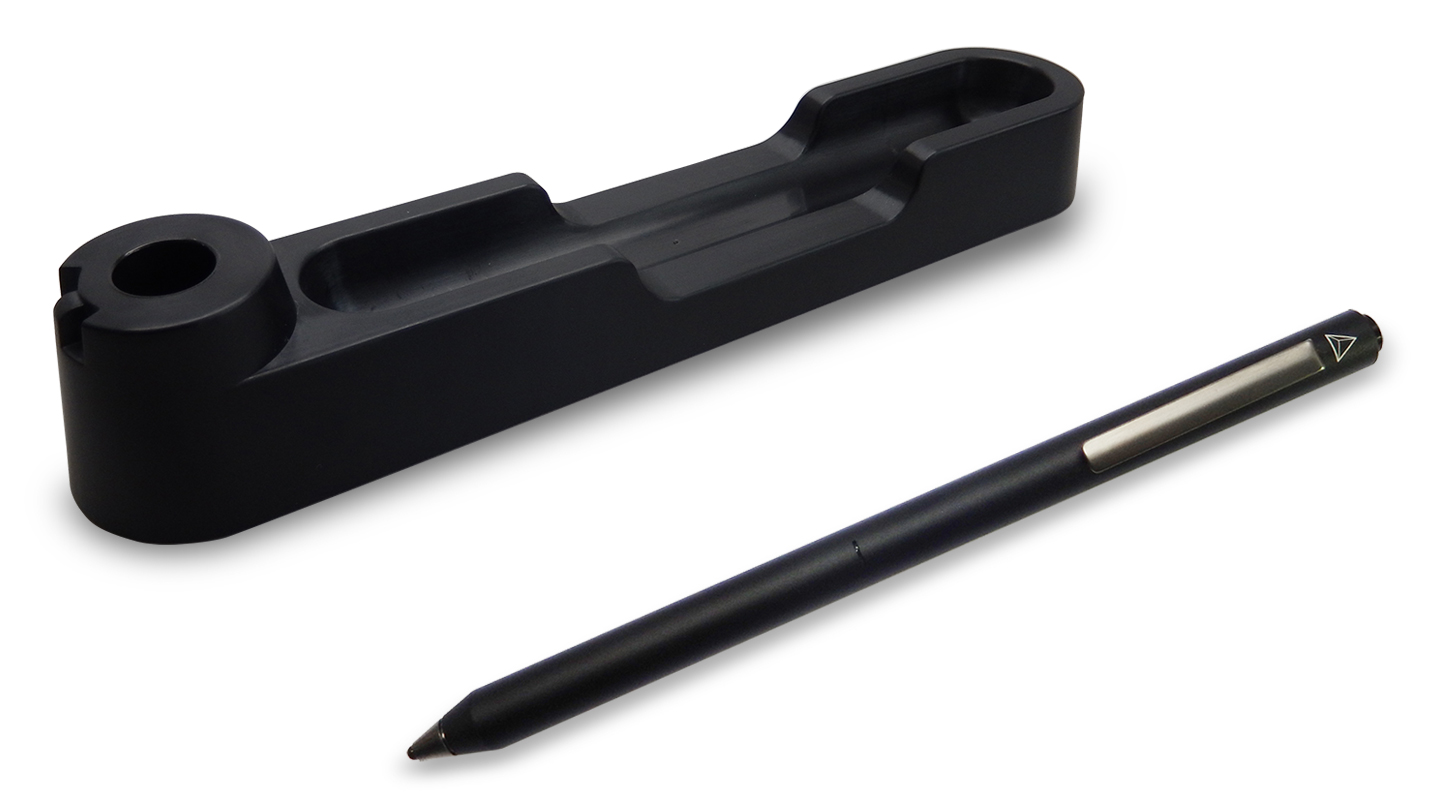

A dedicated touch stylus and holder are included with the chart table monitor. The holder is magnetic so it stays in place attached to the monitor bezels.

Dedicated Stylus

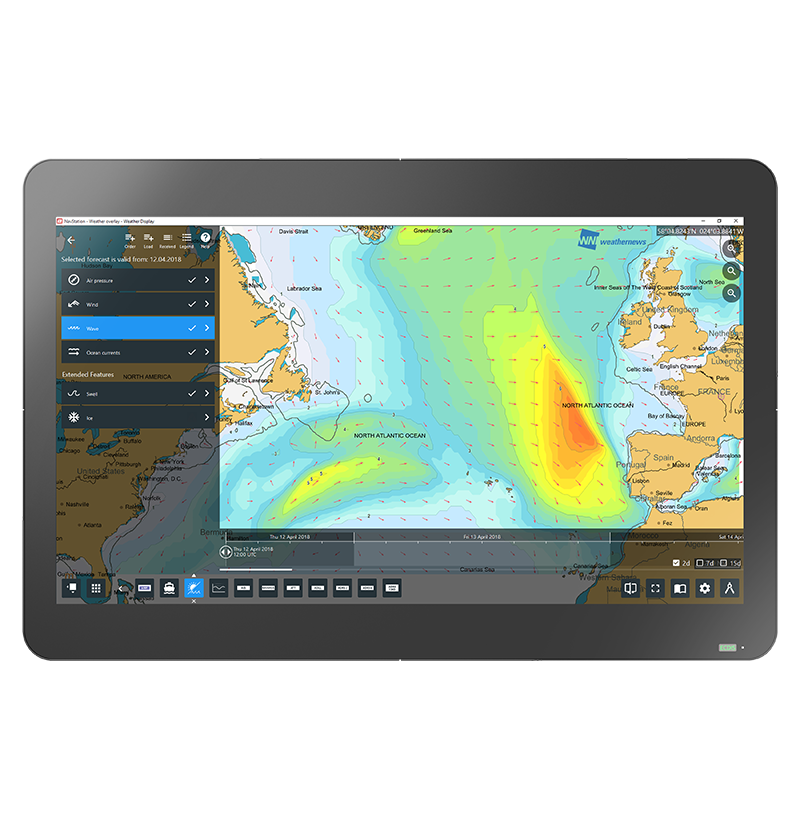

Screen images provided by NAVTOR and Cambridge Pixel.

Model Variations MDU5501WT-BK: without stand, black
Panel
Type VA
Backlight LED
Size 54.6" / 138.8 cm
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 1209.6 x 680.4 mm
Pixel Pitch 0.315 x 0.315 mm (Minimum viewing distance: 1.086 m)
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 610 cd/m2
Contrast Ratio (typical) 4000:1
Response Time (typical) 8 ms (gray-to-gray)
Touch Panel
Type Projected Capacitive
Touch Points 10
Surface Treatment Anti-Glare coating, Anti-Finger printing
Communication Protocol USB
Surface Hardness 5 H
Compatible OS Windows 10 / 8.1 (64-bit, 32-bit)
Video Signals
Input Terminals DisplayPort (HDCP1.3), HDMI (HDCP 2.2 / 1.4), DVI-D (HDCP 1.4)
Digital Scanning Frequency (H / V) DisplayPort: 31 - 135 kHz / 29 - 61 Hz,
HDMI: 31 - 135 kHz / 29 - 61 Hz,
DVI-D: 31 - 75 kHz / 59 - 61 Hz
USB
Upstream USB 2.0: Type-B
Downstream USB 2.0: Type-A x 2
Power
Power Requirements AC 100 - 240 V, 50 / 60 Hz
DC 24V
Maximum Power Consumption AC 195 W, DC 199 W
Power Save Mode 20 W or less (AC input)
15 W or less (DC input)
Features & Functions
Preset Modes Custom, Day, Dusk, Night
OSD Languages English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese
Communication Interface RS-232C, RS-485, USB
Communication Protocol Modbus, EIZO proprietary
Physical Specifications
Dimensions (Without Stand, W x H x D) 1334 x 888 x 121 mm
Net Weight (Without Stand) 71.7 kg
Environmental Requirements
Operating Temperature -15 - 55°C
Operating Humidity (R.H., non condensing) 10 - 90%
Degree of Protection IP65 (front)
IP22 (rear)
Safe Distance of Nautical Equipment from Compasses
Standard Compass 2.65 m
Steering Compass 1.70 m
Certifications & Standards (Please contact EIZO for the latest information.) Ship Classification: NK (Japan), LR (UK), ABS (US), DNV (Norway / Germany)

General: CB, CE, RoHS, WEEE, IEC 60945 (EMC/environmental testing), IEC 61174/IEC 62288/IEC 62388 (items for monitor), EU RO MR
Dedicated Software
Image Rotation Software EIZO Screen Rotator Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Others Setup manual, CD-ROM, Cleaning cloth, Stylus (Touch pen), Battery charger for stylus, Stylus holder, Stylus pen tip x 2
Warranty 3 Years (24-hour use)
Dimension Drawing PDF

Brochures

DuraVision MDU5501WT/MDF4601WT
2.48 MB

Download



Manuals

Languages

Document Language Size Download
MDU5501WT Setup manual English 3.5 MB Download
MDU5501WT User's manual English 2.13 MB Download
Monitor Cleaning Kit
ScreenCleaner

- Keep your screen free from dust and fingerprints
- Includes pump spray and cloth
