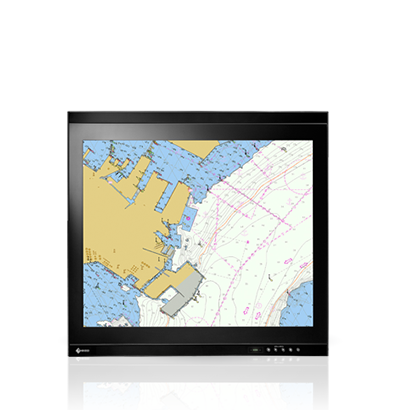

DuraVision FDS1904
19.0" Color LCD Monitor
Panel Mount Marine Monitor with LED Backlight for ECDIS / Radar Applications
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

Case Studies

prev next

Durable and Reliable

The monitor offers durability for use in harsh maritime environments, complying with the conditions for temperature, humidity, and vibration as defined in the IEC 60945 international standard for maritime navigation and radio communication equipment and systems. IP65 rating ensures they can withstand dust ingress and is protected against low-pressure water jets. A coating is applied to make the electronic substrates moisture-proof and the cooling fan is easily accessible for exchanging purposes.

Approval from Classification Societies

The monitor is approved and certified by major maritime classifications, such as DNV (Germany / Norway), LR (UK), ABS (USA), NK (Japan), and EU RO MR to meet IMO (International Maritime Organization) regulations.

Long-Lasting LED Backlight

The monitor is equipped with an LED backlight. Compared to conventional CCFL backlights, LED backlights last longer and consume less power. The monitor is also mercury-free for minimal impact on the environment.

Optional Stand

An optional stand is available with the monitor which allows tilt positioning from 0 - 60 degrees. The stand, when combined with the monitor, complies with the conditions for temperature, humidity, and vibration as defined in the IEC 60945 international standard for maritime navigation and radio communication equipment and systems. It also meets the requirements for major maritime classifications such as LR (UK), DNV GL (Norway / Germany), ABS (USA), and NK (Japan).


Wide Dimming Range

The wide dimming range of less than 1 cd/m2 up to 590 cd/m2 allows you to adjust to the appropriate brightness level for viewing during the day or at night.

Clear View

The VA panel features wide viewing angles that minimize changes in contrast and gradation to maintain excellent visibility when the screen is viewed from the side. An AR coating is applied to reduce the amount of reflections on the screen for a clear display.

Calibrated for ECDIS

Backlight brightness, gamma, and RGB color settings are calibrated at the factory so each monitor achieves accurate color reproduction for meeting the highly specialized requirements of ECDIS systems. The monitor meets IEC 61174, IEC 62288, and IEC 62388 international standards for ECDIS and Radar applications.

24-Hour Use, 3-Year Warranty

The monitor is built for 24-hour use and are backed by a three-year manufacturer's warranty for long-term reliability.





Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Industry, Innovation, and Infrastructure
DuraVision offers a range of visual solutions for facilities that are indispensable to people's daily lives such as hospitals, businesses, airports, factories, public transportation hubs, and many more. We support the uninterrupted continuation of security, industrial, and other activities with robust product build, manufacturer's warranty, and after-sales services.

SDGs 09

Environmentally Conscious
Our products for industrial environments are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system.

SDGs 07SDGs 12
Model Variations FDS1904: Panel mount, black
Panel
Type VA
Backlight LED
Size 19.0" (48 cm)
Native Resolution 1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V) 376.3 x 301.0 mm
Pixel Pitch (H x V) 0.294 x 0.294 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 590 cd/m2
Contrast Ratio (typical) 2000:1
Response Time (typical) 20 ms (black-white-black)
Video Signals
Input Terminals DVI-D (HDCP1.4), D-Sub mini 15 pin
Digital Scanning Frequency (H / V) 31 - 64 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V) 31 - 80 kHz / 56 - 76 Hz
Sync Formats Separate, Composite
Power
Power Input AC 100 - 240 V , 50 / 60 Hz
DC 24V
Maximum Power Consumption 64 W
Power Save Mode AC: 9 W /DC: 6 W
Features & Functions
Preset Modes Custom, Day, Dusk, Night
OSD Languages English, German, French, Spanish,
Italian, Swedish, Japanese,
Simplified Chinese, Traditional
Chinese
Communication Interface DDC/CI, RS-232C
Communication Protocol EIZO proprietary
Physical Specifications
Dimensions (Panel Mount, W x H x D) 429 x 406 x 75 mm
Net Weight (Panel Mount) 5.9 kg
Hole Spacing (VESA Standard) 100 x 100 mm, M4, screw depth 6.0 - 12.5 mm
Environmental Requirements
Operating Temperature -15 - 55°C
Operating Humidity (R.H., non condensing) 10 - 90%
Degree of Protection IP65 (front)
IP22 (rear)
Safe Distance of Nautical Equipment from Compasses
Standard Compass 0.90 m
Steering Compass 0.60 m
Certifications & Standards (Please contact EIZO for the latest information.) Ship Classification: DNV (Norway / Germany), NK (Japan), LR (UK), ABS (US)

General: CB, CE, UKCA, EAC, RoHS, WEEE, CCC, China RoHS, IEC 60945 (EMC/environmental testing), IEC 61174/IEC 62288/IEC 62388 (items for monitor), KC (K60950-1, K00022, K00024), EU RO MR
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Others Setup manual, CD-ROM (PDF user's manual), Cleaning cloth
Warranty 3 Years (24-hour use)
Dimension Drawing PDF

Brochures

DuraVision FDS1904 / FDS1904T
985 KB

Download



Manuals

Languages

FDU2603W / FDU2603WT / FDS1904 / FDS1904T User's manual English 4.95 MB PDF
FDU2603W / FDU2603WT / FDS1904 / FDS1904T User's manual Russian 4.95 MB PDF
FDU2603W / FDU2603WT / FDS1904 / FDS1904T User's manual Chinese-Simplified 5.33 MB PDF
FDU2603W / FDU2603WT / FDS1904 / FDS1904T User's manual Chinese-Traditional 5.54 MB PDF
FDU2603W / FDU2603WT / FDS1904 / FDS1904T User's manual Korean 5.1 MB PDF
FDS1904 / FDS1904T Setup manual English
Chinese-Simplified
Japanese
Korean
6.63 MB PDF
FDS1904 / FDS1904T Setup manual Chinese-Traditional 2.25 MB PDF

Compatibility

Date Subject
July 30, 2019 Abnormal Display Issue on Microsoft Windows 10 May 2019 Update (1903)
Stand
MDS-T191

Dedicated stand for 19-inch maritime monitors

Monitor Cleaning Kit
ScreenCleaner

- Keep your screen free from dust and fingerprints
- Includes pump spray and cloth
