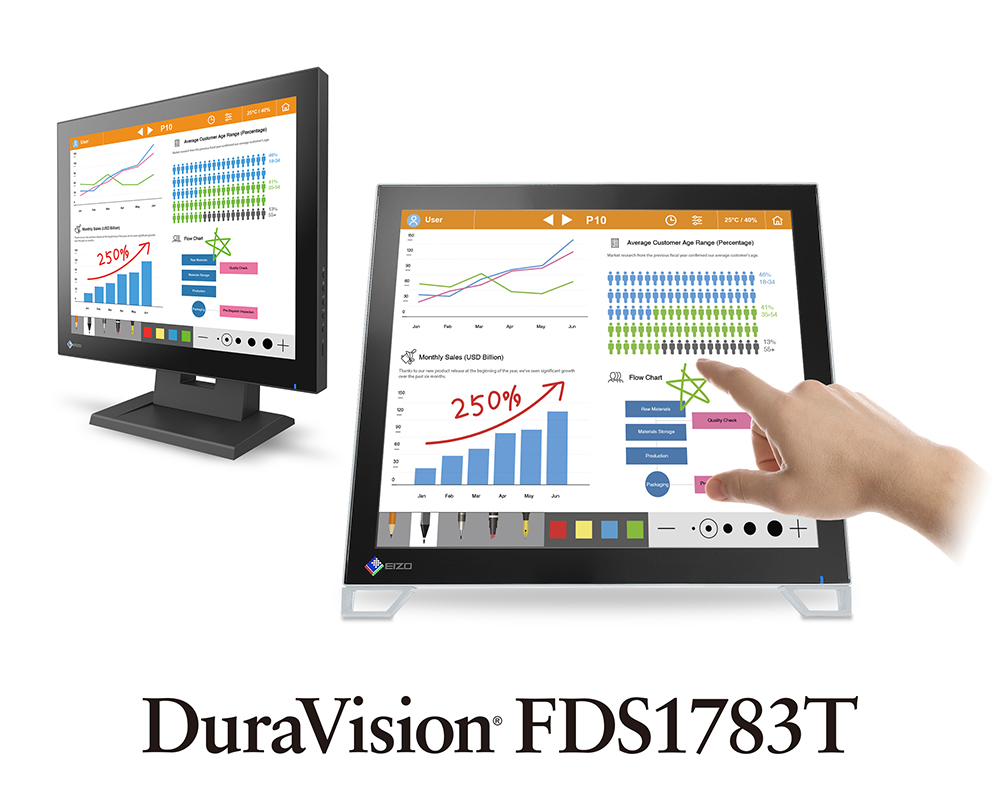

- FDS1783T
- Image Optimization Solutions
- IP Solutions
- Ultra-High Sensitivity Camera
- Remote Controlled Pan and Tilt Head
- Touch Panel
- Small-Size Monitors
- Maritime
- Features
- Specifications
- Documents Compatibility
- Accessories
- Awards & Reviews
Intuitive Touch Technology
The monitor features projected capacitive (PCAP) touch technology that accepts input from a bare finger or stylus. High responsiveness to tapping, swiping, and flicking motions makes touch operation intuitive and smooth for use in a range of environments, including public facilities, hospitals, factories, and offices.
Check stylus compatibility details here
1 Only responds with thin or specialized gloves. Touch response may vary depending on glove material.
2 Requires active or capacitive stylus
Smooth Operation
Multitouch and Stylus Input
The monitor can detect up to 10 simultaneous touches for easily operating a variety of applications, while stylus compatibility allows for smooth writing. Using a stylus also helps to maintain a clean screen and offers a reliable solution for environments where thick gloves* are needed.
*Touch response may vary depending on glove material.
10-point simultaneous touch support
Smooth input with stylus
Above videos demonstrate EIZO's 21.5" monitor.

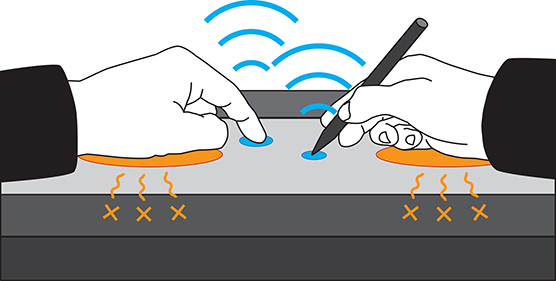

Palm Rejection
The monitor is equipped with palm rejection which allows you to rest your hand directly on the screen without causing any unintended touch input.
Palm rejection minimum activation area is 2 x 2 cm.
Fully Flat Design
The fully flat bezel design provides a seamless touch experience to the edge of the screen, and allows for smooth swiping, dragging, and scrolling operations.
Sensitivity Calibration
The monitor is equipped with technology that automatically calibrates touch sensitivity to correct deviations caused by environmental factors and electromagnetic noise, ensuring stable touch operation at all times.
During initial installation, adjustment is required using the included software.
Comfortable Viewing
High Visibility
To maintain visibility, the panel is treated with an anti-glare coating to minimize reflections and an anti-fingerprint coating to prevent smudging.
IPS Panel
The monitor uses an IPS panel with wide viewing angles that minimize color shift and contrast changes when viewing the screen from an angle.
Brightness Range
You can adjust the brightness of the monitor up to 360 cd/m2 to suit your surroundings for optimal viewing.
Practical Features

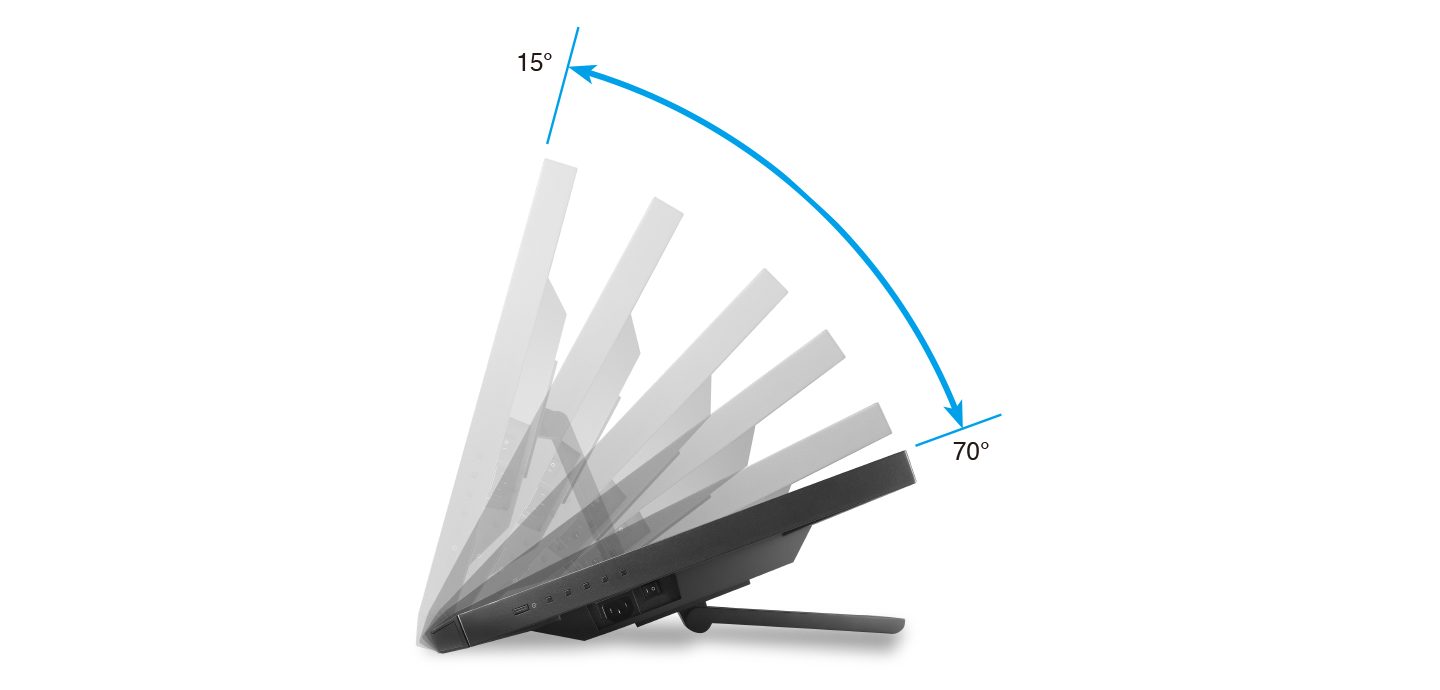

Reclining Stand
The equipped stand provides flexible positioning, allowing the monitor to rest on your desk like a laptop and recline back to your desired angle. This makes it easy to place the monitor in the ideal position for comfortable use in any environment.
Touch Detection Control
To prevent unintended input when cleaning the surface, easily enable or disable touch detection by pushing the button conveniently located on the side of the monitor.
Built-In Speakers
The monitor comes equipped with built-in 2.0 W + 2.0 W speakers for environments which require sound output.
Effortless Setup

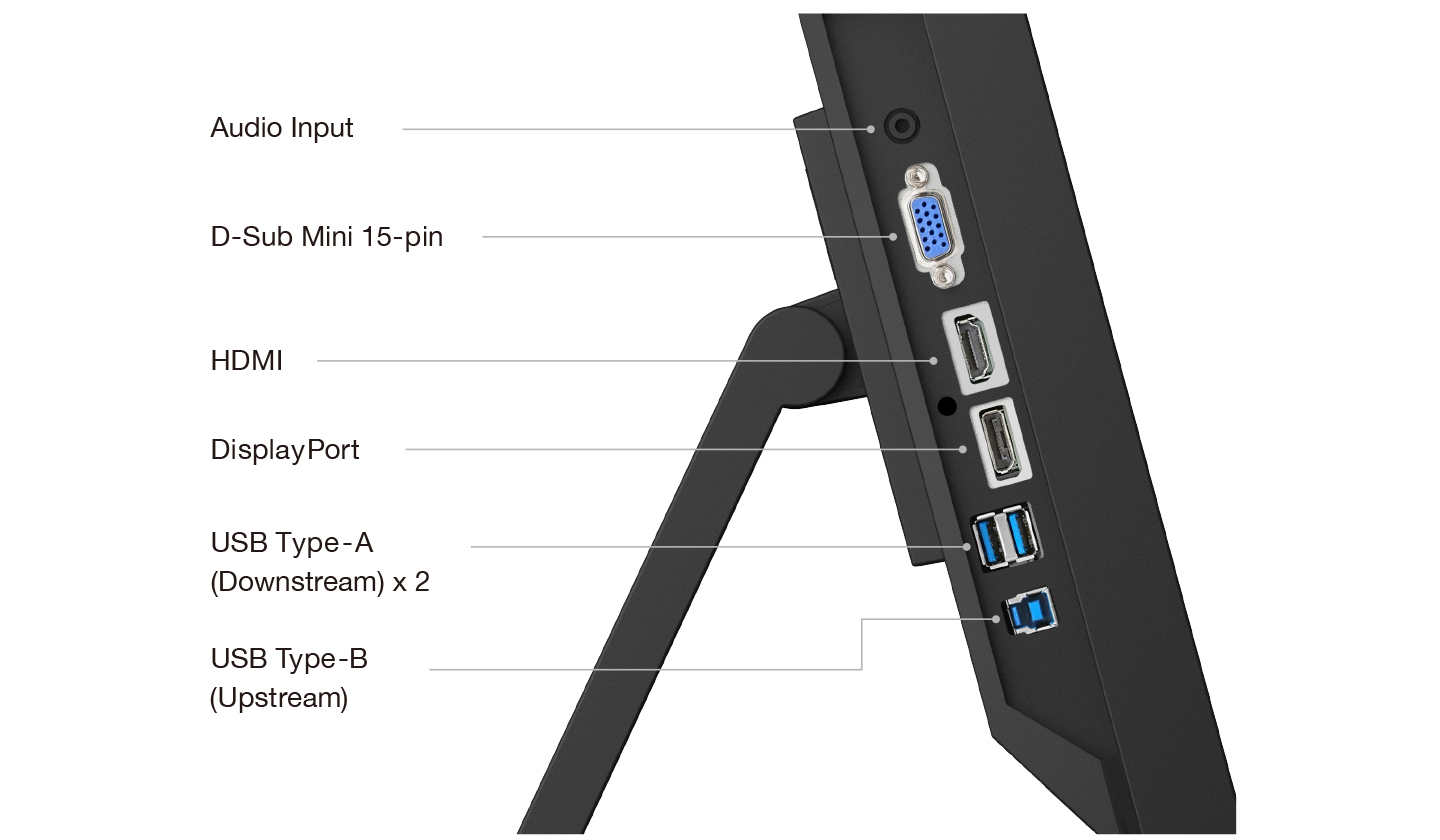

Complete Connection
The monitor is equipped with DisplayPort™, HDMI®, and D-Sub inputs conveniently located on the side for easy access.
Touch Operation without Additional Drivers
The multitouch interface is supported by standard Windows 11 / 10 drivers. By simply connecting a USB cable, you can operate the touch panel without additional drivers.
Dedicated Touch Panel Driver
In addition to Windows standard touch drivers, a dedicated touch driver is also available to support touch interaction, sound, and mouse emulation.
Supported OS: Windows 11 / 10
Made to Last
High Durability
The touch screen has a non-scratch surface made of reinforced glass with a hardness of 5H, making it durable enough to withstand long-term use in a range of environments.
Safety Standard for Medical Environments
The monitor is compliant with the IEC60601-1 standard to ensure it meets basic safety and essential performance criteria in medical environments.
Streamlined Installation
The monitor's external dimensions are consistent with its predecessor, making it a reliable fit during a system refresh.
Long-Term Reliability
The monitor is built for 24-hour use and is backed by a 3-year manufacturer's warranty for long-term reliability.
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Environmentally Conscious Product Development EIZO’s industrial products are designed to minimize environmental impact by promoting efficient and circular resource use across every stage of the product lifecycle - from parts and materials procurement to manufacturing, transportation, user experience, and end-of-life disposal. We prioritize green procurement, selecting environmentally responsible components and materials wherever possible. In addition to meeting domestic and international environmental standards, we support chemical substance surveys and assessments of environmental initiatives related to our procurement partners. All production sites at EIZO’s headquarters in Japan operate on 100% renewable energy. |
   |
|
|
Imaging Solutions for Industrial Operations EIZO's industrial imaging solutions provide unwavering support to professionals working to advance and protect our society, across vital environments such as hospitals, offices, airports, factories, and public transportation hubs. With robust and redundant product design, backed by comprehensive warranties and after-sales service, we help ensure uninterrupted industrial operations. |
  |
| Model Variations |
FDS1783T-LBK: with LaidBack stand, black
FDS1783T-LGY: with LaidBack stand, gray FDS1783T-FBK: without stand, black FDS1783T-FGY: without stand, gray |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | LED |
| Size | 17.0" (43.0 cm) |
| Native Resolution | 1280 x 1024 (5:4 aspect ratio) |
| Viewable Image Size (H x V) | 337.9 x 270.3 mm |
| Pixel Pitch (H x V) | 0.264 x 0.264 mm |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 360 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 14 ms (gray-to-gray) |
| Touch Panel | |
| Type | Projected Capacitive |
| Touch Points | 10 |
| Surface Treatment | Anti-Glare coating, Anti-Fingerprint coating |
| Communication Protocol | USB |
| Surface Hardness | 5 H |
| Compatible OS | Windows 11, Windows 10 (64-bit, 32-bit) |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP1.3), HDMI (HDCP1.4), D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) | 31 - 64 kHz / 59 - 60 Hz |
| Analog Scanning Frequency (H / V) | 31 - 80 kHz / 56 - 75 Hz |
| Sync Formats | Separate |
| USB | |
| Upstream | USB 5Gbps: Type-B |
| Downstream | USB 5Gbps: Type-A x 2 |
| Audio | |
| Speakers | 2.0 W + 2.0 W |
| Input Terminals | Stereo mini jack, DisplayPort, HDMI |
| Output Terminals | - |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 6 W |
| Maximum Power Consumption | 45 W |
| Power Save Mode | 0.5 W or less |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 391.8 x 141.6 - 348 x 214.9 - 400.4 mm |
| Dimensions (Without Stand, W x H x D) | 391.8 x 330.6 x 54 mm |
| Net Weight | 4.4 kg |
| Net Weight (Without Stand) | 3.9 kg |
| Tilt | 15° - 70° |
| Hole Spacing (VESA Standard) | 100 x 100 mm, M4, screw depth 3.0 - 10.0 mm |
| Environmental Requirements | |
| Operating Temperature | 5 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | International Standard (IEC60601-1), CB, CE, UKCA, cTUVus, FCC-B, CAN ICES (B), VCCI-B, RCM, RoHS, WEEE, TUV/S, PSE |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DisplayPort (2 m), HDMI (2 m) |
| Others |
FDS1783T-L: AC power cord (2 m), USB Type-A - USB Type-B cable (2 m), Cleaning cloth, Setup guide, cable clamper, Mask Sheet x 2
FDS1783T-F: AC power cord (2 m), USB Type-A - USB Type-B cable (2 m), Cleaning cloth, Setup guide, cable clamper, VESA mounting screw (M4 x 12 mm) x 4 |
| Warranty | 3 Years (24-hour use) |
| Dimension Drawing |
