Product Name

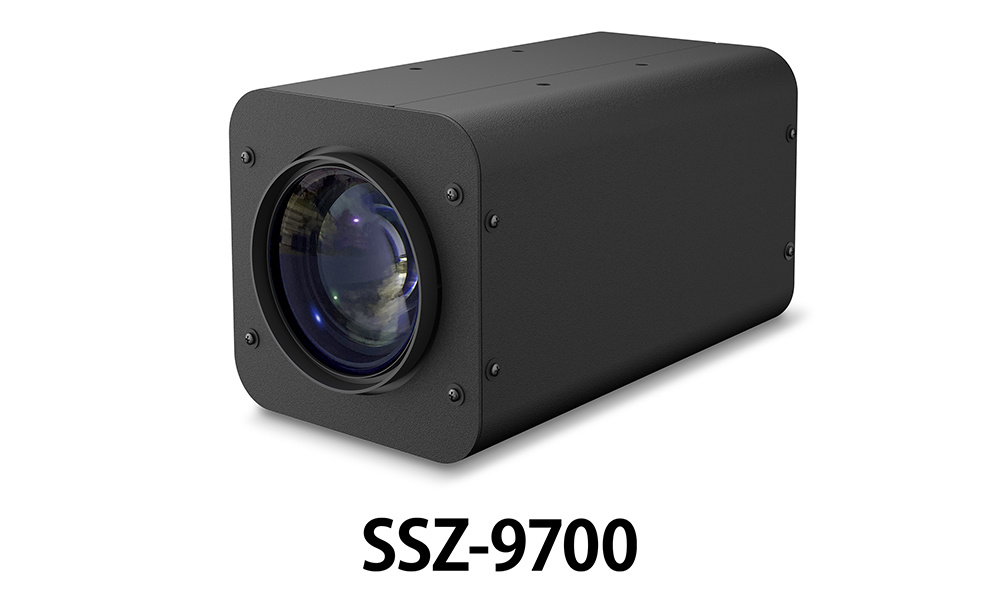

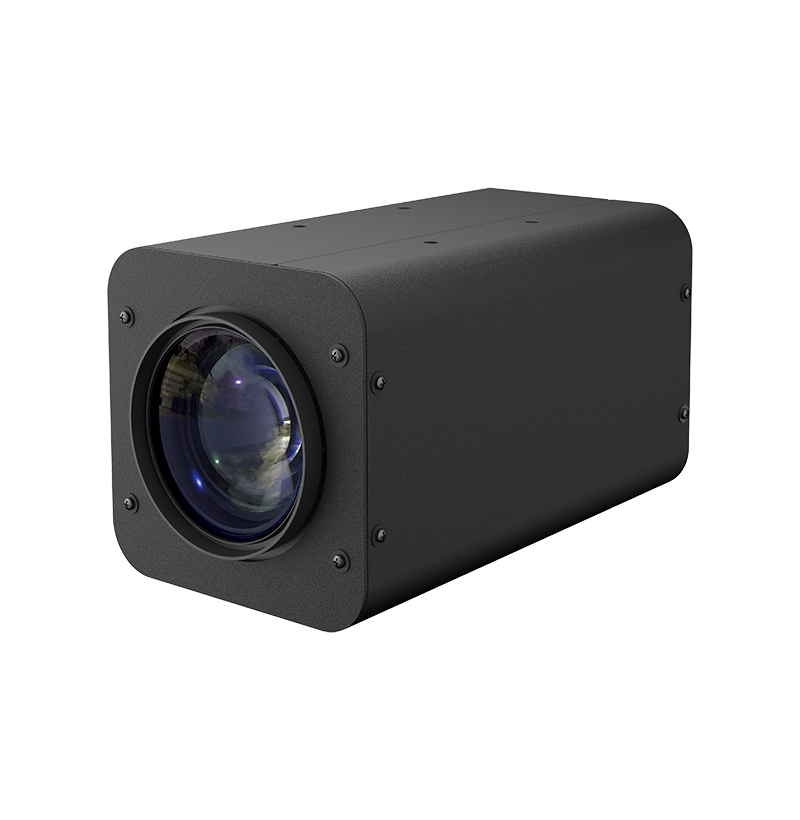

Ultra-High Sensitivity HD Zoom Camera

The SSZ-9700 is an ultra-high sensitivity video camera with a built-in 35x optical zoom lens. It is useful in a range of fields and applications where clear images are required, including low-lit environments, such as river ports, for natural disaster monitoring, law enforcement, and surveillance of locations of interest.
2 items


Ultra-High Sensitivity for Video Surveillance

The SSZ-9700 with its built-in optical zoom lens provides highly visible images in conditions that are dark or difficult to see in.

Color Imaging in Low-Lit Conditions

The SSZ-9700 captures color images, even under extremely dim lighting conditions as low as 0.004 lx. This provides clearer imaging in dark environments or poor weather conditions compared to a standard video camera.

Below: Dam Water Level Surveillance  Time: After Sunset / Weather: Cloudy

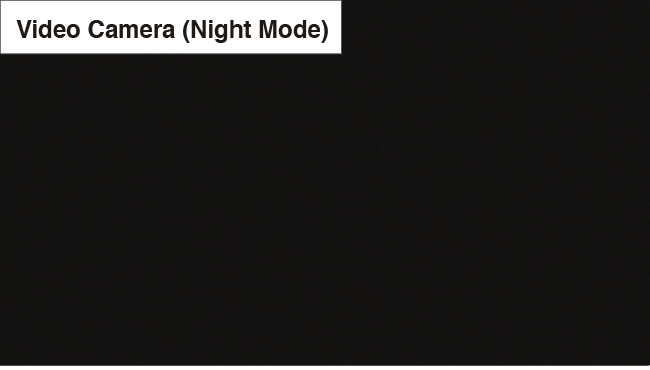

Dam Water Level Surveillance_Video Camera (Night Mode)

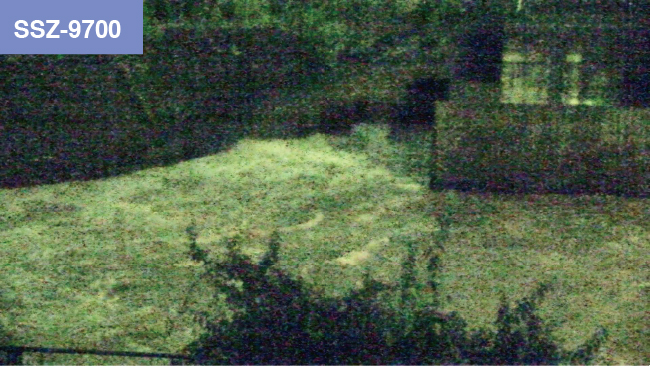

Dam Water Level Surveillance_SSZ-9700

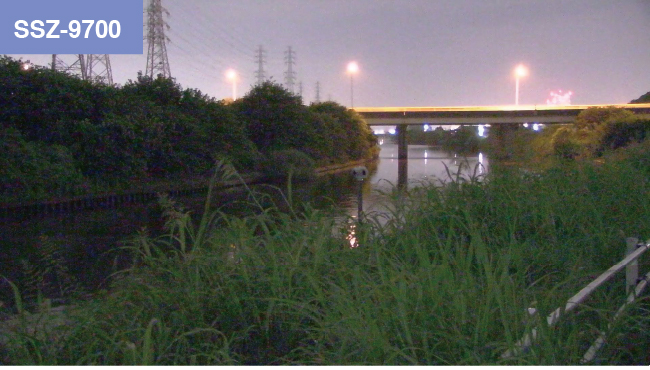

Below: Riverside Surveillance  Time: After Sunset / Weather: Cloudy

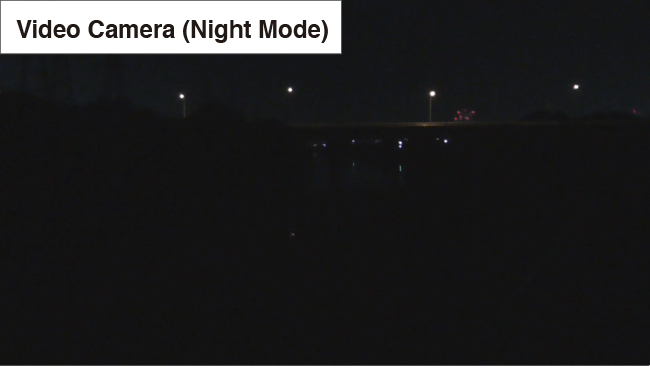

Riverside Surveillance_Video Camera (Night Mode)

Riverside Surveillance_SSZ9700

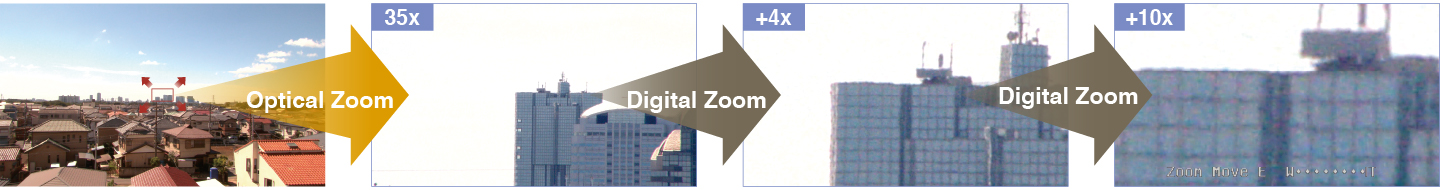

Up to 350x Maximum Zoom Ratio

The built-in 35x optical zoom lens covers a focal length range of 6.5 to 230 mm and a 2.12 megapixel, 1/1.8 inch CMOS sensor. Combining 35x optical zoom and 10x digital zoom allows you to achieve a maximum zoom ratio of up to 350x (f=10,500 mm in 35 mm equivalent).

When using digital zoom, resolution is lowered.

Below: Building 4.6 km in the distance

Building 4.6 km in the distance



High Visibility

Defog Function

The camera includes two functions for lessening the impact that fog or haze has on the image. These allow operators to more easily identify objects and discern important visual information.

Optical Defog
The Optical Defog function increases visibility by capturing images in the infrared region so objects become more discernible to the human eye.

Images are displayed in monochrome when using Optical Defog.

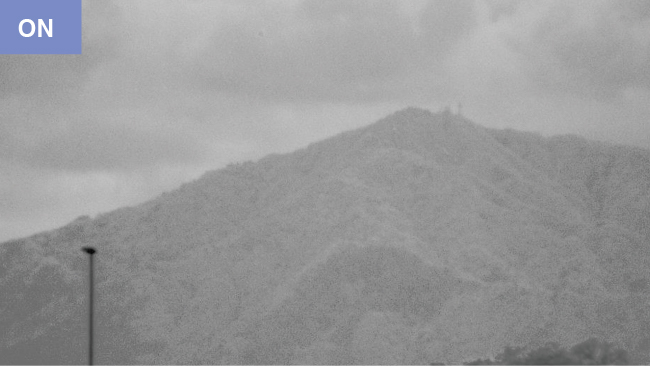

Optical Defog_OFF Optical Defog_ON

Digital Defog
The Digital Defog function stretches the contrast using image signal processing to adjust the difference in brightness and color for improved clarity of faint images.

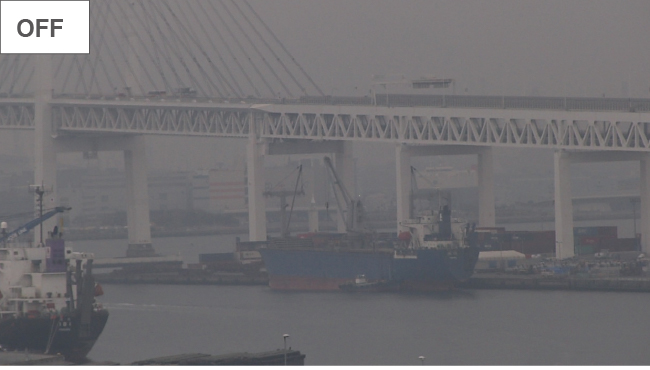

Digital Defog_OFF Digital Defog_ON



2D/3D Noise Reduction

The camera includes unique 2D/3D noise reduction for optimal SN ratio even at high gain settings.

HDR Function

The camera is equipped with an HDR function for capturing and combining multiple exposures, resulting in clear images with a wider dynamic range.



Flexible Installation

Complete Connection

The SSZ-9700 is equipped with 3G-SDI and HDMI connections with simultaneous output. It is also equipped with an RS-485 communication interface for seamless integration into advanced surveillance systems.

Compact Size and Weight

With a compact size of 95 x 95 x 165 mm (H x W x D) and weighing just 1.5 kg, the SSZ-9700 can easily be installed into small form housing.



Additional Features

  • Equipped with one push auto focus and continuous focus
  • Low power consumption
  • Developed and manufactured in-house for long-term reliability



Durability and Reliability

24-Hour Use, 2-Year Warranty

The SSZ-9700 is built for 24-hour use and is backed by a 2-year manufacturer's warranty for long-term reliability.

Click here for SSZ-9700 brochure


Full Solution

The DuraVision EVS1VX is an image optimization system that analyzes and processes video footage in real time to improve visibility. The SSZ-9700 used with the EVS1VX and FlexScan HDMI-equipped monitors provides a highly visible solution for security & surveillance.

Full Solution

EIZO also offers the SSC-9700 camera which comes without a lens so customers can attach a lens of their choice.
