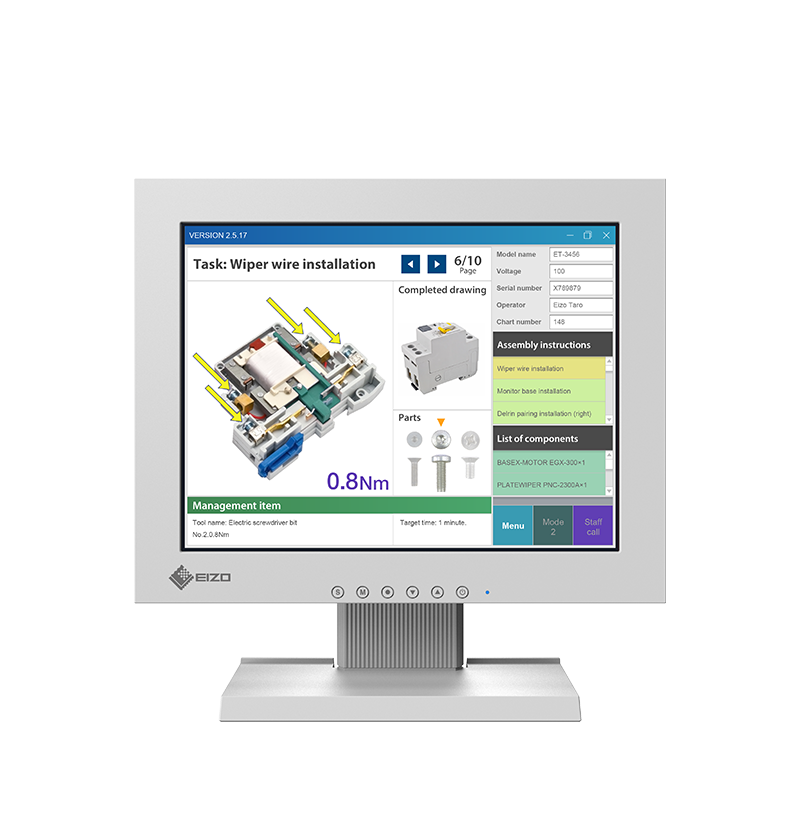

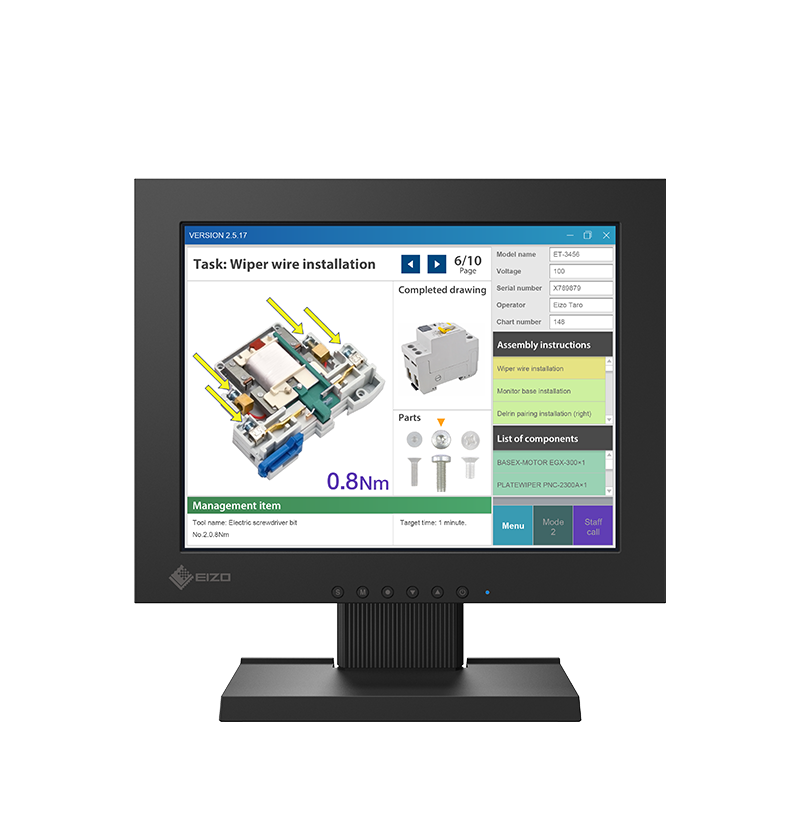

12.1" Touch Panel Color LCD Monitor
Highly Durable 12.1" Industrial Monitor with High Brightness and Multiple Mounting Options
- Image Optimization Solutions
- IP Solutions
- Ultra-High Sensitivity Camera
- Remote Controlled Pan and Tilt Head
- Touch Panel
- Small-Size Monitors
- Maritime
- Features
- Specifications
- Documents Compatibility
- Accessories
- Awards & Reviews
Flexible Installation
To meet the requirements of different industrial installations, the monitor is available in three configurations – desktop, VESA mount, and panel mount.
 |
 |
 |
High Brightness for Visibility
The maximum brightness of 390 cd/m2 ensures excellent screen visibility in bright ambient environments. The brightness is adjustable to as low as 0.39 cd/m2, making it easy to view in low ambient lighting conditions.
Touch Panel Specifications
| Touch Technology | Analog Resistive |
|---|---|
| Communication Protocol | USB 2.0 / RS-232C |
Durable Build
| The monitor can withstand temperatures ranging from 0 - 50°C for high durability in industrial environments. In addition, the cabinet does not contain any ventilation holes, making it impervious to liquids and dust. |
 |
Touch Panel Variation

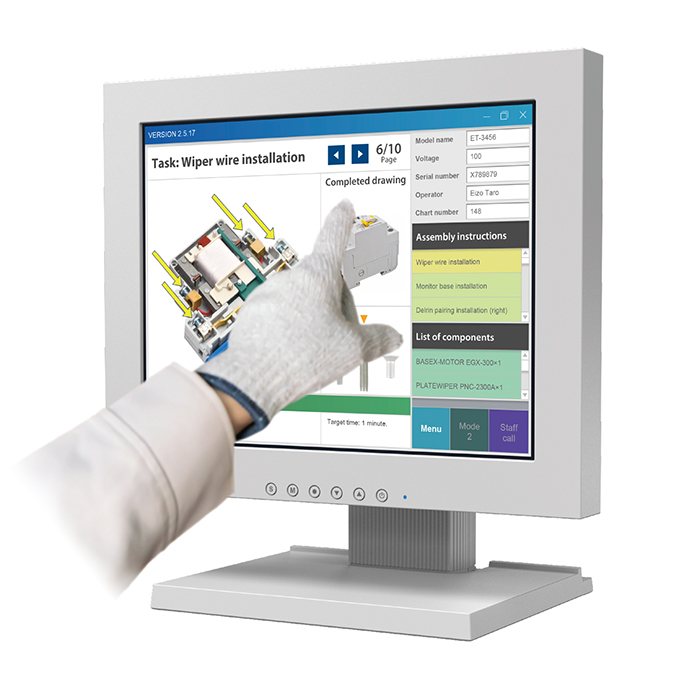

| The monitor is equipped with an analog resistive touch panel. It accepts touch input from both bare and gloved hands as well as styluses. It is also more resistant to dust and water compared to other touch technologies for increased durability. |
 |

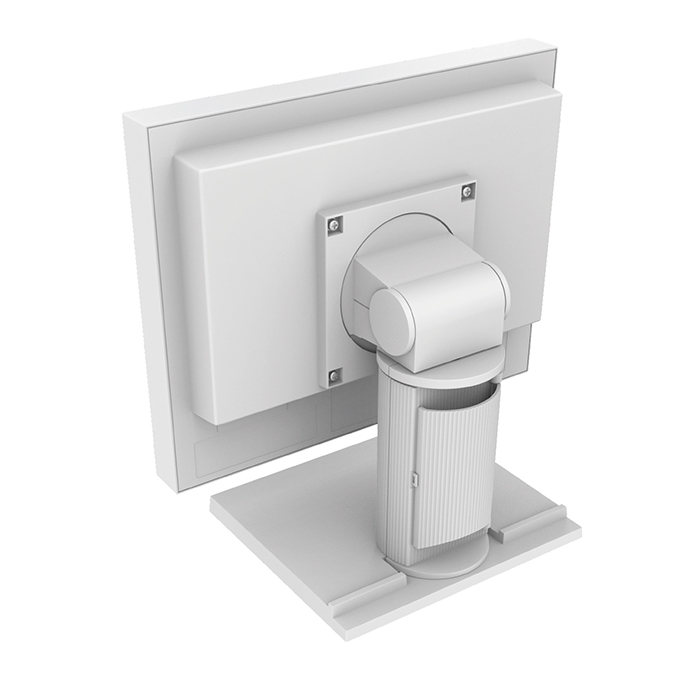

Flexible Positioning
The monitor is built to operate in both standard horizontal positions and non-standard positions such as attached to a mounting device or tilted at an extreme angle. In addition, images can be viewed rotated at 180° using a function accessed via the monitor’s front buttons for viewing flexibility.
Complete Connection
The monitor is equipped with DisplayPort, HDMI®, and D-Sub inputs.
DC12-24V Wide Ranging Power Input
The panel mount variation (FDX1204T-P) supports power input ranging from DC12-24V for flexible integration into various systems.
Long-Term Reliability
The monitor is built for 24-hour use and is backed by a 2-year manufacturer's warranty for long-term reliability.
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Environmentally Conscious Product Development EIZO’s industrial products are designed to minimize environmental impact by promoting efficient and circular resource use across every stage of the product lifecycle - from parts and materials procurement to manufacturing, transportation, user experience, and end-of-life disposal. We prioritize green procurement, selecting environmentally responsible components and materials wherever possible. In addition to meeting domestic and international environmental standards, we support chemical substance surveys and assessments of environmental initiatives related to our procurement partners. All production sites at EIZO’s headquarters in Japan operate on 100% renewable energy. |
   |
|
|
Imaging Solutions for Industrial Operations EIZO's industrial imaging solutions provide unwavering support to professionals working to advance and protect our society, across vital environments such as hospitals, offices, airports, factories, and public transportation hubs. With robust and redundant product design, backed by comprehensive warranties and after-sales service, we help ensure uninterrupted industrial operations. |
  |
| Model Variations |
FDX1204T-TBK: with stand, black
FDX1204T-TGY: with stand, gray FDX1204T-FBK: without stand, black FDX1204T-FGY: without stand, gray FDX1204T-PBK: Panel Mount, black |
|---|---|
| Panel | |
| Type | TN |
| Backlight | LED |
| Size | 12.1" (31 cm) |
| Native Resolution | 1024 x 768 (4:3 aspect ratio) |
| Viewable Image Size (H x V) | 245.8 x 184.3 mm |
| Pixel Pitch (H x V) | 0.240 x 0.240 mm |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 160° / 140° |
| Brightness (typical) | 390 cd/m2 |
| Contrast Ratio (typical) | 700:1 |
| Response Time (typical) | 35 ms (black-white-black) |
| Touch Panel | |
| Type | Analog resistive |
| Touch Points | 1 |
| Surface Treatment | Anti-Glare coating |
| Communication Protocol | USB, RS-232C |
| Surface Hardness | 2 H |
| Compatible OS | Windows 11, Windows 10 (64-bit, 32-bit) |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP 1.3), HDMI (HDCP 1.4), D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) | 31 - 49 kHz / 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 61 kHz / 55 - 76 Hz |
| Sync Formats | Separate |
| USB | |
| Upstream | USB 2.0: Type-B |
| Power | |
| Power Input |
FDX1204T-T / -F: AC 100 - 240 V, 50 / 60 Hz
FDX1204T-P: DC 12 V (Jack), DC 12 - 24 V (Terminal Block) |
| Typical Power Consumption | AC: 4 W |
| Maximum Power Consumption | AC: 13 W / DC: 12 W |
| Power Save Mode | 0.5 W |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 299 x 302.5 x 175 mm |
| Dimensions (Without Stand, W x H x D) | 299 x 239 x 55.5 mm |
| Dimensions (Panel Mount, W x H x D) | 325 x 276 x 51 mm |
| Net Weight | 3.6 kg |
| Net Weight (Without Stand) | 2.0 kg |
| Net Weight (Panel Mount) | 2.3 kg |
| Tilt | 30° Up, 0° Down |
| Swivel | 70° |
| Hole Spacing (VESA Standard) |
FDX1204T-T / -F: 100 x 100 mm / 75 x 75 mm, M4, screw depth 2.5 - 7.4 mm
FDX1204T-P: 100 x 100 mm / 75 x 75 mm, M4, screw depth 1.0 - 4.9 mm |
| Environmental Requirements | |
| Operating Temperature |
Monitor: 0 - 50°C
AC Adapter: 0 - 40°C |
| Operating Humidity (R.H., non condensing) |
Monitor: 20 - 90%
AC Adapter: 20 - 80% |
| Degree of Protection | FDX1204T-PBK: IP65 (front) |
| Certifications & Standards (Please contact EIZO for the latest information.) |
FDX1204T-T / -F: CB, CE, UKCA, CTUVus, FCC-B, CAN ICES (B), TUV/S, VCCI-B, CCC, RCM, RoHS, WEEE, China RoHS
FDX1204T-P: CB, CE, UKCA, RoHS, WEEE, China RoHS |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | HDMI (2 m), D-Sub mini 15 pin (1.8 m) |
| Others |
FDX1204T-T: AC adapter, Setup manual, cable clamper
FDX1204T-F: AC adapter, setup manual, VESA mounting screw (M4 x 12 mm) x 4, cable clamper FDX1204T-P: Setup manual, VESA mounting screw (M4 x 8 mm) x 4, Mounting bracket x 4, cable clamper |
| Warranty | 2 Years (24-hour use) |
