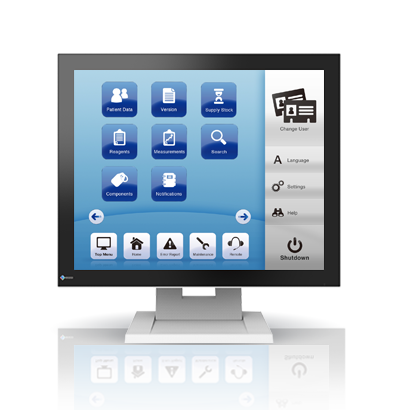

Fully Flat Design
The fully flat design enables seamless touch operation. The smooth surface also allows for easy cleaning.
High Visibility
The monitor's antiglare screen minimizes reflections from external light to maintain high visibility. It is also resistant to fingerprints to ensure clear images at all times.
Wide Dimming Range with LED Backlight
The DuraVision FDS1921T is equipped with a long-lasting LED backlight with a wide dimming range of 0.5 cd/m2 to 380 cd/m2 to ensure maximum visibility when viewed under various ambient lighting conditions.
Durable and Reliable
The touch screen has a non-scratch surface made of reinforced glass with a hardness of 7H (Mohs scale), making it durable for long-term use in public access areas. The monitor can withstand temperatures ranging from 0 - 40°C.
Easy-to-Operate Touch Panel
The DuraVision FDS1921T uses surface acoustic wave technology (SAW) which exhibits higher light transmittance compared with resistive touch screens for high visibility. It supports 2-point multi-touch operation and accepts touch input from your finger with or without gloves*, as well as from styluses. This makes it easy to use in factories, clean rooms, and public access areas.
*Touch response may vary depending on glove material.
Flexible Installation
The monitor comes standard with a desktop stand and also complies with the VESA standard for flexible installation.
Multiple Inputs
The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs for supporting digital and analog signals. The terminals are positioned on the side of the monitor for easy access.
24-Hour Use, 3-Year Warranty
The monitor is built for 24-hour use and is backed by a 3-year manufacturer's warranty for long-term reliability.
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Environmentally Conscious Product Development EIZO’s industrial products are designed to minimize environmental impact by promoting efficient and circular resource use across every stage of the product lifecycle - from parts and materials procurement to manufacturing, transportation, user experience, and end-of-life disposal. We prioritize green procurement, selecting environmentally responsible components and materials wherever possible. In addition to meeting domestic and international environmental standards, we support chemical substance surveys and assessments of environmental initiatives related to our procurement partners. All production sites at EIZO’s headquarters in Japan operate on 100% renewable energy. |
   |
|
|
Imaging Solutions for Industrial Operations EIZO's industrial imaging solutions provide unwavering support to professionals working to advance and protect our society, across vital environments such as hospitals, offices, airports, factories, and public transportation hubs. With robust and redundant product design, backed by comprehensive warranties and after-sales service, we help ensure uninterrupted industrial operations. |
  |
| Model Variations |
FDS1921T-BK: with Tilt stand, black
FDS1921T-GY: with Tilt stand, gray FDS1921T-FGY: without stand, gray |
|---|---|
| Panel | |
| Type | TN |
| Backlight | LED |
| Size | 19.0" (48.2 cm) |
| Native Resolution | 1280 x 1024 (5:4 aspect ratio) |
| Viewable Image Size (H x V) | 376.3 x 301.1 mm |
| Pixel Pitch (H x V) | 0.294 x 0.294 mm |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 170° / 160° |
| Brightness (typical) | 380 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 5 ms (black-white-black) |
| Touch Panel | |
| Type | Surface Acoustic Wave |
| Touch Points | 2 |
| Surface Treatment | Anti-Glare coating, Anti-Fingerprint coating |
| Communication Protocol | USB |
| Surface Hardness | 7 Mohs |
| Compatible OS | Windows 11, Windows 10 (64-bit, 32-bit) |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP1.3), DVI-D (HDCP1.4), D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) | 31 - 64 kHz / 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 81 kHz / 55 - 76 Hz |
| Sync Formats | Separate |
| USB | |
| Upstream | USB 2.0: Type-B |
| Audio | |
| Speakers | 1.0 W + 1.0 W |
| Input Terminals | Stereo mini jack |
| Power | |
| Power Input | AC 100 - 120 V/ AC 200 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 9 W |
| Maximum Power Consumption | 30 W |
| Power Save Mode | 2.5 W or less |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB |
| Communication Protocol | VESA DDC2B |
| Others | Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, DDC/CI, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, Power Indicator, Reset |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 434 x 438 x 157 mm |
| Dimensions (Without Stand, W x H x D) | 434 x 358 x 55 mm |
| Net Weight | 8.2 kg |
| Net Weight (Without Stand) | 5.8 kg |
| Tilt | 30° Up, 0° Down |
| Hole Spacing (VESA Standard) | 100 x 100 mm, M4, screw depth 3.0 - 9.5 mm |
| Environmental Requirements | |
| Operating Temperature | 0 - 40°C |
| Operating Humidity (R.H., non condensing) | 20 - 90% |
| Certifications & Standards (Please contact EIZO for the latest information.) | CB (Medical), CB, CE, UKCA, cTUVus, FCC-B, CAN ICES (B), TUV/S, PSE, VCCI-B, RoHS, WEEE |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DVI-D (2 m), D-Sub mini 15 pin (1.8 m) |
| Others |
FDS1921T: AC Power cord (2m), USB Type-A - USB Type-B cable (1.8m), Audio cable (2.1m), Mask sheet x 2, Setup manual, CD-ROM (PDF user's manual)
FDS1921T-F: AC Power cord (2m), USB Type-A - USB Type-B cable (1.8m), Audio cable (2.1m), Setup manual, CD-ROM (PDF user's manual), VESA mounting screw (M4 x 12 mm) x 4 |
| Warranty | 3 Years (24-hour use) |
| Dimension Drawing |
