Latest Software: Ver. 6.2 Released April 18, 2024
Download
To learn more about added features from software version updates, visit the DuraVision IP Solution Technical Portal.
Latest Software Version Functions
DuraVision IP Solution Technical Portal
4K Output to Dual Monitors
Custom Event Response with Alert-to-Action
IP Camera Support
VMS Integration
Intuitive Operation and Functionality
Enterprise License for Advanced Operation
Security & Reliability
Flexible Installation
Solution Lineup
PC-Less Live Streaming Directly from IP Cameras
The DuraVision DX0212-IP connects directly to an IP camera or switch and streams video to a connected monitor. It does not require a PC, software, or other hardware to operate, greatly simplifying installation and saving on time and labor costs. This also eliminates several potential points of failure and addresses security concerns typical of a conventional setup by heavily reducing the amount of equipment needed to manage sensitive visual data.
The box is able to stream video without a decentralized recording system, such as edge recording or cloud archiving, providing a solution for environments that do not record and store images.

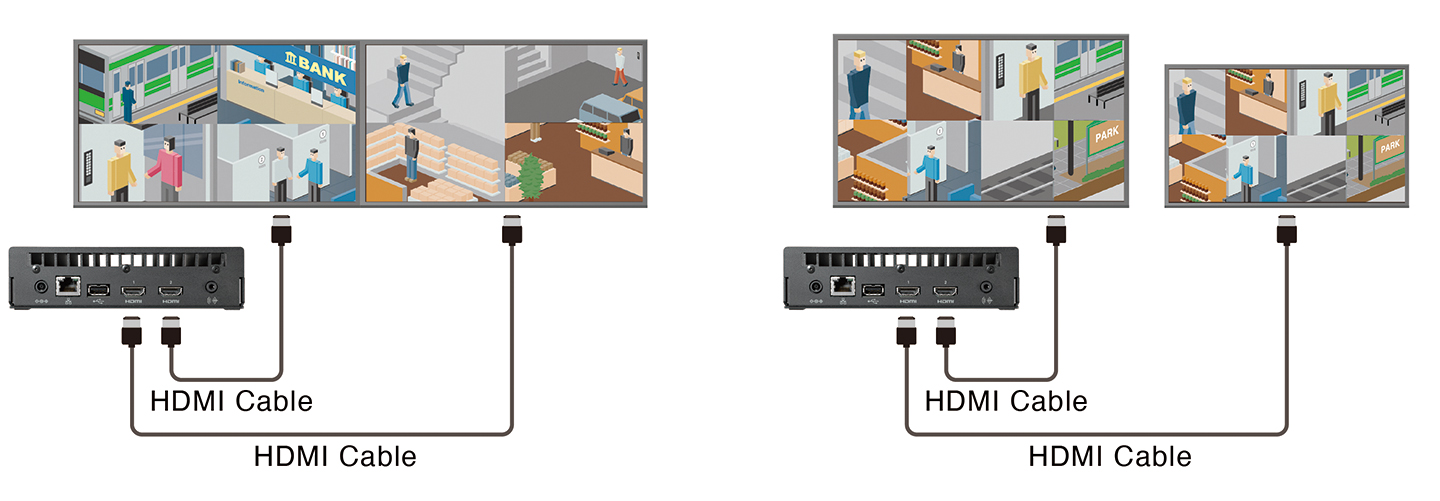

4K Output to Dual Monitors
The DuraVision DX0212-IP is equipped with two HDMI® outputs that support 4K UHD resolution (3840 x 2160) on up to two monitors. This enables users to view dual monitors side-by-side in an extended display or mirrored for an optimal multi-monitor viewing environment.
Extended Display | Multi-Monitor Display (mirroring) |
Custom Event Response with Alert-to-Action
The web API supports custom integration with local security systems and devices to allow communication with and response to alerts over the network. When an event occurs and an alert is sent from IP cameras, access control, hazard detection, VMS, or other systems, EIZO's IP decoding solution responds with a preassigned action, such as layout adjustment, message display, audio activation, camera adjustment, masking, power options, and more. Operators can also schedule actions to occur at a specific time, for example, to automatically change the camera layout at 4:00 pm every Sunday. Implementing an intelligent visual communication system into the workflow ensures operators have the most pertinent information at the right time to respond to situations quickly.
Event Response for Every Environment
An efficiently running facility relies heavily on staff and security personnel having the right information at the right time. See how Alert-to-Action helps facilitate streamlined operations and maintain a safe environment for hospitals, public transportation hubs, and more. |
IP Camera Support
Interoperable with Over 300 Cameras
DuraVision IP decoding solutions support cameras with ONVIF Profile S, Axis VAPIX, Panasonic, and i-PRO protocols for flexible installation and ensured interoperability with a wide range of products. In addition, a direct connection through RTSP is available (Direct URI). |
Register up to 48 Cameras
Register up to 48 IP cameras, including 4K cameras, through the intuitive web UI. Cameras can be discovered automatically or registered manually, and individual settings are easily managed centrally through the web UI. |
Camera Registration List (Web UI) |
VMS Integration
EIZO works with security & surveillance leaders to ensure technical compatibility and streamlined functionality with various video management systems/software (VMS). By fully integrating co-developed plugins into these VMS frameworks, users can easily setup, manage, and command EIZO's IP decoding solutions from a centralized platform.
Intuitive Operation and Functionality
Powerful Video Decoding Performance
DuraVision IP decoding solutions can decode H.265 (HEVC), as well as H.264 and MJPEG codecs, displaying them in real time for assessing any situation quickly. In addition, the decoding technology ensures a high fps (frames-per-second) for displayed content, even when streaming high-resolution video.
Adjustable Screen Layout
With the user-friendly web UI, you can easily adjust the layout of the video streams with multiple default options, displaying up to 32 screens. In addition, flexible arrangement of the screens in a custom layout allows you to fulfill individual viewing needs. With custom layout you can merge individual windows to focus on specific areas, or split them to see more on a single screen. Video feeds can be viewed in the original aspect ratio or stretched to fill the custom-created space.
Choose from 7 default layouts.
Create a custom layout.
Customize Visual Settings and Functions
Operators can choose from numerous visual functions to maintain high situational awareness according to the needs of the viewing environment.
Sequential Screen Lock
When using the sequential image display setting, users can select an image to remain static, event through page changes.
Example of locked image (red frame)
Privacy Mask
Users can assign static privacy masks to hide sensitive information on the live video stream without altering the source stream.
Virtual Line
Virtual lines and shapes can be applied to the screen to track barriers and designated zones. Up to 10 objects can be applied and do not alter the source stream.
Camera PTZ Control
Operators can easily control individual camera PTZ settings using the buttons displayed over the selected video stream.
Virtual PTZ
The virtual PTZ function allows operators to digitally enlarge an area of the displayed image for closer inspection. Once enlarged, the operator can virtually pan the image up, down, left, or right in real time. This is useful when viewing video from cameras that are not equipped with PTZ functions.
Enterprise License for Advanced Operation
Users can subscribe to an optional Enterprise License which includes advanced features, such as those listed below, to meet specific environment or application requirements. Contact EIZO for more information about licensing.
Enterprise License Additional Features
✔ Stable video transmission over RTSP or SRT
✔ Merge streams for reduced network traffic
✔ Process and redistribute video streams
✔ Playback recorded video
✔ View remote monitor live streams via the web UI
✔ Live image menu customization
✔ Screen rotation support
✔ VMS failover
✔ SRT, LDAP, AXIS SRTP, protocols
Learn more about the Enterprise License.
Security and Reliability
Secure Network Communication
DuraVision IP decoding solutions support HTTPS protocol to ensure authenticated access for secure communication over a network.
This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (https://www.openssl.org/)
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).
SNMP (Simple Network Management Protocol)
SNMP is a communication protocol for monitoring and controlling devices connected to a network. It consists of an SNMP manager and SNMP agent. The IP decoding box acts as an SNMP agent to return device information in response to a request sent by the SNMP manager, and to notify a change in status when a specified event occurs. The DuraVision DX0212-IP supports SNMP v1 and v2c.
Fanless Solution with Low Heat Output
The DuraVision DX0212-IP provides noiseless, fanless operation while maintaining low heat output for long-term reliability. The top of the box is designed so that heat escapes efficiently, keeping it cool even during long periods of operation.
24-Hour Use, 2-Year Warranty
The product is built for 24-hour use and is backed by a two-year manufacturer’s warranty for long-term reliability.
Flexible Installation
Minimal Footprint for Mounted Solutions
The DuraVision DX0212-IP can be easily mounted to the back of any VESA-supported monitor using the VOP-01 mounting plate. The box's slim, compact design allows it to fit perfectly behind a monitor that is mounted on the wall or ceiling, occupying minimal space in the installation area. Direct attachment to the monitor also helps to keep cabling controlled to the designated space, reducing overall clutter.
Some monitors require the VESAMP100 mounting plate in order to attach the VOP-01.
DX0212-IP with VOP-01 mounting plate. | DX0212-IP attached directly to the monitor and wall mount. |
Clean Workspace for Desktop Solutions
The DuraVision DX0212-IP can be attached directly to many of EIZO's desktop monitors using the PCSK-03 or PCSK-03R monitor stand bracket. This provides a cleaner workspace when using a desktop solution. The attachment does not interfere with the balance of the monitor so it stays firmly in place on your desk.
DX0212-IP attached to the monitor's stand. |
Power Delivery without AC Adapter
The DuraVision DX0212-IP is equipped with a PoE+ hub so it stays powered without needing an AC adapter and cable, keeping the installation area clear. An optional AC adapter is available for environments where PoE+ is not supported.
Our Contribution to SDGs
As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
Industry, Innovation, and Infrastructure DuraVision offers a range of visual solutions for facilities that are indispensable to people's daily lives such as hospitals, businesses, airports, factories, public transportation hubs, and many more. We support the uninterrupted continuation of security, industrial, and other activities with robust product build, manufacturer's warranty, and after-sales services. |
|
|
Environmentally Conscious Our products for industrial environments are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system. |
|
Solution Lineup
EIZO's lineup of IP decoding solutions include 23 and 27-inch monitors, as well as an external box solution for connecting to multiple monitors or a video wall.
IP Decoding Box |
IP Decoding Monitor |
IP Decoding Monitor |
IP Decoding Monitor |
Decoding Processor | |
---|---|
Simultaneous Display Channels | 32 (maximum) |
Registrable Cameras | 48 (maximum) |
Camera Protocol | ONVIF Profile S, AXIS VAPIX, Panasonic / i-PRO, RTSP |
Video Codec | H.26510, H.264, MJPEG13 |
Streaming Protocol | RTP (H.265, H.264, MJPEG, MPEG2-TS), SRT14 (H.265, H.264), SRTP15 (H.265, H.264), UDP (MPEG2-TS) |
Decoding Performance (camera resolution / framerate) *Bitrate 4096 kbps |
1-screen layout: 3840 x 2160 / 30 fps, 1920 x 1080 / 60 fps
4-screen layout: 3840 x 2160 / 20 fps, 1920 x 1080 / 60 fps 16-screen layout: 1920 x 1080 / 20 fps 32-screen layout: 1280 x 720 / 15 fps |
Bitrate | 8192 kbps (maximum) |
Video Signals | |
Output Terminals | HDMI x 2 |
Output Resolution | 3840 x 2160 (maximum) / 60 Hz |
Network | |
Wired LAN | RJ-45 (1000BASE-T, 100BASE-TX) |
USB | |
Host | USB 2.0: Type-A |
Power | |
Input Voltage |
PoE+12 (IEEE802.3at Type2): 42.5 V - 57 V (48 V typ.)
AC Adapter (option): DC12 V |
Maximum Power Consumption |
PoE+: 25.5 W
AC Adapter (option): 21.5 W |
Features & Functions | |
Communication Protocol | DHCP, DNS, HTTP, HTTPS, LDAP15, LDAPS15, NTP, RTP, RTSP, SNMP, SRT14, SRTP15, IEEE802.1X15 |
Others | System software version 6.x |
Physical Specifications | |
Dimensions (W x H x D) | 165 x 44.2 x 130 mm |
Net Weight | 770 g |
Environmental Requirements | |
Operating Temperature | 0 - 40°C |
Operating Humidity (R.H., non condensing) | 20 - 80% |
Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, UKCA, cTUVus, FCC-A, CAN ICES-3 (A), VCCI-A, RCM, RoHS, WEEE, BIS, India RoHS |
Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
Signal Cables | HDMI (0.5 m) |
Others | Setup manual |
Warranty | 2 Years (24-hour use) |
Dimension Drawing |
- 10 Please check IP camera compatibility on our EIZO Web site.
- 12 Power can only be received from 2-Event Classification-enabled network switches.
- 13 MJPEG is only available with the ONVIF Profile S protocol.
- 14 Enterprise license and extension license are required.
- 15 Enterprise license is required.
Brochures
Manuals
Compatibility
Date | Subject |
---|---|
August 8, 2024 | IP Camera and DuraVision IP Decoder (IP Decoding Box, IP Monitor) Compatibility |
Technical Information
February 24, 2023 |
IP Monitor Functional Comparison between Models [PDF] The available functions of IP monitors differ depending on the model. This document explains the available functions. |
