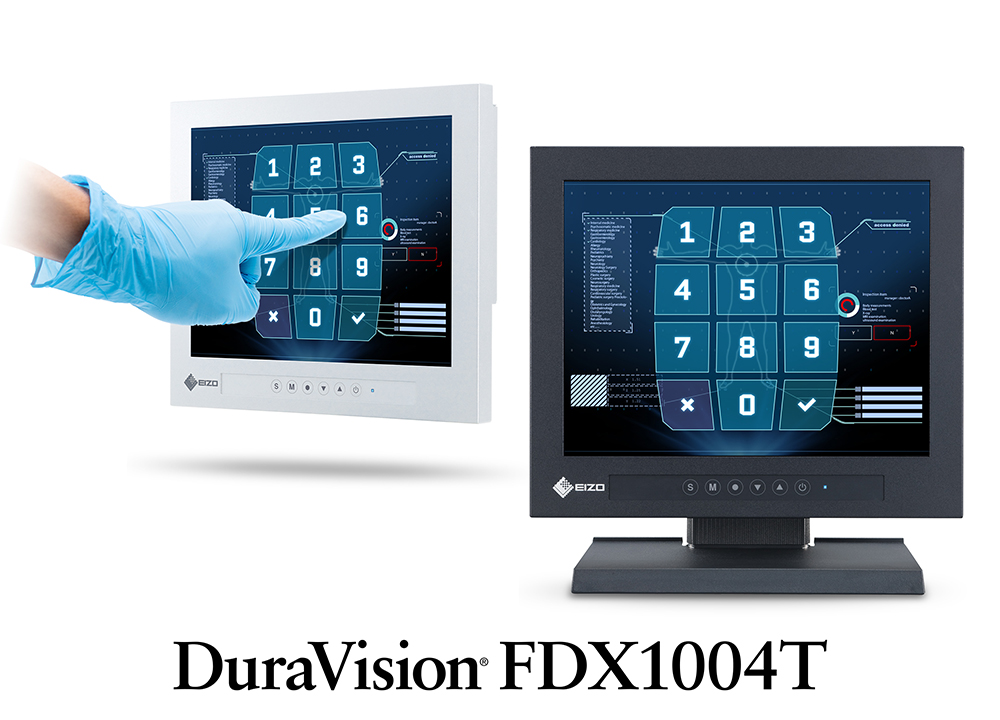

Intuitive Touch Operation for a Range of Applications
The monitor is equipped with an analog resistive touch panel that accepts touch input from gloved or bare hands, as well as styluses. The touch surface is resistant to dust, water droplets, and other objects, making it suitable for a range of environments including factories, control rooms, hospitals, public transportation facilities, and public access areas. In addition, the panel mount and chassis mount variations conform to the VESA standard (100 x 100 mm) for installation to industrial systems and terminals.
Flexible Installation
To meet the requirements of different industrial installations, the monitor is available in multiple configurations.

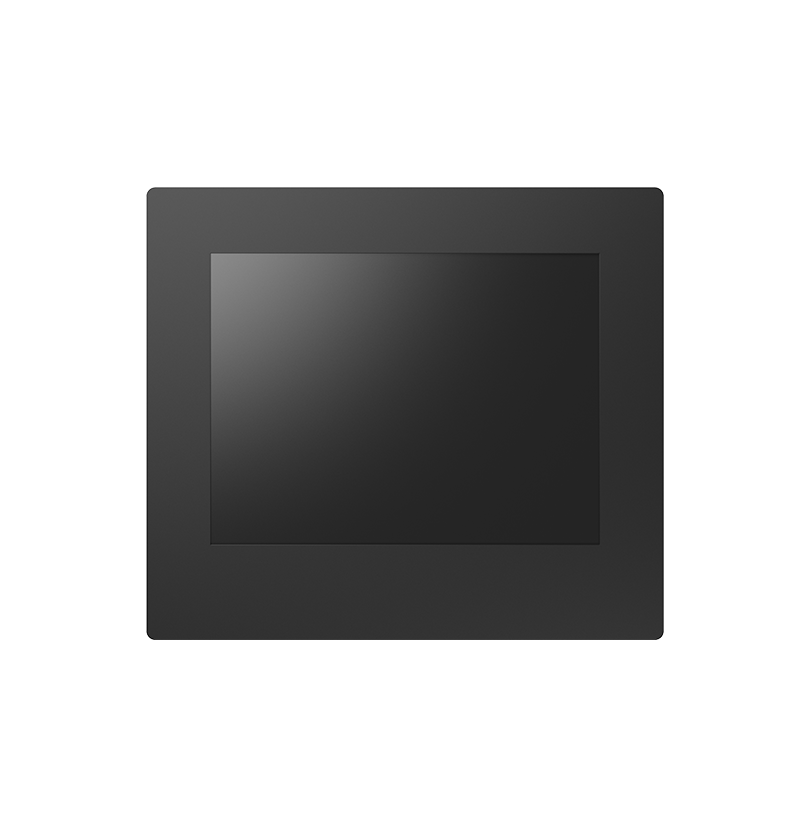

Panel mount

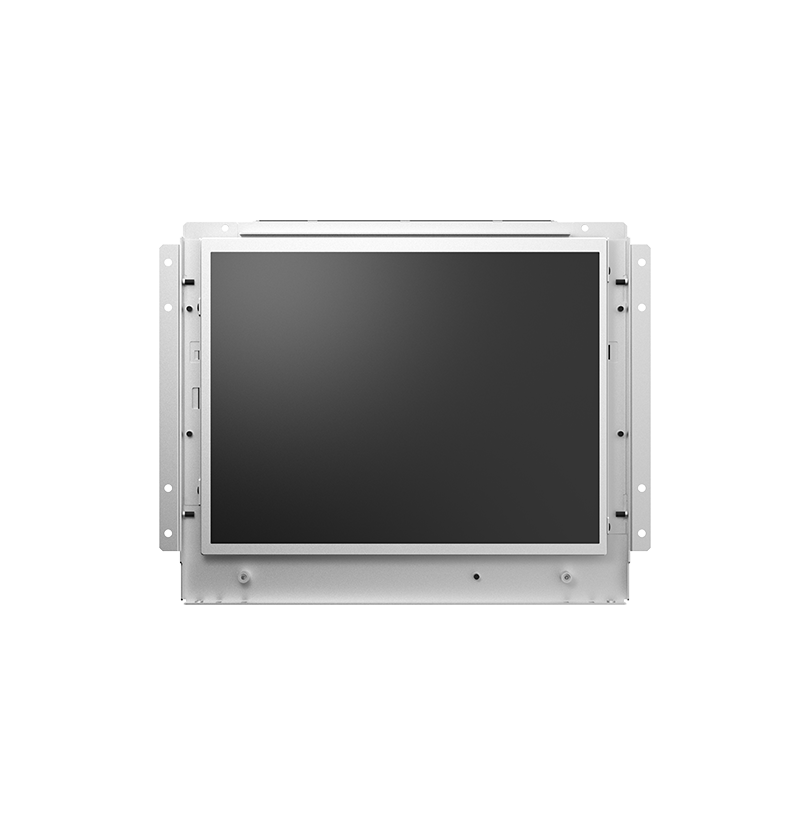

Chassis mount
  |
Panel mount model for installing into existing systems. |
  |

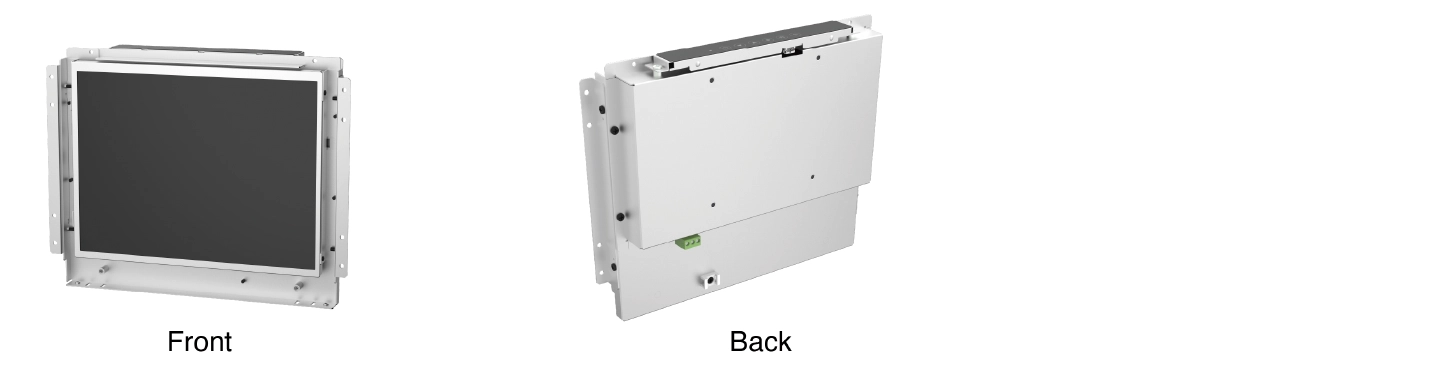

Chassis mount model for integrating with various equipment. |
  |
Model without a stand for attaching to VESA-supported mounting structures. |
  |
Stand-equipped model for placement on a desk or other surface. |
Clear Visibility with IPS Panel
The monitor is equipped with an IPS panel, which minimizes color shift and contrast changes when viewing the screen from an angle for optimal visibility during operations.
Wide Brightness Range
The monitor's wide brightness range from 0.4 to 390 cd/m2 allows it to be adjusted to the optimum level for viewing in either bright or dim environments.

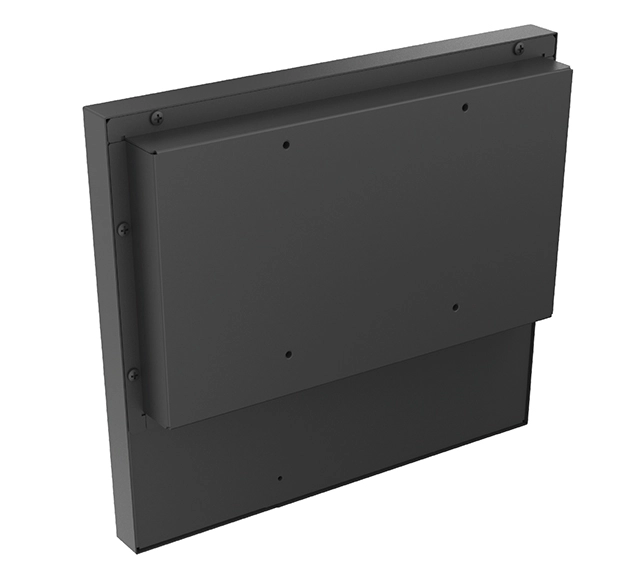

Durable Build
The monitor can withstand temperatures ranging from 0 - 50°C for high durability in industrial environments. In addition, the cabinet does not contain any ventilation holes, making it impervious to liquids and dust. The front of the FDX1004T-P panel mount configuration has an IP65 rating, making it dust-tight and protected against water jets.
Flexible Positioning
The monitor can be installed in the standard upright position or rotated by 180° for inverted installation. In addition, the image display can also be rotated by 180° to match the monitor's orientation using a function accessed via the monitor’s front buttons.
 Standard Positioning |

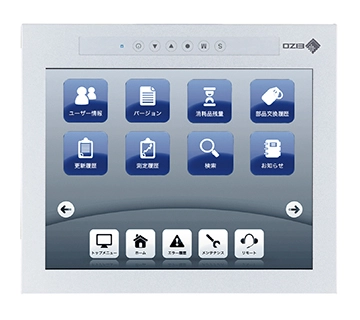

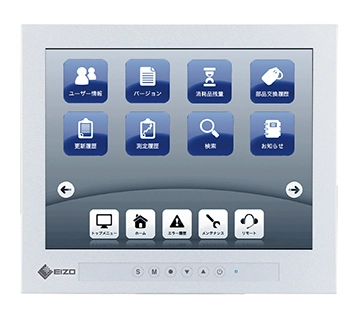

 Upside Down Rotation |
Complete Connection

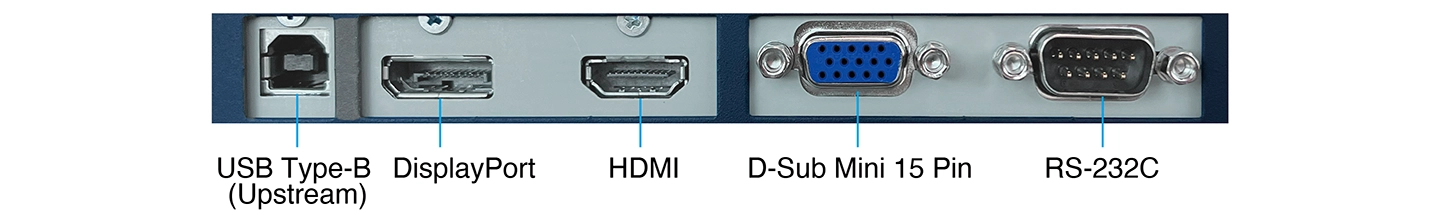

The monitor is equipped with DisplayPort™, HDMI®, and D-Sub signal inputs. It is also equipped with USB Type-B and RS-232C communication interfaces.
The monitor does not support downscaling from 1080p or 720p HDMI signals.
DC12-24V Wide Ranging Power Input
The panel and chassis mount variations (FDX1004T-C, FDX1004T-P) support power input ranging from DC12-24V for flexible integration into various systems.
Key Lock Function
The monitor's front buttons can be locked to prevent unintended changes to settings during operation.
Long-Term Reliability
Long-Term ReliabilityThe monitor is built for 24-hour use and is backed by a 2-year manufacturer's warranty for long-term reliability.
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Environmentally Conscious Product Development EIZO’s industrial products are designed to minimize environmental impact by promoting efficient and circular resource use across every stage of the product lifecycle - from parts and materials procurement to manufacturing, transportation, user experience, and end-of-life disposal. We prioritize green procurement, selecting environmentally responsible components and materials wherever possible. In addition to meeting domestic and international environmental standards, we support chemical substance surveys and assessments of environmental initiatives related to our procurement partners. All production sites at EIZO’s headquarters in Japan operate on 100% renewable energy. |
   |
|
|
Imaging Solutions for Industrial Operations EIZO's industrial imaging solutions provide unwavering support to professionals working to advance and protect our society, across vital environments such as hospitals, offices, airports, factories, and public transportation hubs. With robust and redundant product design, backed by comprehensive warranties and after-sales service, we help ensure uninterrupted industrial operations. |
  |
| Model Variations |
FDX1004T-TBK: with stand, black
FDX1004T-TGY: with stand, gray FDX1004T-FBK: without stand, black FDX1004T-FGY: without stand, gray FDX1004T-PBK: Panel Mount, black FDX1004T-C: Chassis Mount |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | LED |
| Size | 10.4" (26 cm) |
| Native Resolution | 1024 x 768 (4:3 aspect ratio) |
| Viewable Image Size (H x V) | 210.4 x 157.8 mm |
| Pixel Pitch (H x V) | 0.206 x 0.206 mm |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 176°/ 176° |
| Brightness (typical) | 390 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 25 ms (black-white-black) |
| Touch Panel | |
| Type | Analog resistive |
| Touch Points | 1 |
| Surface Treatment | Anti-Glare coating |
| Communication Protocol | USB, RS-232C |
| Surface Hardness | 2 H |
| Compatible OS | Windows 11, Windows 10 (64-bit, 32-bit) |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP 1.3), HDMI (HDCP 1.4), D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) | 31 - 49 kHz / 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 61 kHz / 55 - 76 Hz |
| Sync Formats | Separate |
| USB | |
| Upstream | USB 2.0: Type-B |
| Power | |
| Power Input |
FDX1004T-T / -F: AC 100 - 240 V, 50 / 60 Hz
FDX1004T-P / -C: DC 12 V (Jack), DC 12 - 24 V (Terminal Block) |
| Maximum Power Consumption | AC: 15 W / DC: 13 W |
| Power Save Mode | 0.5 W |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 252 x 254 x 175 mm |
| Dimensions (Without Stand, W x H x D) | 252 x 216 x 44.4 mm |
| Dimensions (Panel Mount, W x H x D) | 283 x 248 x 44.5 mm |
| Dimensions (Chassis, W x H x D) | 272 x 214 x 44.8 mm |
| Net Weight | 3.5 kg |
| Net Weight (Without Stand) | 1.9 kg |
| Net Weight (Panel Mount) | 2.1 kg |
| Net Weight (Chassis) | 1.7 kg |
| Tilt | 30° Up, 0° Down |
| Swivel | 70° |
| Hole Spacing (VESA Standard) | 100 x 100 mm, M4, screw depth 1.0 - 6.8 mm |
| Environmental Requirements | |
| Operating Temperature |
Monitor: 0 - 50°C
AC Adapter: 0 - 40°C |
| Operating Humidity (R.H., non condensing) |
Monitor: 20 - 90%
AC Adapter: 20 - 80% |
| Degree of Protection | FDX1004T-PBK: IP65 (front) |
| Certifications & Standards (Please contact EIZO for the latest information.) |
FDX1004T-T / -F: CB, CE, UKCA, cTUVus, FCC-B, CAN ICES (B), TUV/S, VCCI-B, CCC, RCM, RoHS, WEEE, China RoHS
FDX1004T-P / -C: CB, CE, UKCA, RoHS, WEEE, China RoHS |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | HDMI (2 m), D-Sub mini 15 pin (1.8 m) |
| Others |
FDX1004T-T: AC adapter, USB Type-A - USB Type-B cable (1.8m), Setup manual, cable clamper
FDX1004T-F: AC adapter, USB Type-A - USB Type-B cable (1.8m), Setup manual, cable clamper, VESA mounting screw (M4 x 12 mm) x 4 FDX1004T-P: USB Type-A - USB Type-B cable (1.8m), Setup manual, cable clamper, VESA mounting screw (M4 x 10 mm) x 4, Mounting bracket x 4 FDX1004T-C: USB Type-A - USB Type-B cable (1.8m), Setup manual, cable clamper, VESA mounting screw (M4 x 10 mm) x 4 |
| Warranty | 2 Years (24-hour use) |
