Fully Flat Design
The fully flat design enables seamless touch operation across the screen. The smooth surface allows for easy cleaning.
Touch Operation with Your Hand, Glove, or Stylus
The DuraVision FDF2121WT-A uses surface acoustic wave technology (SAW) which exhibits a higher light transmittance compared with resistive touch panels for high visibility. It supports 2-point multi-touch operation and accepts touch input even when wearing gloves*, as well as from styluses. This makes it easy to use in factories, clean rooms, and public access areas.
*Touch response may vary depending on glove material.
High Visibility
The antiglare screen minimizes reflections to maintain high visibility. It is also resistant to fingerprints to ensure clear images at all times.

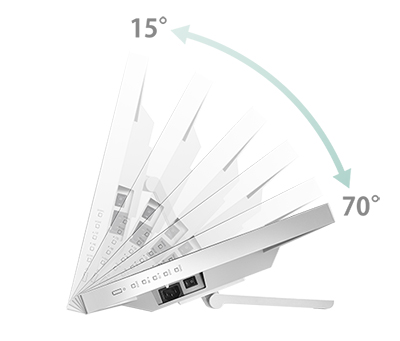

Reclining Stand
The monitor's reclining stand provides flexible positioning of the screen to the desired angle. A desktop stand with tilt is also available, as well as compliance with the VESA standard for mounting on an arm or other fixture.

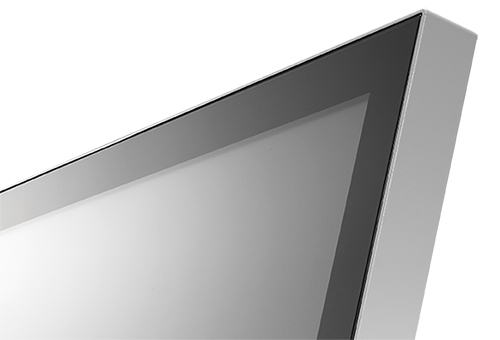

Durable and Reliable
The screen has a non-scratch surface made of reinforced glass with a hardness of 7H (Mohs scale), making it durable for long-term use. The monitor can withstand temperatures ranging from 0 - 40°C.
Multiple Inputs
The monitor is equipped with DisplayPort, DVI-D, and D-Sub inputs for supporting digital and analog signals. The terminals are positioned on the side of the monitor for easy access.
Touch Operation Without Additional Drivers
The multitouch interface is supported by standard Windows 11 / 10 drivers. You can operate the touch panel without additional drivers by simply connecting the USB cable.
Built-In Stereo Speakers
The DuraVision FDF2121WT-A comes equipped with built-in 1.0 W + 1.0 W speakers for environments which require sound output from the monitor.
24-Hour Use, 3-Year Warranty
The monitor is built for 24-hour use and is backed by a 3-year manufacturer's warranty for long-term reliability.
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Environmentally Conscious Product Development EIZO’s industrial products are designed to minimize environmental impact by promoting efficient and circular resource use across every stage of the product lifecycle - from parts and materials procurement to manufacturing, transportation, user experience, and end-of-life disposal. We prioritize green procurement, selecting environmentally responsible components and materials wherever possible. In addition to meeting domestic and international environmental standards, we support chemical substance surveys and assessments of environmental initiatives related to our procurement partners. All production sites at EIZO’s headquarters in Japan operate on 100% renewable energy. |
   |
|
|
Imaging Solutions for Industrial Operations EIZO's industrial imaging solutions provide unwavering support to professionals working to advance and protect our society, across vital environments such as hospitals, offices, airports, factories, and public transportation hubs. With robust and redundant product design, backed by comprehensive warranties and after-sales service, we help ensure uninterrupted industrial operations. |
  |
| Model Variations |
FDF2121WT-ABK: with LaidBack stand, black
FDF2121WT-AGY: with LaidBack stand, gray FDF2121WT-ATBK: with Tilt stand, black FDF2121WT-ATGY: with Tilt stand, gray FDF2121WT-AFBK: without stand, black FDF2121WT-AFGY: without stand, gray |
|---|---|
| Panel | |
| Type | VA |
| Backlight | LED |
| Size | 21.5" (54.7 cm) |
| Native Resolution | 1920 x 1080 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 476.6 x 268.1 mm |
| Pixel Pitch (H x V) | 0.248 x 0.248 mm |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 200 cd/m2 |
| Contrast Ratio (typical) | 5000:1 |
| Response Time (typical) | 25 ms (black-white-black) |
| Touch Panel | |
| Type | Surface Acoustic Wave |
| Touch Points | 2 |
| Surface Treatment | Anti-Glare coating, Anti-Fingerprint coating |
| Communication Protocol | USB |
| Surface Hardness | 7 Mohs |
| Compatible OS | Windows 11, Windows 10 (64-bit, 32-bit) |
| Video Signals | |
| Input Terminals | DisplayPort (HDCP1.3), DVI-D (HDCP1.4), D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) | 31 - 68 kHz / 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 81 kHz / 55 - 76 Hz |
| Sync Formats | Separate |
| USB | |
| Upstream | USB 2.0: Type-B |
| Audio | |
| Speakers | 1.0 W + 1.0 W |
| Input Terminals | Stereo mini jack, DisplayPort |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 11 W |
| Maximum Power Consumption | 33 W |
| Power Save Mode | 2.0 W or less |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB |
| Others | Screen Adjustment (Clock, Phase, Position, Range (Auto), Screen Size (full screen, enlarge, normal), Smoothing (5 stages), Border Intensity, DDC/CI, Color Adjustment (Brightness, Contrast, Gamma, Temperature, Saturation, Hue, Gain, Reset), Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Settings, Adjustment Lock, Power Indicator, Reset |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) |
With LaidBack stand: 533 x 139 – 347.5 x 89 – 401.5 mm
With Tilt stand: 533 x 402 x 157 mm |
| Dimensions (Without Stand, W x H x D) | 533 x 326 x 54 mm |
| Net Weight |
With LaidBack stand: 6.5 kg
With Tilt stand: 8.4 kg |
| Net Weight (Without Stand) | 6.0 kg |
| Tilt |
With LaidBack stand: 15° - 70°
With Tilt stand: 30° Up, 0° Down |
| Hole Spacing (VESA Standard) | 100 x 100 mm, M4, screw depth 3.0 - 9.5 mm |
| Environmental Requirements | |
| Operating Temperature | 0 - 40°C |
| Operating Humidity (R.H., non condensing) | 20 - 90% |
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, UKCA, cTUVus, FCC-B, CAN ICES (B), VCCI-B, CCC, RoHS, WEEE, China RoHS |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DVI-D (2 m), D-Sub mini 15 pin (1.8 m) |
| Others |
FDF2121WT-A: USB Type-A - USB Type-B cable (1.8m), Audio cable (2.1m), Setup manual, Mask sheet x 2, CD-ROM (PDF user's manual)
FDF2121WT-AT: USB Type-A - USB Type-B cable (1.8m), Audio cable (2.1m), Setup manual, CD-ROM (PDF user's manual) FDF2121WT-AF: USB Type-A - USB Type-B cable (1.8m), Audio cable (2.1m), Setup manual, CD-ROM (PDF user's manual), VESA mounting screw (M4 x 12 mm) x 4 |
| Warranty | 3 Years (24-hour use) |
| Dimension Drawing |
Brochures
 |
DuraVision and VisionCore Series
|
Manuals
| FDF2121WT-A User's manual | English | 2.17 MB |
|
| FDF2121WT-A User's manual | French | 2.22 MB |
|
| FDF2121WT-A User's manual | Chinese-Simplified | 2.51 MB |
|
| FDF2121WT-A User's manual | Korean | 2.28 MB |
|
| FDF2121WT-A Setup manual | English French Chinese-Simplified Japanese Korean |
7.89 MB |
|
Compatibility
| Date | Subject |
|---|---|
| June 22, 2023 | Dual Monitor Configuration Chart of EIZO Touch Panel monitors |
| July 30, 2019 | Abnormal Display Issue on Microsoft Windows 10 May 2019 Update (1903) |
