Clear and Bright Image Display
The FDS1721T uses surface acoustic wave technology (SAW) which exhibits higher light transmittance compared with other touch technologies for high visibility. The full color display produces 16.7 million colors and has a high contrast ratio of 1000:1 for smooth and clear images.
Easy-to-Operate Touch Panel
With SAW technology, the screen accepts touch input from both bare and gloved hands as well as styluses, making it easy to use in factories, clean rooms, and public access areas.
Durable and Reliable
The screen’s non-scratch surface is made of reinforced glass to ensure that it is durable enough to withstand regular use in public access areas. In addition, the monitor is covered by a 3-year warranty, offering a long service life.
Long-Lasting LED Backlight
The monitor is equipped with a long-lasting LED backlight that lowers energy consumption and is mercury-free to reduce environmental impact.
Effective Energy Management
To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.
Preset Modes for Optimum Viewing
Choose from several preset modes for optimum viewing of a variety of applications - Paper, sRGB, User (user-defined settings). Paper mode reduces the amount of blue light to help prevent eyestrain.
Digital and Analog Inputs
The monitor is equipped with both DVI-D and D-Sub mini 15-pin inputs for connecting to a PC with either a digital or an analog graphics board. In addition, it comes with a USB upstream port and voice input jack.
Built-in Speakers
Dual 0.5-watt stereo speakers are built into the bottom bezel for multimedia applications or audio confirmation of touch input.
Our Contribution to SDGs
As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
![]() |
Industry, Innovation, and Infrastructure DuraVision offers a range of visual solutions for facilities that are indispensable to people's daily lives such as hospitals, businesses, airports, factories, public transportation hubs, and many more. We support the uninterrupted continuation of security, industrial, and other activities with robust product build, manufacturer's warranty, and after-sales services. |
![]() |
|
Environmentally Conscious Our products for industrial environments are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system. |
![]() ![]() |
Model Variations |

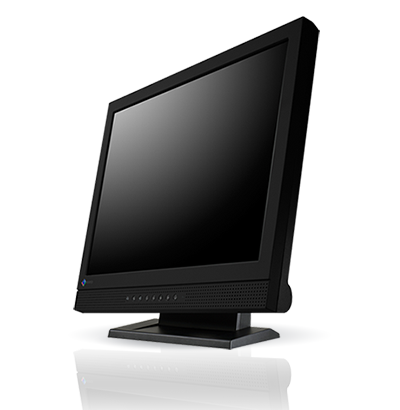

FDS1721T-BK: with stand, black

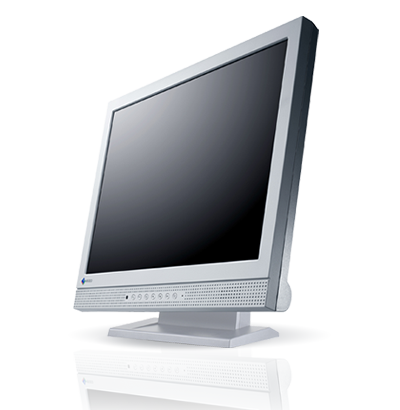

FDS1721T-GY: with stand, gray |
---|---|
Panel | |
Type | TN |
Backlight | LED |
Size | 17.0" (43.0 cm) |
Native Resolution | 1280 x 1024 (5:4 aspect ratio) |
Viewable Image Size (H x V) | 337.9 x 270.3 mm |
Pixel Pitch (H x V) | 0.264 x 0.264 mm |
Display Colors | 16.77 million |
Viewing Angles (H / V, typical) | 170° / 160° |
Brightness (typical) | 200 cd/m2 |
Contrast Ratio (typical) | 1000:1 |
Response Time (typical) | 5 ms (black-white-black) |
Touch Panel | |
Type | Surface Acoustic Wave |
Touch Points | 1 |
Surface Treatment | Glare coating |
Communication Protocol | USB |
Surface Hardness | 7 Mohs |
Compatible OS | Windows 11, Windows 10 (64-bit, 32-bit) |
Video Signals | |
Input Terminals | DVI-D, D-Sub mini 15 pin |
Digital Scanning Frequency (H / V) | 31 - 64 kHz / 59 - 61 Hz |
Analog Scanning Frequency (H / V) | 31 - 64 kHz / 55 - 61 Hz |
Sync Formats | Separate |
USB | |
Upstream | USB 1.1: Type-B |
Audio | |
Speakers | 0.5 W + 0.5 W |
Input Terminals | Stereo mini jack |
Output Terminals | Headphones (Stereo mini jack) |
Power | |
Power Input | AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz |
Typical Power Consumption | 8 W |
Maximum Power Consumption | 21 W |
Power Save Mode | 1.5 W or less |
Features & Functions | |
Preset Modes | User1, User2, sRGB, Paper |
Automatic Brightness Control | Yes |
Others | Color (Brightness, Contrast, Temperature, Gamma, Hue, Saturation, Gain, Reset), Signal (Sharpness, Auto Screen Adjust, Auto Range Adjust, Clock, Phase, Position), Preferences (Menu Rotation, Power Save, Power Indicator, Monitor Reset), Language, Information (name, serial number, usage time, resolution), Auto Input Detection, Compatibility Mode, On-Screen Logo, Key Lock |
Physical Specifications | |
Dimensions (Landscape, W x H x D) | 380 x 397.2 x 157 mm |
Dimensions (Without Stand, W x H x D) | 380 x 353 x 58 mm |
Net Weight | 7.5 kg |
Net Weight (Without Stand) | 4.8 kg |
Height Adjustment Range | - |
Tilt | 30° Up, 0° Down |
Swivel | - |
Pivot | - |
Hole Spacing (VESA Standard) | 100 x 100 mm, M4, screw depth 3.2 - 9.0 mm |
Environmental Requirements | |
Operating Temperature | 0 - 35°C |
Operating Humidity (R.H., non condensing) | 20 - 80% |
Certifications & Standards (Please contact EIZO for the latest information.) | CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (A), TUV/S, VCCI-B, RoHS, WEEE, CCC, RCM, EAC, China RoHS |
Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
Signal Cables | DVI-D (2 m), D-Sub mini 15 pin (1.8 m) |
Others | AC power cord (2m), USB Type-A - USB Type-B cable (1.8m), Audio cable (2.1m), EIZO LCD Utility Disk (PDF user's manual, touch panel driver), Setup guide, VESA mounting screw (M4 x 12 mm) x 4 |
Warranty | 3 Years (24-hour use) |
Dimension Drawing |
- 2 With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
