Ultra-High Sensitivity for Video Surveillance
The SSC-9700 provides highly visible images in conditions that are dark or difficult to see in.

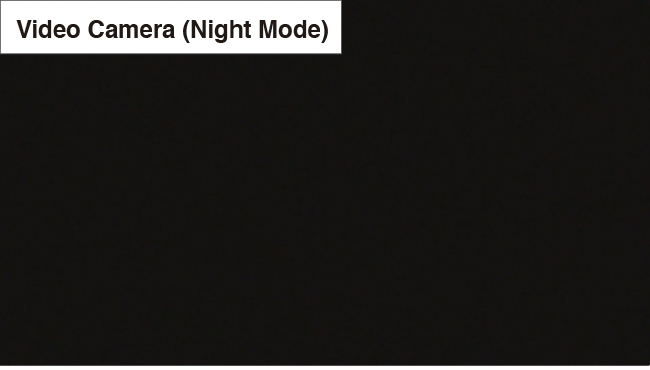

Color Imaging in Low-Lit Conditions
The SSC-9700 captures color images, even under extremely dim lighting conditions as low as 0.003 lx. This provides clearer imaging in dark environments or poor weather conditions compared to a standard video camera.

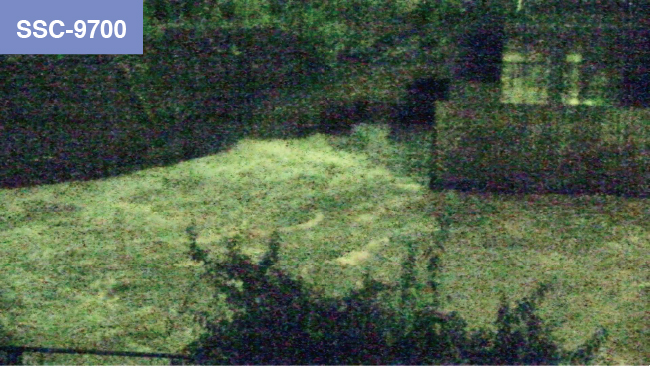

| Below: Dam Water Level Surveillance Time: After Sunset / Weather: Cloudy | |
|
|
|

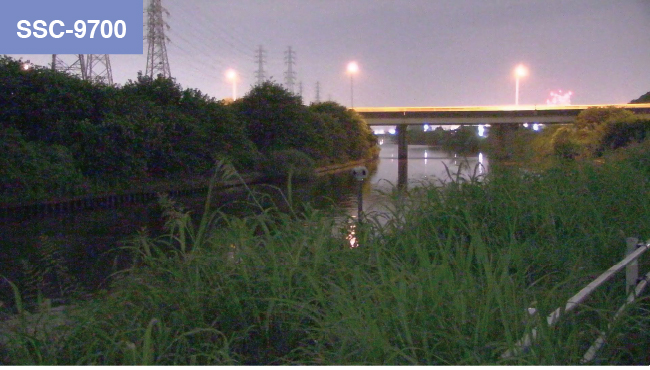

| Below: Riverside Surveillance Time: After Sunset / Weather: Cloudy | |
|
|
|
High Visibility

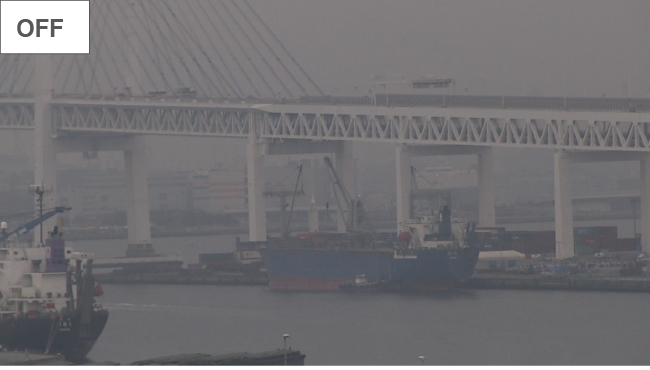

Defog Function
The camera includes a function for lessening the impact that fog or haze has on the image. This allows operators to more easily identify objects and discern important visual information.
Digital Defog
The Digital Defog function stretches the contrast using image signal processing to adjust the difference in brightness and color for improved clarity of faint images.
 |
 |
2D/3D Noise Reduction
The camera includes unique 2D/3D noise reduction for optimal SN ratio even at high gain settings.
HDR Function
The camera is equipped with an HDR function for capturing and combining multiple exposures, resulting in clear images with a wider dynamic range.
Flexible Installation
Lens Mount
The SSC-9700 is equipped with a C mount for attaching a range of lenses.
Complete Connection
The SSC-9700 is equipped with 3G-SDI and composite (BNC) video connections. It is also equipped with an RS-485 communication interface for seamless integration into advanced surveillance systems.
Additional Features
- Low power consumption
- Developed and manufactured in-house for long-term reliability
Durability and Reliability
24-Hour Use, 2-Year Warranty
The SSC-9700 is built for 24-hour use and is backed by a 2-year manufacturer's warranty for long-term reliability.

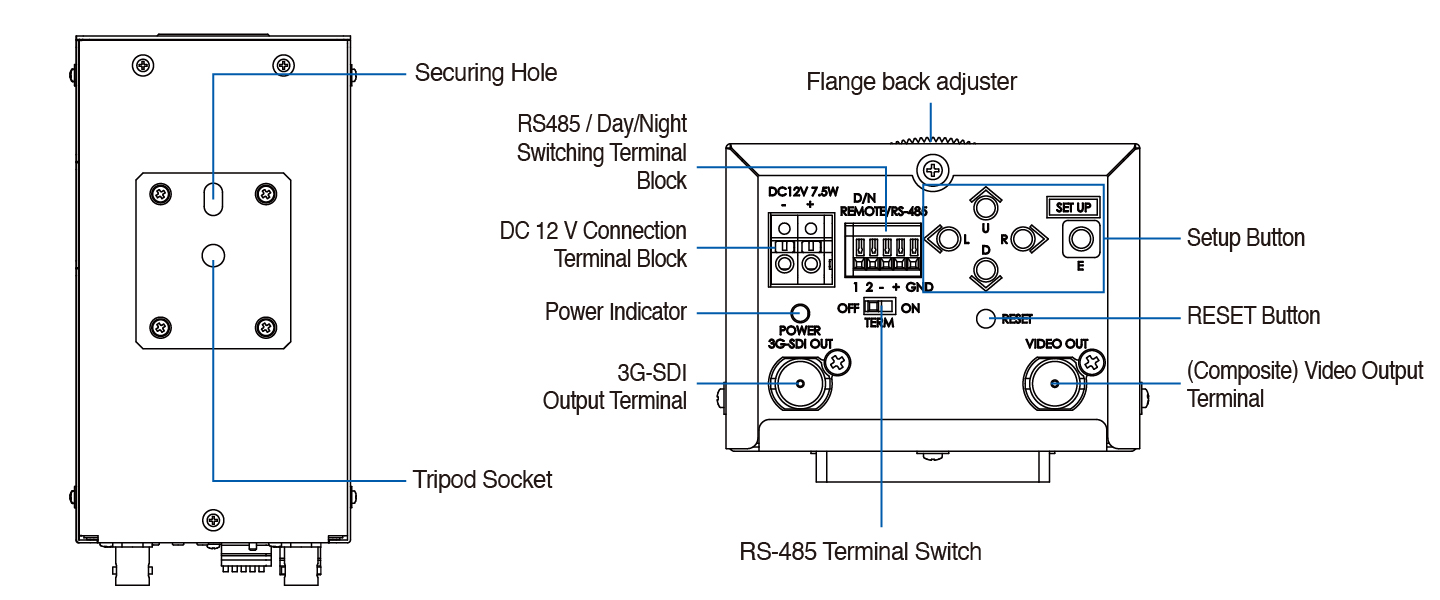

Name of Parts

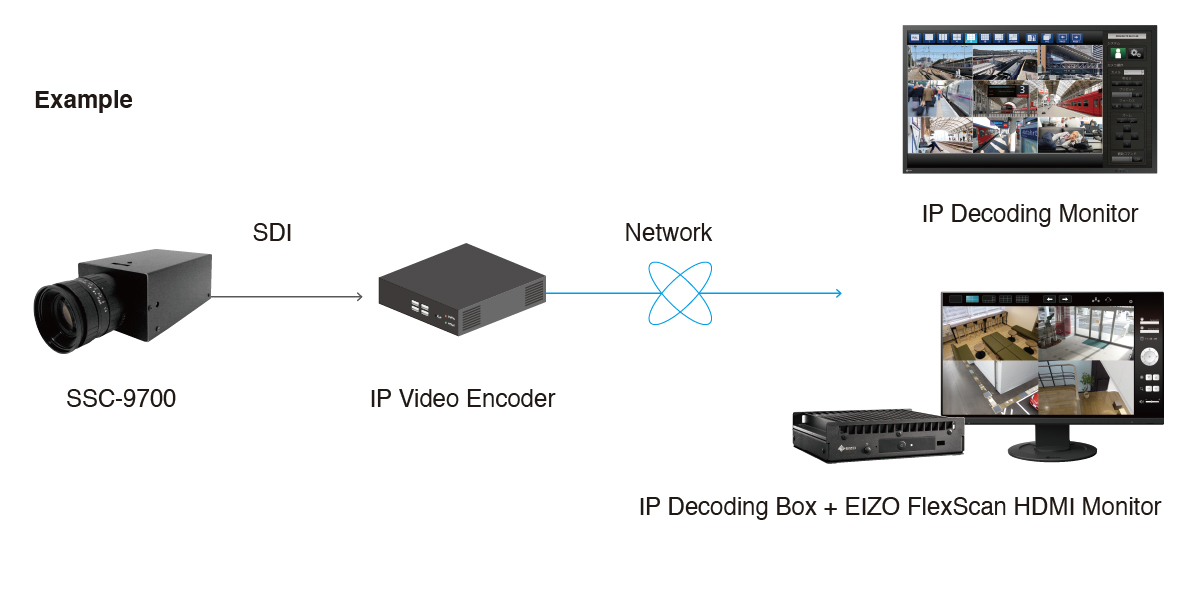

Full Solution
DuraVision IP decoding monitors or box solutions connect directly to a camera or switch for streaming video in real time. The SSC-9700 used with an IP decoding solution provides reliable video management for security & surveillance.
EIZO also offers the SSZ-9700 which comes with a 35x zoom lens.
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Industry, Innovation, and Infrastructure DuraVision offers a range of visual solutions for facilities that are indispensable to people's daily lives such as hospitals, businesses, airports, factories, public transportation hubs, and many more. We support the uninterrupted continuation of security, industrial, and other activities with robust product build, manufacturer's warranty, and after-sales services. |
 |
|
|
Environmentally Conscious Our products for industrial environments are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system. |
  |
| Camera Unit | |
|---|---|
| Imaging Sensor | Single Panel CMOS, RGB Bayer Array |
| Total Pixels (H x V) | Approx. 2.27 million pixels 2016 x 1128 |
| Effective Pixels (H x V) | Approx. 2.12 million pixels 1936 x 1096 |
| Pixel Size (H x V) | 4.1 x 4.1 μm |
| Optical Size | 1/1.8 inch |
| Sensor Framerate | 59.94 fps / 50 fps (29.97 fps when in HDR mode) |
| Scanning System | Progressive |
| Minimum Illumination | 0.003 lx (F1.4 1/30 s, 50 IRE, +78 dB) |
| Horizontal Resolution | 900 TV lines or more |
| SN Ratio | 50 dB or above (γ=1, Contour Correction OFF, DNR OFF) |
| Lens Mount | C mount |
| Lens Control | 4 pin DC iris control |
| Exposure Mode | Full Auto, Shut. Prio., Gain Prio., Iris Prio., Manual |
| Gain | Manual: 0 - 78 dB (0.3 dB step) |
| Electronic Shutter |
60 Hz system: 1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 s
50 Hz system: 1/1, 1/2, 1/3, 1/6, 1/12, 1/25, 1/50, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 s |
| ALC Adjustment | Level adjustment, Limits adjustment |
| Backlight Correction | On, Off, Spot |
| Gamma Correction | 0.35 - 0.55 (0.01 step) / 1.0 |
| DNR | Off, Low, High |
| White Balance | ATW1, ATW2, AWC, Manual, Low Temp., Hi Temp. |
| HDR Mode | Off, HDR, Auto Knee, Auto Black Stretch |
| Defog | Digital Defog: Off, Low, Mid, High |
| Color Matrix | R, G, B, Ye, Cy, Mg 6-axis adjustment |
| Image Quality Adjustment (Others) | Detail, Chroma, Black Level |
| Digital Zoom | 1 - 10x |
| Image Reversal | Mirror, Flip, Mirror Flip |
| Privacy Mask | 8 masks Gray, White, Black |
| Test Pattern | Color Bar, Grayscale, Built-in Cross Line |
| Interface | |
| Image Output Terminal | BNC (3G-SDI), BNC (Composite) |
| Serial Port | RS-485 |
| Relay Interface | IR Cut filter |
| Video Output |
3G-SDI: 1080p/59.94 (LEVEL A), 1080i/59.94, 1080p/29.97, 1080p/50.00 (LEVEL A), 1080i/50.00, 1080p/25.00
Composite Video: NTSC, PAL Down Convert LETTER BOX / SIDE CUT / SQUEEZE |
| Other | |
| Power Supply | DC 12 V |
| Power Consumption | 7.5 W |
| Operating Temperature / Humidity Range | -10 - 50°C / 10 - 90% |
| Storage Temperature / Humidity Range | -10 - 60°C / 10 - 90% |
| Dimensions (W x H x D) | 78 x 63.8 x 144.7 mm |
| Weight | 500 g |
| Supplied Accessories | User Manual |
| Warranty | 2 Years (24-hour use) |
| Dimension Drawing |
