30+ Years of ATC Visual Graphics Expertise
EIZO has been a pioneer in visual graphics hardware solutions for the ATC market since 1987. Backed by over 30 years of technical expertise, Re/Vue encoding & streaming solutions provide the accuracy and dependability needed for ATC, training & simulation, and command & control applications.
Encoding & Streaming
Dual 4K Encoding & Streaming
Equipped with two DisplayPort interfaces, the Re/Vue Pro Duo is the first in the world to offer synchronous encoding & streaming of up to 4K x 2K (4096 x 2160) resolution per channel. This provides a streamlined solution for ATC video data management that supports 4K viewing environments, while allowing the flexibility to stream video in varying configurations.
Flexibly stream video from any viewing environment.
True Lossless Compression
The Re/Vue Series features a true lossless compression ratio of 10,000:1 to 40,000:1 for typical ATC data – the highest in the industry. This minimizes bandwidth needed to send data over a network, as well as required storage when used as a component of recording solution. They encode each frame at the full monitor refresh rate and effortlessly stream ATC applications at 60 fps (frames per second) in most viewing environments. Additionally, framerates can be easily configured to balance image quality with data size according to end user needs.
Durability & Reliability

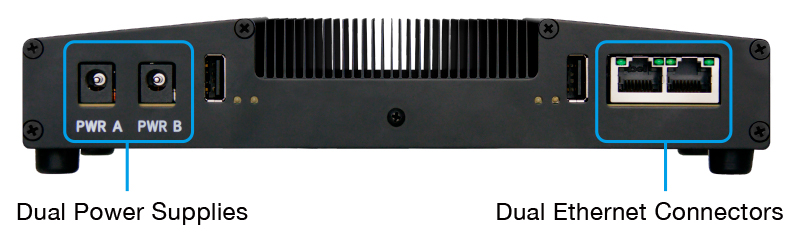

Mission-Critical Redundancy
|
Dual Ethernet connectors and power supplies provide extra protection to ensure continued operation. Re/Vue can also stream video data simultaneously across each of the Ethernet adaptors to independent networks. |
|
Secure Data Encryption
Re/Vue Pro Duo implements SNMP Version 3 for enhanced authentication and data encryption. In addition, EIZO's proprietary encdoing algorithm ensures that video data can only be viewed using EIZO-provided applications and decoder libraries.
Fail-Safe Video Bypass
Re/Vue streams video without modifying the signal using a video bypass mechanism to ensure that connected monitors continue to receive data even if power is disrupted.

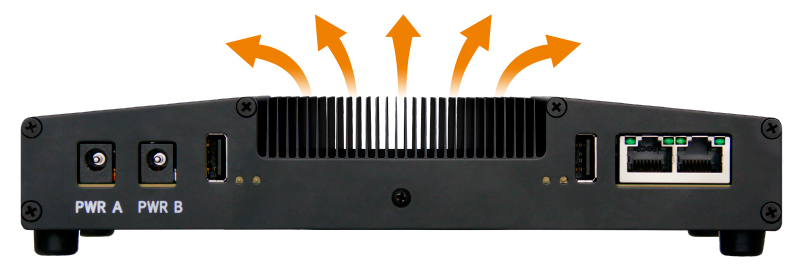

Industrial-Grade Reliability
|
The Re/Vue Pro is designed to allow heat to escape efficiently without a fan, keeping its internal temperature within safe operating tolerances even during long periods of use. This is important for ATC environments where operations are carried out 24/7. |
|
Control & Management
Platform and Graphics Card Independent
Re/Vue products are entirely independent from the operating system and graphics card so they are unaffected by changes that may occur to the system, providing secure data management and investment protection.
Seamless Integration
Re/Vue products can be seamless integrated into third party solutions such as those provided by ATC system integrators and recording solution providers. Fully documented APIs are available together with full SNMP interface details.
End-to-End Solution
|
The Re/Vue Pro Duo can be used with EIZO's SafeGuard integrated data capture & content management solution for a reliable end-to-end system. These solutions used together provide a highly secure archive that is built specifically to meet customer needs in areas of data management, analysis, and distribution for control centers, towers, and training & simulation facilities. |
|

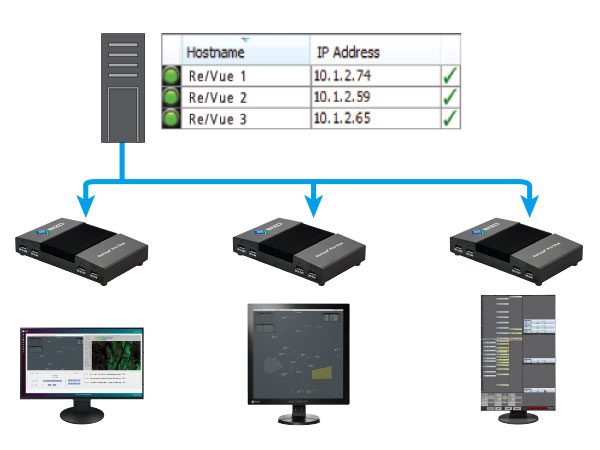

Centralized Control
|
Re/Vue products can be managed through the Lights Out Configuration 3 (LOC3) utility that provides access to settings and controls for flexible management of the network from a centralized location. It also lets you set the display orientation to landscape or portrait mode so that the video is streamed in the correct format. All calls made through the web interface are available as a fully documented SNMP interface to support integration into third party Centralized Management System applications. |
|
Practical Application
Re/Vue products can serve as standalone streaming devices or be integrated as part of a broader recording solution.
Stream to Workstation
Stream to Server
Contact us to optimize your configuration.
atc@eizo.com
| Video Compression Ratio (Based on typical ATC data) | 10,000:1 to 40,000:1 (Actual compression ratio is dependent upon configuration parameters and video data type) |
|---|---|
| Supported Resolutions | 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200, 1920 x 1920, 1920 x 2160, 2560 x 1440, 2560 x 1600, 2048 x 2048, 2048 x 2160, 3840 x 2160, 4096 x 2160 per channel |
| Maximum Video Resolution | 4096 x 2160 per channel |

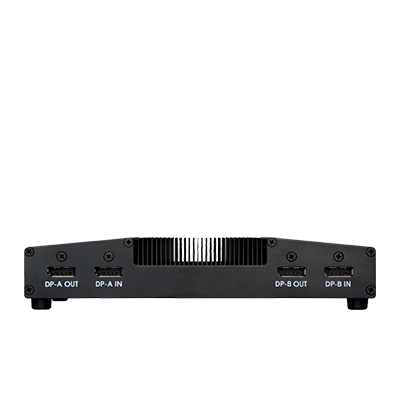

| Video Connectors | DisplayPort(input and output) x 2 |
| Optical Drive | - |
| Typical Power Consumption | 25 W |
| Dimensions (W x H x D) | 214.9 x 45.6 x 133.4 mm |
| Net Weight | 0.96 kg |
| Ethernet | RJ-45 (1Gbps) x 2 |
| Warranty | 2 Years |
