Product Name
42.5" Primary Control Monitor

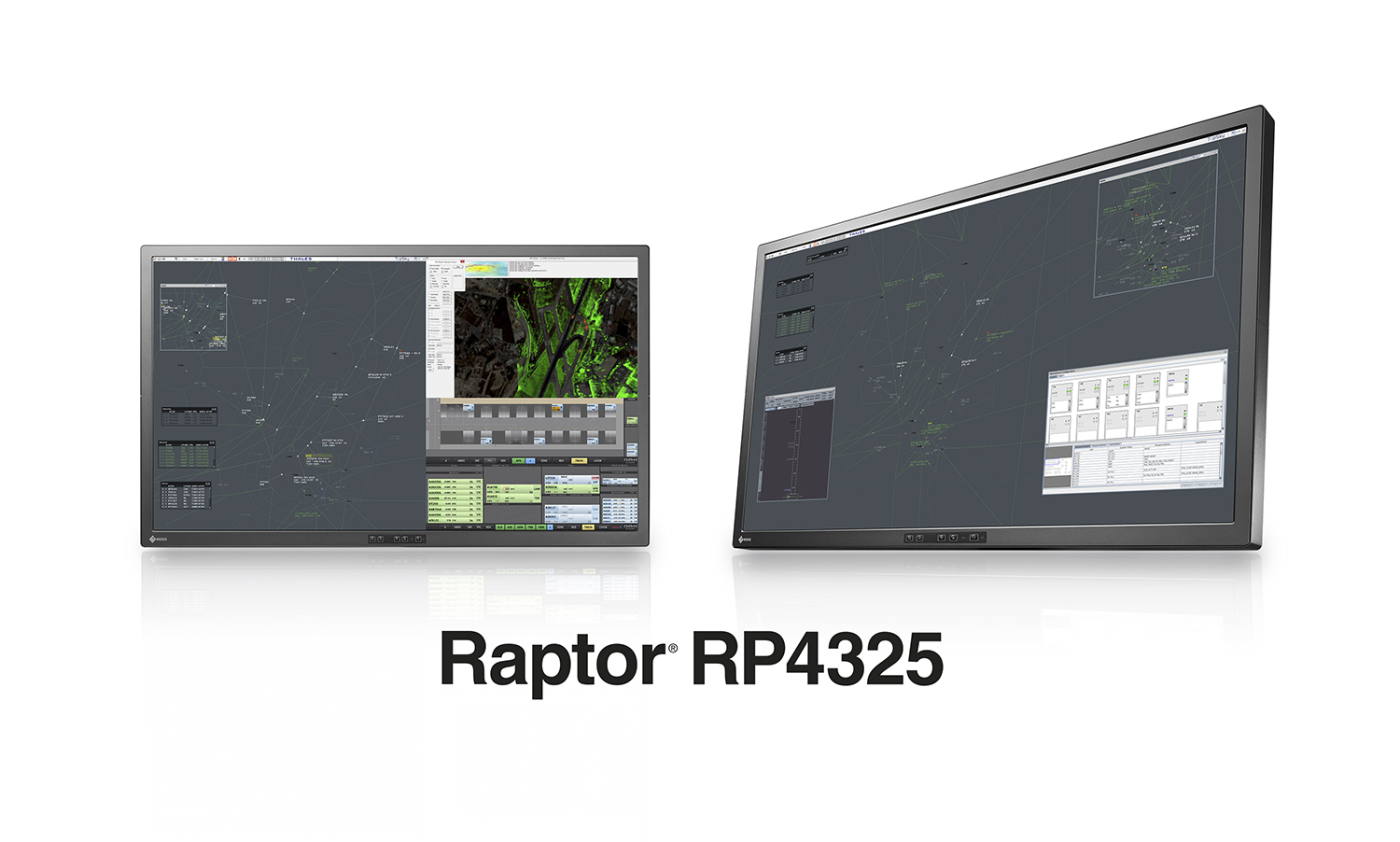

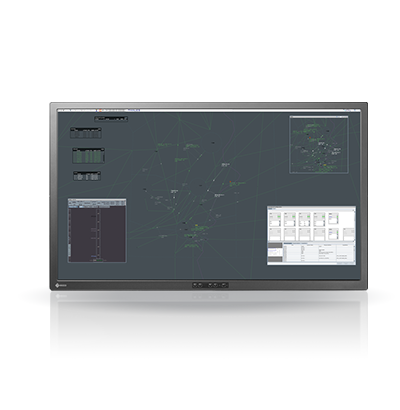

The Raptor RP4325 is the first 4K x 2K primary control monitor developed specifically for ATC. It features optimal use with 4K resolution, a sleek cabinet design, operational reliability, and customer-driven customization.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

Case Studies

prev next

20+ Years of Primary Control Monitor Manufacturing

EIZO has been an industry leader in the innovation and development of quality 2K primary control monitors for ATC since 2005. Backed by over 50 years of technical expertise in visual display solutions, the Raptor RP4325 is the industry's first 4K x 2K monitor developed specifically for ATC. It combines the features of EIZO's line of primary control monitors while adding further value with 4K resolution, unique functionality, and operational reliability.






Make the Switch to a Smarter Monitor

Intelligent Display Platform

The monitor is equipped with EIZO's Intelligent Display Platform (IDP) developed specifically for ATC. The IDP enables simultaneous display of video signals from up to four independent sources. Traditional Picture-in-Picture (PinP) and Picture-by-Picture (PbyP) functions are limited to a certain number of predefined layouts, providing a relatively inflexible display environment. With IDP, users have complete freedom to place each window anywhere on the screen, as well as scale and assign layer order priority.



Display up to four video sources simultaneously.

Display up to four video sources simultaneously.



Freely arrange each source window anywhere on the screen.

Actual size

Actual size

Scaled (maintains aspect ratio)

Scaled
(maintains aspect ratio)

Full screen (stretched)

Full screen
(stretched)


See more with video.

Integrated Switching

The monitor offers EIZO's SwitchLink internal switching management technology as an option. SwitchLink enables seamless switching of keyboard, mouse, and dynamic touch input without the need for an external KVM switch. Up to four video signal feeds can be connected to the monitor, with the option to connect an additional two auxiliary monitors, for an up to six-workstation configuration operated by a single keyboard and mouse.



SwitchLink connected to four video sources.

SwitchLink connected to four video sources.




SwitchLink connected up to 6 video sources. (4 inputs on a single screen and 2 auxiliary monitors)

SwitchLink connected to four video sources.



See more with video.



SwitchLink Mouse

Simply moving the mouse cursor across each window will instantaneously and automatically switch workstation inputs. The response time when switching mouse input to another workstation is approximately 0 ms for completely smooth operation.

SwitchLink Mouse


0 ms switching!



SwitchLink Keyboard

To toggle between workstations, EIZO also implements keyboard hotkey switching with SwitchLink. By activating a predefined hotkey, USB control of the keyboard and mouse will switch to another workstation.

SwitchLink Keyboard



SwitchLink Dynamic Touch

EIZO's monitors are the first in the world to feature integrated dynamic touch switching. With EIZO's IDP enabling up to four workstations to be displayed simultaneously on the monitor, SwitchLink allows each window to have its own independent touch connection with automatic switching built in. The user simply needs to touch the screen and the monitor will sense the interaction and automatically switch to the target input.

SwitchLink Dynamic Touch

Touch panel is optional for RP4325.



Streamline Installation and Maintenance

With SwitchLink, video sources connect to the monitor directly, eliminating the need for a KVM switch.

Traditional configuration using a KVM switch.
Traditional configuration using a KVM switch.



SwitchLink eliminates the need for a KVM switch.
SwitchLink eliminates the need for a KVM switch.
  Reduce Cabling and Cable Management

SwitchLink is built directly into the monitor, eliminating the need for the KVM switch and additional cables for a streamlined installation.



Reduce Power Consumption and Connection Requirements

Since SwitchLink is built into the monitor, it does not require any additional power connections, reducing power requirements of the system.



Avoid Compatibility Issues

SwitchLink removes some of the risk for compatibility or driver issues caused by traditional KVM switches. The monitor and built-in switching component are developed by the same engineering team at EIZO to ensure smooth handshaking between internal components and optimum performance throughout the lifetime of the monitor.

Learn more about IDP and SwitchLink in this article.

Last Frame Display   NEW

In mission-critical ATC where every second counts, air traffic control officers (ATCO) need to be aware if there is any disruption to the image on screen. EIZO's unique Last Frame Display function detects if the video signal is disrupted and automatically displays the last available frame captured from the visual system accompanied by a text overlay to inform the ATCO of the status. This ensures the ATCO is immediately made aware of the disruption so appropriate action can be taken, such as following emergency protocols or accessing a backup system, while providing the last available visual information to refer to until the issue is addressed.

Custom Naming of Video Signal Inputs   NEW

Air traffic management systems are comprised of numerous independent systems, each of which are displayed on the controller's screen via dedicated video signals. The monitor allows end users to assign a custom name to each of the monitor's video signal inputs. This is useful if an input signal is disrupted due to a system or other error, so IT personnel can determine immediately which system was affected.





Optimal Use

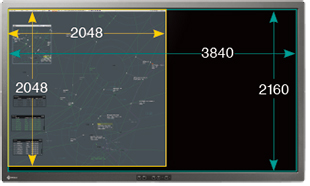

4K x 2K High Resolution

Display 4K x 2K high resolution data in full on one screen without the obtrusive bezels typically found in a multi-monitor workstation. 2K x 2K and auxiliary information can also be displayed simultaneously on a single screen, allowing controllers to view more information easily in one place.

4k 2k



Wide Brightness Range

The monitor can be adjusted within a wide brightness range of 25 to 500 cd/m2 to suit your environment as well as the needs of the ATCO.

Wide Brightness Range

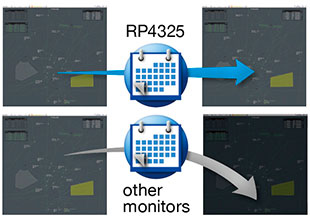

Brightness Stabilization

EIZO's fully automated stability function uses an internal backlight sensor to stabilize the brightness level throughout the life of the monitor, compensating for fluctuations caused by variations in ambient temperature and the passage of time.

Brightness Stabilization








Design

Slim Bezels

The unobtrusive bezels measure just 24 mm on the sides so ATCOs can focus more on the screen.

slim bezel

Protection Glass

Protection glass is optional and covers the visible part of the LCD panel for increased reliability.

protection grass

Rounded Corners

The monitor's design features rounded corners and edges for a pleasing and modern aesthetic.

rounded corner

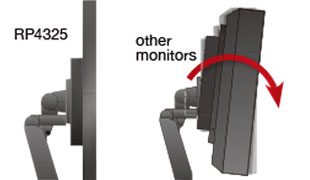

Balanced Design

The monitor's depth is designed to be minimal to bring the weight distribution close to the center of mass. This lowers stress on mounting fixtures over time. It weighs just 20.5 kg in consideration of the installation environment.


Mounting Flexibility

The monitor supports VESA mounting for conveniently installing in open or closed ATC consoles. A desktop version with a stand is also available as an option.





Durability and Reliability

24/7 Operation

The Raptor RP4325 is developed specifically for meeting the stringent requirements of mission-critical ATC environments with 24/7 operation.

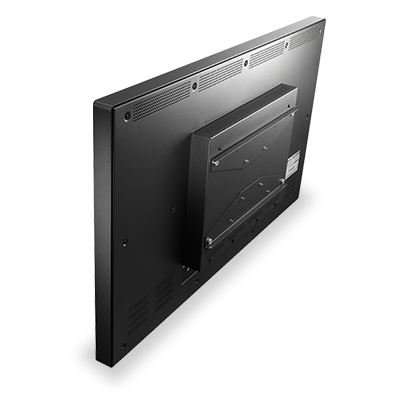

Industrial-Grade Housing

The monitor's housing uses full sheet steel industrial-grade housing for durability in demanding environments.

housing

Fanless Operation

The monitor provides noiseless, fanless operation while still maintaining low heat output for reliability.

fanless

Built-In Power Supply

While other solutions may require a bulky power brick to operate, the Raptor RP4325 has its power supply built in. This provides a cleaner and more manageable installation area. A secondary built-in power supply is available as an option.

built-in power supply.jpg

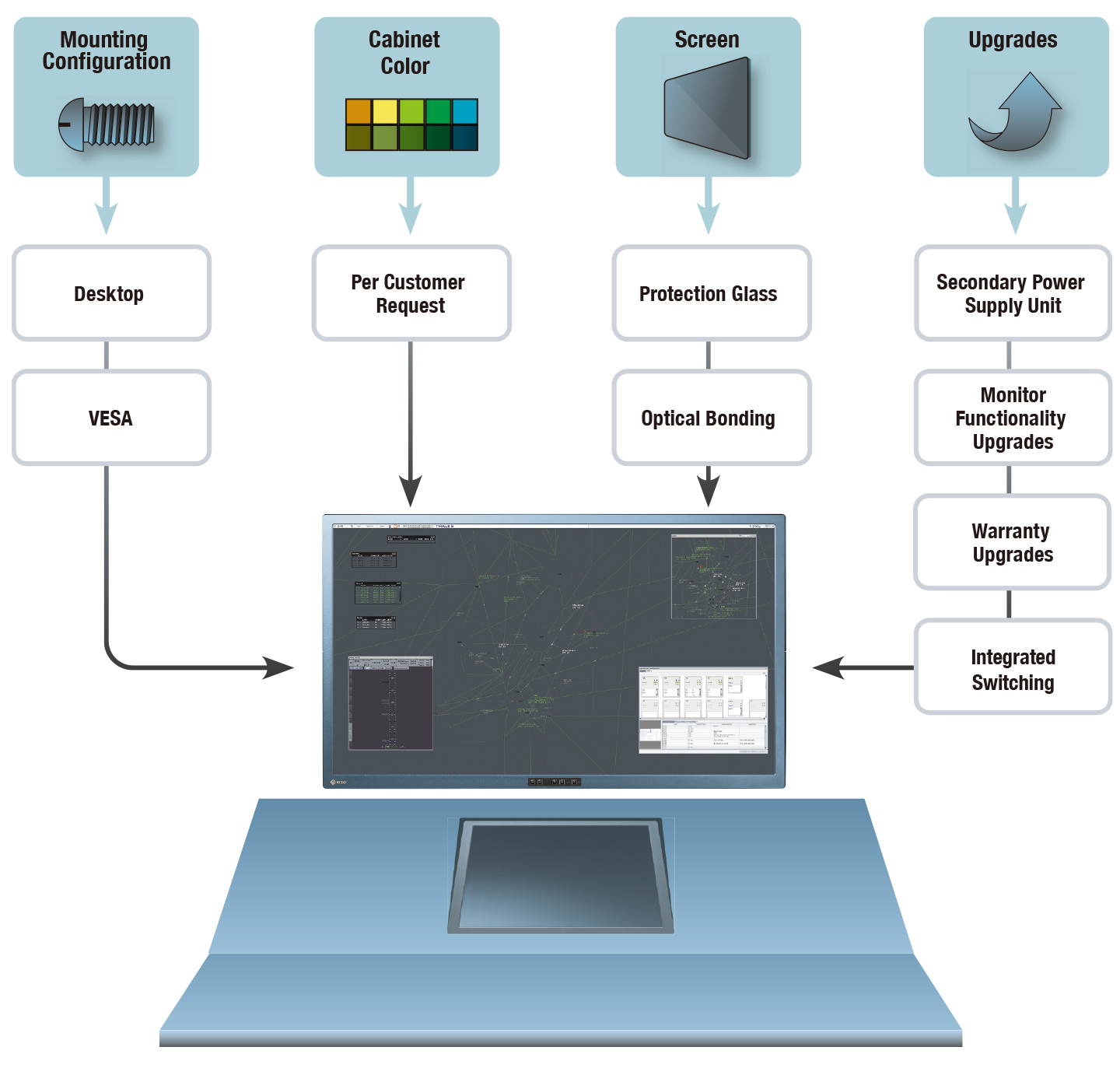

Extensive Customization

EIZO offers extensive customization in order to meet the specific needs of individual control centers.

customization

Contact us to configure your monitor.
atc@eizo.com




Additional Features

Energy Efficiency

The monitor consumes up to just 125 watts at maximum brightness (500 cd/m2) and even less than that under typical operating conditions in control rooms. This saves energy and significantly reduces heat generation within the monitor, a leading cause of component failure.

Complete Connection

The monitor is equipped with two dual link DVI video signal inputs and two DisplayPort 1.2 inputs. It also comes equipped with a wide range of communication interfaces for connection to a network, remote monitor management, or maintenance purposes – RS232, USB, and TCP/IP.

Resources

Driving Change with 4K2K Technology (PDF)

EIZO introduces the concept behind the industry's first 4K2K primary control monitor developed specifically for ATC in this article.











  • Screen images provided by THALES, AviBit, and Cambridge Pixel.



Panel
Type VA
Backlight Edge-type LED
Size 42.5" (108 cm)
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 941.2 x 529.4 mm
Pixel Pitch (H x V) 0.245 x 0.245 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 25 - 500 cd/m2
Contrast Ratio (typical) 4000:1
Response Time (typical) 8 ms (gray-to-gray)
Video Signals
Input Terminals DisplayPort x 2, DVI (dual link) x 2
Digital Scanning Frequency (H / V) 260 MHz (2 x 130 MHz dual link)) / 60 Hz
USB
Upstream USB 2.0: Type-B
Downstream USB 2.0: Type-A x 2
Power
Power Input AC 100 - 240 V, 50 - 60 Hz
Typical Power Consumption 50 - 70 W (Brightness: 150 cd/m2)

(Actual power consumption depends on active monitor functions.)
Maximum Power Consumption 125 W
Features & Functions
Brightness Stabilization Yes
Communication Interface RS-232C, USB, RJ-45
Communication Protocol SNMP, HTTP, HID, Modbus/TCP
Physical Specifications
Dimensions (Landscape, W x H x D) 992 x 613 - 673 x 322.9 mm
Dimensions (Without Stand, W x H x D) 992 x 588 x 93.4 mm
Net Weight 26.2 kg
Net Weight (Without Stand) 20.5 kg
Tilt 25° Up, 0° Down
Swivel 172° Right, 172° Left
Hole Spacing (VESA Standard) 400 x 200 mm
Environmental Requirements
Operating Temperature 0 - 40°C
Operating Humidity (R.H., non condensing) Max. 90%
Storage Temperature -20 - 60°C
Degree of Protection IP20
Certifications & Standards (Please contact EIZO for the latest information.) CE, UL, FCC, REACH, RoHS, WEEE
Warranty 2 Years (24-hour use)
