FlexScan S1503-A
15.0" Color LCD Monitor

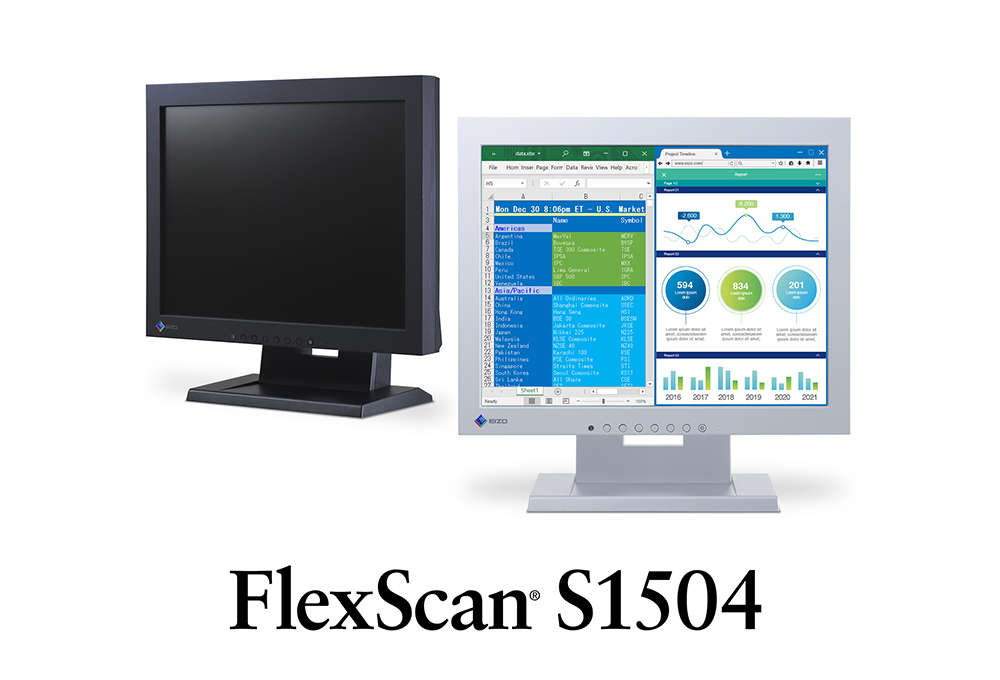

The S1504 is a 15-inch square monitor with 1024 x 768 resolution. With a 5-year warranty and long-term supply, it is the perfect choice for back offices and control rooms.
  • Contact EIZO
  •
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories

Long-Term Supply Model

The S1504 is the successor to the S1503-A. This family of 15-inch monitors feature consistent housing and interfaces across each model. This ensures customers can rely on the lineup to suit their installation needs over the long life of their local systems.

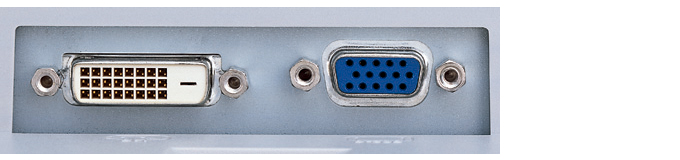

Digital and Analog Inputs

With both DVI-D and D-Sub mini 15-pin video signal inputs, you can use a computer that has either a digital or an analog outputs.

Digital and Analog Inputs


Clear, Wide Viewing Angles

The VA (vertical alignment) panel features wide viewing angles that minimize changes in contrast and gradation to maintain clear visibility even when the screen is viewed from the side, above, or below.


Built-In Speakers

0.5-watt speakers are tucked away at the back of the monitor and out of view.


Built-In Power Supply

While other solutions may require a bulky power brick to operate, the monitor has its power supply built in. This provides a cleaner and more manageable installation area.


Environmentally Friendly Packaging

The monitors are safely packed using material made with recycled cardboard instead of styrofoam to reduce environmental impact.


Model Variation

The monitor comes either with or without a stand to provide different mounting options. The monitor also complies with VESA mounting standards for flexible installation.


Built to Last Five Years

EIZO’s five-year warranty is two years or 67% longer than the standard three-year warranty of most brands. A longer buying cycle and less need for repair after installation ensures a lower TCO (total cost of ownership) compare to conventional 15-inch monitors.

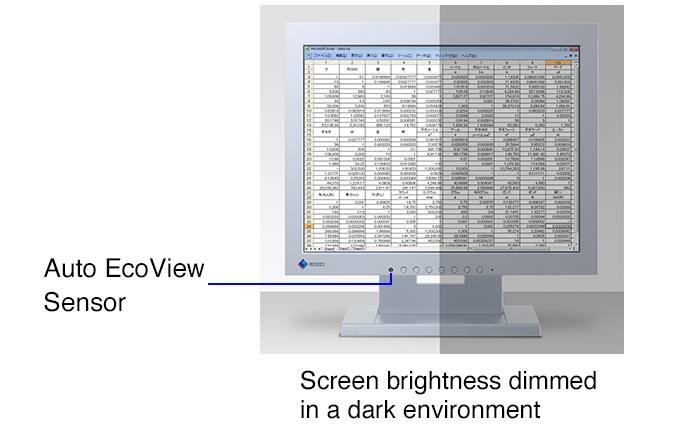

Optimized Brightness with Auto EcoView

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.

Reduce Blue Light by 80%

The monitor is equipped with Paper Mode which simulates the look of printed paper. Paper Mode reduces the amount of blue light emitted by the monitor, helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView dimming function, blue light is reduced by as much as 80%.

Paper Mode

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The monitor utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.


Glare Reduction

The panel is treated with an anti-glare coating to reduce screen reflections caused by ambient lightning. This makes the screen easier to see and helps reduce eye fatigue.

Glare Reduction

Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Environmentally Friendly
FlexScan are environmentally friendly monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system.

SDGs 07SDGs 12SDGs 13

Higher Work Efficiency
FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue.

SDGs 08



Choose My Workstyle

Model Variations S1504-TBK: with Tilt Stand, black
S1504-TGY: with Tilt Stand, gray
S1504-FBK: without stand, black
S1504-FGY: without stand, gray

Note: Tilt Stand is removable
Panel
Type VA
Backlight LED
Size 15.0" (38.0 cm)
Native Resolution 1024 x 768 (4:3 aspect ratio)
Viewable Image Size (H x V) 304.1 x 228.1 mm
Pixel Pitch 0.297 x 0.297 mm
Pixel Density 86 ppi
Display Colors 16.77 million
Viewing Angles (H / V, typical) 176° / 176°
Brightness (typical) 400 cd/m2
Contrast Ratio (typical) 2500:1
Response Time (typical) 23 ms (black-white-black)
Color Gamut (typical) sRGB
Video Signals
Input Terminals DVI-D, D-Sub mini 15 pin
Digital Scanning Frequency (H / V) 31 - 49 Hz / 59 - 61 Hz
Analog Scanning Frequency (H / V) 31 - 49 kHz / 55 - 61 kHz
Sync Formats Separate
Audio
Speakers 0.5 W + 0.5 W
Input Terminals Stereo mini jack
Power
Power Input AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 5 W
Maximum Power Consumption 14 W
Power Save Mode 0.5 W or less
Features & Functions
Preset Modes User1, User2, sRGB, Paper
Automatic Brightness Control Auto EcoView
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 346 x 349 x 157 mm
Dimensions (Without Stand, W x H x D) 346 x 280 x 69 mm
Net Weight 4.7 kg
Net Weight (Without Stand) 3.4 kg
Height Adjustment Range -
Tilt 30° Up, 0° Down
Swivel -
Pivot -
Hole Spacing (VESA Standard) 100 x 100 mm, 75 x 75 mm
Environmental Requirements
Operating Temperature 5 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) TUV/Ergonomics, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC, China Energy Label Grade2, EAC
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DVI-D (2 m) , D-Sub mini 15 pin (1.8 m)
Others AC power cord (2 m), audio cable (2.1 m), setup guide
Warranty 5 Years
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
