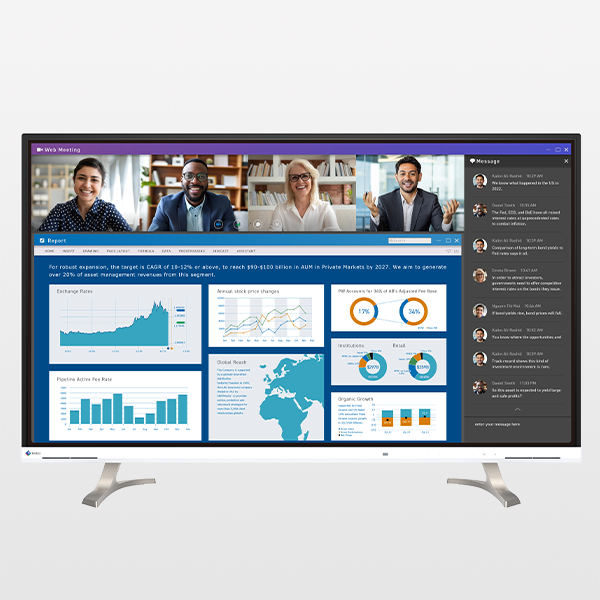

Product Name4K

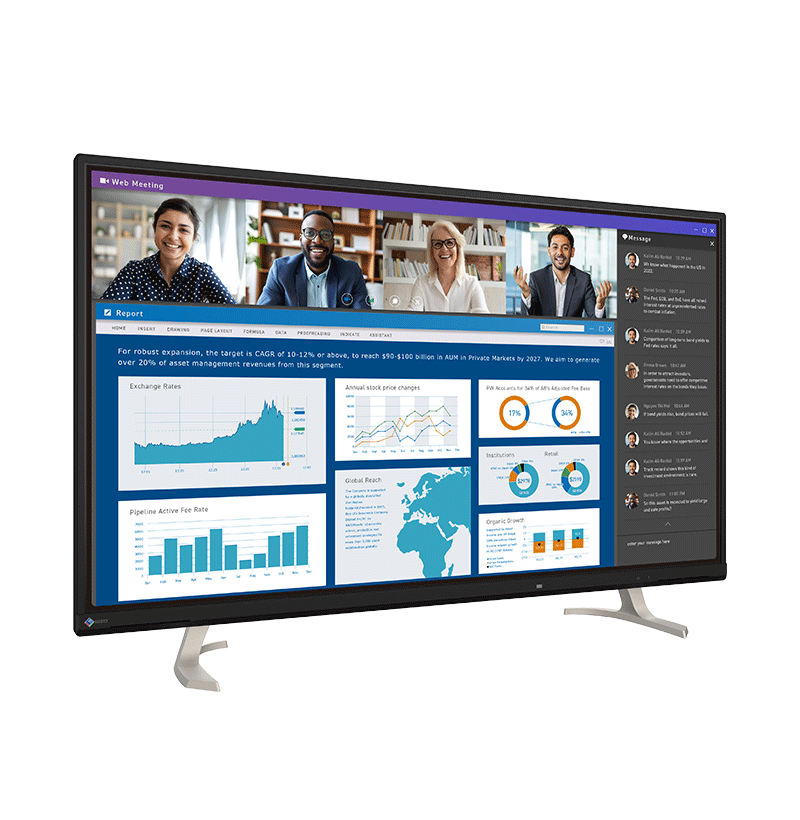

42.5" Color LCD Monitor
Premium Plus 4K for Business
The EV4340X features a spacious 42.5-inch screen with 4K resolution and USB Type-C connectivity for streamlined viewing and operation for the modern business professional.
  • Contact EIZO
  • AR Visualization
  • Features
  • Specifications
  • Documents Compatibility
  • Accessories



Tackle More with a Spacious Screen and 4K

Get Connected. Get Started.meeting image

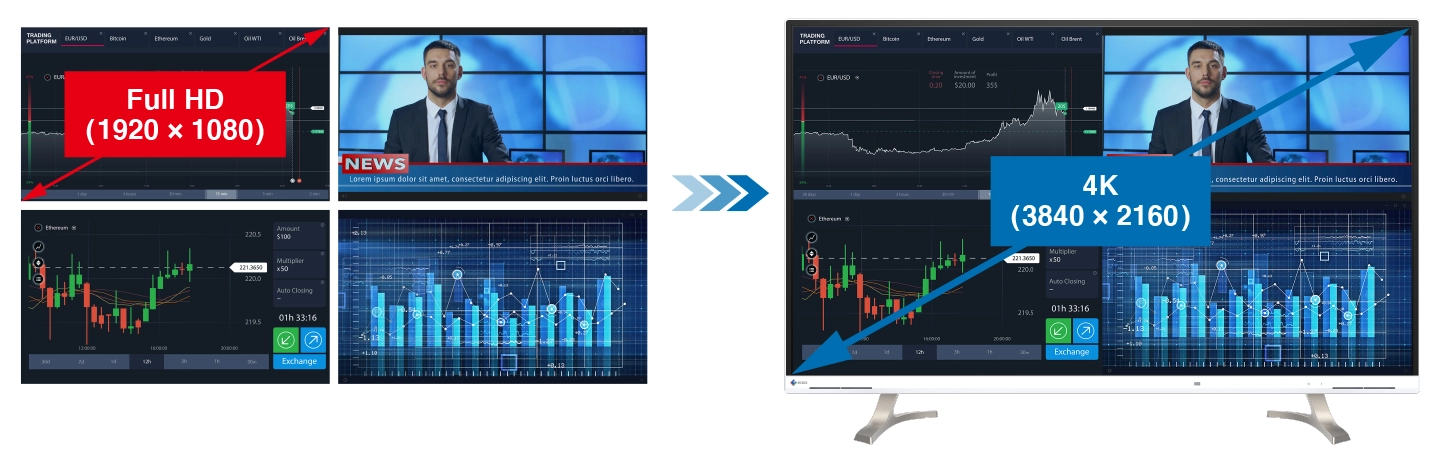

Work Effectively on a Wide 42.5-inch 4K Screen

4K pictThe monitor supports 4K (3840 x 2160 pixels) resolution, displaying four times the amount of information than standard Full HD (1920 x 1080 pixels) across a spacious 42.5-inch size screen. This provides more space for flexible arrangement of multiple applications without the obtrusive bezels characteristic of multi-monitor setups.

Work Effectively on a Wide 42.5-inch 4K Screen







Get Connected. Get Started.

The monitor is equipped with a USB Type-C connection that allows users to display video, playback audio, transmit USB signals, supply power to connected devices, and even access a network signal. This convenient multi-purpose connectivity makes it faster and easier to connect your laptop when moving between workstations or working away from the office.

Get Connected. Get Started.

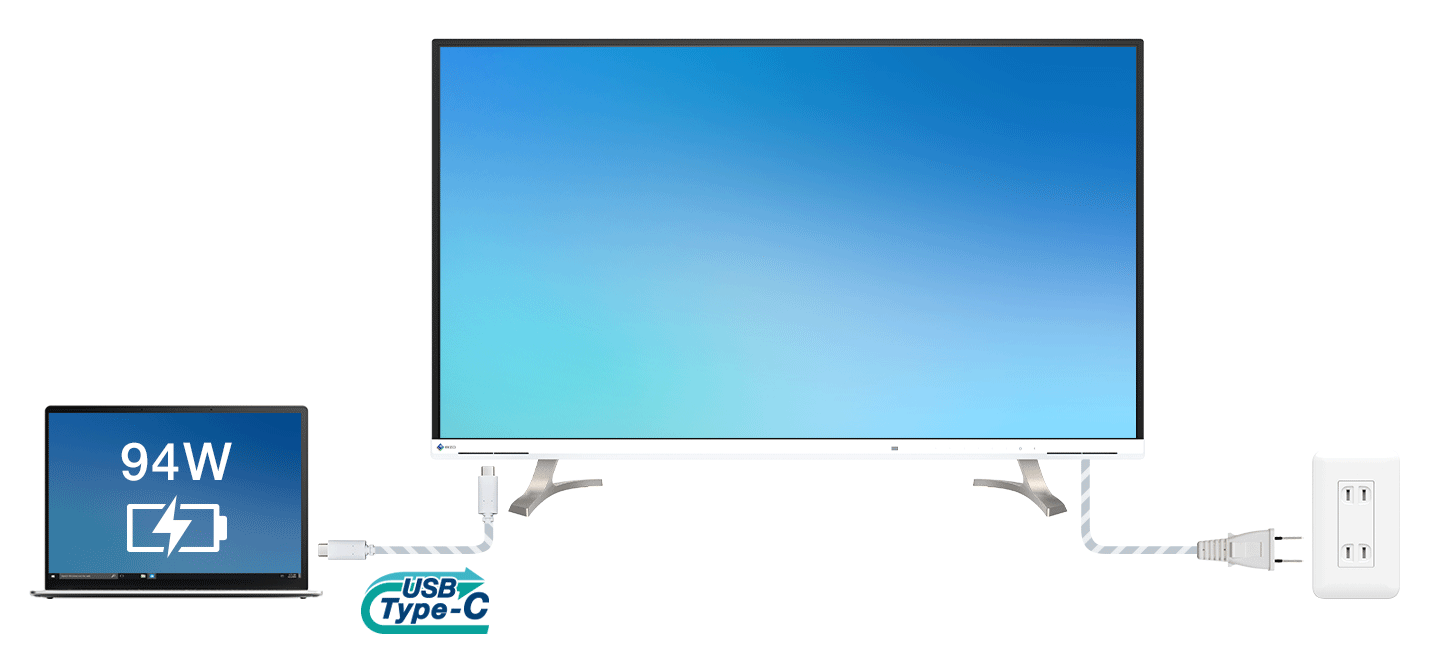

Power Delivery

The 94 watt power delivery via USB Type-C reliably charges laptops or small desktop PCs. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on your desk.

Power Delivery



Stable Network Connection

While many modern laptops are not equipped with a dedicated LAN port, the monitor has one directly built in for a wired connection. Connecting any laptop via USB Type-C allows access to the network through the monitor. This allows you to conduct conference calls or data transfers reliably and at high speed.

EIZO MAC Address Clone Utility software temporarily assigns the MAC address of a connected PC to the monitor, granting network access to authenticated devices, and preventing network access from unauthenticated devices.

Read more about EIZO MAC Address Clone Utility

LAN



Directly Connect Peripherals

While many modern laptops are designed to be thinner and more portable, they often have limited connectivity options for peripherals. Connecting a laptop to the monitor via USB Type-C provides access to a hub with two USB Type-A ports and one USB Type-C port for easily connecting an external keyboard, mouse, or headset.

USB HUB







A Better Meeting Experience

Many organizations are adopting open-space meeting areas for fostering engagement and inclusivity. The monitor includes many features and functions to facilitate an efficient and lively collaborative environment.

meeting image

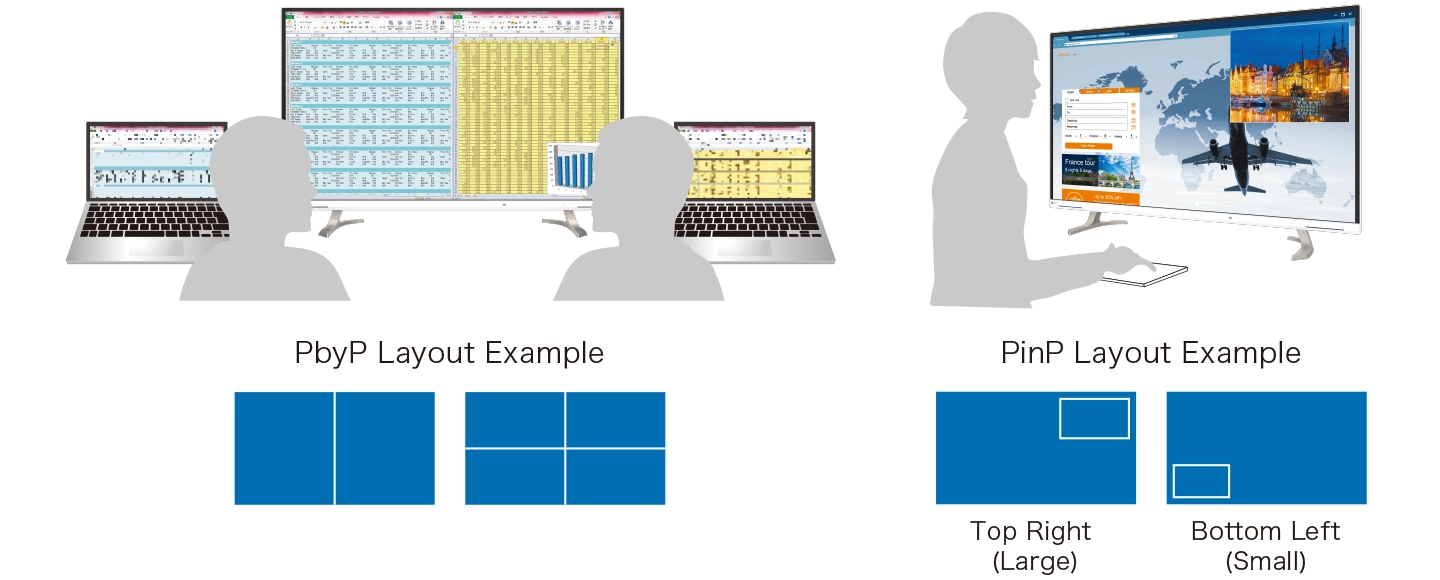

Make Open Meetings More Efficient

The Picture-by-Picture (PbyP) function allow the monitor to receive up to four video signals to be displayed side-by-side on one large screen. A switch on the front of the monitor allows you to select your preferred layout from a choice of 12. The monitor also has a Picture-in-Picture (PinP) function. This enables more streamlined screen sharing for efficient presentations and meetings.

PbyP / PinP

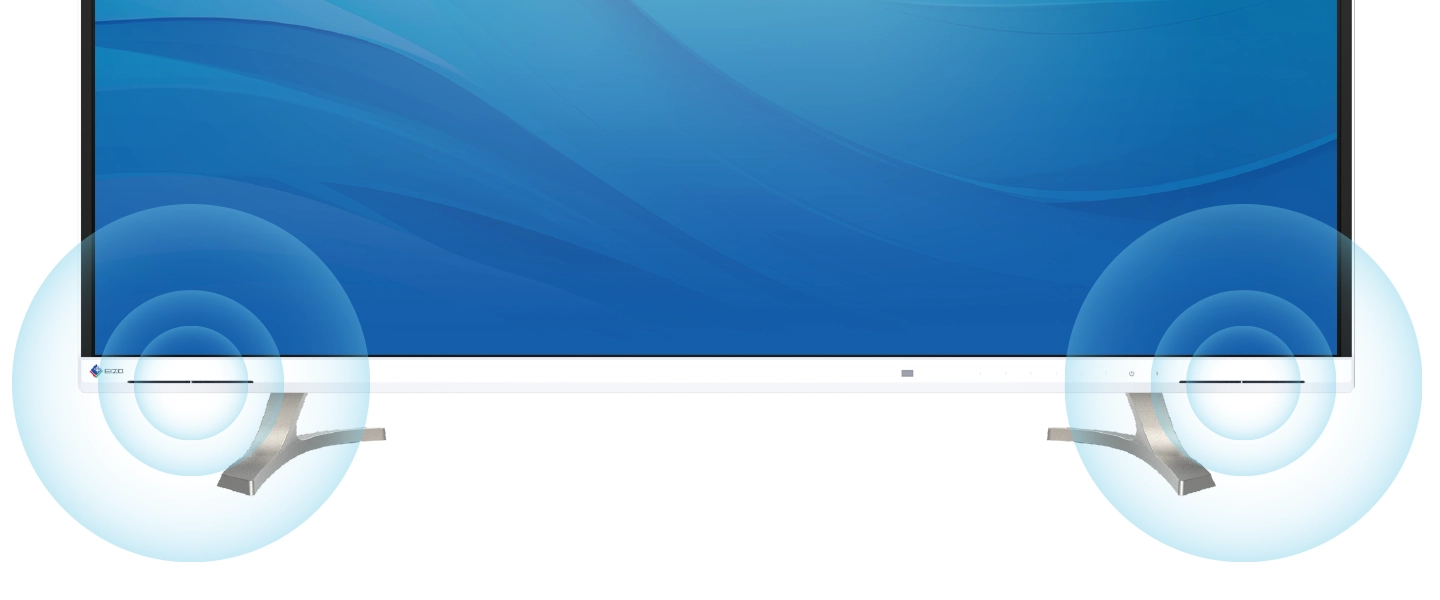

Quality Speakers that are Barely There

The monitor's minimalistic front bezel houses two 4-watt speakers. Audio is clear whether the monitor is being used by an individual or by several people during meetings.

Speaker

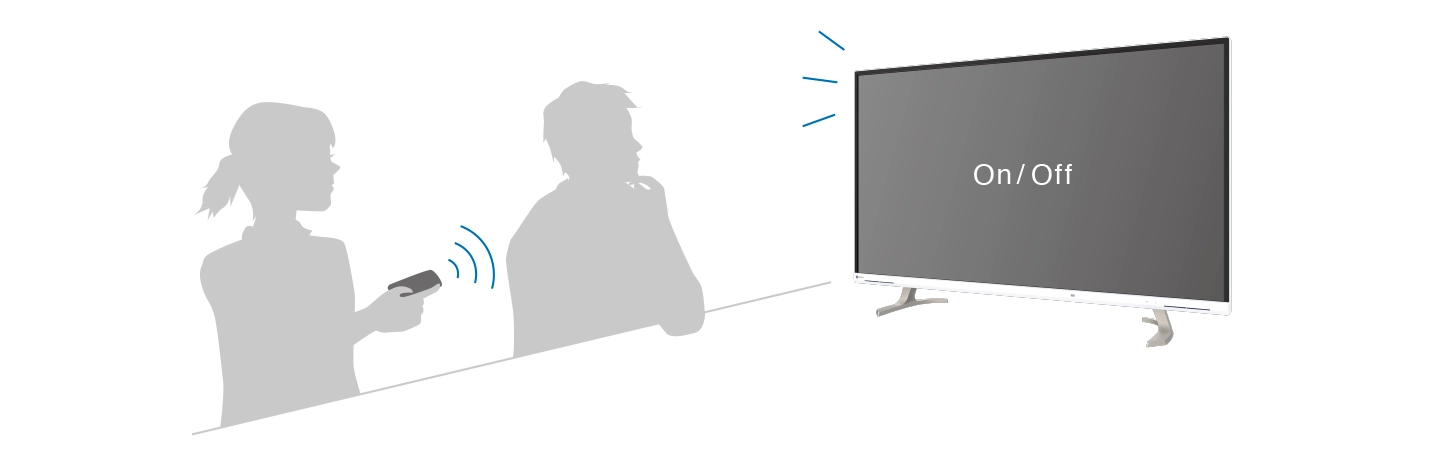

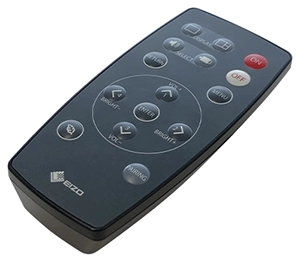

Remote Control for Easy Operation

remote control operationThe included remote control can be used to control volume, brightness, display input, PbyP, and other settings, as well as to turn the monitor on and off. This is useful when the user cannot reach the buttons on the front of the monitor, such as in wall-mounted installations.

remote control operation

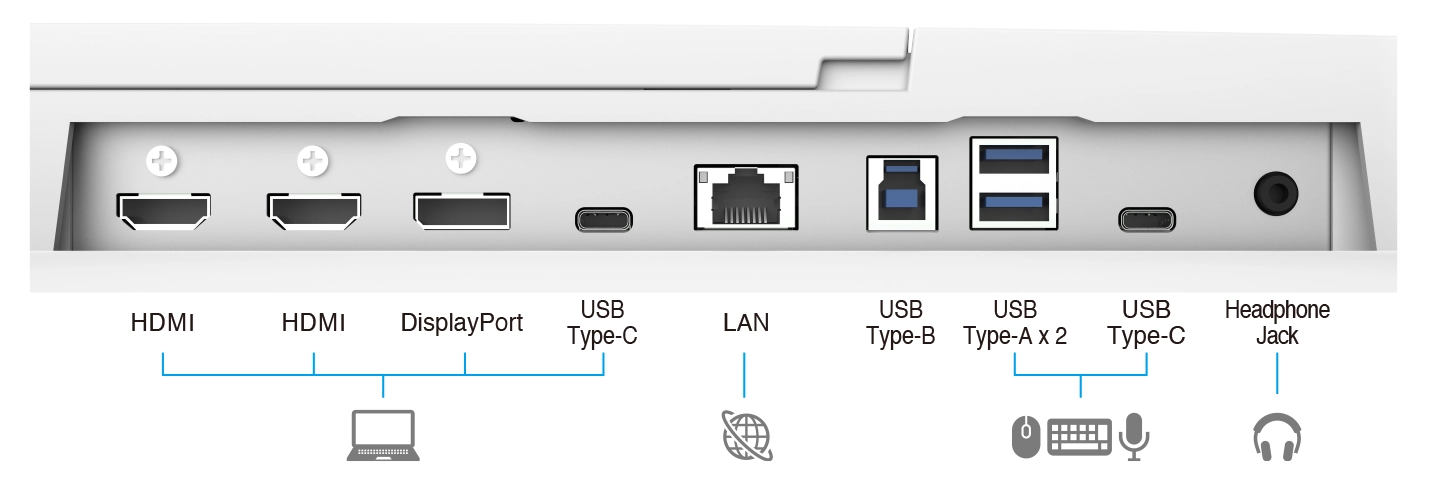

Connectivity and Flexibility

The monitor is equipped with a USB Type-C, DisplayPort, and two HDMI® ports for easily connecting to multiple devices, making it convenient for hot desking and meeting spaces.

Terminal







Aesthetically Pleasing Design

The monitor's slim bezel design embraces minimalism for an immersive experience.

Pleasing Design

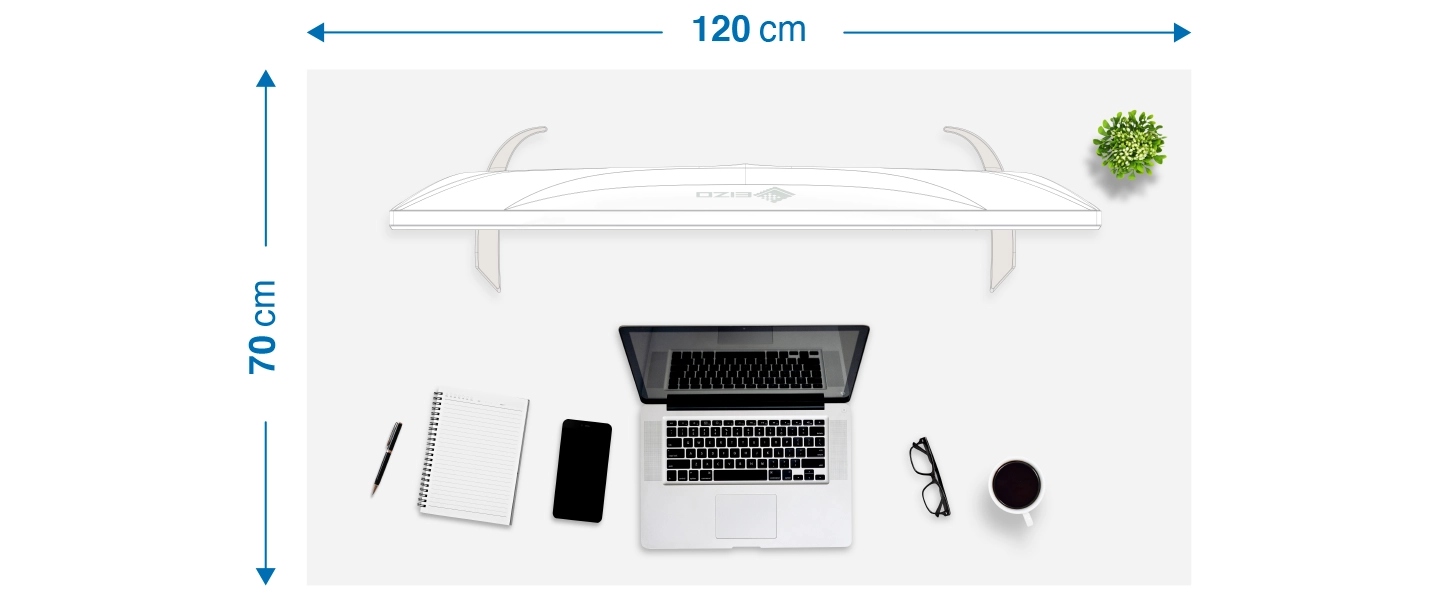

Slim Design with Open Atmosphere

The monitor's slim design allows you to maximize desk space while enjoying the spaciousness of the large screen. At 96.6 cm wide and 22.5 cm deep, it fits neatly on most standard-sized office desks (e.g. 120 cm wide, 70 cm depth). It is also easier to install than multiple monitors and uses fewer cables to keep your workspace tidy.

Slim



Color Coordination to Suit Your Workspace

The monitor cabinet is available in white or black. You can choose white for a bright and inviting tone, or black for a chic and relaxed tone.

Color Coordination





Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
Supported Browsers:
Safari, Chrome

Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
ARCore supported Android devices
Supported Browsers:
Chrome

Scan the code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
ARCore supported Android devices
Supported Browsers:
Safari, Chrome







Say Goodbye to Tired Eyes

The monitor is packed with features to help users focus on their work by keeping their eyes comfortable throughout the day.

Tired Eyes

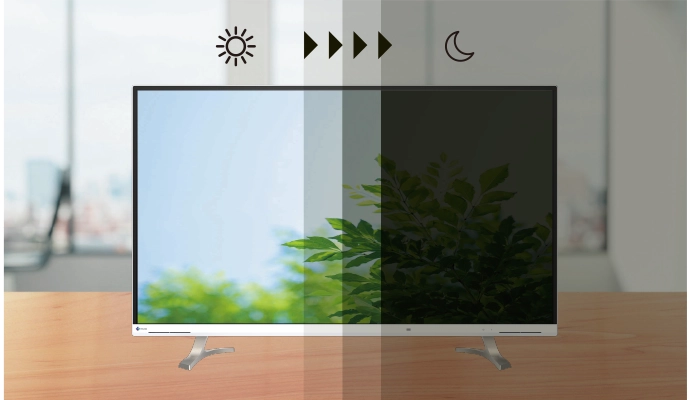

Auto Brightness Control

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.



Auto Brightness Control

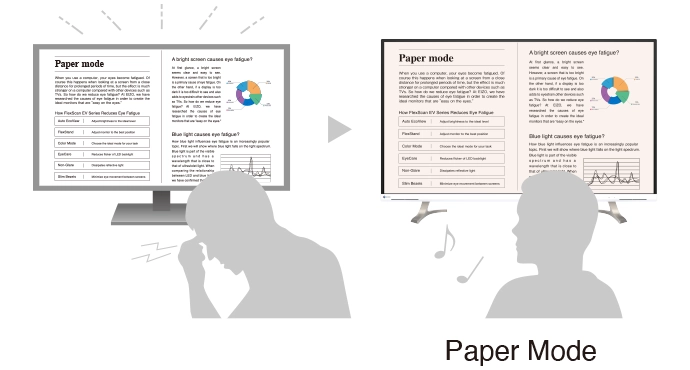

Reduce Blue Light by 80%

Printing work-related documents is becoming less common with the rise of home offices, telecommuting and tighter security measures. Paper Mode reduces the amount of blue light emitted from the monitor, helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView auto-dimming function, blue light is reduced by up to 80%.

Paper mode

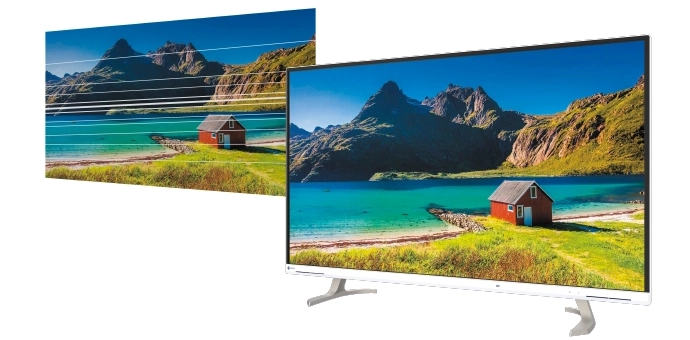

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, some people experience flicker on the screen, causing eye fatigue. The monitor uses a hybrid solution to regulate brightness and eliminate perceived flicker without compromising color stability, even at low brightness settings.

Flicker Free

Minimum Brightness of 1 cd/m2

In a dimly lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m², which is less than 1% of the maximum.

Paper mode

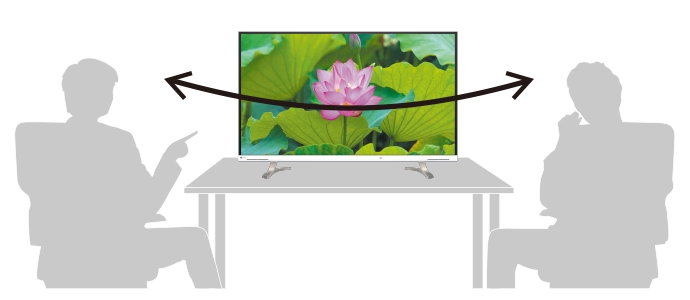

Clear View

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with a wide viewing angle, providing high visibility even when used by multiple people in a meeting.

IPS

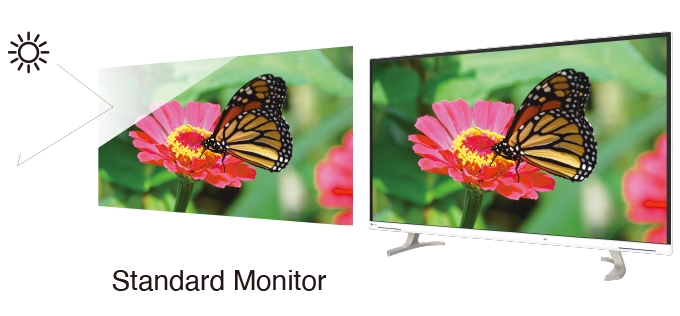

Glare Reduction

The panel is treated with an anti-glare coating to reduce screen reflections caused by ambient light. This makes the screen easier to see and helps reduce eye fatigue.

Anti Glare

Read more about how to combat eye fatigue







Intelligent Software to Work Better

EIZO’s Screen InStyle is a free software that allows you to easily manage monitor settings by using your mouse instead of monitor control buttons.

Screen InStyle logo

Learn more about Screen InStyle

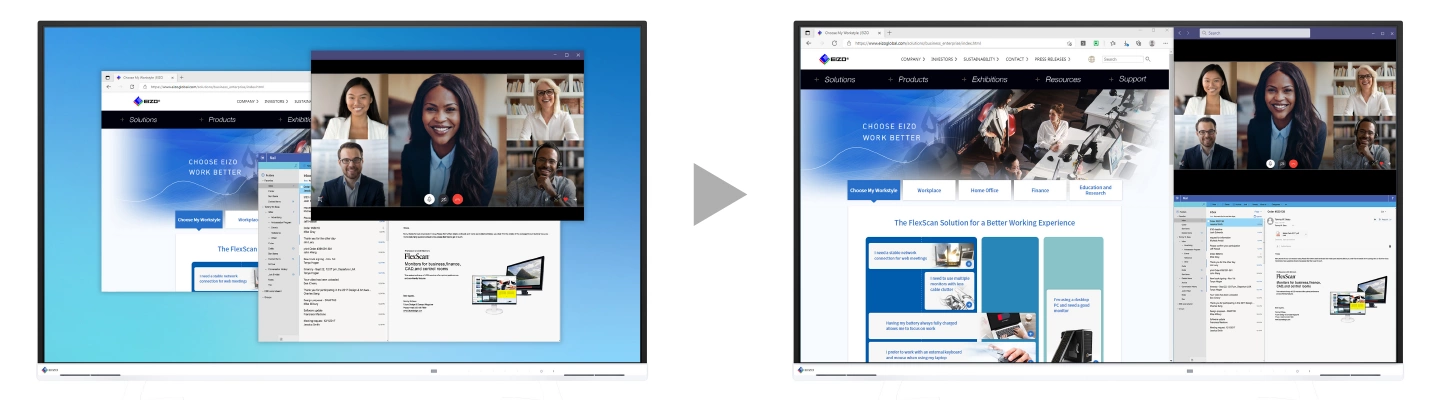

Organize Your Desktop to for Greater Efficiency

EIZO's free Screen InStyle software's Screen Layout function allows you to divide the desktop and arrange each program's window neatly across the screen to help you work smart and efficiently.

This function differs from Picture-by-Picture function.

Screen InStyle







Commitment to Quality

EIZO manufactures its products at its own facilities to closely control production quality.

Care for the Environment



Integrated Approach

Each FlexScan monitor is developed, manufactured, and quality tested in-house at EIZO's own factory to ensure each monitor is built to last.

Find out how and where FlexScan monitors are made.

support



5-Year Warranty

5-year warrantyFlexScan monitors are backed by a standard 5-year manufacturer's  warranty that covers all components, including the LCD panel*. This extensive warranty period is two years longer than the standard warranty of most conventional monitors. EIZO's 5-year manufacturer's warranty contributes to significantly lower product life cycle costs.

* Usage time is limited to 30,000 hours.







Care for the Environment and You

Achieving a sustainable society where we do not harm to the environment or waste precious resources is an important initiative for businesses and communities. FlexScan Sustainable Monitors are at the forefront of EIZO's efforts to contribute to this sustainable future.

Read more about Sustainable Monitor

Sustainability bnr



Conserve to Preserve

The monitor is made of more than 75% recycled plastic. This reduces the amount of plastic waste entering the environment, conserves resources, and promotes the reuse of materials to preserve our natural ecosystems.

Sustainable Monitor



Cushioning Environmental Impact

FlexScan Sustainable Monitors are moving away from using plastic and styrofoam in the packaging to reduce environmental impact. The monitors are safely packed using molded pulp, which is made from recycled cardboard and newspaper.

Molded-Pulp



Effortlessly Save on Power Consumption

The Auto EcoView function automatically adjusts the screen’s brightness according to changes in the ambient light. The EcoView Optimizer 2 function fine-tunes the balance between brightness and gain according to the content displayed on the screen. These proprietary EcoView technologies cut power consumption by as much as 50%* compared to displaying at maximum brightness.

*Typical power consumption when not using USB power delivery.

EcoView



Certified Sustainable

The monitor is certified to worldwide comprehensive sustainability standards including EnergyStar. In addition, the monitor is registered at EPEAT Silver and has attained the new EPEAT Climate+ designation for compliance with climate change standards. Organizations concerned with ESG (environmental, social, and governance) investments or SDGs can assuredly procure the monitor to meet required guidelines.

 EnergyStar EPEAT Climate+ Silver








Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Environmentally Conscious
FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system.

SDGs 07SDGs 12SDGs 13

Higher Work Efficiency
FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue.

SDGs 08
Model Variations EV4340X-BK: with Stand, black
EV4340X-WT: with Stand, white
EV4340X-FBK: without stand, black
EV4340X-FWT: without stand, white

Note: Stand is removable
Note: Screwdriver is needed to attach or detach stand.
Panel
Type IPS
Backlight LED
Size 42.5" (108.0 cm)
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 941.2 x 529.4 mm
Pixel Pitch (H x V) 0.245 x 0.245 mm
Pixel Density 104 ppi
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 5 ms (gray-to-gray)
Color Gamut (typical) sRGB
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode, HDCP 2.3 / 1.3), DisplayPort (HDCP 2.3 / 1.3), HDMI (HDCP 2.3 / 1.4) x 2
Digital Scanning Frequency (H / V) USB Type-C: 31 - 134 kHz / 29 - 61 Hz
DisplayPort: 31 - 134 kHz / 29 - 61 Hz
HDMI: 31 - 135 kHz / 29 - 61 Hz
USB
Upstream USB 5Gbps: Type-B,
USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.)
Downstream USB 5Gbps: Type-A x 2,
USB 5Gbps: Type-C (Type-C Current, 15 W max.)
USB LAN Adapter RJ-45 (1000BASE-T)
Windows 11, Windows 10 (64-bit, 32-bit), macOS Sierra (10.12) or later
Audio
Speakers 4.0 W + 4.0 W
Input Terminals USB Type-C, DisplayPort, HDMI x 2
Output Terminals Headphones (Stereo mini jack)
Power
Power Input AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 31 W
Maximum Power Consumption 243 W
Power Save Mode 0.4 W
Features & Functions
Preset Modes User1, User2, sRGB, Paper, Movie, DICOM
Simultaneous Display Picture by Picture (2 PbyP, 3 PbyP, 4PbyP), Picture in Picture (PinP)
Automatic Brightness Control Auto EcoView
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 966.8 x 631 x 225.2 mm
Dimensions (Without Stand, W x H x D) 966.8 x 571 x 89.9 mm
Net Weight 15.9 kg
Net Weight (Without Stand) 15.2 kg
Hole Spacing (VESA Standard) 100 x 100 mm, 200 x 200 mm
Environmental Requirements
Operating Temperature 5 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) EPEAT Silver with Climate+, TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC
Dedicated Software
Monitor Control Utility Screen InStyle Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (2 m), DisplayPort (2 m)
Others EV4340X: AC power cord (2 m), USB Type-A - USB Type-B cable (2 m), remote control, VESA cover, stand (L, R), stand mounting screw x 4, setup guide

EV4340X-F: AC power cord (2 m), USB Type-A - USB Type-B cable (2 m), remote control, setup guide
Warranty 5 Years
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
  3. 16  EPEAT registration varies by country. Please check https://www.epeat.net for registration status.
