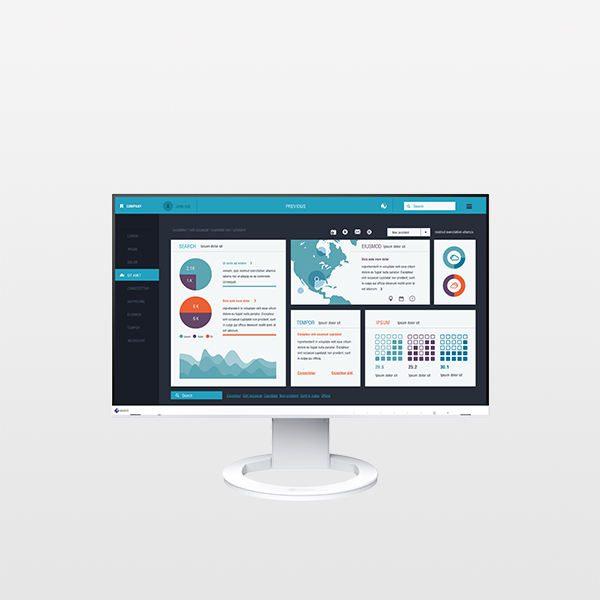

FlexScan EV2490
23.8" Color LCD monitor
Get Connected. Get Started.
The 23.8-inch EV2490 is a Full HD (1920 x 1080 pixels) USB Type-C docking monitor with LAN and daisy chain capability for increased productivity at the office or at home.
  • Contact EIZO
  • AR Visualization
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories
  • Awards & Reviews

See FlexScan Premium Monitor Features in Action



Streamlined Connection with USB Type-C

The monitor is equipped with a USB Type-C® connection that allows you display video, playback audio, transmit USB signals, supply power to connected PCs, and even transmit a network signal. This convenient multi-purpose connectivity makes it faster and easier to connect your laptop when moving between workstations or working away from the office.

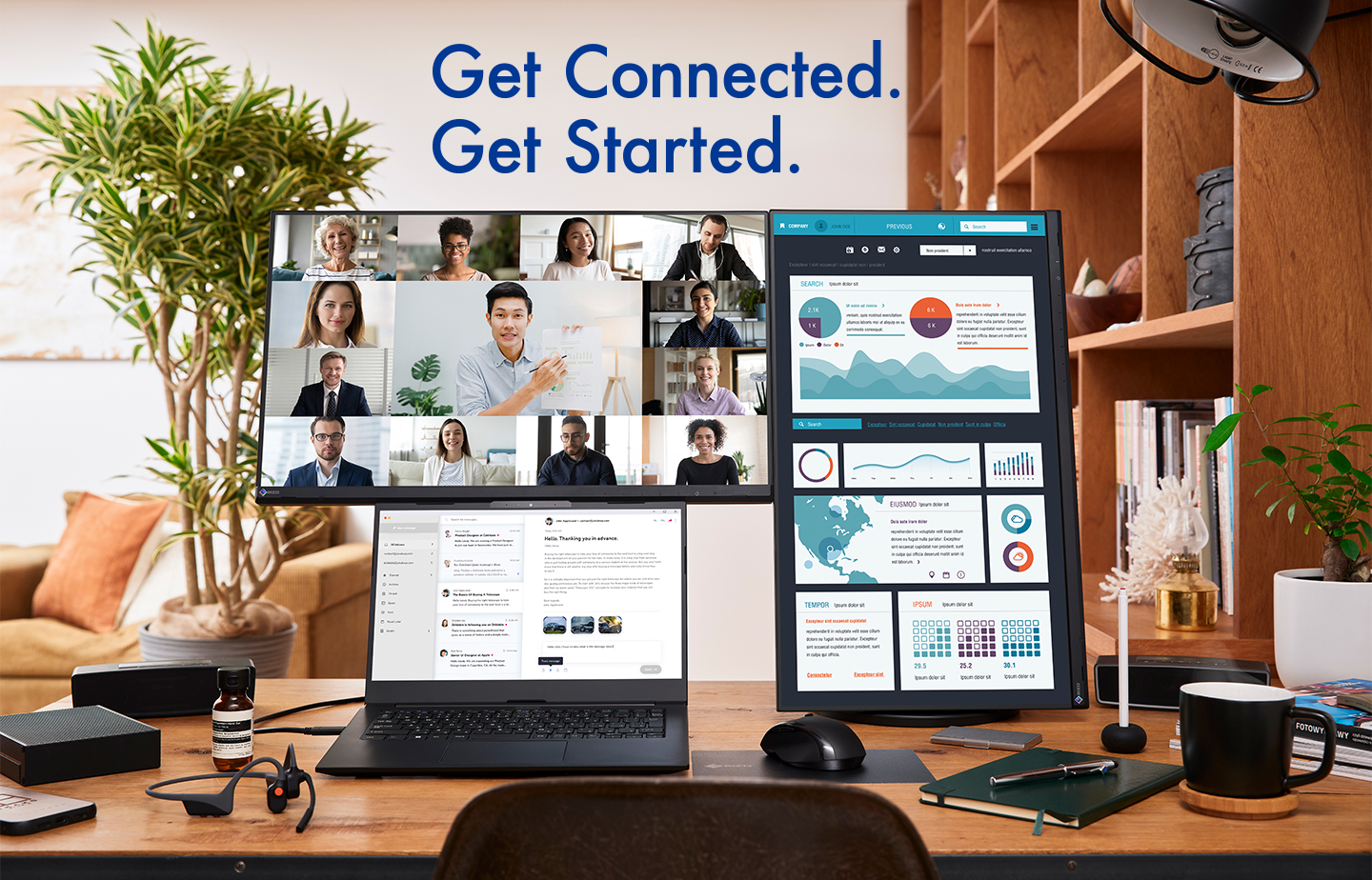

Streamlined Connection with USB Type-C. Get Connected. Get Started.


70 Watt Power Delivery

The 70 watt power delivery via USB Type-C reliably charges small desktop PCs or laptops. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.

70 Watt Power Delivery





Stable Network Connection

While many modern laptops are not equipped with a dedicated LAN port, the monitor has one directly built in for a stable wired connection. Connecting any laptop via USB Type-C allows access to the network through the monitor. This allows you to conduct online conference calls or data transfers reliably and at high speed.
  LAN image


EIZO MAC Address Clone Utility software temporarily assigns the MAC address of a connected PC to the monitor, granting network access to authenticated devices, and preventing network access from unauthenticated devices.

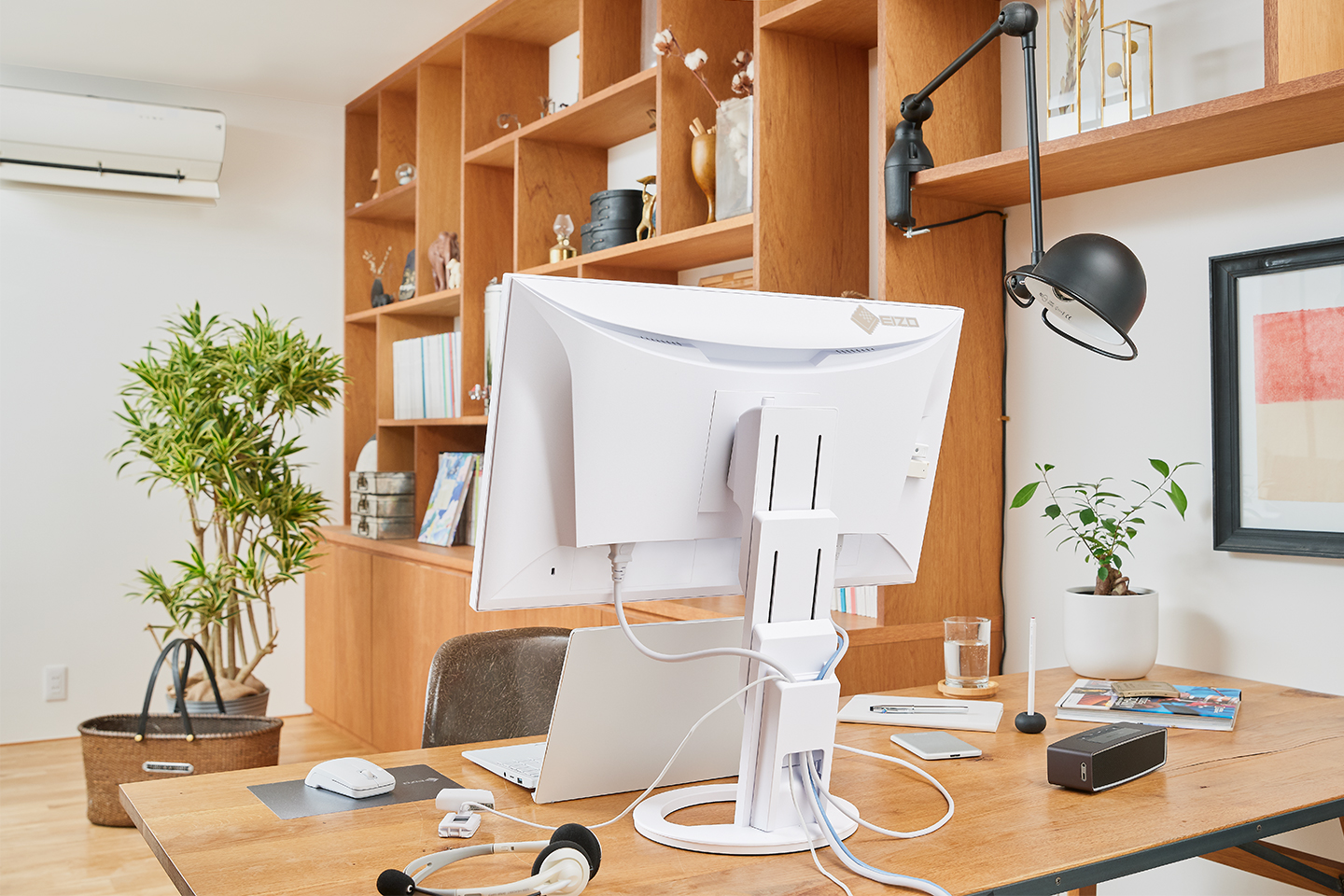

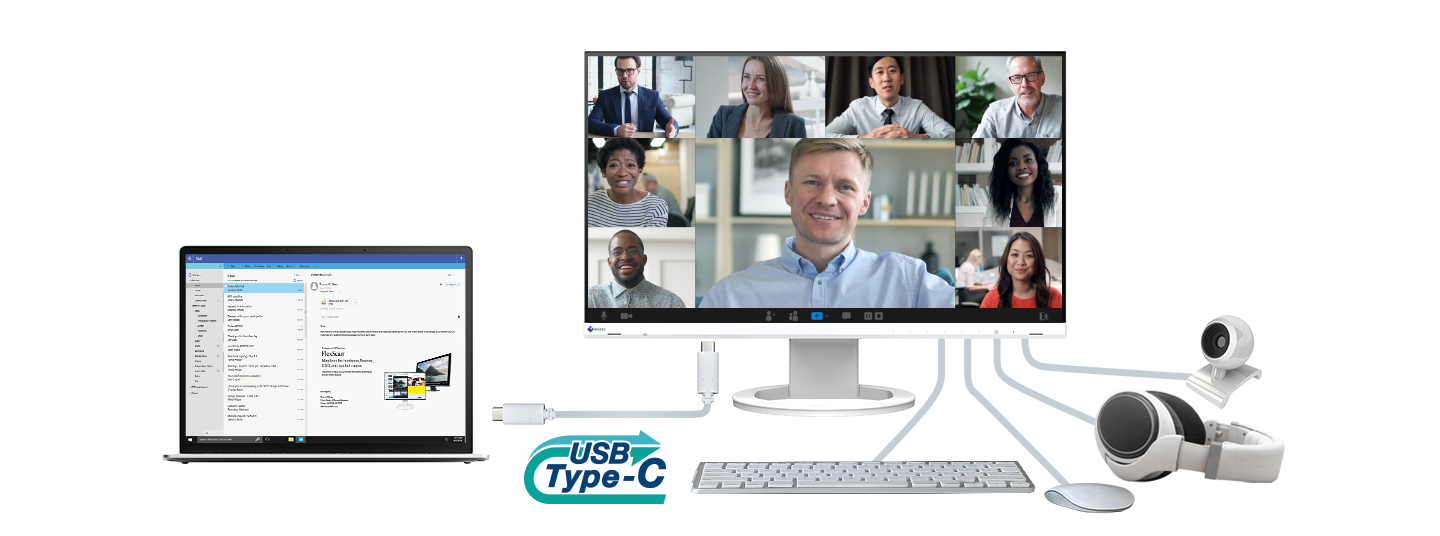

Connect Peripherals Directly Into the Monitor



Directly Connect Peripherals

While many modern laptops are designed to be thin and more portable, they often have limited connectivity options for peripherals. Connecting to the monitor via USB Type-C gives access to a hub with three USB Type-A and one USB Type-C ports for easily connecting an external keyboard, mouse, or web camera.

The USB Type-C port cannot be used as a USB hub when used for daisy chain connection.

Directly Connect Peripherals

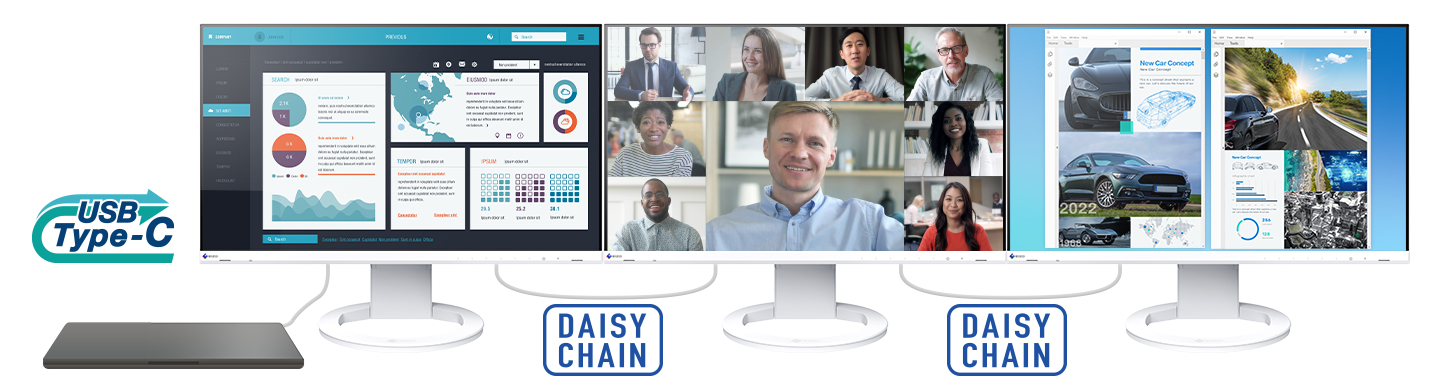

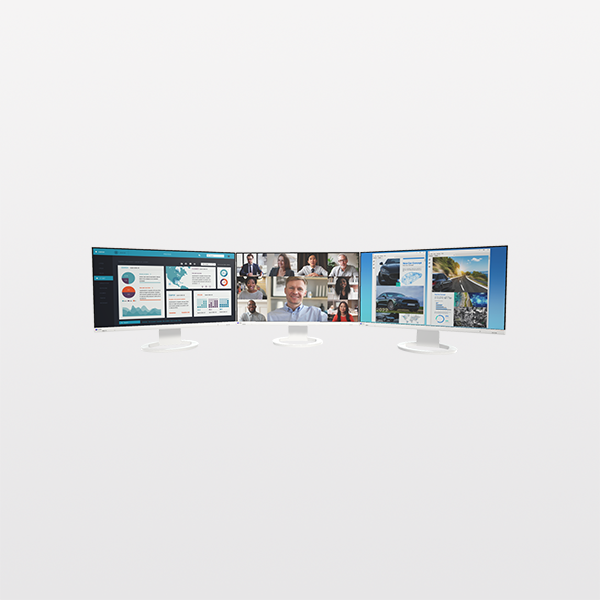

Efficient Multi-Screen Setup

The monitor's USB Type-C connection supports daisy chaining for easily connecting multiple monitors from a single video signal output. This allows you to effortlessly connect up to four screens.

When using multiple applications, such as Outlook, Excel, or web conference on a laptop with a small screen,  the windows overlap, often requiring you to switch between them. With multiple monitors, you can have large enough screen to display multiple applications simultaneously, allowing you to boost work efficiency.

Efficient Multi-Screen Setup



questionWhat do I need to know about Daisy Chaining?  Daisy Chain

Learn how to connect monitors in a daisy chain in this easy guide. It covers the basics of daisy chain technology and how to set up your monitors for a clean and efficient environment.

Rest Assured with Compatibility Testing  compatibility.jpg

EIZO tests its monitors with modern PCs on the market to ensure they can support a daisy chain environment. See more on our compatibility page.






Convenient Connection and Comfortable to Use

The monitor makes connection to a PC convenient and includes various features and functions for working more comfortably.

Convenient Connection and Comfortable to Use



Multiple Connectivity and Flexibility

The monitor is equipped with USB Type-C, DisplayPort, and HDMI® video inputs for flexible connection. It is convenient for use in offices that have a free address system, where employees do not have fixed seats and can freely use any available seat to work, or in open spaces where participants can bring their own laptops to meetings.

Multiple Connectivity and Flexibility

Improve Work Efficiency

The monitor is equipped with a 23.8-inch IPS panel with Full HD (1920 x 1080 pixels) resolution. When connected to a laptop, for example, the total available screen area is about three times that of a 14-inch laptop. This improves efficiency  by allowing you to display more information at once instead of needing to frequently switch windows.

Improve Work Efficiency



Comfortably Fits in Modest Workspaces

The monitor features a space-saving design with a width of 537.8 mm and a depth of 230 mm. With its small footprint, it fits neatly into even the most modest workspaces or home offices to save more desk space. In addition, the stand has a wide adjustable range of 191.2 mm, allowing you to comfortably place a laptop under the monitor for a quick and compact multi-screen configuration.

Comfortably Fits in Modest Workspaces

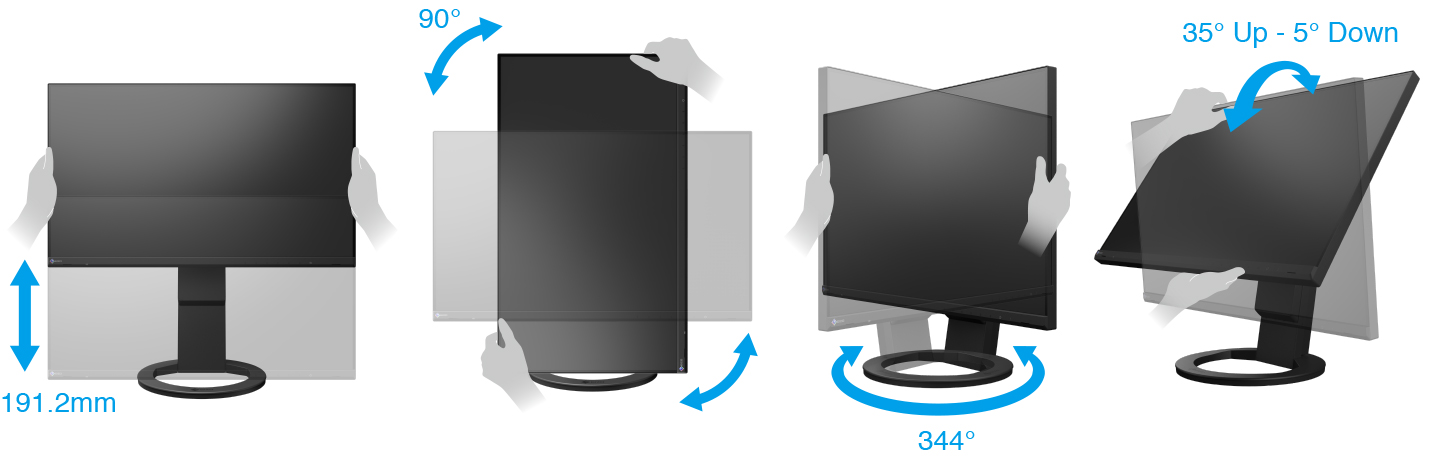

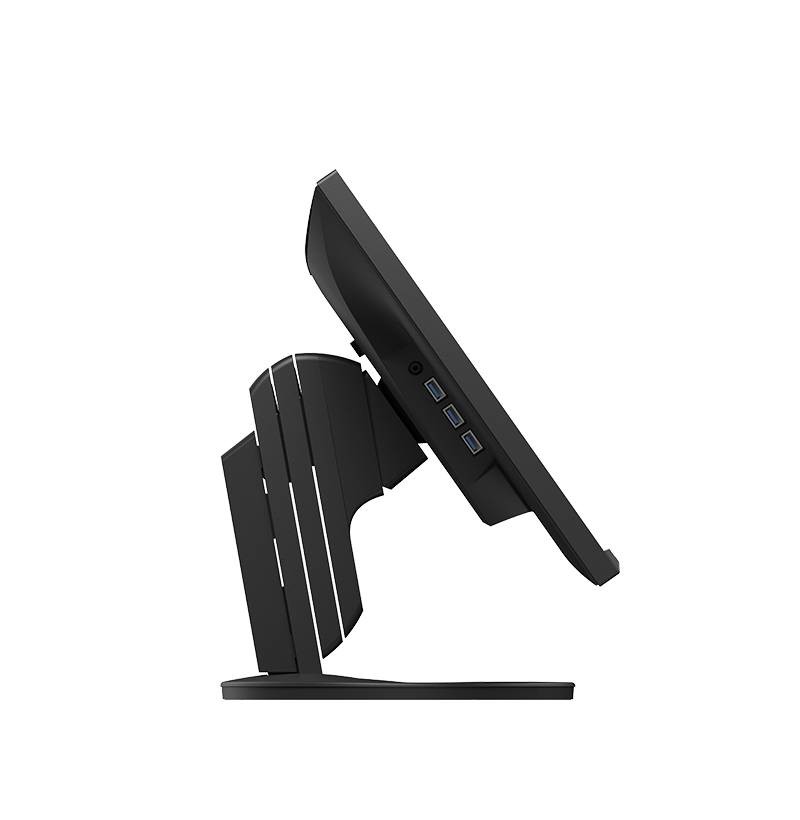

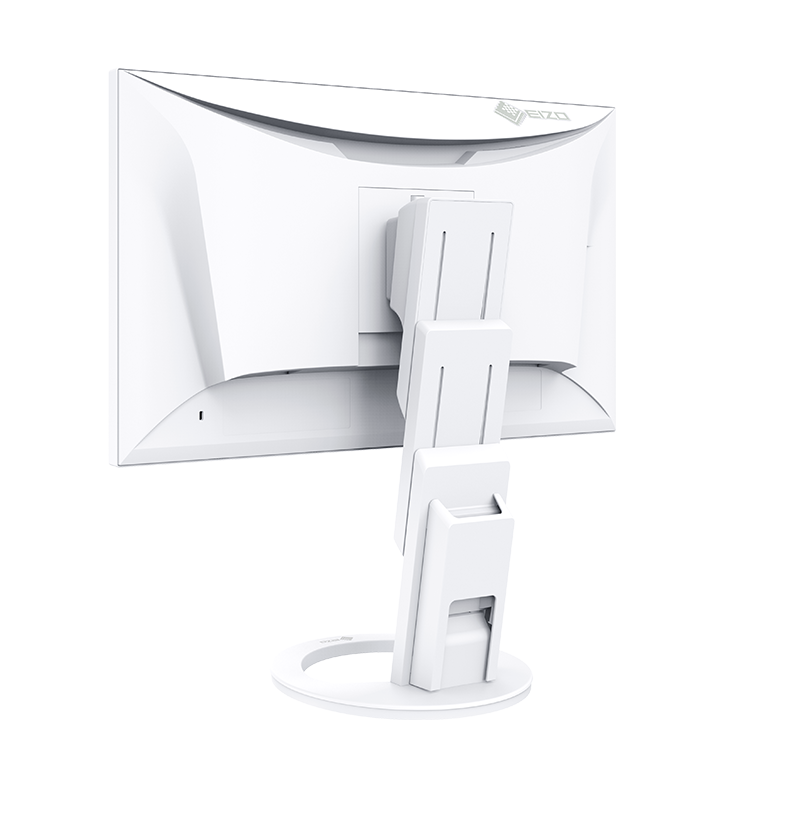

Versatile Stand for Optimal Positioning

The stand has a wide adjustment range, featuring height adjustment, tilt and swivel. This allows you to set the monitor to the perfect position, whether sitting or standing at your desk.

Versatile Stand for Optimal Positioning

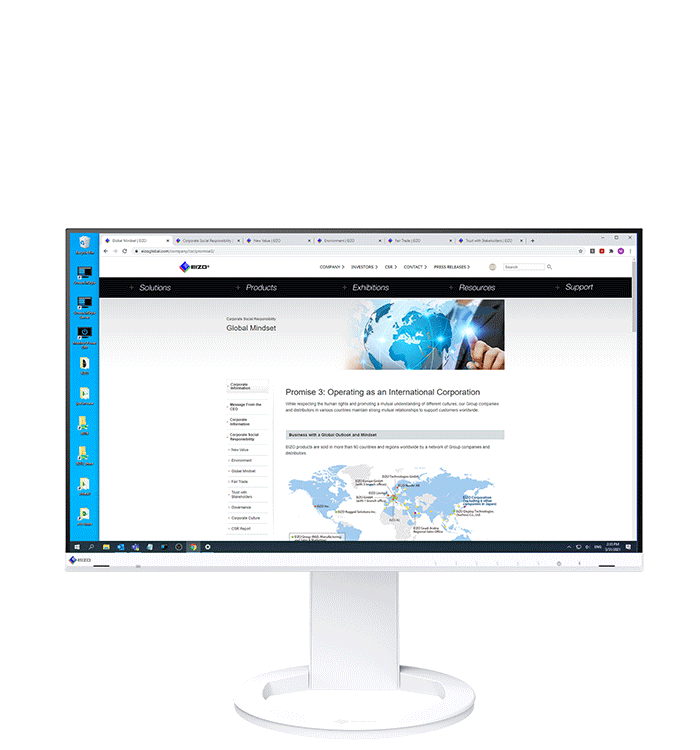

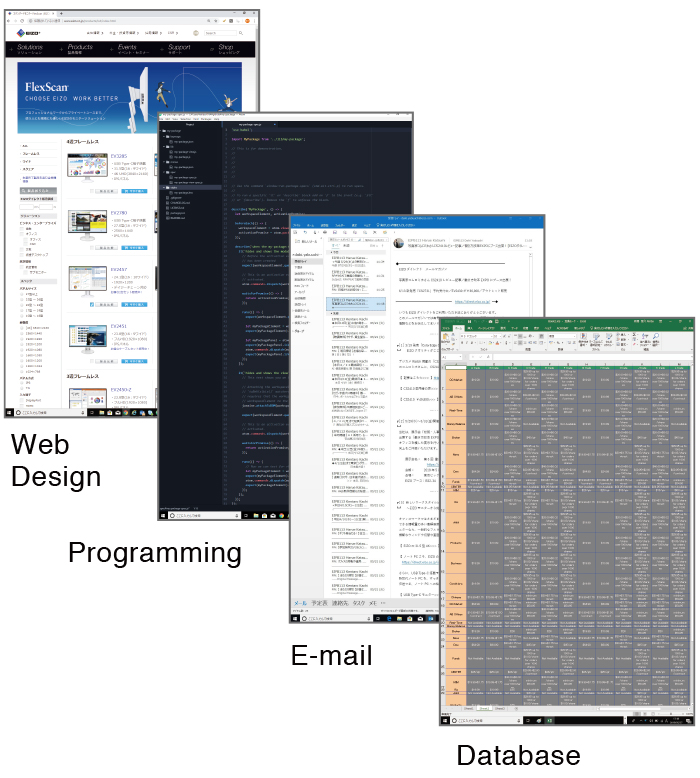

Portrait Mode for Vertical Viewing

The versatile stand allows you to rotate the monitor to portrait mode for reading long text documents or vertically optimized webpages and applications.

Portrait Mode for Vertical Viewing   Portrait Mode for Vertical Viewing

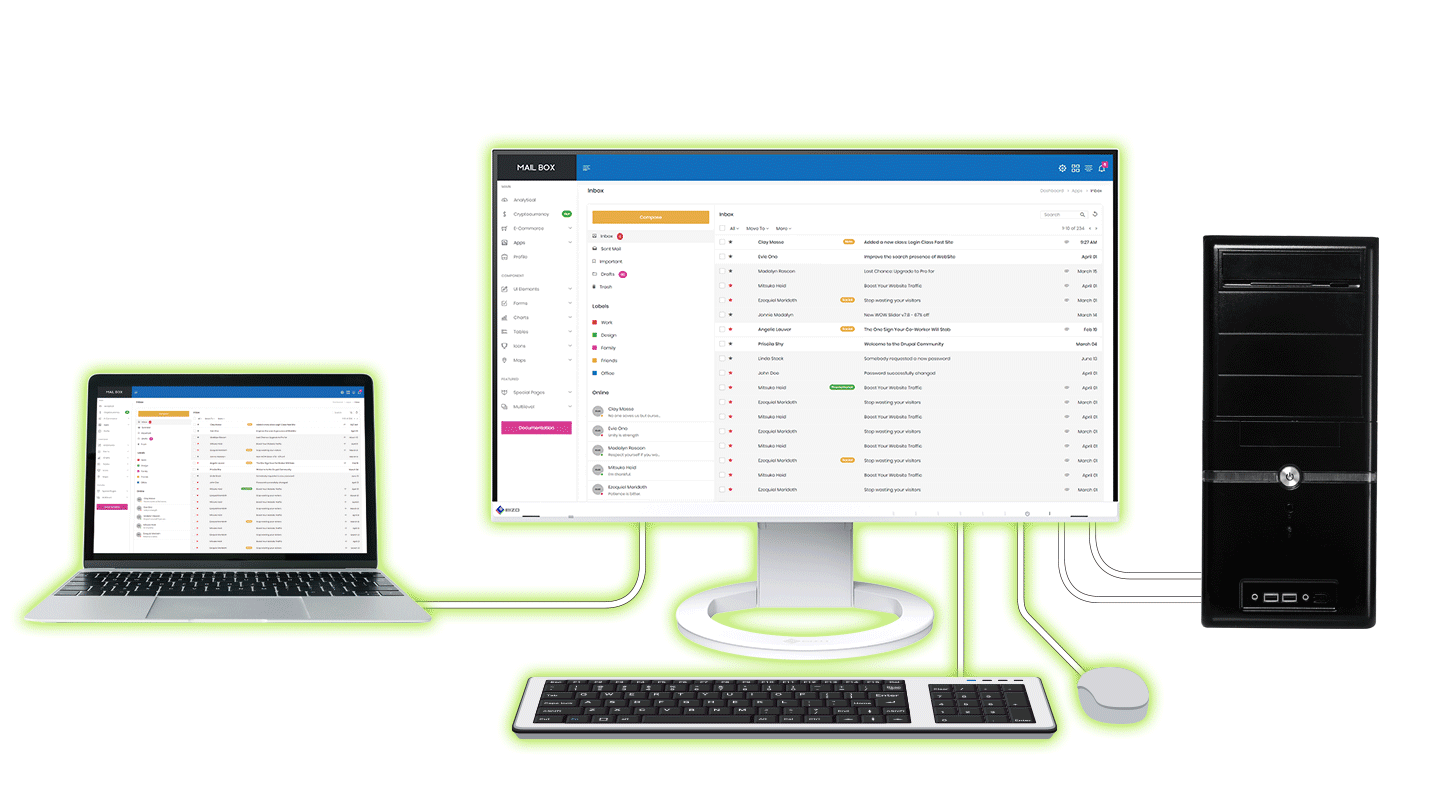

Built-In KVM Switch for Multiple PC Operation

The monitor's USB Type-B and Type-C upstream ports have a built-in KVM function, allowing users to use a single mouse and keyboard for up to two connected PCs for an even cleaner workspace. Furthermore, the peripherals connected to the monitor's USB hub and its network connection switch to the selected PC for a smooth operation on the selected computer.

Built-In KVM Switch for Multiple PC Operation

Streamlined Mouse Operation

The Mouse Point Utility function of EIZO's free Screen InStyle software provides an easy-to-see visual indicator that helps you quickly locate the cursor. It also allows you to move the cursor freely between monitors without the barrier typical of conventional multi-monitor setups.

Streamlined Mouse Operation

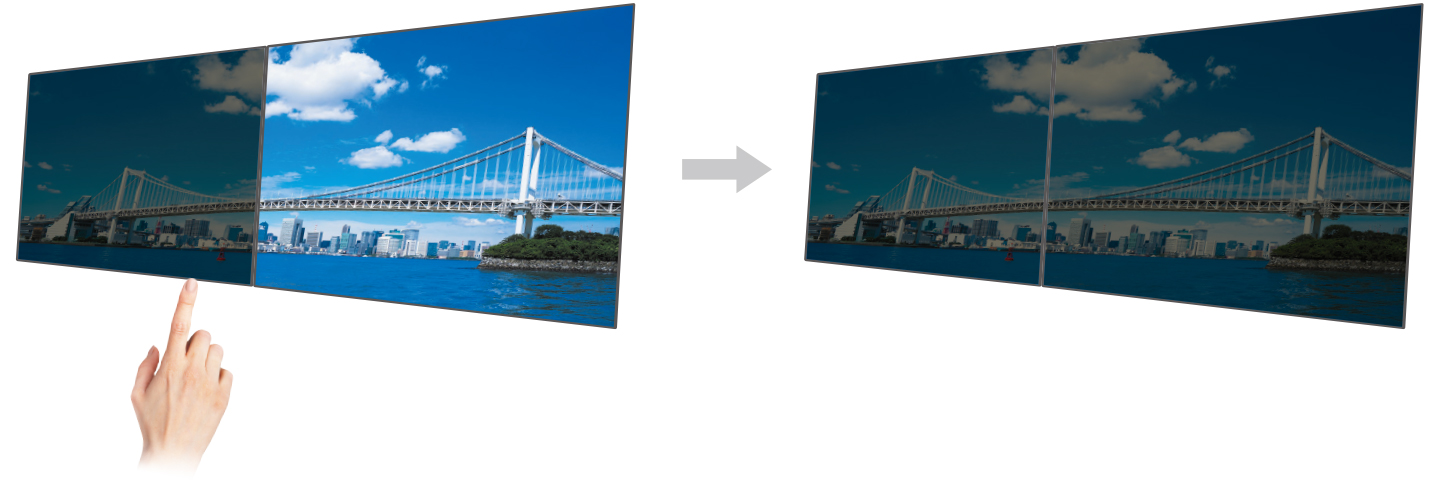

Synchronize Screen Adjustments

Screen InStyle will apply any color adjustments you make to one monitor to the others on your desktop for consistent color across all screens. In addition, any changes detected by the brightness sensor of one monitor you assign will be applied uniformly to your other monitors. Furthermore, when daisy chaining multiple monitor monitors with USB Type-C, changes are conveniently reflected on all connected monitors automatically.   Screen InStyle Monitor Control Utility

Screen InStyle


Screen InStyle also has convenient functions for switching to your preferred display mode by active application and  functions for managing multiple monitors from one location.




Aesthetically Pleasing Design

A monitor's aesthetic can go a long way in creating a more comfortable atmosphere. The monitor's minimalistic design and its ergonomic functions allow it to fit naturally in your work environment, whether you are in the office or at home.



Aesthetically Pleasing Design

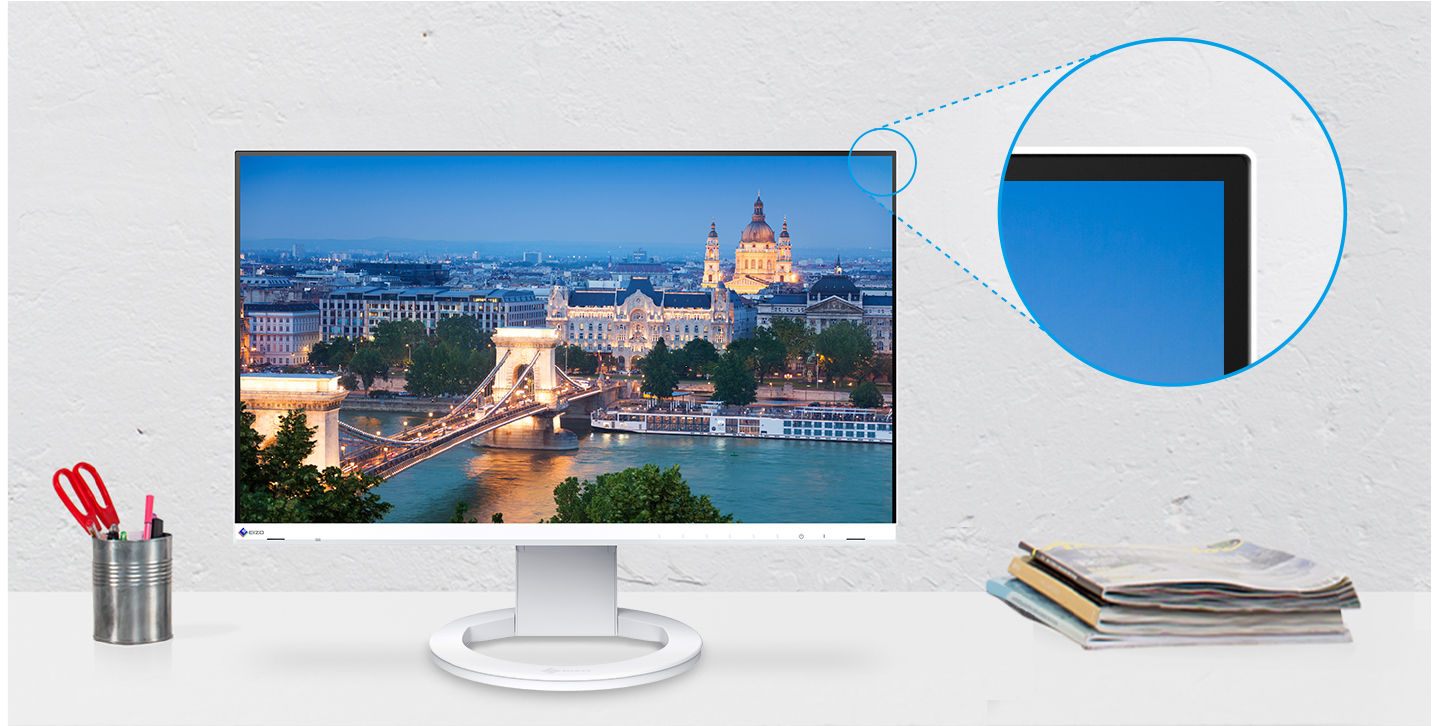

Bezels that are Barely There

The monitor implements a virtually frameless design for a minimalistic aesthetic. There is very little distance between the display area and the bezels, making the monitor easy to blend in with the environment.

Bezels that are Barely There


Color Coordination

Monitor cabinet is available in white or black and the aesthetically-pleasing design of the monitor extends to the stand and the cables. You can choose white for offices with a bright and gentle atmosphere, and black for offices with a chic and relaxed atmosphere.

Black model / White model



Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
Supported Browsers:
Safari, Chrome

Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
ARCore supported Android devices
Supported Browsers:
Chrome

Scan the code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
ARCore supported Android devices
Supported Browsers:
Safari, Chrome

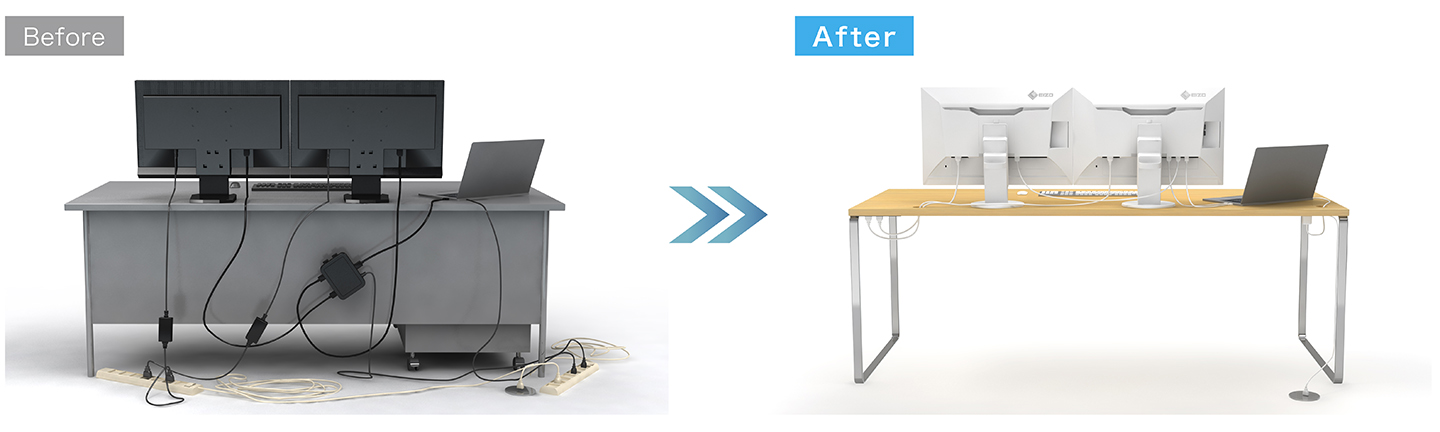

Reduce Cable Clutter with Daisy Chain

Cable management becomes easier with USB Type-C. Multiple monitors can be connected in a daisy chain using the short 1 meter cable, CC100, tidying up the back of your desk for an even cleaner office aesthetic.   CC100-BK / CC100-WT



Before / After

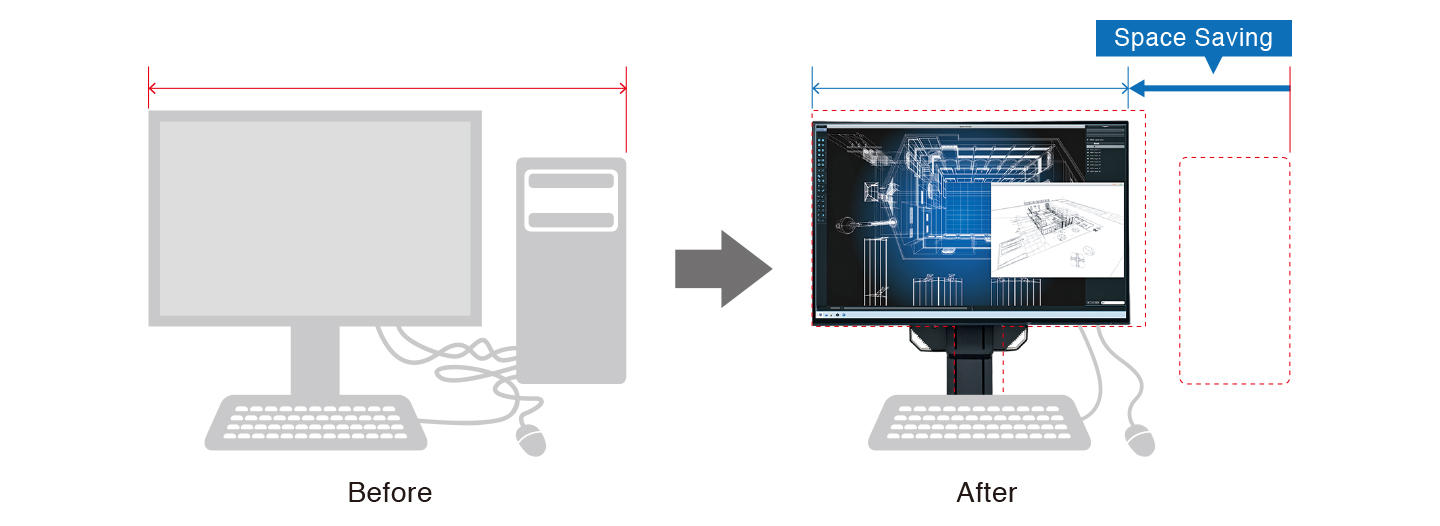

Free Up Your Workspace with a Stand Bracket

PCSH-03The PCSK-03 is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. You can adjust the monitor's stand freely even with the client terminal attached.

Learn more about stand bracket for mini PC



Free Up Your Workspace with a Stand Bracket





Say Goodbye to Tired Eyes

The monitor is equipped with functions to help users concentrate on work by keeping their eyes comfortable throughout the day.

Say Goodbye to Tired Eyes

Auto Brightness Control

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.



Auto Brightness Control

Clear View from All Angles

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.

Clear View from All Angles

Reduce Blue Light by 80%

Printing work-related documents is becoming less common due to the increase in home offices, telecommuting, and stricter security measures. Paper Mode reduces the amount of blue light emitted by the monitor, helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView dimming function, blue light is reduced by as much as 80%.


Reduce Blue Light by 80%

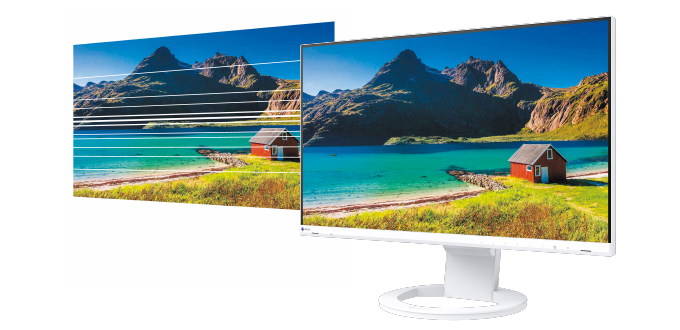

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The monitor utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.

Flicker-Free Viewing

Minimum Brightness of 1 cd/m2

In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m2 which is less than 1% of the maximum.

Minimum Brightness of Approximately 1 cd/m2

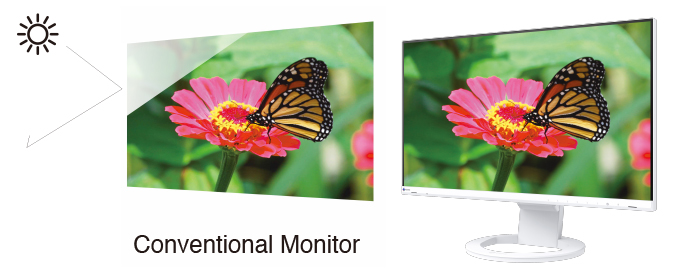

Non-Glare Panel

A non-glare panel reduces eye fatigue by dissipating reflective light that would otherwise make the screen difficult to view from different positions.


Anti-Glare Coating


Certified for Eye Care

FlexScan monitors are certified by TÜV Rheinland to have low blue light and be flicker-free.

How to Address Computer-Related Eye Fatigue




tuvrheinland logo

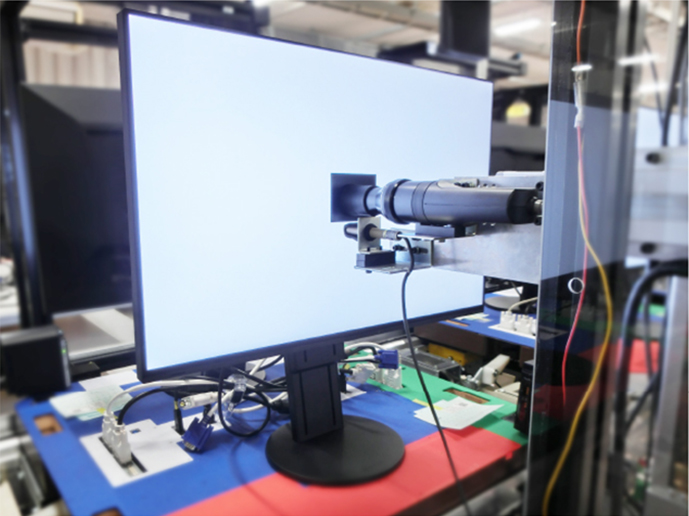

Commitment to Quality

EIZO manufacturers its products at its own factories to allow close control over production quality and ensure each monitor is built to last.
Commitment to Quality

Integrated Approach

Each FlexScan monitor is developed, manufactured, and quality-control tested in-house at EIZO's own factory to ensure every product is built to last.

Auto Brightness Control

Exceptional Image Reproduction

The monitor converts the data from an 8-bit input signal and selects the optimal gradations for smooth image display. Furthermore, each monitor is individually measured and adjusted at the factory prior to shipping for exceptional image quality out of the box.


Refreshing White with Frameless Design Refreshing White with Frameless Design



5-Year Warranty

FlexScan monitors are backed by a manufacturer's 5-year warranty that covers all components, including the LCD panel*. This is two years longer than the standard warranty of most conventional monitors, contributing to significantly lower product life cycle costs.
* Usage time is limited to 30,000 hours.





Zero Bright Pixels

EIZO guarantees its FlexScan monitors will be free from bright sub-pixels for six months from the date of purchase.
See our Bright Pixel Policy for details.
  Zero bright policy





Advanced Feature

Care for the Environment and You

Achieving a sustainable society where we do no harm to the environment nor waste precious resources is an important initiative for businesses and communities. FlexScan Sustainable Monitors are at the forefront of EIZO's efforts to contribute to this sustainable future.

Sustainable Monitor



Cushioning Environmental Impact

FlexScan Sustainable Monitors are moving away from using plastic and styrofoam in the packaging to reduce environmental impact. The monitors are safely packed using molded pulp, which is made from recycled cardboard and newspaper, and cables are wrapped in paper instead of plastic bags.

  Molded pulp

Cushioning Environmental Impact



Collective Environmental Consciousness

EIZO offers corporate customers a collective packaging option, where four monitors are packaged in a single box and four monitor stands are packaged separately, also in a single box. This reduces the total packaging materials used, improves loading efficiency during shipping, and streamlines unpacking and installation time.

Collective Environmental Consciousness



Effortlessly Save on Power Consumption

The Auto EcoView function automatically adjusts the screen’s brightness according to changes in the ambient lighting. The EcoView Optimizer 2 function fine-tunes the balance between brightness and gain according to the content displayed on the screen. These proprietary EcoView technologies cut power consumption by as much as 50%* compared to displaying at maximum brightness.

*Typical power consumption when not using USB power delivery.

Reduce Power Consumption



Certified Sustainable

The monitor is certified by worldwide comprehensive sustainability standards including TCO Certified Generation 10 and EnergyStar. Furthermore, the monitor is registered at EPEAT Gold (highest tier), indicating that it meets the most demanding set of criteria for sustainability, and has attained the new EPEAT Climate+ designation for compliance with climate change standards. Organizations concerned with ESG (environmental, social, and governance) investments or SDGs can assuredly procure the monitor to meet required guidelines.
TCO Certified GenerationEnergyStarEPEAT Climate+ Gold






Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Environmentally Conscious
FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system.

SDGs 07SDGs 12SDGs 13

Higher Work Efficiency
FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue.

SDGs 08



Choose My Workstyle

Model Variations EV2490-BK: with FlexStand, black
EV2490-WT: with FlexStand, white
EV2490-FBK: without stand, black
EV2490-FWT: without stand, white

Note: FlexStand is removable
Panel
Type IPS
Backlight LED
Size 23.8" (60.5 cm)
Native Resolution 1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V) 527 x 296.5 mm
Pixel Pitch (H x V) 0.275 x 0.275 mm
Pixel Density 93 ppi
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 250 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 5 ms (gray-to-gray)
Color Gamut (typical) sRGB
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (HDCP 1.4)
Output Terminals USB Type-C (daisy chain)
Digital Scanning Frequency (H / V) USB Type-C: 31 - 68 kHz / 59 - 61 Hz
DisplayPort: 31 - 68 kHz / 59 - 61 Hz
HDMI: 31 - 68 kHz / 49 - 51 Hz, 59 - 61 Hz
USB
Upstream USB 5Gbps: Type-B,
USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 70 W max.)
Downstream USB 5Gbps: Type-A x 3,
USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 15 W max.)
USB LAN Adapter RJ-45 (1000BASE-T)
Windows 11, Windows 10 (64-bit, 32-bit), macOS Sierra (10.12) or later
Audio
Speakers 1.0 W + 1.0 W
Input Terminals USB Type-C, DisplayPort, HDMI
Output Terminals Headphones (Stereo mini jack)
Power
Power Input AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 11 W
Maximum Power Consumption 155 W
Power Save Mode 0.5 W or less
Features & Functions
Preset Modes User1, User2, sRGB, Paper, Movie, DICOM
Automatic Brightness Control Auto EcoView
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 537.8 x 332.4 - 523.6 x 230 mm
Dimensions (Without Stand, W x H x D) 537.8 x 320.4 x 57.4 mm
Net Weight 7.2 kg
Net Weight (Without Stand) 4.5 kg
Height Adjustment Range 191.2 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90° (both clockwise and counter clockwise)
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) TCO Certified Generation 10, EPEAT Gold with Climate+, TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EAC
Dedicated Software
Monitor Control Utility Screen InStyle Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (2 m)
Others AC power cord (2 m), setup guide
Warranty 5 Years
Zero bright sub-pixels for six months from date of purchase.
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
  3. 16  EPEAT registration varies by country. Please check https://www.epeat.net for registration status.

Brochures

FlexScan Series 2024
10.1 MB

Download



Manuals

Languages

EV2490 User's manual English 2.15 MB PDF
EV2490 User's manual German 2.18 MB PDF
EV2490 User's manual French 2.2 MB PDF
EV2490 User's manual Russian 2.2 MB PDF
EV2490 User's manual Czech 2.35 MB PDF
EV2490 User's manual Chinese-Simplified 2.72 MB PDF
EV2490 User's manual Chinese-Traditional 2.77 MB PDF
EV2490 Setup guide English
German
French
Russian
Chinese-Simplified
Chinese-Traditional
1.49 MB PDF
Screen InStyle Server User's manual English 355 KB PDF
Screen InStyle Installation Guide English 200 KB PDF
LIMITED WARRANTY English
German
French
Russian
Chinese-Simplified
Chinese-Traditional
630 KB PDF

Compatibility

Date Subject
November 14, 2024 macOS Sequoia (15) and EIZO Software Compatibility
October 10, 2024 Microsoft Windows 11 and EIZO Software Compatibility
August 29, 2024 USB Type-C Equipped PCs and FlexScan Compatibility
July 2, 2024 Apple M1/M2/M3 series Chip Equipped Mac Computer and Monitor Compatibility
November 14, 2023 Compatibility Issue Causing External Monitor Flicker or Image Burn-In when Connected to Mac Computer with Apple M1/M2/M3 Series Chip
May 2, 2023 Microsoft Windows 10 and EIZO Software Compatibility
March 24, 2022 FlexScan EV2495 / EV2490 Daisy Chain Compatibility
March 24, 2022 Daisy Chain Setup Guide

Technical Information

September 5, 2024 How to switch the input signals by using hotkeys with two PCs [PDF]

Screen InStyle allows you to switch the input signals using the Hotkeys function. This document describes how to switch the input signals using hotkeys and how to configure Screen InStyle.

Arms
LA-011-W

35° up tilt and 180° swivel wide adjustment range

Mounting Bracket
PCSK-03

Dedicated bracket for attaching a client to the back of the FlexScan Frameless models

Mounting Bracket
VESAMP100

VESA mounting plate for attaching an IP decoding box to certain FlexScan monitors using VOP-01

Software
Screen InStyle (Windows)

- Monitor control utility
- Multi-monitor power management
- Blue light reduction

Software
Screen InStyle (macOS)

- Monitor control utility
- Multi-monitor power management
- Blue light reduction

Software
Screen InStyle Server

- Asset management and monitor control software
- Automatic acquisition of monitor and PC device information
- Collective adjustment of monitor color and power settings

Software
EIZO MAC Address Clone Utility

- Software to temporarily replace the MAC address of LAN port equipped EIZO monitor with the authenticated MAC address of a connected PC

Cable

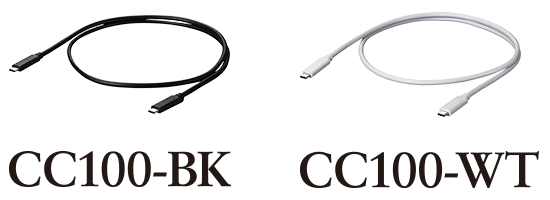

CC100

Short 1m USB Type-C Cable

Cable
CP200

2m USB Type‐C to DisplayPort Cable

Monitor Cleaning Kit
ScreenCleaner

- Keep your screen free from dust and fingerprints
- Includes pump spray and cloth

NikKTech   NikKTech
March 14, 2023
Golden Award

"That being said it’s clear from today's review that the FlexScan EV2490 is not your average 24” LCD screen, not only because of both its build and image quality but also its plethora of features. This means that its target audience is not casual consumers but professionals who place cost last and since for that segment of the market the EIZO FlexScan EV2490 might be a one way it certainly deserves the Golden Award."





  • likedin
  • facebook
  • X
  • youtube
  • Instagram
  • rss
