Digital and Analog Inputs

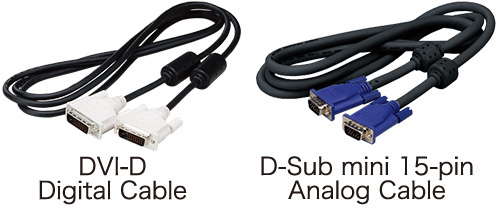

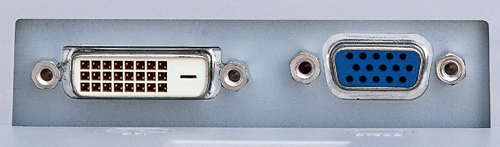

With both DVI-D and D-Sub mini 15-pin video signal inputs, you can use a computer that has either a digital or an analog output.
Clear View from Any Angle
The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at one computer can easily see the screen with high image quality.
Automatic Image Adjustment
The Self Adjustment function automatically adjusts the screen to suppress flicker and drift for analog input signals. Furthermore, the signal cables bundled with the monitor are developed to minimize noise.
Exceptional Image Reproduction
The monitor internally converts the data from an 8-bit input signal to select the optimal gradations for smooth image display. Each monitor is individually measured and adjusted at the factory prior to shipping for exceptional image quality out of the box.
Model Variation

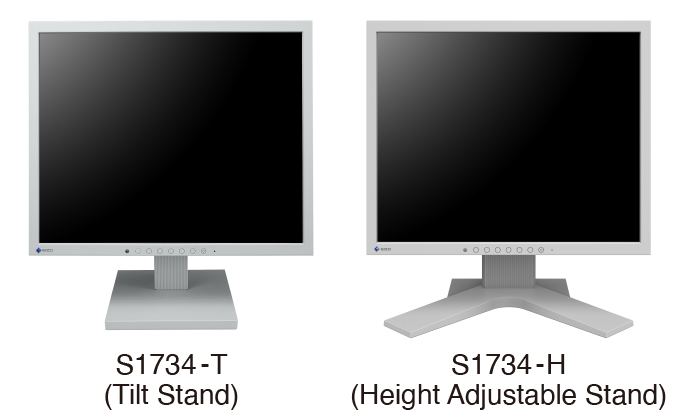

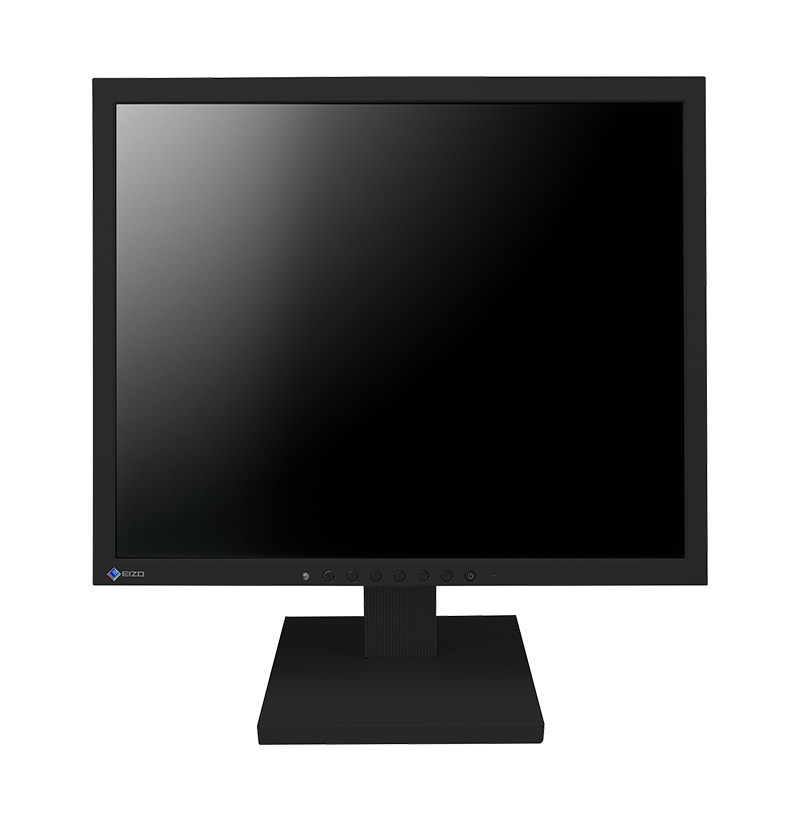

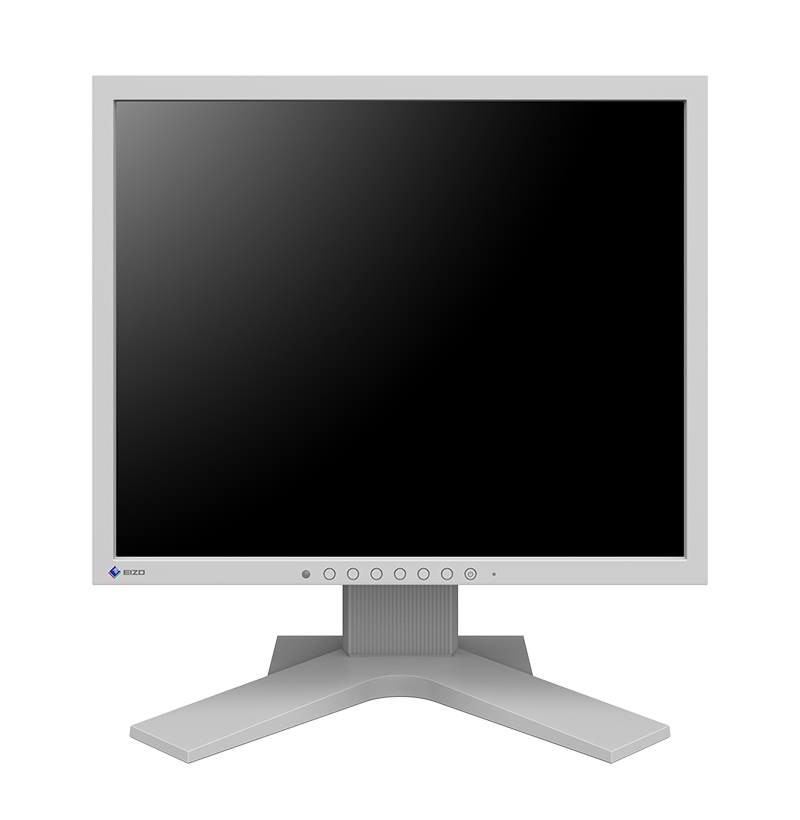

The monitor comes either with or without a stand to support a variety of installation environments. The tilt stand variation offers a compact base for workstations with limited space, while the height adjustment stand variation allows you to set the screen to the perfect position. The monitor also complies with VESA mounting standards for flexible installation without a stand.
Compliance with International Labels
The monitor meets the most stringent international labels for ergonomics and energy savings.
 |
 |
 |
Long-Term Supply
The S1734 is the successor to the S1703-A. This family of 17-inch monitors feature consistent housing and interfaces across each model, ensuring customers can rely on the lineup to suit their installation needs over the long life of their local systems.
Energy-Efficient for Low Carbon Footprint
The S1734 consumes just 6 watts of power (typical). This helps users to lower energy costs and contributes to a smaller carbon footprint, supporting sustainability efforts.
Auto Brightness Control

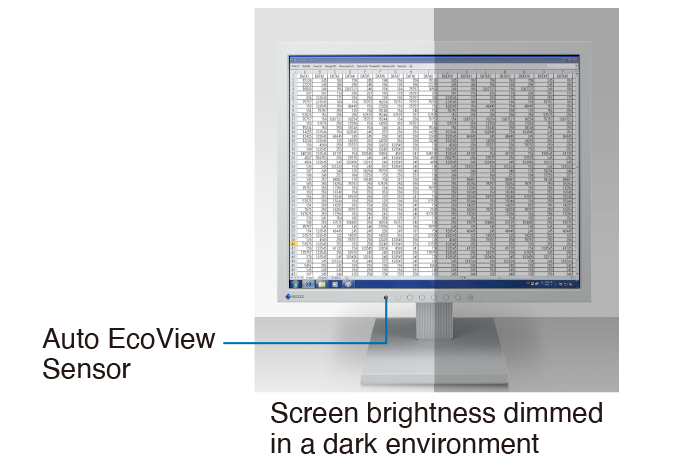

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.
Reduce Blue Light by 80%

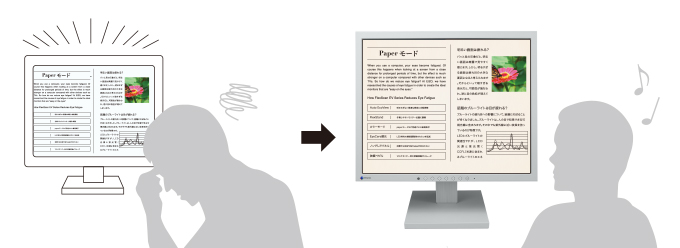

The monitor is equipped with Paper Mode which simulates the look of printed paper. Paper Mode reduces the amount of blue light emitted by the monitor, helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView dimming function, blue light is reduced by as much as 80%.
Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The monitor utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.

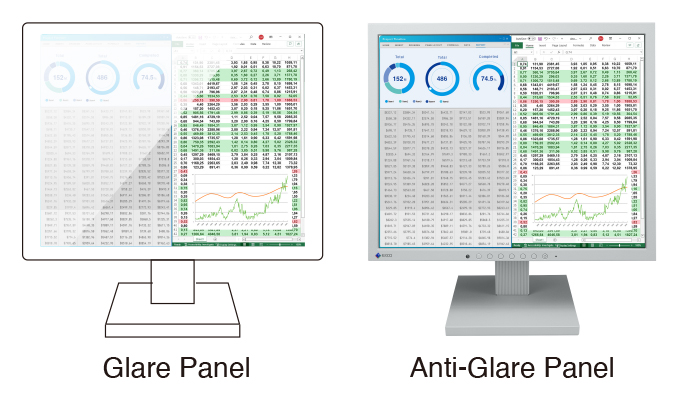

Glare Reduction
The panel is treated with an anti-glare coating to reduce screen reflections caused by ambient lightning. This makes the screen easier to see and helps reduce eye fatigue.
5-Year Warranty
|
FlexScan monitors are backed by a standard 5-year manufacturer's warranty that covers all components, including the LCD panel*. This extensive warranty period is two years longer than the standard warranty of most conventional monitors. EIZO's 5-year manufacturer's warranty contributes to significantly lower product life cycle costs.
* Usage time is limited to 30,000 hours. |
|
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). |
 |
|
Environmentally Conscious FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system. |
   |
|
|
Higher Work Efficiency FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue. |
 |
| Model Variations |
S1734-HBK: with Height Adjustable Stand, black
S1734-HGY: with Height Adjustable Stand, gray S1734-TBK: with Tilt Stand, black S1734-TGY: with Tilt Stand, gray S1734-FBK: without stand, black S1734-FGY: without stand, gray Note: Stand is removable |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | LED |
| Size | 17.0" (43.3 cm) |
| Native Resolution | 1280 x 1024 (5:4 aspect ratio) |
| Viewable Image Size (H x V) | 337.9 x 270.3 mm |
| Pixel Pitch (H x V) | 0.264 x 0.264 mm |
| Pixel Density | 96 ppi |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 250 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 5 ms (gray-to-gray) |
| Color Gamut (typical) | sRGB |
| Video Signals | |
| Input Terminals | DVI-D (HDCP 1.4), D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) | 31 - 64 kHz / 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 64 kHz / 55 - 61 Hz |
| Sync Formats | Separate |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 6 W |
| Maximum Power Consumption | 13 W |
| Power Save Mode | 0.5 W |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB, Paper |
| Automatic Brightness Control | Auto EcoView |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) |
S1734-H: 367 x 391.5 - 491.5 x 204.6 mm
S1734-T: 367 x 383.8 x 188 mm |
| Dimensions (Without Stand, W x H x D) | 367 x 304 x 59 mm |
| Net Weight |
S1734-H: 5.1 kg
S1734-T: 4.1 kg |
| Net Weight (Without Stand) | 3.3 kg |
| Height Adjustment Range |
S1734-H: 100 mm
S1734-T: - |
| Tilt |
S1734-H: 30° Up, 0° Down
S1734-T: 30° Up, 5° Down |
| Swivel |
S1734-H: 35° Right / 35° Left
S1734-T: - |
| Pivot |
S1734-H: 90° (clockwise)
S1734-T: - |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 5 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | TUV/Ergonomics, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES (B), TUV/S, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DVI-D (2 m), D-Sub mini 15 pin (1.8 m) |
| Others | AC power cord (2 m), setup guide |
| Warranty | 5 Years |
| Dimension Drawing |
- 2 With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
