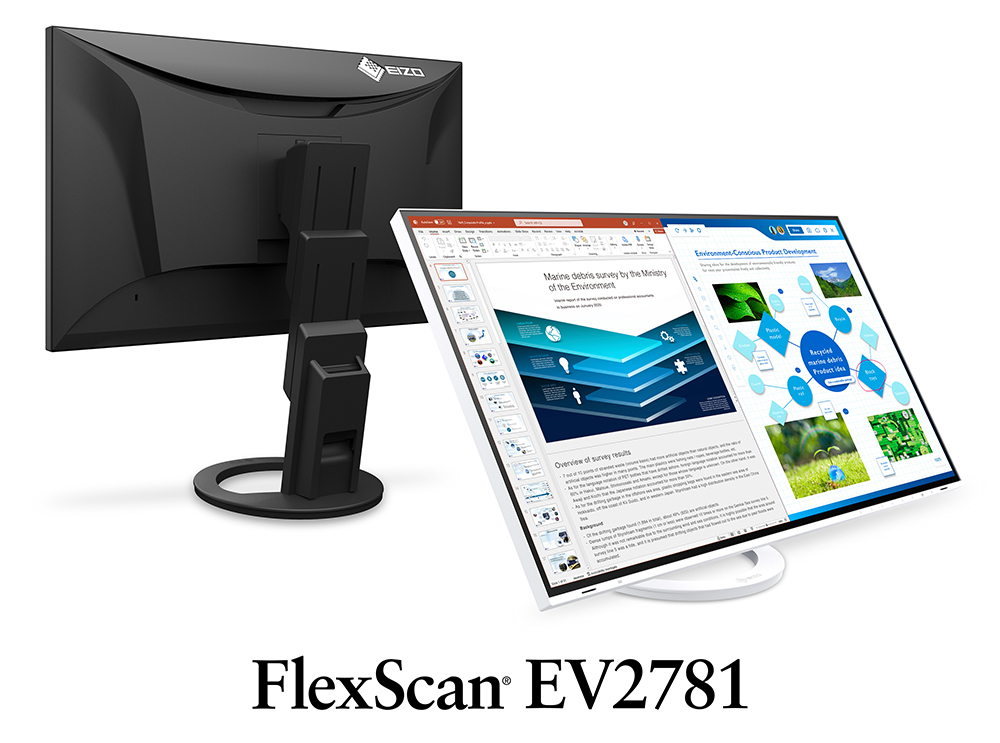

FlexScan EV2490
27.0" Color LCD monitor
The New Standard for
a Better Working Experience
The 27-inch EV2781 is a WQHD (2560 x 1440 pixel) monitor equipped with USB Type-C for improving productivity and comfort at the office or at home.
  • Contact EIZO
  • AR Visualization
2 items

  • Features
  • Specifications
  • Documents Compatibility
  • Accessories
  • Awards & Reviews

See FlexScan New Standard Monitor Features in Action



Streamlined Connection with USB Type-C

The monitor is equipped with a USB Type-C® connection that allows users to display video, playback audio, transmit USB signals, and supply power to connected devices. This convenient multi-purpose connectivity makes it faster and easier to connect a laptop when moving between workstations or when working away from the office.

Streamlined Connection with USB Type-C



70 Watt Power Delivery

The 70 watt power delivery via USB Type-C reliably charges small desktop PCs and laptops. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.

70 Watt Power Delivery



Directly Connect Peripherals

While many modern laptops are designed to be thin and more portable, they often have limited connectivity options for peripherals. Connecting to the monitor via USB Type-C gives access to a hub with four USB Type-A ports for easily connecting an external keyboard, mouse, or web camera.

Directly Connect Peripherals




A Better Working Experience

Workstyles are becoming more diverse with trends in open-plan offices, where employees do not have fixed desk assignments and use the workspace areas interchangeably, BYOD (bring your own device) meeting rooms where participants connect their own laptops, and telecommuting or working from home. The monitor offers features to enhance productivity in these environments, as well as provide comfort and convenience.

Open meeting



High Resolution for Efficient Multi-Tasking

With its  27-inch WQHD (2560 x 1440 pixel) resolution, the EV2781 offers 1.8 times more space than conventional Full HD (1920 x 1080 pixel) monitors. You can easily display multiple windows on the screen for efficient multi-tasking.   High Resolution for Efficient Multi-Tasking



Make the Most of Your Meetings

The monitor’s Picture-by-Picture (PbyP) capability helps to streamline your presentations and save valuable meeting time by removing the need to switch input sources. This convenient function makes it possible to compare data with a coworker side-by-side, as well as share information from multiple sources during presentations.

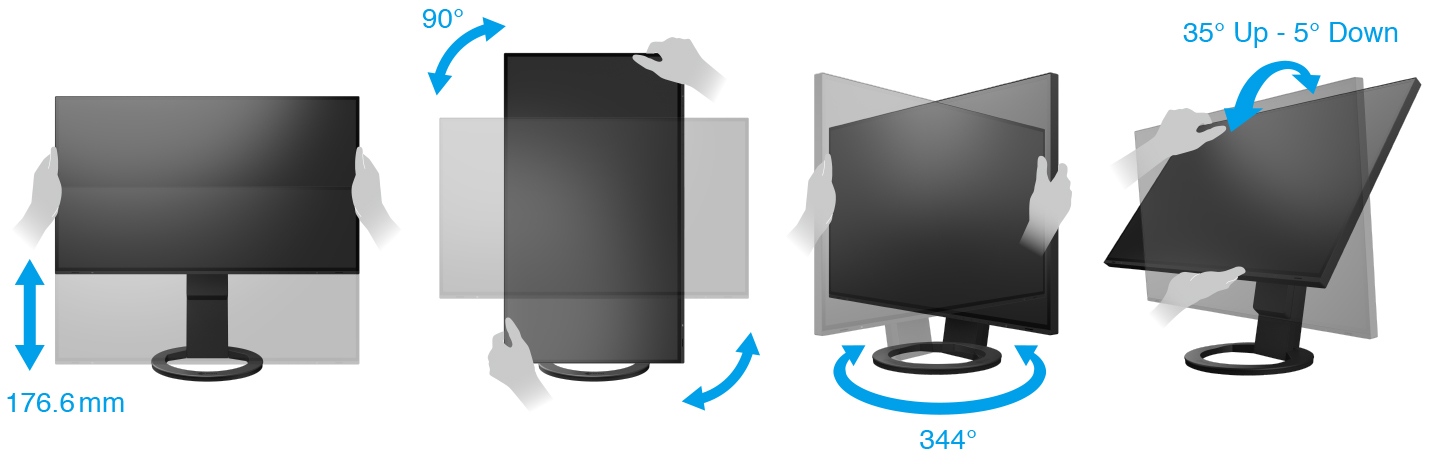

Versatile Stand for Optimal Positioning

The stand has a wide adjustment range, featuring height adjustment, tilt and swivel. This allows you to set the monitor to the perfect position, whether sitting or standing at your desk.

Versatile Stand for Optimal Positioning

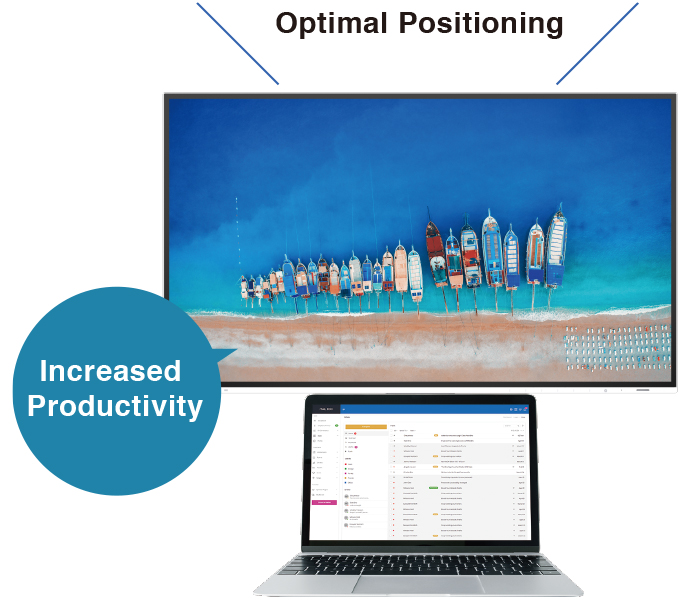

Comfortably Fits in Modest Workspaces

A laptop can fit comfortably under the monitor with the stand set to its maximum height of 176.6 mm. This allows you to take advantage of a compact, multi-screen configuration without taking up valuable desk space.

Versatile Stand for Optimal Positioning

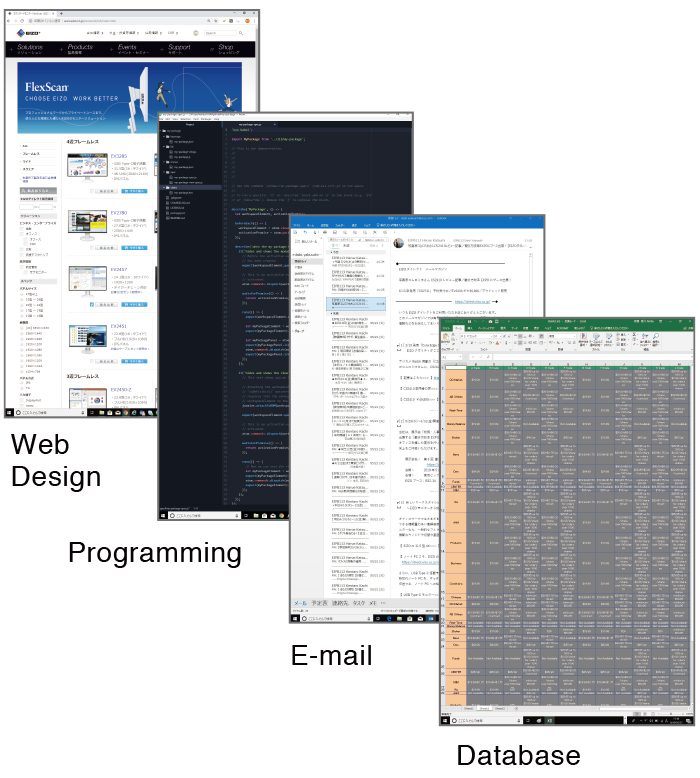

Portrait Mode for Vertical Viewing

The versatile stand allows you to rotate the monitor to portrait mode for reading long text documents or vertically optimized webpages and applications.

Portrait Mode for Vertical Viewing   Portrait Mode for Vertical Viewing

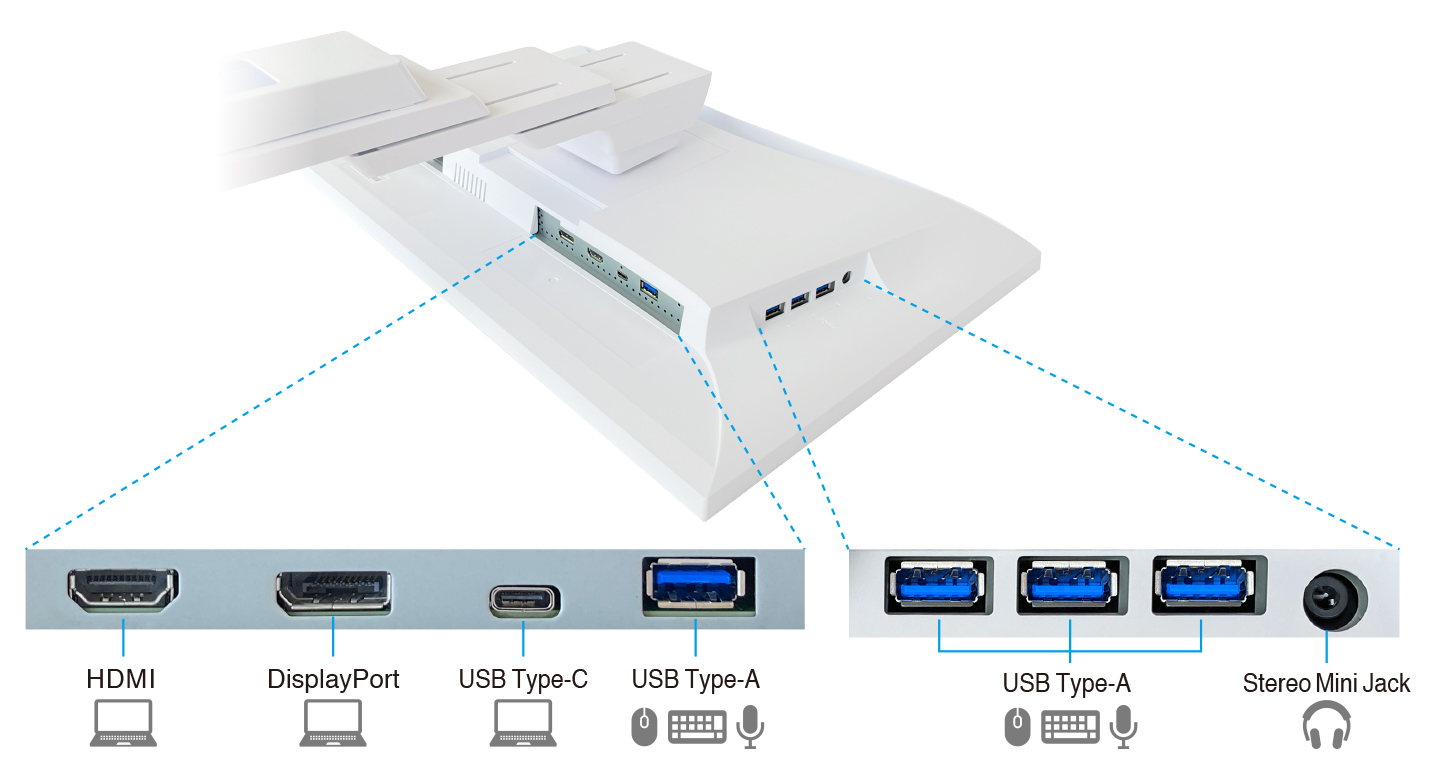

Connectivity and Flexibility

The monitor is equipped with USB Type-C, DisplayPort, and HDMI® video inputs. This is useful in hotdesking environments or shared workspaces where a range of devices are frequently connected.

Connectivity and Flexibility

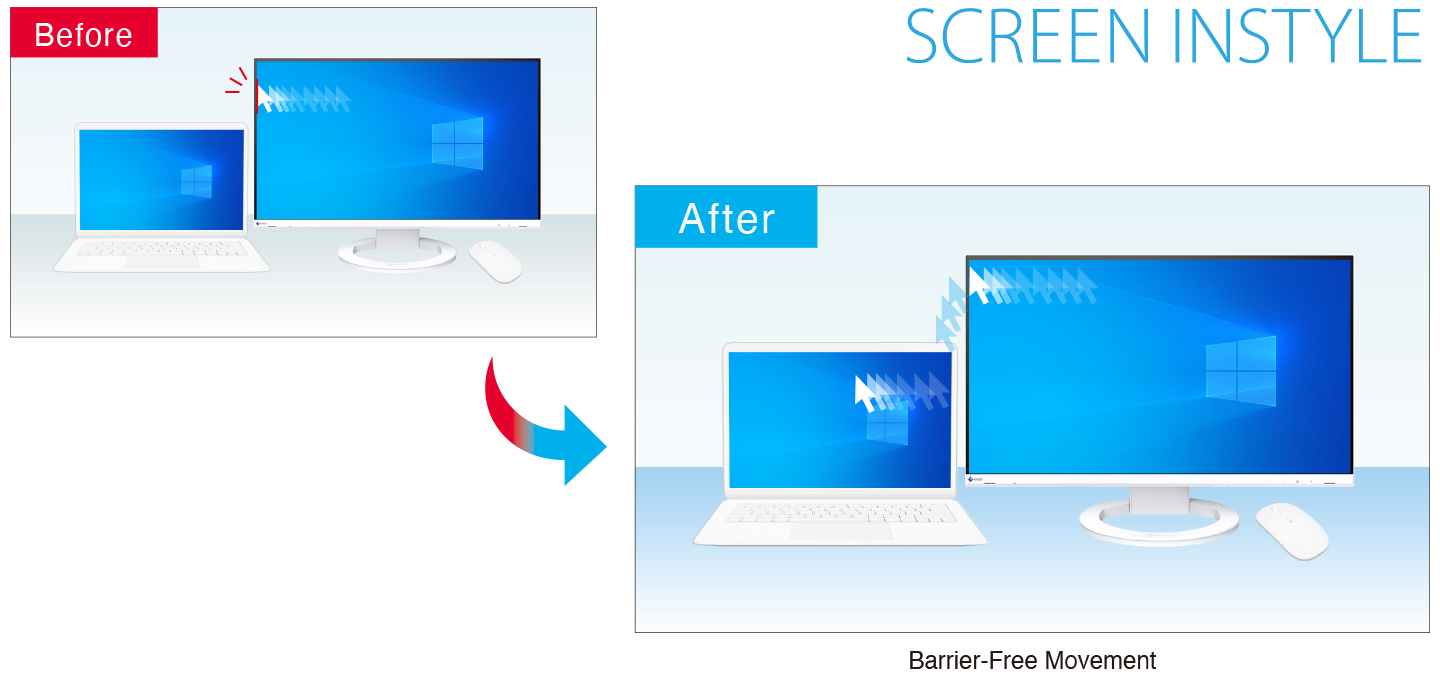

Streamlined Mouse Operation

The Mouse Point Utility function of EIZO's free Screen InStyle software provides an easy-to-see visual indicator that helps you quickly locate the cursor. It also allows you to move the cursor freely between monitors without the barrier typical of conventional multi-monitor setups.

Streamlined Mouse Operation

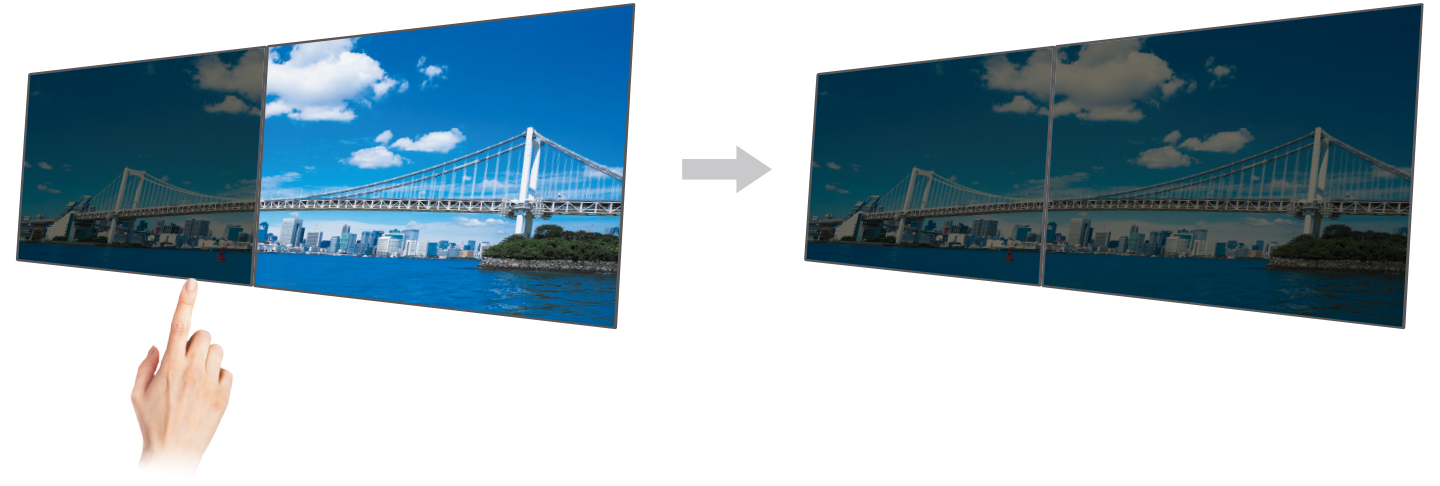

One-Touch Multi-Monitor Management

With Screen InStyle, you can control multiple connected monitors with a single touch. Powering on/off or changing the color mode of any one monitor will automatically carry out the same action on all connected monitors, saving you the hassle of needing to do so on each monitor individually.   Screen InStyle Monitor Control Utility

Screen InStyle




Aesthetically Pleasing Design

A monitor's aesthetic can go a long way in creating a more comfortable atmosphere. The monitor's minimalistic design and its ergonomic functions allow it to fit naturally in your work environment, whether you are at home or in the office.

Aesthetically Pleasing Design


Bezels that are Barely There

The monitor implements a virtually frameless design for a minimalistic aesthetic that is pleasing in any environment.

Bezels that are Barely There



Color Coordination

In addition to sleek black, the cabinet is available in white for a color option that keeps your workspace feeling bright. Furthermore, EIZO provides white cables to match the cabinet for full color coordination.

White model / Black model



Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
Supported Browsers:
Safari, Chrome

Tap below to see how EIZO fits into your workspace with augmented reality.

Supported Models:
ARCore supported Android devices
Supported Browsers:
Chrome

Scan the code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
ARCore supported Android devices
Supported Browsers:
Safari, Chrome

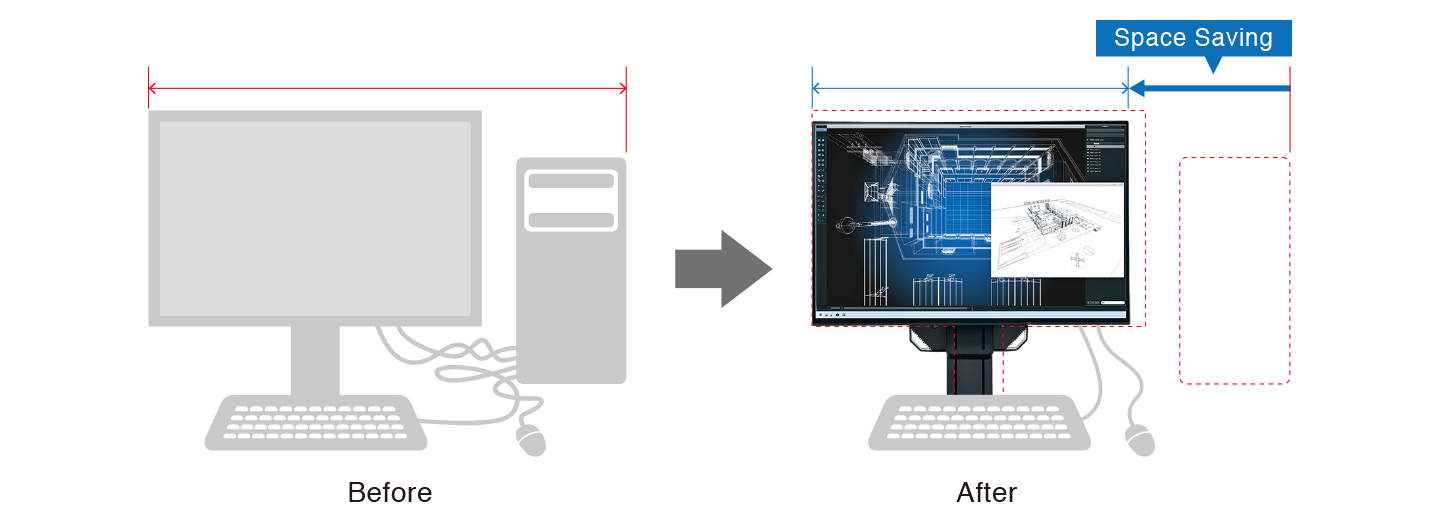

Free Up Your Workspace with a Stand Bracket

The PCSK-03 is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. You can adjust the monitor's stand freely even with the client terminal attached.

Learn more about stand bracket for mini PC

  PCSK-03

Free Up Your Workspace with a Stand Bracket





Say Goodbye to Tired Eyes

The monitor is equipped with functions to help users concentrate on work by keeping their eyes comfortable throughout the day.

Say Goodbye to Tired Eyes

Auto Brightness Control

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.



Auto Brightness Control

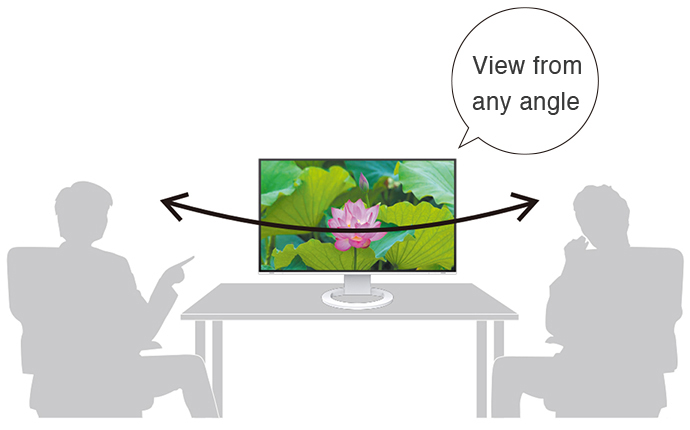

Clear View from All Angles

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.

Clear View from All Angles

Reduce Blue Light by 80%

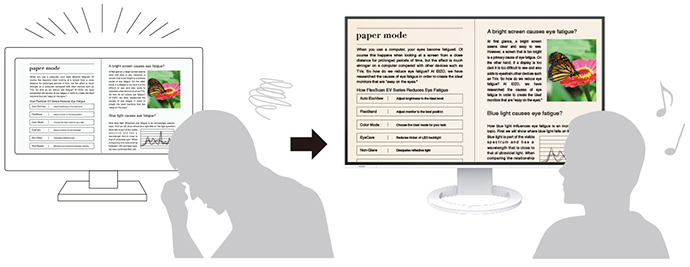

Printing work-related documents is becoming less common due to the increase in home offices, telecommuting, and stricter security measures. Paper Mode reduces the amount of blue light emitted by the monitor, helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView dimming function, blue light is reduced by as much as 80%.


Reduce Blue Light by 80%

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The monitor utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.

Flicker-Free Viewing

Minimum Brightness of 1 cd/m2

In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m² which is less than 1% of the maximum.

Minimum Brightness of Approximately 1 cd/m2

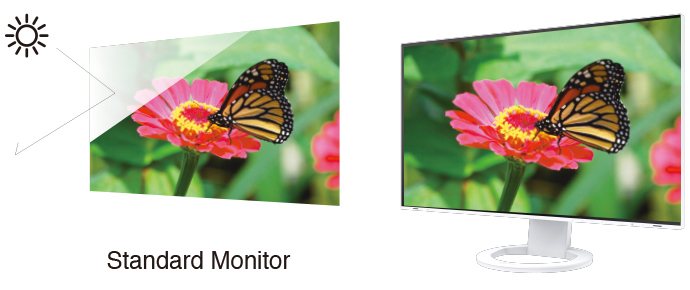

Glare Reduction

The panel is treated with an anti-glare coating to reduce screen reflections caused by ambient lightning. This makes the screen easier to see and helps reduce eye fatigue.


Anti-Glare Coating

Certified for Eye Care

FlexScan monitors are certified by TÜV Rheinland to have low blue light and be flicker-free.

Read more about how to combat eye fatigue




tuvrheinland logo







Commitment to Quality

EIZO manufacturers its products at its own facilities to allow close control over production quality and ensure each monitor is built to last.

Commitment to Quality

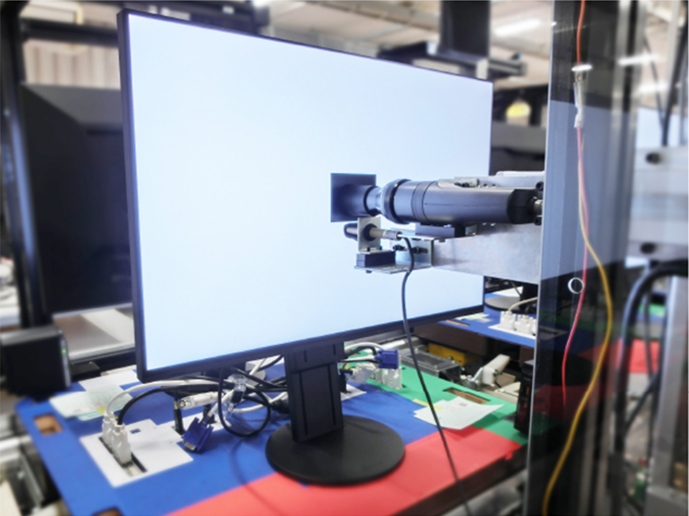

Integrated Approach

Each FlexScan monitor is developed, manufactured, and quality-control tested in-house at EIZO's own factory to ensure every product is built to last.

Auto Brightness Control

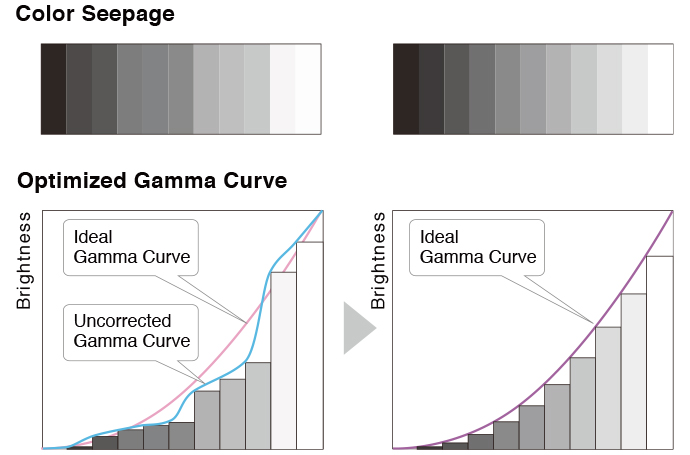

Exceptional Image Reproduction

The monitor converts the data from an 8-bit input signal and selects the optimal gradations for smooth image display. Furthermore, each monitor is individually measured and adjusted at the factory prior to shipping for exceptional image quality out of the box.


Refreshing White with Frameless Design Refreshing White with Frameless Design



Zero Bright Pixels

EIZO guarantees its FlexScan monitors will be free from bright sub-pixels for six months from the date of purchase.
See our Bright Pixel Policy for details.
Zero bright policy



5-Year Warranty

FlexScan monitors are backed by a standard 5-year manufacturer's  warranty that covers all components, including the LCD panel*. This extensive warranty period is two years longer than the standard warranty of most conventional monitors. EIZO's 5-year manufacturer's warranty contributes to significantly lower product life cycle costs.
* Usage time is limited to 30,000 hours.






Advanced Feature

Care for the Environment and You

Achieving a sustainable society where we do no harm to the environment nor waste precious resources is an important initiative for businesses and communities. FlexScan Sustainable Monitors are at the forefront of EIZO's efforts to contribute to this sustainable future.

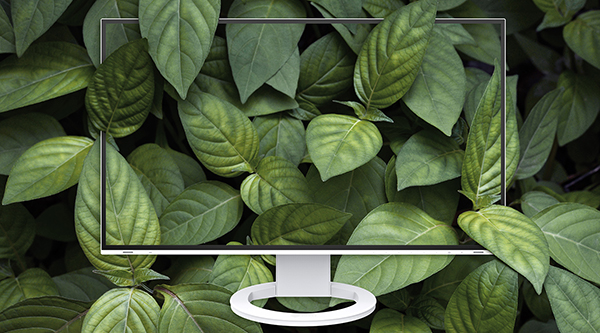

Sustainable Monitor



Conserve to Preserve

EV2781 is made of more than 60% recycled plastic. This cuts down on the amount of plastic waste going into the environment, conserves resources, and promotes reuse of materials for preserving our natural ecosystems.

  リサイクルで生まれ変わる



Cushioning Environmental Impact

FlexScan Sustainable Monitors are moving away from using plastic and styrofoam in the packaging to reduce environmental impact. The monitors are safely packed using molded pulp, which is made from recycled cardboard and newspaper, and cables are wrapped in paper instead of plastic bags.   Molded pulp

Cushioning Environmental Impact



Collective Environmental Consciousness

EIZO offers corporate customers a collective packaging option, where four monitors are packaged in a single box and four monitor stands are packaged separately, also in a single box. This reduces the total packaging materials used, improves loading efficiency during shipping, and streamlines unpacking and installation time.

Collective Environmental Consciousness



Effortlessly Save on Power Consumption

The Auto EcoView function automatically adjusts the screen’s brightness according to changes in the ambient lighting. The EcoView Optimizer 2 function fine-tunes the balance between brightness and gain according to the content displayed on the screen. These proprietary EcoView technologies cut power consumption by as much as 50%* compared to displaying at maximum brightness.

*Typical power consumption when not using USB power delivery.

Reduce Power Consumption



Certified Sustainable

The monitor is certified by worldwide comprehensive sustainability standards including TCO Certified Generation 9 and EnergyStar. Furthermore, the monitor is registered at EPEAT Gold (highest tier), indicating that it meets the most demanding set of criteria for sustainability, and has attained the new EPEAT Climate+ designation for compliance with climate change standards. Organizations concerned with ESG (environmental, social, and governance) investments or SDGs can assuredly procure the monitor to meet required guidelines.   TCO Certified GenerationEnergyStarEPEAT Climate+ Gold




Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).   SDGs Logo

Environmentally Conscious
FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system.

SDGs 07SDGs 12SDGs 13

Higher Work Efficiency
FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue.

SDGs 08



Choose My Workstyle

Model Variations EV2781-BK: with FlexStand, black
EV2781-WT: with FlexStand, white
EV2781-FBK: without stand, black
EV2781-FWT: without stand, white

Note: FlexStand is removable
Panel
Type IPS
Backlight LED
Size 27.0" (68.5 cm)
Native Resolution 2560 x 1440 (16:9 aspect ratio)
Viewable Image Size (H x V) 596.7 x 335.7 mm
Pixel Pitch (H x V) 0.233 x 0.233 mm
Pixel Density 109 ppi
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1000:1
Response Time (typical) 5 ms (gray-to-gray)
Color Gamut (typical) sRGB
Video Signals
Input Terminals USB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (HDCP 1.4)
Digital Scanning Frequency (H / V) USB Type-C: 31 - 89 kHz / 59 - 61 Hz
DisplayPort: 31 - 89 kHz / 59 - 61 Hz
HDMI: 31 - 89 kHz / 49 - 51 Hz, 59 - 61 Hz
USB
Upstream USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 70 W max.)
Downstream USB 5Gbps: Type-A x 4
Audio
Speakers 1.0 W + 1.0 W
Input Terminals USB Type-C, DisplayPort, HDMI
Output Terminals Headphones (Stereo mini jack)
Power
Power Input AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption 18 W
Maximum Power Consumption 153 W
Power Save Mode 0.5 W or less
Features & Functions
Preset Modes User1, User2, sRGB, Paper, Movie, DICOM
Simultaneous Display Picture by Picture (2 PbyP)
Automatic Brightness Control Auto EcoView
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D) 611.4 x 368.6 - 545.2 x 230 mm
Dimensions (Without Stand, W x H x D) 611.4 x 356.6 x 56 mm
Net Weight 8.5 kg
Net Weight (Without Stand) 5.7 kg
Height Adjustment Range 176.6 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90° (both clockwise and counter clockwise)
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 5 - 35°C
Operating Humidity (R.H., non condensing) 20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.) TCO Certified Generation 9, EPEAT Gold with Climate+, TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EAC
Dedicated Software
Monitor Control Utility Screen InStyle Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables USB Type-C (2 m)
Others AC power cord (2 m), setup guide
Warranty 5 Years
Zero bright sub-pixels for six months from date of purchase.
Dimension Drawing PDF
  1. 2  With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
  2. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
  3. 16  EPEAT registration varies by country. Please check https://www.epeat.net for registration status.

Brochures

FlexScan Series 2024
10.1 MB

Download



Manuals

Languages

EV2781 User's manual English 2.91 MB PDF
EV2781 User's manual German 2.89 MB PDF
EV2781 User's manual French 2.89 MB PDF
EV2781 User's manual Russian 2.95 MB PDF
EV2781 User's manual Czech 1.46 MB PDF
EV2781 User's manual Chinese-Simplified 3.6 MB PDF
EV2781 User's manual Chinese-Traditional 3.51 MB PDF
EV2781 Setup guide English
German
French
Russian
Chinese-Simplified
Chinese-Traditional
1.44 MB PDF
Screen InStyle Server User's manual English 355 KB PDF
Screen InStyle Installation Guide English 200 KB PDF
LIMITED WARRANTY English
German
French
Russian
Chinese-Simplified
Chinese-Traditional
630 KB PDF

Compatibility

Date Subject
September 24, 2024 macOS Sequoia (15) and EIZO Software Compatibility
August 29, 2024 USB Type-C Equipped PCs and FlexScan Compatibility
July 2, 2024 Apple M1/M2/M3 series Chip Equipped Mac Computer and Monitor Compatibility
November 14, 2023 Compatibility Issue Causing External Monitor Flicker or Image Burn-In when Connected to Mac Computer with Apple M1/M2/M3 Series Chip
May 2, 2023 Microsoft Windows 10 and EIZO Software Compatibility

Technical Information

September 5, 2024 How to switch the input signals by using hotkeys with two PCs [PDF]

Screen InStyle allows you to switch the input signals using the Hotkeys function. This document describes how to switch the input signals using hotkeys and how to configure Screen InStyle.

Arms
LA-011-W

35° up tilt and 180° swivel wide adjustment range

Mounting Bracket
PCSK-03

Dedicated bracket for attaching a client to the back of the FlexScan Frameless models

Mounting Bracket
VESAMP100

VESA mounting plate for attaching an IP decoding box to certain FlexScan monitors using VOP-01

Software
Screen InStyle (Windows)

- Monitor control utility
- Multi-monitor power management
- Blue light reduction

Software
Screen InStyle (macOS)

- Monitor control utility
- Multi-monitor power management
- Blue light reduction

Software
Screen InStyle Server

- Asset management and monitor control software
- Automatic acquisition of monitor and PC device information
- Collective adjustment of monitor color and power settings

Cable
CC100

Short 1m USB Type-C Cable

Cable
CP200

2m USB Type‐C to DisplayPort Cable

Monitor Cleaning Kit
ScreenCleaner

- Keep your screen free from dust and fingerprints
- Includes pump spray and cloth

WINMAG Pro   WINMAG Pro (Netherlands)
September 14, 2022
MKB Proof Award 2022

"Due to its great flexibility, the EIZO FlexScan EV2781 fits into any work environment - whether it is an office, the home office, or a flexible working. EIZO underscores its claim as an image display specialist for whom modern technology is as important as responsible business practices, sustainability and product life."





  • likedin
  • facebook
  • X
  • youtube
  • Instagram
  • rss
